Stop the Bird Nest: A Smartstitch Multi-Needle Fix That Saves Your Hook (and Your Sanity)

Bird nesting is one of those visceral embroidery problems that makes your stomach drop. It’s not just a stopped machine; it’s the grinding sound of metal fighting thread, the sight of a black wad packed into the rotary hook, and the sinking realization that you might have just ruined a expensive garment.

Take a breath. On a precision multi-needle machine like a Smartstitch (or its industrial cousins), a bird nest is rarely a mystery. It is a chain reaction of physics. One small miss—a bobbin not clicked in, a needle facing the wrong way, or fabric "flagging" (bouncing)—turns into a jam in seconds.

The good news? It is entirely preventable. By combining the visual steps from the video with professional sensory checks—what you should hear and feel—we can eliminate 90% of these errors before you even press start.

The “Bird Nest Panic” on a Smartstitch Multi-Needle Machine—What That Error Is Really Telling You

When your control panel flashes a thread breakage alert (in the video example, needle position 7), but you see the top thread is still intact, your machine is screaming for help from below.

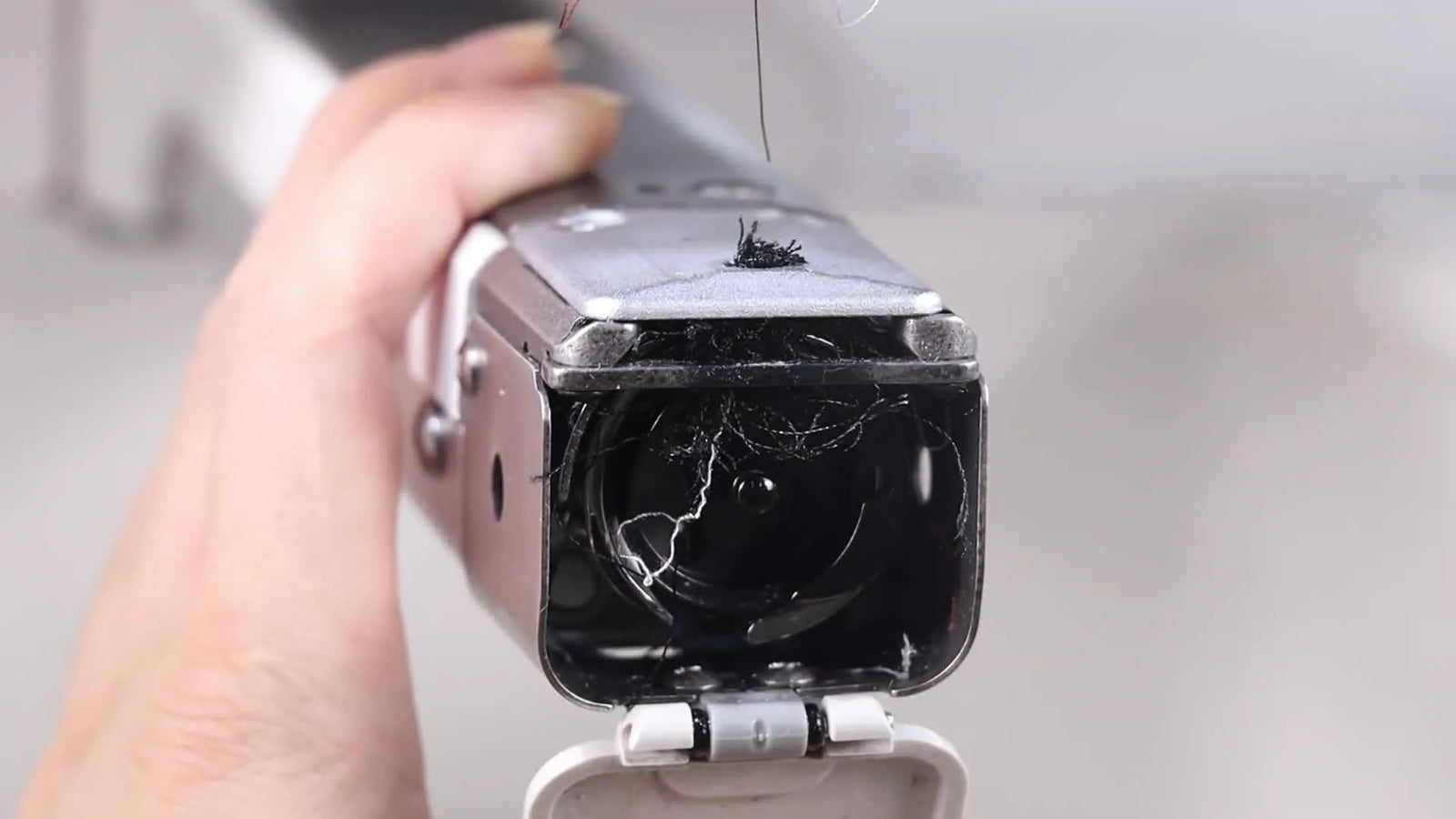

A bird nest happens when the top thread forms a loop, but the rotary hook fails to shed that loop to the bobbin thread to form a lockstitch. Instead, the hook grabs the loop again... and again. The "thread break" sensor triggers not because the thread snapped, but because the machine detects abnormal resistance or a lack of thread movement through the check spring.

The Golden Rule of Safety: If you hear a rhythmic thump-thump or a grinding noise, hit the emergency stop immediately. Do not hope it clears itself. Bird nests get tighter the longer the hook rotates.

If you are setting up a dedicated machine embroidery hooping station for production runs, this is the failure mode that kills your profit margin. Every minute spent digging out a bird nest is a minute you aren't stitching.

Warning: High Injury Risk. Before you touch the needle area or use tools near the hook, Power Down or engage the Emergency Stop. The rotary hook is a sharp metal component that spins at high speed. A slip with scissors or pliers can damage the hook or sever a finger.

The “Hidden Prep” Pros Do Before Touching Tension: Bobbin Case, Needle, Thread, and a Quick Hook Check

Novices jump straight to twisting tension knobs. Experts look at the mechanics first. In the analyzed video, Smartstitch lists seven causes. The first five are physical setup errors.

Prep Checklist: The "Pre-Flight" Routine

(Do this before you rethread or adjust any software settings)

• 1. Safety First: Confirm the machine is stopped and the needle bar is locked in the "up" position.
• 2. Visual Scan: Look for thread wrapped around the presser foot or hanging into the hook opening.
• 3. Tool Check: Have your hidden consumables ready—small curved scissors (snips), needle-nose pliers, and a screwdriver.
• 4. Bobbin Audit: Plan to check bobbin case seating first. It is the #1 culprit for bird nesting.
• 5. Hygiene Check: If the bobbin area looks like a dryer lint trap, stop. Clean it with a brush or controlled air burst.


The “Click Test”: Seating the Smartstitch Bobbin Case Until It Locks (Reason #1)

The video is very specific, but I want to add a sensory anchor here: The Click.

When you install the bobbin case into the rotary hook, you cannot rely on your eyes. It needs to be tactile. Push the bobbin case in until you hear a sharp, metallic “click.”

• No Click? The case is "floating." As soon as the machine starts (800+ stitches per minute), the case will vibrate out of position, the needle will hit metal, and you will have a catastrophic nest instantly.
• The Fix: Remove and reinsert. Use your thumb to push firmly on the center latch or the casing rim until it locks. Shake the case handle slightly to ensure it doesn't wobble.

Needle Direction Isn’t Optional: Groove Front, Scarf Back (Reason #2)

Industrial needles are not round; they have specific geography designed to let the hook pass within millimeters of the needle without hitting it.

• The Groove: Run your fluid fingernail down the front of the needle. You should feel a long channel. This protects the thread as it pierces the fabric. This must face you (Front).
• The Scarf: This is a cutout indentation on the back. It creates room for the rotary hook point to grab the thread loop. This must face the machine (Back).


The Diagnostic: If you recently changed a needle and now have nesting issues specifically on that needle bar, remove it. 9 times out of 10, it was inserted slightly twisted.

The Thread Path Trap: Missing the Take-Up/Check Spring Creates Instant Slack (Reason #3)

Tension isn't just about the knobs; it's about the path. The video highlights a critical error: missing the Take-Up Lever or the Check Spring.

The take-up lever pulls the thread tight after each stitch. If the thread slips out of this eyelet, the loop underneath the fabric never gets pulled up. It remains a loop. The next stitch adds another loop. Result: Bird nest.

The Floss Test:

1. Rethread the machine.
2. Before threading the needle eye, pull the thread down near the needle bar.
3. Feel the resistance. It should feel like pulling dental floss—smooth but firm drag. If it feels loose or weightless, you have missed a tension disc or the check spring.
4. Watch the visual cue from the video: if the thread clamp/spring doesn't bounce while embroidering, you are about to nest.


The One-Direction Tension Move: Tighten the Top Thread Clockwise (Reason #4)

If your mechanics (bobbin, needle, path) are perfect, then you look at tension. The video advises a simple rule: if you have loops on the bottom (nesting), the top thread is too loose.

Turn the main tension knob clockwise (Righty-Tighty).

The "Sweet Spot" Strategy:

• Don't crank it. Turn the knob in increments of 0.5 or 1 turn max.
• Target: For standard polyester 40wt thread, you generally want about 100g-130g of pull force on the top (if you have a tension gauge). Without a gauge, look for the "H" test on the back of the embroidery: you should see 1/3 bobbin thread (white) in the center, flanked by the top thread color.
• Note: Bird nesting is an extreme tension failure (zero tension). If you just have loose stitches, that's a fine-tuning issue. If you have a nest, the tension is likely zero—check for lint stuck in the tension disks keeping them forced open.

Hooping That Doesn’t Lie: Flat, Tight, and Stabilized (Reason #5)

Smartstitch calls it out plainly: the fabric must be flat and tight. I will go further: Hooping is the single most important skill in embroidery.

If your fabric is loose, it travels up and down with the needle (Flagging). When the fabric lifts, the loop formation gets messy, and the hook misses.

If you are doing manual hooping for embroidery machine work, your goal is "Drum Tight." Tapping the framed fabric should create a thumping sound.

Stabilizer Decision Tree (Use this to stop guessing)

• Scenario A: Stretchy Fabric (T-shirts, Polos, Knits)
  • Risk: High flagging + Distortion.
  • Stabilizer: Cutaway (2 layers if thin). Tearaway is dangerous here.
  • Hooping: Do not stretch the fabric; lay it neutral.
• Scenario B: Stable Fabric (Denim, Canvas, Twill)
  • Risk: Low.
  • Stabilizer: Tearaway (1-2 layers).
  • Hooping: Clamp firmly.
• Scenario C: Thick/Difficult Items (Jackets, Bags)
  • Risk: Hoop popping open + Hoop burn marks.
  • Upgrade Path: This is where standard plastic hoops fail. Professionals upgrade to Magnetic Hoops.

The Commercial Solution for Hooping Pain: If you struggle to get thick items hooped, or if you are tired of "hoop burn" (white rings on dark fabric), standard hoops are your bottleneck. magnetic embroidery hoops use powerful magnets to sandwich the fabric without forcing it into an inner/outer ring gap. This creates consistent tension without the physical struggle, significantly reducing flagging-related bird nests.

Warning: Magnetic Hazard. Magnetic hoops are incredibly strong. Keep them away from pacemakers, insulin pumps, and credit cards. Watch your fingers—they snap together with enough force to pinch severely.

Don’t Ignore the Dirty Hook: Dust, Lint, and “No Oil” (Reason #6)

Embroidery creates dust. Thread dust + oil = sludge. The video notes that a lack of oil or excess lint causes friction.

Maintenance Rule:

• Every 4-8 hours of runtime: One drop of clear embroidery oil on the hook race (consult your manual).
• Every bobbin change: Blow out or brush out the lint. A hook that spins freely sheds thread freely. A sticky hook traps it.

When the Design Is the Problem: “Too Dense” Patterns Can Force a Nest (Reason #7)

Sometimes the machine is innocent. If the digitizer programmed 20,000 stitches into a 2-inch square, you have created a "bulletproof vest," not embroidery.

Red Flags in Design:

• Density: Stitches overlapping heavily (e.g., dense tatami fill under dense satin column).
• Short Stitches: Too many stitches under 1mm length can cause thread buildup and shredding.
• The Fix: You cannot fix this at the machine. You must go back to the software to reduce density or increase stitch length.

The Safe Removal Routine: Cutting, Extracting, Rotating the Hook, and Reinstalling the Bobbin Case

You have a nest. Now, let's extract it without breaking the $100+ rotary hook assembly. Follow the video's sequence exactly.

1) Cut the connecting threads under the hoop (Cleanup Phase 1)

Do not just yank the hoop off. You will bend the needle bar.

Action: Lift the hoop slightly. Slide your snips underneath. Cut the "column" of thread connecting the fabric to the needle plate. Result: The hoop releases freely.

2) Remove the bobbin case and pull out the nest (Cleanup Phase 2)

The bobbin case might be jammed tight.

Action:

1. Remove the bobbin case (if stuck, you may need gentle leverage).
2. Use needle-nose pliers to grab the visible wad of thread.
3. Pull gently. If you feel hard resistance, stop—you might be pulling against the cutting blade. Wiggle it.


3) Use the control panel to rotate/reset (Cleanup Phase 3)

Smartstitch uses the manual trim / hook rotate function (scissors icon) to help dislodge hidden thread pieces.

Action: Press the cutter/rotate button. This rotates the hook electronically, often spitting out the last trapped fragment.

4) Reinstall the bobbin case (and confirm the click)

Never skip the final check.

Action: Reinsert, listen for the Click, and do a test stitch on scrap fabric.

Setup Habits That Prevent Repeat Jams (and Make Hooping Faster on Real Orders)

If you are running a business, you need protocols, not luck.

Operation Checklist: The "Zero-Fail" Start

• Bobbin: Is it seated? Did it Click?
• Needle: Is the groove facing me?
• Path: Does the thread pass through the take-up lever? (Do the Floss Test).
• Tension: Start at standard settings (usually top tension knobs between 3-5 or centered). Tighten clockwise only if loops appear.
• Hooping: Is it drum tight? Did I use the right stabilizer?

For shops scaling up, consistency is key. Using a dedicated embroidery hooping system ensures that every shirt is hooped at the same tension and location, regardless of which employee is doing the work.

When you start hitting volume where standard hoops slow you down, terms like hooping stations and magnetic hooping station become vital investments. They aren't just for speed; they provide the mechanical stability required to prevent the fabric flagging that causes nests in the first place.

Two Comment Problems Worth Addressing: “Top Thread Showing” and the “Needle Length Exceeds Upper Limit” Message

1) “My top thread is poking out on top and doesn’t look seamless.” While the video focuses on loops underneath (too loose top), this user has thread visible on top (too tight top).

• Diagnosis: Your top tension is too high, or your bobbin tension is too low. The top thread is strangling the bobbin thread.
• Fix: Turn the top tension knob Counter-Clockwise (loosen) slightly.

2) “The current needle length exceeds the upper limit—what do I do?” This is a software/firmware protection error common on computerized machines like Smartstitch.

• The Fix: As noted by the manufacturer, manually forward the design by one stitch. If it persists, check the website for a system update.

The Upgrade Path: When Better Hoops and Better Workflow Beat “More Tension” Every Time

If you find yourself constantly fighting these issues despite following the rules, diagnose your equipment level:

1. Level 1 (Technique): Use the Checklists above. Ensure you are using high-quality thread and the correct backing.
2. Level 2 (Tooling): If hooping is your primary source of frustration (hoop burn, slipping, wrist pain), upgrade to Magnetic Hoops. They are the industry standard for efficiency and hold fabric flatter than plastic hoops ever can. embroidery machine hoops have evolved; don't suffer with old technology.
3. Level 3 (Capacity): If you are running a single-needle machine and losing money on speed and color changes, it’s time to look at multi-needle platforms like SEWTECH solutions. Production machines are designed to run all day with tighter tolerances on the rotary hook, making them more forgiving of dense designs.

Bird nesting is a rite of passage. Master the "Click," verify the path, and hoop tight. You'll stop fearing the machine and start trusting your hands.

Struggling with a specific fabric? Drop a comment below with your setup, and we can help diagnose if it's a stabilizer issue or a machine setting.

FAQ

• Q: On a Smartstitch multi-needle embroidery machine, what should be checked first when the panel shows a thread break alert but the top thread is not broken (bird nesting symptom)?
  A: Stop immediately and check the bobbin-case seating first, because a “false thread break” is often the machine feeling resistance from a nest below.
  • Hit Emergency Stop if there is thump-thump or grinding, then power down before reaching near the hook.
  • Remove the hoop, cut the connecting thread column under the hoop, then remove the bobbin case and clear the wad with snips/pliers.
  • Reinstall the bobbin case firmly until it locks.
  • Success check: the bobbin case installs with a sharp metallic “click” and does not wobble when lightly shaken.
  • If it still fails: re-check needle orientation and the full thread path through the take-up/check spring before touching tension.
• Q: How do Smartstitch rotary-hook bird nests happen when the Smartstitch take-up lever or check spring is missed during threading?
  A: Rethread the Smartstitch thread path correctly, because missing the take-up/check spring leaves slack that turns into instant loops under the fabric.
  • Rethread completely (do not “patch” a partial path), then pull thread down near the needle bar before threading the needle.
  • Perform the “Floss Test” by pulling the thread and feeling for smooth, firm drag instead of loose/weightless pull.
  • Watch the thread clamp/spring behavior while stitching; lack of bounce is a warning sign.
  • Success check: the thread feels like dental floss tension and the check spring/clamp visibly bounces during sewing.
  • If it still fails: check for lint holding tension disks open and confirm bobbin case seating with the click.
• Q: What is the correct needle orientation on a Smartstitch multi-needle embroidery machine to prevent needle-specific bird nesting after a needle change?
  A: Reinstall the needle so the groove faces front and the scarf faces back, because a slightly twisted needle can cause nesting on that one needle bar.
  • Remove the needle from the problem needle position and inspect it before reinstalling.
  • Align the long groove to face the operator (front) and the scarf indentation to face the machine (back).
  • Reseat firmly (do not leave it rotated) and run a quick test stitch on scrap.
  • Success check: nesting stops on that specific needle position after correcting the needle’s groove/scarf direction.
  • If it still fails: verify threading through the take-up/check spring and confirm the bobbin case is fully clicked in.
• Q: On a Smartstitch embroidery machine, how should top thread tension be adjusted when loops or bird nesting appear on the underside of the embroidery?
  A: Tighten the Smartstitch top thread tension clockwise in small steps only after bobbin seating, needle direction, and thread path are confirmed correct.
  • Confirm bobbin case is locked in place, needle is oriented correctly, and the thread path includes the take-up/check spring.
  • Turn the main tension knob clockwise by small increments (about 0.5–1 turn at a time), then test on scrap.
  • Inspect the back of the embroidery for balance rather than guessing.
  • Success check: the underside no longer shows loose loops/nesting and stitch formation looks balanced (no massive slack).
  • If it still fails: clean lint from the tension area and hook zone, because “zero tension” can be caused by debris holding parts open.
• Q: How can Smartstitch hooping be judged as “tight enough” to prevent fabric flagging that causes bird nesting on knits, denim, and thick items?
  A: Hoop fabric flat and drum-tight with the correct stabilizer, because loose fabric “flagging” makes the hook miss loops and triggers nests.
  • Hoop to “drum tight” without stretching knits; keep the garment neutral and flat.
  • Match stabilizer to fabric: cutaway for knits (often 2 layers if thin), tearaway for stable fabrics like denim/canvas/twill, and plan upgrades for thick items.
  • Re-hoop if the fabric can bounce or shift under the needle area.
  • Success check: tapping the hooped fabric produces a firm thumping sound and the fabric does not lift/bounce while stitching.
  • If it still fails: consider a magnetic hoop for thick/difficult items where standard hoops slip, burn, or pop open.
• Q: What is the safest way to remove a bird nest from a Smartstitch rotary hook without damaging the hook assembly?
  A: Cut threads first, then extract gently, then rotate/reset and reinstall the bobbin case, because yanking can bend parts and worsen damage.
  • Cut the thread column under the hoop before removing the hoop to avoid pulling against the needle bar.
  • Remove the bobbin case and use needle-nose pliers to pull the wad gently; stop if hard resistance is felt and wiggle instead of forcing.
  • Use the control panel cutter/rotate function to help eject hidden fragments, then reinstall the bobbin case.
  • Success check: the hook rotates freely afterward and a test stitch on scrap runs without grinding or immediate re-nesting.
  • If it still fails: clean lint from the hook area and re-check bobbin case seating until the click is confirmed.
• Q: What safety steps should be followed when clearing a Smartstitch rotary-hook bird nest and when using magnetic embroidery hoops?
  A: Treat both the rotary hook and magnetic hoops as injury hazards: stop the machine, power down, protect fingers, and keep magnets away from medical devices.
  • Power down or engage Emergency Stop before touching the needle/hook area; avoid tools near a moving hook.
  • Keep hands clear of pinch points when magnetic hoops snap together; separate and place magnets deliberately.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and items like credit cards.
  • Success check: hands never enter the hook area while powered, and magnets are handled without uncontrolled snapping/pinching.
  • If it still fails: pause the job and reset the workflow—rushing is the most common reason injuries and repeat jams happen.
