Stop the “Bulletproof” Logo: Dialing In Wilcom 2025 Density (Spacing) Without Losing Coverage

If you have ever stitched a logo that turned out feeling like a bulletproof vest—thick, stiff, unbending, and thread-hungry—you are not alone. This is the "Beginner’s Trap."

Most new digitizers and machine operators start with default templates, assuming "the software knows best." It usually does... provided you are stitching on sturdy denim. But the moment you move to a performance knit, a beanie, or a thin polo, that same file puckers, tunnels, or curls up like a potato chip.

This guide rebuilds the lessons from the Wilcom 2025 tutorial on density (which they call Spacing) but filters it through 20 years of shop-floor reality. We will explore how density interacts with the "Holy Trinity" of embroidery physics: Underlay, Stabilization, and Hooping.

Density vs. Spacing: The Vocabulary of Physics

In Wilcom 2025—and frankly, in the mind of any professional digitizer—the setting is labeled Spacing, and this is the most accurate way to visualize it.

Imagine a farmer plowing a field:

• Smaller Spacing (e.g., 0.35mm) = High Density: The furrows are packed tight. This creates a solid block of color but adds immense stress to the fabric.
• Larger Spacing (e.g., 0.45mm) = Low Density: The furrows are farther apart. This is softer and faster, but if you go too far, you see the "dirt" (the fabric) underneath.

The Golden Rule: You are measuring the gap between parallel rows of stitching, not the thickness of the thread itself.

Density is never a "set it and forget it" number. It is a balancing act. If your fabric is unstable (like a stretchy dri-fit), you cannot fix it just by cranking up the density. In fact, that usually makes it worse. You must build a foundation with proper hooping for embroidery machine technique first.

The "Hidden" Prep: Do This Before Touching the Software

Before you change a single number in your software, you must secure the physical reality of your machine. A "perfect" file will still fail if the canvas—your fabric—is moving.

Phase 1: The Physical Prep Checklist

Perform these checks. If you skip these, no amount of digitizing will save the design.

• The "Drum Skin" Tactile Check: When hooped, your fabric should be taut but not stretched. Tap it. It should sound like a dull drum (thud-thud), not loose fabric.
• Consumable Audit:
  • Needle: Is it fresh? A burred needle creates friction, which looks like a density problem.
  • Bobbin: Is the tension correct? (The "Yo-Yo Test": hold the thread; the case should slide down slightly when jerked, but hold still otherwise).
  • Spray/ Adhesive: Have you used temporary spray adhesive (like 505) to bond the stabilizer to the garment? This prevents the "shifting" that often forces people to over-densify.
• Hoop Selection: Are you using the smallest hoop possible for the design? Excess space equals excess movement.

Warning: Pinch Hazard. If you are upgrading to magnetic hoops to solve hooping burn issues, be aware that industrial-grade magnets are incredibly powerful. Keep fingers clear of the snapping zone and keep hoops away from pacemakers.

Tracing the Design: Control is King

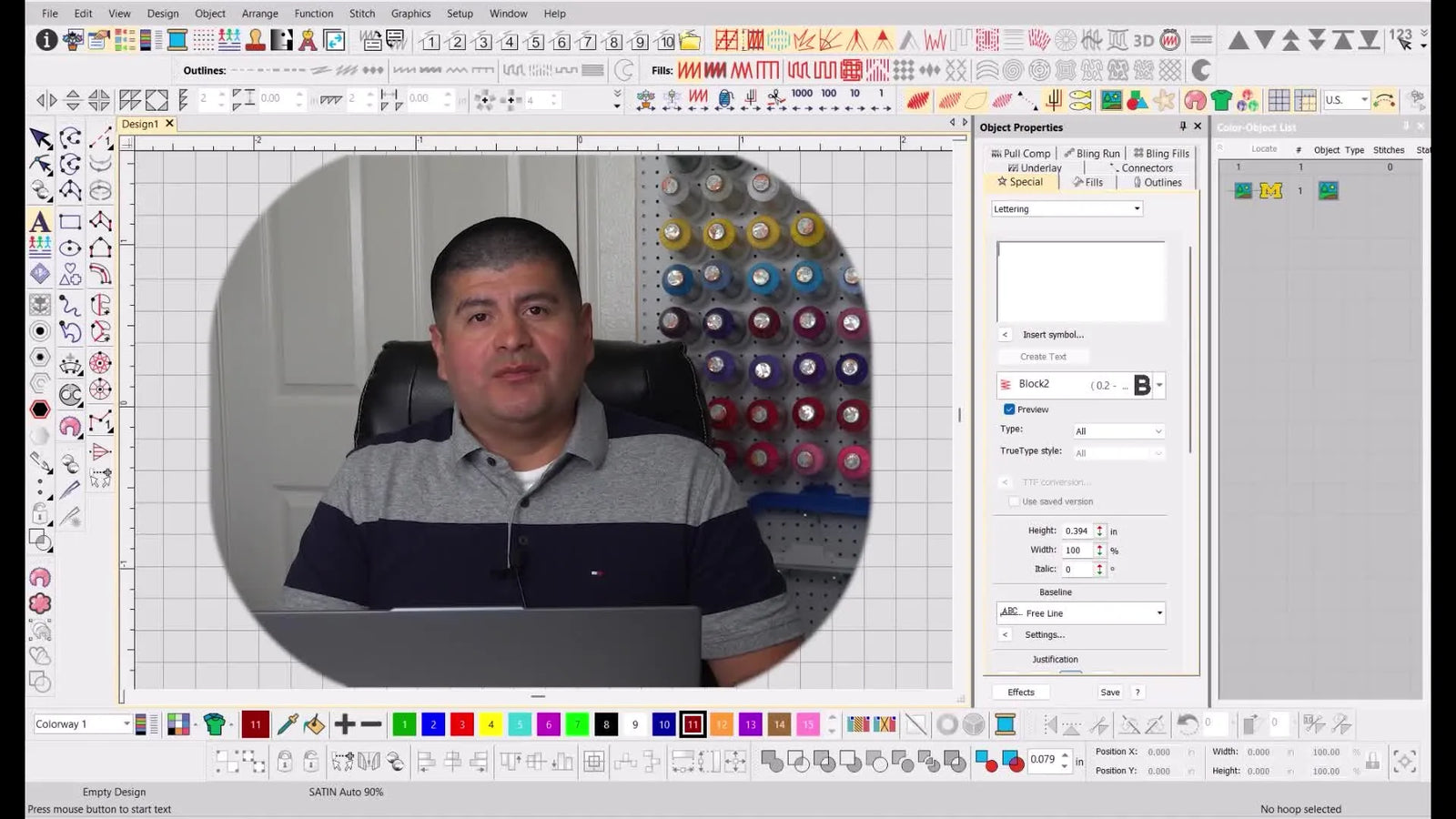

The tutorial begins by tracing the yellow portion of the "M" using manual input points.

Why Manual? Auto-digitizing often creates erratic stitch angles. By using the Complex Fill tool and holding the Control key to constrain lines, you ensure the edges are mathematically straight.

Sensory Tip: When your machine runs a straight edge, it should sound smooth and rhythmic. If it sounds like a machine gun stuttering (rat-a-tat-tat), your nodes are jagged, or your density is forcing the machine to fight the fabric.

The 15° Angle: Avoiding the "Grain Fight"

After creating the fill, the host sets the stitch angle to 15 degrees. This is not an arbitrary artistic choice; it is engineering.

• 0° or 90° (Cardinal Directions): These run directly with or against the grain of woven fabrics. This maximizes the "Push/Pull" effect, causing the fabric to distort or the circle to turn into an oval.
• The 15° - 45° Sweet Spot: angling the stitches slices across the thread grain, distributing the tension more evenly. This reduces the "gap" that appears at the edges, meaning you don't have to increase density to plug holes.


The Satin Perimeter: The Danger Zone

The host converts the border to a Satin stitch and sets the width to 2.50 mm.

The Trap: Beginners often think, "I want a bold border, so I will make it super dense." The Reality: Satin stitches are essentially wrapping the fabric. If you wrap too tightly (density) and too narrowly, you are basically creating a perforated line—like a stamp. Your design will literally cut out of the shirt.

Visualizing Space: The 2.00mm "Aha!" Moment

To truly understand density, you have to break it.

• Standard Tatami: 0.40 mm.
• Demo Setting: 2.00 mm.

At 2.00 mm, the design looks like a loose net. This visual anchor is critical. When you see your software screen, don't just look at the color; look at the white space between the lines. That white space is where the fabric breathes.

The 0.01 mm Profit Lever

This is the most commercially viable lesson in the entire tutorial.

• Baseline (0.40 mm): 4,354 stitches.
• Optimized (0.41 mm): 4,243 stitches.

The Math of Scale: Saving 100 stitches seems trivial on one shirt. But if you are running a 500-piece order on a 6-head machine:

1. Thread: You save thousands of yards over a year.
2. Time: You save 2-3 seconds per run.
3. Wear: That is 100 fewer needle penetrations per shirt.

But the real benefit is Fabric Health. By opening the spacing from 0.40 to 0.41mm, you reduce the "push" effect, meaning your outline stays registered better.

To consistently run these "lighter" files, your hooping must be rock solid. If your operator struggles with hand strength or consistency, a machine embroidery hooping station ensures that every shirt is hooped with the exact same tension, allowing you to trust the software settings.

The "Sweet Spot" Data Ranges

Stop guessing. Based on industry standards and the Wilcom tutorial, here are your safe zones.

Tatami (Fill) Safe Zones

• 0.40 mm (Standard): The default for most software. Good for twill, denim, and stable cotton.
• 0.41 - 0.42 mm (Optimization): Ideal for general production to save time and reduce bulletproof stiffness.
• 0.43 - 0.46 mm (Performance): Use this for thin fabrics (performance polos, T-shirts) if you have good underlay.
• 0.80 mm: Too gappy for coverage; used for texture effects or behind 3D Puff.

Satin (Border) Safe Zones

• 0.38 - 0.40 mm: The Goldilocks zone. It provides solid coverage without cutting the fabric.
• < 0.35 mm: Danger. High risk of thread breaks and needle deflection.


Underlay: The Skeleton of Your Design

Think of density as the "skin" and underlay as the "skeleton."

If you try to support a human body with just skin (Density), it collapses. You need bones (Underlay).

• More Underlay = Less Top Density Required.
• If you use a Double Zigzag or Edge Run + Tatami underlay, you can safely open your top spacing to 0.42mm or 0.45mm. The underlay provides the color coverage foundation, and the top stitch provides the finish.

Commercial Pivot: If you find that your underlay is causing the fabric to ripple (the "walking" effect), your hoop is likely slipping. This is the primary trigger where shops upgrade to magnetic embroidery hoops. The magnetic clamping force prevents the "flagging" (bouncing) of fabric that ruins underlay alignment.

The Fabric Decision Tree

Do not guess. Follow this logic path to determine your stabilizer and density settings.

Scenario A: Heavyweight Canvas / Denim / Twill

• Stability: High.
• Stabilizer: Tearaway is usually fine (2.5oz).
• Density: Standard (0.40 mm).
• Underlay: Edge Run + Tatami.

Scenario B: Performance Knit / Dri-Fit / Golf Polo

• Stability: Low (High Stretch).
• Stabilizer: Must use Cutaway (No-Show Mesh or 2.5oz Cutaway). Bond with spray.
• Density: Lighten it! (0.42 mm - 0.45 mm). Do not strangle the fabric.
• Underlay: Essential to lock the fabric before the heavy fill starts.

Scenario C: Caps / Hats

• Stability: Variable (Curved surface).
• Stabilizer: Tearaway (Cap backing).
• Density: Standard to Tight (0.38 - 0.40 mm). Curved surfaces "open up" the stitches visually.
• Hardware: Requires a precise cap hoop for embroidery machine or driver. If the band slips, no density setting will save you.






Troubleshooting: The "Symptom-Cause-Fix" Protocol

When things go wrong, do not randomly click buttons. Follow this hierarchy to save money and time.

Operational Consistency: The Key to Speed

You cannot troubleshoot density if your machine setup changes every day.

The Production Setup Checklist

Before running your test swatch:

1. [ ] Fresh Needle: 75/11 Ballpoint for knits, 75/11 Sharp for wovens.
2. [ ] Correct Backing: Is it bonded to the fabric?
3. [ ] Thread Path: Is the thread feeding smoothly? (Pull it manually; it should feel like flossing teeth—resistance, but smooth).
4. [ ] Hoop Check: If using a standard hoop, is the screw tightened? If using a magnetic hoop, is it snapped fully shut?

Warning: Mechanical Safety. When testing high-density designs, reduce your machine speed (SPM). High density + High Speed = Needle Deflection. A 1000 SPM impact on a metal throat plate can shatter a needle and send shrapnel toward your eyes. Always wear eye protection.

The Upgrade Path: When to Spend Money

Eventually, you will hit a wall where skill alone cannot increase speed. This is the Production Threshold.

1. If you are fighting fabric slippage:
   Traditional hoops rely on friction and muscle power. If your designs are puckering despite perfect density settings, the issue is likely the hoop. magnetic embroidery hoop systems clamp flat, eliminating the "forcing" of the inner ring, which solves puckering at the source.
2. If your wrists hurt or production is slow:
   If you are hooping 50+ shirts a day, screw-tightening is a health hazard and a bottleneck. A hooping station is not a luxury; it is an ergonomic necessity for consistency.
3. If you cannot keep up with orders:
   Optimizing density (0.41mm vs 0.40mm) saves seconds. But if you need to save hours, the bottleneck is the single-needle changes. Moving to a generic or name-brand multi-needle machine changes the game entirely, allowing you to queue colors without intervention.

Final Thought: Density is just a number in a box. The art is in how that number interacts with the fabric, the backing, and the hoop. Master the physics, and the software becomes easy.

FAQ

• Q: How do I set Wilcom 2025 Spacing to avoid “bulletproof vest” embroidery on cotton polos and performance knits?
  A: Use a slightly larger Spacing number (lower density) instead of tightening the stitches when fabric is soft or stretchy—this is common and fixable.
  • Start from tatami 0.40 mm on stable fabrics, then open to 0.41–0.42 mm for general production, or 0.43–0.46 mm for thin/performance fabrics (with good underlay).
  • Add or improve underlay (e.g., Edge Run + Tatami or Double Zigzag) before increasing top density.
  • Bond cutaway backing to the garment with temporary spray adhesive to prevent shifting that tempts over-density.
  • Success check: The design should feel flexible (not cardboard-stiff) and the machine sound should stay smooth and rhythmic (not “machine-gun” stuttering).
  • If it still fails, re-check hooping tension first; unstable hooping will make any density setting look wrong.
• Q: What is the correct embroidery hooping for embroidery machine “drum skin” test to prevent puckering and registration gaps; how tight is “tight enough”?
  A: Hoop the fabric taut but not stretched, aiming for a dull “drum” feel—tight enough to resist shifting, not tight enough to distort knit grain.
  • Tap the hooped fabric and listen for a dull thud-thud (not a loose flap).
  • Choose the smallest hoop that fits the design to reduce extra movement area.
  • Use temporary spray adhesive to bond stabilizer to fabric so the layers move as one.
  • Success check: The fabric stays flat during stitching and the outline lands on the fill without “white gaps” from shifting.
  • If it still fails, suspect hoop slip during underlay and consider a hooping station or magnetic hoop for more consistent clamping.
• Q: How do I perform the bobbin “Yo-Yo Test” to confirm bobbin tension before changing embroidery density settings?
  A: Do the bobbin case slide test before editing the file, because tension problems can look like density problems.
  • Hold the bobbin case by the thread and gently jerk the thread upward.
  • Adjust until the case slides down slightly on a jerk but holds mostly steady when still.
  • Re-test after any bobbin change or if thread feeding feels inconsistent.
  • Success check: Stitching runs without sudden loops on the underside and the machine runs smoothly without frequent thread breaks.
  • If it still fails, replace the needle (a burred needle can mimic “density friction”) and re-check thread path resistance.
• Q: What Wilcom 2025 satin Spacing range prevents border thread breaks and “stamp perforation” cut-out on thin shirts?
  A: Keep satin Spacing in the safer 0.38–0.40 mm range and avoid going tighter than 0.35 mm, especially on light fabrics.
  • Set satin width appropriately (example shown at 2.50 mm) and avoid “super dense” borders as a beginner shortcut.
  • Reduce top density before blaming the machine when borders start shredding or cutting the fabric.
  • Slow the machine down when testing dense borders to reduce needle deflection risk.
  • Success check: Satin border looks solid without breaking thread, and the fabric does not show a perforated “tear line” along the edge.
  • If it still fails, lighten underlay or verify hooping and stabilization so the satin is not wrapping a moving target.
• Q: How do I fix hoop burn marks from a standard embroidery hoop clamping ring on polos and knits?
  A: First try recovery steps (steam + press cloth), then reduce friction/clamping damage by changing the hooping method if marks persist.
  • Steam the hoop ring area using a press cloth to help fibers rebound.
  • Re-check hooping: taut-but-not-stretched reduces crushed fibers on knits.
  • Minimize hoop size to reduce how much area is being compressed.
  • Success check: The shiny ring fades after steaming and the fabric surface looks uniform under normal light.
  • If it still fails, consider switching to a magnetic embroidery hoop to reduce friction burn from forcing an inner ring.
• Q: What magnetic embroidery hoops safety rules prevent finger pinch injuries during snapping and handling?
  A: Treat magnetic hoops like industrial clamps—keep fingers out of the snapping zone and keep magnets away from pacemakers.
  • Place the garment and stabilizer flat, then lower the magnetic ring in a controlled way—do not “drop” it.
  • Keep fingertips on the outside edges, never between the rings where the magnets close.
  • Store hoops away from sensitive medical devices and keep the work area clear to avoid surprise snaps.
  • Success check: The hoop closes fully without catching fabric folds, and there is no sudden uncontrolled snap.
  • If it still fails, slow down the loading motion and reposition fabric—rushing increases pinch risk and mis-hooping.
• Q: What mechanical safety steps prevent needle deflection and needle shatter when running high-density embroidery at 1000 SPM?
  A: Reduce speed for high-density tests and wear eye protection—high density plus high speed increases needle deflection risk.
  • Turn down SPM when testing tight spacing or dense borders before full production runs.
  • Replace needles frequently and match needle type to fabric (e.g., 75/11 Ballpoint for knits, 75/11 Sharp for wovens).
  • Listen for stuttering impacts that suggest the needle is fighting the fabric or throat plate.
  • Success check: The machine sound stays smooth (no repeated “impact” sound) and thread breaks do not spike during dense sections.
  • If it still fails, reduce density, verify stabilization/hooping, and re-check for jagged digitizing nodes on straight edges.
