Stop the “Funky Line”: Clean Start/End Points, Reverse Paths, and Smarter Branching Habits in Wilcom Hatch-Style Digitizing

If you’ve ever changed a fill angle in your software and suddenly saw a weird “ridge” or a travel line slicing across your design in simulation, you’re not alone—and you’re not crazy. Most of the time, the stitchout might look passable, but that simulated artifact is a loud warning sign: your entry and exit points are fighting the stitch direction.

On fabric, this digital "glitch" often manifests as a thread build-up, a visible track on napped fabrics (like velvet or fleece), or a tension hiccup that causes thread breaks.

This guide rebuilds the workflow demonstrated by Donna (a seasoned digitizing educator) into a repeatable, production-safe habit. We will move beyond just "clicking buttons" to understanding the physics of stitch travel. The goal: generate stitches, change the angle, inspect the artifact, and then move both the start and end points until the path flows like water.

Don’t Panic—That “Funky Line” Is Usually Just a Start/End Point Problem (Not a Bad Fill)

In the reference demonstration, the classic scenario unfolds: a simple filled circle is generated, and the stitch angle is changed to 70 degrees. Immediately, a “funky line” cuts across the fill in the simulated view. While the physical stitchout might hide this on forgiving fabric (like felt), on high-end garments, it introduces risk.

The key mindset shift for professional embroidery is this: a fill object isn’t only about density and angle—the entry and exit are part of the structural engineering.

When start and end points are placed poorly relative to a steep angle, the software must "walk" across the fill to get from point A to point B. This travel line adds unnecessary stitches under your top layer, creating bulk.

If you are working in hooping for embroidery machine production conditions—where real fabric tension, stabilizer variance, and machine speed (800+ SPM) come into play—those tiny travel decisions become visible defects.

The “Hidden” Prep: What Pros Do Before Touching Start/Stop Points

Before you start dragging nodes around, you need to establish a baseline. In a professional shop, we don't guess; we verify.

Prep Checklist: The "Zero-Friction" Start

• Visual Mode Check: Ensure you are in 3D / Simulation View. Outline view hides the travel lines; you need to see the bulk.
• Identify Flow: Visually trace the grain of the stitch. (In the example, it runs roughly South/Southeast toward North/Northwest).
• Hardware Context: Are you digitizing for a hat or a flat back?
  • Hats: Requires center-out sequencing to avoid pushing the fabric wave.
  • Flats: Start/End points can be optimized for shortest travel.
• Consumables Check: Do you have your "Hidden Essentials" ready?
  • Temporary Spray Adhesive (e.g., 505): Essential for floating fabrics.
  • Fresh Needle: A size 75/11 Ballpoint for knits or Sharp for wovens.
  • Quality Stabilizer: Don't skimp here (see the Decision Tree below).

Action: Save a version of your file (e.g., design_v1_backup.emb) before major edits. This gives you psychological safety to experiment.

The 70° Angle Trap: Why Steep Fill Angles Create Travel Artifacts

Why did the artifact appear at 70 degrees but maybe not at 45?

1. Geometry: As the angle gets steeper relative to the shape's axis, the "walk" required to get from a default start point (usually at the bottom or side) to a default end point becomes longer and more diagonal.
2. Mechanics: Some machines struggle with specific X/Y movement combinations. Donna notes she has one machine where a particular angle won't stitch nicely "no matter what." This is due to the physical movement of the pantograph.

Quick Reality Check:

• Beginner Speed Sweet Spot: If you are testing a new angle or fill, slow your machine down. Instead of running at 1000 SPM (Stitches Per Minute), drop to 600-700 SPM. This reduces the vibration and allows the thread to settle more cleanly.

Warning: Mechanical Safety. Don’t chase a perfect simulation at the cost of a risky stitchout. If your machine sounds like it is "laboring" (a heavy thumping sound rather than a rhythmic hum) on a certain angle, change the angle by 5-10 degrees. Physics wins over software.

The Fix That Actually Works: Move BOTH Start and End Points (The Reshape Tool)

Most novices make one mistake: they move the Start point, see the line remains, and give up. You must move both.

Here is the exact, step-by-step workflow to eliminate the ridge:

Step 1: Initialize the Object

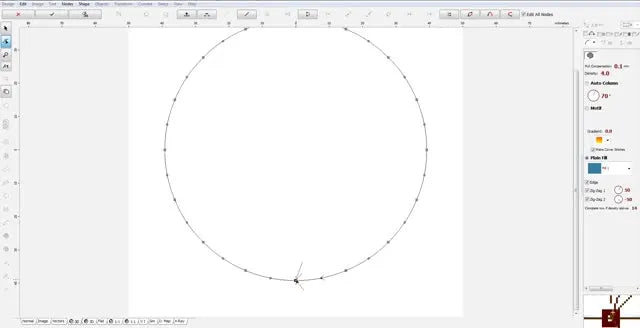

• Action: Input a circle (or your specific shape). Delete any outer rings so you are isolating the fill.
• Action: Click "Generate Stitches."

Step 2: Set the "Problem" Angle

• Action: Open Object Properties.
• Action: Set the angle to 70 degrees (or your desired steep angle).
• Visual Check: Observe the "funky line" or ridge in the simulation.

Step 3: Activate Reshape Tool

• Action: Click the Reshape tool (often an icon with node points).
• Visual Check: Locate the markers. Usually:
  • Green Cross: Start Point.
  • Red Cross/Diamond: End Point.


Step 4: Align the Start Point

• Concept: You want the machine to start sewing with the grain, not against it.
• Action: Move the Start Point to the edge where the stitching naturally begins based on your angle (e.g., Bottom-Right / South-Southeast).


Step 5: The Critical Step – Move the End Point

• Concept: The machine needs a clean exit. If the exit is on the same side as the start, it has to travel back over the work.
• Action: Drag the End Point to the opposite side (e.g., Top-Left / North-Northwest).
• Sensory Check: Imagine a line drawing through the center of your shape at 70 degrees. Your Start and End points should be at the opposite tips of that line.


Step 6: Verify

• Action: Press "Generate Stitches" again (Do not skip this!).
• Success Metric: The artifact line in the simulation should vanish or significantly diminish. The fill should look like a smooth carpet.


Why this matters for your wallet: If you are running production, reducing travel lines means fewer trims and slightly faster run times. Over 1,000 garments, that saves hours.

Running Stitch Reality Check: The Closed Object Limitation

Donna pivots to a running stitch example to explain a hard rule of digitizing logic.

• The Rule: If an object is "Closed" (like a complete circle outline), the Start and End points are mathematically the same node.
• The Constraint: You cannot place the Start at 12 o'clock and the End at 6 o'clock on a closed loop without cutting the line.




The "Knot" Hazard

A viewer comment highlighted a common issue: adding extra stitch-down rounds (batting, fabric, backing) where every layer starts and stops in the exact same pixel.

• The Result: A "bullet hole" effect—a hard, dense knot of thread that can puncture delicate fabrics or break needles.
• The Solution: Stagger your starts. If layer 1 starts at 6 o'clock, start layer 2 at 9 o'clock. Even a 5mm shift distributes the tie-in/tie-off knots.

The Straight-Line Trick: "Create Backward Path"

Sometimes you digitize a line, but realizing it runs Left-to-Right when you need it to run Right-to-Left (to connect to the next letter or object).

The Manual Way: Delete it and redraw it. (Slow). The Donna Way:

1. Select the object.
2. Go to Transform (or your software equivalent).
3. Select Create Backward Path.
4. Delete the original forward path.
5. Generate Stitches.




This simple command reverses the vector direction instantly. It is a massive time-saver for setting up logical travel paths in complex designs.

Motif Fill Strategy: Pattern Flow Control

When using Motif Fills (patterned fills like hearts, stars, or wavies), entry and exit points control how the pattern "drapes" inside the shape.

The Workflow:

1. Convert object to Motif Fill.
2. Action: Use Reshape to place Start at the Top and End at the Bottom (or vice versa).
3. Visual Check: Watch how the pattern shifts. Bad placement can cut a motif in half at the edge.
4. Refine: Nudge the points until the pattern repeats look centered and complete.






If you use machine embroidery hoops on patterned garments, invisible travel lines are crucial. A travel line beneath a motif fill can sometimes peek through the gaps in the pattern, looking like a mistake.

Setup Habits: The Stabilizer Decision Tree

You can have perfect start/stop points, but if your stabilization is wrong, the fabric will pull, and the fill will distort anyway.

Decision Tree: What should I hoop and stabilize?

1. Is the fabric stretchy (T-shirts, Performance Wear)?
   • YES: Use Cutaway Stabilizer (2.5oz or 3.0oz).
     • Why: The stitches cut the fabric fibers; Cutaway holds the structure forever.
   • NO: Go to step 2.
2. Is the fabric unstable/lofty (Fleece, Towel, Velvet)?
   • YES: Use Tearaway (backing) + Water Soluble Topper (Solvy).
     • Why: The topper prevents the stitches from sinking into the pile.
   • NO: Go to step 3.
3. Is it a standard woven (Denim, Twill)?
   • YES: Tearaway Stabilizer is sufficient.

The "Hoop Burn" Variable: If you find yourself tightening the hoop screw so hard that your hands hurt just to keep the fabric taut, or if you see "hoop burn" (shiny crushed fabric rings) after unhooping, your tool might be the bottleneck.

• Level 1 Fix: Float the fabric (hoop only stabilizer, spray adhesive, stick fabric on top).
• Level 2 Fix: Upgrade to magnetic embroidery hoops. These use powerful magnets to clamp fabric automatically without the "screw and tug" friction, virtually eliminating hoop burn and reducing wrist strain.

Warning: Magnetic Safety. Strong magnetic hoops can pinch fingers severely. They can also interfere with pacemakers and medical implants. Keep magnetic frames at least 6 inches away from sensitive medical devices and electronics.

Troubleshooting Logic: Symptom → Fix

Use this table when things go wrong. Start with the "Low Cost" fixes first.

Operation Checklist: Verify Before You Sew

Before you press the green button, run this mental flight check.

• Regenerate: Did I click "Generate Stitches" after my last move?
• Pathing: Did I watch the "Slow Redraw" virtual sew-out to ensure no cross-fill travel?
• Physical Clearance: Is the hoop clear of the wall/table? (A bumped hoop ruins the design instantly).
• Safety: Are my hands clear of the needle bar?

The Commercial Bridge: When to Upgrade

Mastering start and end points is a skill that saves minutes per design. But as you scale, hardware limitations often become the new ceiling.

• If you are fighting fabric distortion and hooping pain, researching how to use magnetic embroidery hoop systems can revolutionize your prep time. They allow you to hoop thick items (like Carhartt jackets) that standard plastic hoops can't grip.
• If you are struggling with placement consistency across a run of 50 shirts, a hooping station for machine embroidery or tools like the hoopmaster hooping station ensure every left-chest logo is in the exact same spot.
• If you are tired of stopping every 2 minutes to change threads on a single-needle machine, it is time to look at Multi-Needle Machines (like SEWTECH’s commercial lineup). The ability to set 15 colors and walk away is the only way to make embroidery truly profitable.

Final Thought: Great digitizing is about empathy—empathy for the machine, and empathy for the fabric. Guide the thread where it wants to go (with proper start/end points), and it will reward you with a flawless finish.

FAQ

• Q: In Wilcom EmbroideryStudio, why does a 70° Tatami/Fill angle show a ridge or travel line across a filled circle in Simulation View?
  A: This is usually a Start/End point placement issue where the entry/exit fights the stitch direction, forcing an unnecessary walk under the fill.
  • Switch to 3D/Simulation View to reveal the travel line (Outline view can hide it).
  • Use Reshape to locate the green Start and red End markers on the fill object.
  • Move the Start to the edge where stitching naturally begins with the 70° grain, then move the End to the opposite side.
  • Regenerate stitches after moving both points.
  • Success check: the simulated ridge/travel line disappears or shrinks and the fill looks like a smooth carpet.
  • If it still fails: change the angle by 5–10° or re-evaluate the object geometry for a shorter travel route.
• Q: In Wilcom EmbroideryStudio, how do you remove a “funky line” after changing a fill angle without redrawing the fill object?
  A: Move BOTH the Start point and the End point using Reshape, then regenerate stitches—moving only one point usually won’t remove the artifact.
  • Select the fill object and set the new angle in Object Properties.
  • Click Reshape and drag the Start marker to the correct entry edge for that angle.
  • Drag the End marker to the opposite edge so the exit does not force a return walk across the fill.
  • Click Generate Stitches again (do not skip).
  • Success check: Slow Redraw shows the path flowing without a cross-fill travel slash.
  • If it still fails: try a slightly different angle or simplify the shape to reduce diagonal travel requirements.
• Q: On a multi-needle commercial embroidery machine, what is a safe speed to test a steep fill angle like 70° to reduce vibration and stitch issues?
  A: A safe starting point for testing is to slow down to about 600–700 SPM so the thread can settle and the machine runs smoother.
  • Reduce machine speed before running the test stitchout on the chosen fabric and stabilizer.
  • Listen to the machine while it runs the steep-angle section.
  • Adjust the angle by 5–10° if the motion feels harsh on that shape.
  • Success check: the machine sounds like a steady rhythmic hum, not heavy thumping or “laboring.”
  • If it still fails: keep the lower speed for production on that design, or avoid that specific angle if the machine consistently struggles (always follow the machine manual).
• Q: In machine embroidery, what stabilizer should be used for stretchy T-shirts versus fleece/towel/velvet versus denim/twill to prevent fill distortion?
  A: Match stabilizer to fabric type first, because perfect digitizing cannot overcome poor stabilization.
  • Use Cutaway (2.5 oz or 3.0 oz) for stretchy fabrics like T-shirts/performance wear.
  • Use Tearaway backing plus a Water Soluble Topper for lofty or napped fabrics like fleece, towel, or velvet.
  • Use Tearaway stabilizer for standard stable wovens like denim or twill.
  • Success check: the fill stays true to shape with minimal pull, and coverage looks even after unhooping.
  • If it still fails: step up to a heavier cutaway on knits or re-check hooping method and tension balance.
• Q: In machine embroidery hooping, how can hoop burn marks be reduced when standard screw hoops must be tightened extremely hard to hold fabric?
  A: Use the “float” method first to reduce clamping pressure; upgrade tools only if the process is still painful or inconsistent.
  • Hoop only the stabilizer, not the garment.
  • Apply temporary spray adhesive (e.g., 505) and stick the fabric onto the hooped stabilizer.
  • Confirm the fabric is flat and supported before stitching.
  • Success check: the garment shows little to no shiny hoop ring after unhooping, and the fabric is not crushed.
  • If it still fails: consider switching to a magnetic embroidery hoop system to clamp without over-tightening and reduce wrist strain.
• Q: What magnetic embroidery hoop safety rules should be followed to avoid finger pinches and medical device interference?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical implants and sensitive electronics.
  • Keep fingers clear when seating the magnetic ring—magnets can snap together suddenly.
  • Keep magnetic frames at least 6 inches away from pacemakers and other medical implants.
  • Store magnetic frames away from electronics and magnetic-sensitive items.
  • Success check: the hoop closes without finger contact and the operator maintains full control during placement.
  • If it still fails: stop using the magnetic frame for that operator/setup and revert to a non-magnetic hooping method that is safer in the workspace.
• Q: In machine embroidery production, when should the workflow move from technique fixes to magnetic hoops to a multi-needle machine upgrade for efficiency?
  A: Use a tiered approach: optimize digitizing and settings first, upgrade hooping tools if fabric handling is the bottleneck, and consider a multi-needle machine when thread changes and consistency limit profitability.
  • Level 1 (Technique): fix Start/End points, regenerate stitches, and verify with Slow Redraw to reduce travel lines and trims.
  • Level 2 (Tooling): switch to magnetic hoops if hoop burn, slipping, or hooping time is slowing output.
  • Level 3 (Capacity): move to a multi-needle machine if frequent stops for thread changes or run-to-run placement consistency is limiting production.
  • Success check: fewer trims/stops, smoother sew-outs, and measurable time savings across batches (e.g., dozens of shirts).
  • If it still fails: identify the true constraint (digitizing pathing vs hooping stability vs machine throughput) before spending on the next upgrade.
