Stop the “Mystery Thread Nests”: A Daily Brother PR-Series Oiling & Cleaning Routine That Keeps Production Smooth

The "Zero-Panic" Maintenance Guide: Optimizing Your Brother PR-Series for Profit and Longevity

By the Chief Embroidery Education Officer

If your Brother PR-series machine suddenly starts sounding like a bag of marbles, trims inconsistently, or throws random "Check Thread" errors when the thread is fine, it is rarely a ghost in the machine. It is maintenance debt.

In my 20 years of diagnostics, 80% of "broken" machines are simply dirty or dry. The daily routine demonstrated by Alexis in the source material is not just about cleanliness; it is a profit-protection ritual. It is fast, repeatable, and—when done with the "One-Drop" discipline—dramatically reduces the risk of oil stains on customer garments and the dreaded "bird's nest" jamming the cutter.

Below, I have reconstructed this routine into a White Paper Standard workflow. This guide removes the guesswork, adds sensory checkpoints (what you should hear and feel), and provides the safety boundaries you need to operate with absolute confidence.

1. The Psychology of the "One-Drop" Rule

Why beginners over-oil and experts don’t.

The biggest fear for a new owner of a brother multi needle embroidery machine is ruining the electronics. The second biggest fear is ruining a client's shirt with oil.

Alexis’s core message is one I preach daily: Precision beats Volume.

The rotary hook spins at high speeds (up to 1,000 RPM). If you flood it with oil, centrifugal force turns that oil into a fine mist that coats the inside of your machine and, eventually, your fabric. Your goal is a micro-film of lubrication, not a bath.

The "Hidden" Consumables You Need: Before you touch the machine, ensure you have these specific tools. Standard cotton swabs are often too fluffy and leave fibers behind—the enemy of precision.

• Precision Oil Pen: (Essential) Gravity-fed, pinpoint accuracy.
• Tightly-Wound Tech Swabs: (Better than generic Q-tips) They don't shed.
• Headlamp or Flexible LED: You cannot clean what you cannot see.

2. Preparation: The "Mise-en-place"

Stop oil stains before they happen.

Alexis compares a standard squeeze bottle to a Brother embroidery oil pen.

Expert Analysis: A squeeze bottle relies on pressure, which varies by hand strength. An oil pen relies on gravity and capillary action. Using a pen forces you to slow down and dispense exactly what is needed.

Pre-Flight Prep Checklist

• Lighting Check: Task light is angled directly into the bobbin mouth.
• Tool Check: Oil pen tip is clear; Swabs are clean.
• Mental Check: Are you rushing? If you only have 30 seconds, do not oil. Dedicate 2 minutes.
• Safety Check: Machine is idle. If your hands are deep in the hook area, I recommend engaging the Emergency Stop button to physically lock the machine while you work.

Warning: Mechanical Safety
Never place tools or fingers near the needle path while the machine is live without a physical lockout (E-Stop). A reflex twitch on the "Start" button can result in a pierced finger or a shattered needle flying at eye level.

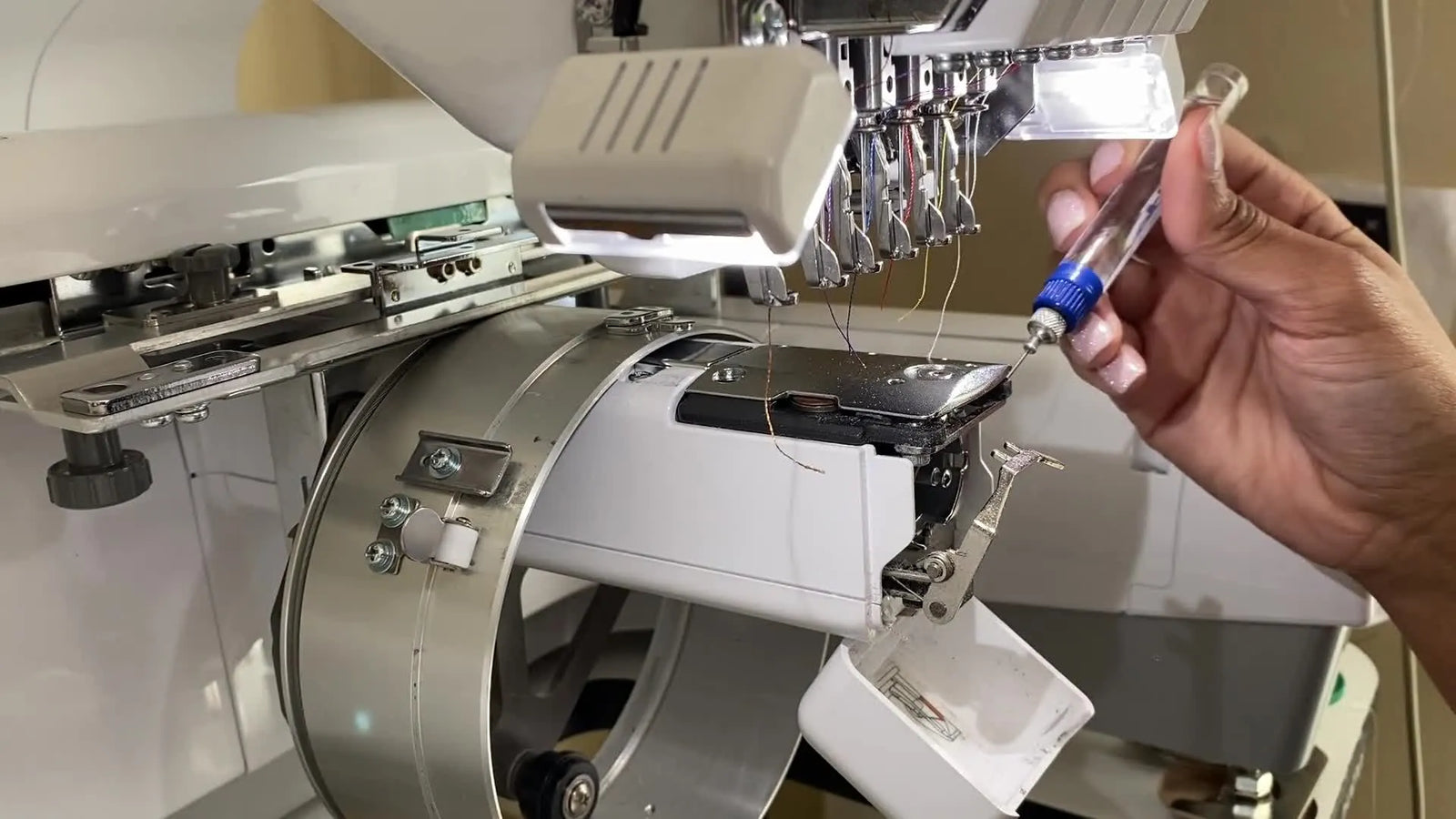

3. The Hook Race: The 60-Second Win

The most critical moving part in your machine.

The "Race" is metal-on-metal friction. Without oil, it generates heat. Heat expands metal. Expansion causes seizing.

The Procedure (Sensory Guide):

1. Remove the bobbin case.
2. Locate the race (the track where the inner basket sits).
3. Apply exactly one drop.
4. Listen: Rotate the handwheel manually. You should hear a smooth, consistent "hiss" or silence. If you hear a "grinding" or "dry rub" sound, the oil hasn't distributed yet.

The Logic: Additional oil does not make it smoother; it makes it stickier. Sticky surfaces trap lint. Lint mixed with oil creates "sludge," which is the #1 cause of inconsistent tension.

4. The "Fishing" Technique: Deep Cleaning the Cutter

Solving the mystery of the "Stubborn Trim".

This is the step 90% of home users miss. Behind your bobbin case lies a cavity where the automatic cutter lives. Every time your machine trims, a tiny localized explosion of lint and thread dust occurs. Over weeks, this impacts into a "felt pad" that jams the knife.

Alexis demonstrates a specific "Fishing" motion using a Q-tip.

The Technique:

1. Insert the swab into the crevice behind the hook (see Fig 06).
2. Twist gently. You are trying to snag the fibers like cotton candy.
3. Pull with steady, low tension.
4. Inspect: If the swab comes out black or gray, repeat.

Process Check:

• Tactile Feedback: If you feel hard resistance, stop. Do not ram the Q-tip. You may be pushing against a sensor or the knife blade itself.
• Visual Standard: The metal should look shiny, not matte or fuzzy.

Note on Compressed Air: While some use it, I advise caution. Blowing air into the machine often pushes lint deeper into the optical sensors, causing false "thread break" errors. Extraction (vacuum or sticky swab) is safer than propulsion.

Advanced Access: Alexis shows the needle plate removal.

Expert Advice: Only remove the plate if you drop a screw or needle tip. For daily maintenance, the "Fishing" technique is sufficient and less risky.

5. Upper Assembly: Gravity and Friction

Protecting the Needle Bars.

The needle bars move up and down hundreds of times per minute. They ride on felt pads or metal bushings that must remain moist.

The Hidden Zone (Needle Position 6): Most users oil needles 1-5 and forget 6-10 (or 6 on a 6-needle). You must electronically move the head to expose the far right bars.

The Procedure:

1. Identify the felt pads or oiling points on the upper bars.
2. Apply one drop per pad.
3. Feather Dust: Use a dry swab to collect dust from the surrounding metal without wiping the oil off the bars.


Sensory Check: After oiling, run a test pattern. The machine sound should settle into a rhythmic, low-pitch hum. High-pitched squeaking indicates a dry needle bar.

6. Workflow & Commercial Strategy: Scaling Up

Turning Maintenance into Profit.

If you are running a business, "Maintenance" feels like "Downtime." However, the real profit killer isn't the 3 minutes you spend oiling; it is the 10 minutes you spend fighting with hoops or repairing "hoop burn."

The Upgrade Path: Diagnostics

How do you know when to upgrade your tools versus just cleaning your machine? Use this logic flow:

Phase 1: The Machine is Clean, but Quality is Low.

• Symptom: Puckering, shifting registration, or "hoop burn" (shiny rings from the plastic frame).
• Diagnosis: Your hooping technique is the bottleneck. Standard hoops rely on friction and muscle power.
• Solution (Tooling): Upgrade to a magnetic embroidery hoop. Magnetic frames use vertical clamping force, which holds fabric tighter without crushing the fibers. This eliminates "hoop burn" and significantly speeds up the loading process.

Phase 2: The Machine is Perfect, but You are Too Slow.

• Symptom: You have orders piling up. You spend more time aligning shirts than stitching.
• Diagnosis: Workflow inefficiency.
• Solution (Workflow): Invest in a machine embroidery hooping station. This standardizes placement, ensuring every left-chest logo is exactly 3 inches down and centered, regardless of shirt size.

Phase 3: You Cannot Keep Up.

• Symptom: You are turning down orders. The machine runs 12 hours a day.
• Diagnosis: Capacity Ceiling.
• Solution (Scale): This is when you look beyond a single head. Brands like SEWTECH offer multi-head solutions or additional multi-needle machines that allow you to run production in parallel—one machine stitches while you hoop for the next.

Warning: Magnet Safety
When using magnetic embroidery hoops for brother, be aware they use Neodymium magnets. They snap shut with extreme force (up to 30lbs).
* Pinch Hazard: Keep fingers clear of the edge.
* Medical Safety: Keep away from pacemakers.
* Tech Safety: Do not place phones or credit cards directly on the hoop.

7. Decision Tree: Fabric vs. Maintenance Frequency

Your material dictates your maintenance schedule.

Different fabrics generate lint at different rates. Use this table to adjust your cleaning frequency.

Note on Stabilizers: Using the wrong stabilizer (e.g., Tearaway on a stretchy knit) causes the needle to "saw" through the fabric and stabilizer, creating excessive dust. If you find your bobbin area packed with white dust, check your stabilizer choice.

8. Troubleshooting: The Logic of Repair

Don't guess. Follow the symptoms.

If problems arise, follow this low-cost to high-cost hierarchy.

Symptom A: "Bird Needs" (Thread loops under the fabric)

• Level 1 (Free): Re-thread the TOP thread. (99% of "bobbin" issues are actually top tension issues where the thread jumped out of the tension disc).
• Level 2 (Cleaning): Perform the "Fishing" technique. A piece of lint may be holding the tension disc open.
• Level 3 (Parts): Check the needle. A burr on the needle tip can snag thread.
• Level 4 (Settings): Only then, adjust tension knobs.

Symptom B: "Thread Cutter Error" or Knife not cutting

• Level 1 (Cleaning): Use the fishing technique shown in FIG-06. Impacted lint is preventing the knife from engaging.
• Level 2 (Mechanical): Check if the picker finger (the metal arm) is bent.
• Level 3 (Service): The knife blade may be dull (rare for hobbyists, common for high-volume shops).

9. Final Verification

Close the door with confidence.

Alexis finishes by restoring the machine to its operational state.

Operation Checklist (Run before pressing Start):

• Bobbin Case: Re-inserted until you hear the distinct Click. (No click = needle break).
• Door: Closed securely.
• Debris: No loose Q-tip fibers visible in the hook area.
• Needle Bars: Oiled and header moved back to center (if moved).
• Hoop: If using a brother pr600 hoops or compatible magnetic frame, ensure arms are locked tight.

By adopting this "White Paper" approach to maintenance, you move from a user who "hopes" the machine works, to an operator who knows it will. A clean machine is a profitable machine, whether you are stitching a single gift on a brother pr 680w or running a fleet of commercial heads.

FAQ

• Q: What is the correct “one-drop” oiling method for the Brother PR-Series rotary hook race to prevent oil stains and lint sludge?
  A: Use exactly one drop on the hook race, because extra oil often turns into mist and traps lint.
  • Remove the bobbin case, then locate the metal race track where the inner basket sits.
  • Apply one drop only, then rotate the handwheel by hand to distribute the micro-film.
  • Avoid wiping oil around the cavity; keep oil placement pinpoint.
  • Success check: the handwheel rotation sounds smooth (a soft “hiss” or near-silence), not a dry rub or grinding.
  • If it still fails: stop adding oil and do the deep “fishing” lint removal behind the hook area before troubleshooting tension.
• Q: What supplies should be prepared before cleaning and oiling a Brother PR-Series multi-needle embroidery machine (and what should be avoided)?
  A: Prepare precision tools that do not shed fibers, because generic cotton swabs often leave lint behind.
  • Use a precision oil pen, tightly-wound tech swabs, and a headlamp or flexible LED so the hook area is fully visible.
  • Check the oil pen tip is clear and the swabs are clean before opening the bobbin area.
  • Avoid rushing; if there is less than 2 minutes available, skip oiling and clean only.
  • Success check: no loose swab fibers are visible in the hook area after the routine.
  • If it still fails: if false “Check Thread” behavior continues, avoid blowing compressed air inward and use extraction-style cleaning (swab/vacuum approach).
• Q: How do Brother PR-Series owners fix a stubborn automatic trim or “thread cutter error” caused by lint packed behind the bobbin case?
  A: Use the “fishing” technique to pull impacted lint out of the cutter cavity instead of pushing it deeper.
  • Insert a tech swab into the crevice behind the hook area and twist gently to snag fibers.
  • Pull out slowly with steady, low tension; repeat until the swab stops coming out black/gray.
  • Stop immediately if hard resistance is felt; do not ram the swab because it may contact a sensor or the knife area.
  • Success check: the metal in the cavity looks shiny (not matte/fuzzy) and trims become consistent again.
  • If it still fails: inspect mechanical causes next (for example, a bent picker finger) and consider service if a dull knife blade is suspected in high-volume use.
• Q: What is the safe way to clean and oil a Brother PR-Series hook area without risking needle movement or finger injury?
  A: Lock the machine out before putting fingers or tools near the needle path, because accidental start can cause injury or needle break.
  • Ensure the machine is idle before opening the bobbin area and beginning any cleaning.
  • Use the Emergency Stop (E-Stop) as a physical lockout when hands are deep in the hook/cutter zone.
  • Keep tools away from the needle path any time the machine is live.
  • Success check: maintenance is completed with the machine still locked out, and the area is clear of debris before re-enabling operation.
  • If it still fails: if safe lockout is not possible in the setup, pause maintenance and follow the machine’s manual safety procedure before continuing.
• Q: How can Brother PR-Series owners tell if needle bars are under-oiled, especially on the far-right needles (needle position 6 and beyond)?
  A: If the machine develops a higher-pitched squeak, the upper needle bar area is often too dry and needs one-drop oiling on the felt pads/oiling points.
  • Move the head electronically to expose the far-right needle bars so the hidden oiling zones are accessible.
  • Apply one drop per felt pad/oiling point, then use a dry swab to collect surrounding dust without wiping oil off the bars.
  • Run a small test pattern right after oiling to confirm sound and motion are stable.
  • Success check: the sound settles into a rhythmic, low-pitch hum rather than squeaking.
  • If it still fails: re-check that the far-right bars were actually exposed and oiled, and verify no lint is interfering in the hook/cutter area.
• Q: How often should Brother PR-Series owners clean the cutter area when embroidering towels, terry cloth, fleece, or hoodies?
  A: Clean the cutter area every 4 hours on high-lint fabrics, because these materials pack the knife cavity quickly.
  • Treat towels/terry cloth as “high lint” and fleece/hoodies as “very high lint” for maintenance planning.
  • Perform the hook-area check and the “fishing” technique on schedule, not only after trim failures.
  • Re-evaluate stabilizer choice if excessive white dust appears, because poor stabilizer matching can increase debris.
  • Success check: the cutter cavity stays visually clear and trims remain consistent throughout the run.
  • If it still fails: shorten the cleaning interval further and avoid compressed air that can drive lint into sensors and trigger false thread errors.
• Q: When quality problems continue on a Brother PR-Series after cleaning, how should embroidery businesses choose between technique fixes, magnetic hoops, hooping stations, or upgrading capacity?
  A: Use a staged diagnosis: fix technique first, then upgrade tooling, then scale capacity only when workflow demand proves it.
  • Level 1 (Technique): if puckering, shifting registration, or hoop burn appears, treat hooping technique and clamping consistency as the bottleneck.
  • Level 2 (Tooling): if standard hoops require heavy force and still mark fabric, consider magnetic hoops to clamp with vertical force and reduce hoop burn while speeding loading.
  • Level 2 (Workflow): if alignment time is the main slowdown, add a hooping station to standardize placement for repeat jobs.
  • Level 3 (Capacity): if orders pile up and the machine runs long hours, add parallel production capacity with additional multi-needle machines or multi-head solutions.
  • Success check: the chosen upgrade removes the specific bottleneck (fabric marks stop, placement time drops, or orders stop backing up).
  • If it still fails: confirm the machine is truly clean and correctly oiled first—many “upgrade” symptoms are actually maintenance debt showing up as tension/trim instability.
• Q: What final checks should Brother PR-Series owners complete after maintenance to prevent needle breaks and startup problems?
  A: Do a short “close-up” checklist before pressing Start, because one missed step (especially the bobbin case) can cause immediate failure.
  • Reinsert the bobbin case until a distinct click is felt/heard.
  • Confirm the door is closed securely and no swab fibers or debris remain in the hook area.
  • Return the head to center if it was moved for oiling, and verify needle bars were oiled as intended.
  • Success check: the bobbin case clicks into place and the first test stitches run without abnormal noise or sudden thread alarms.
  • If it still fails: stop and re-check bobbin case seating first (no click often leads to needle break), then revisit cutter cavity lint removal.
