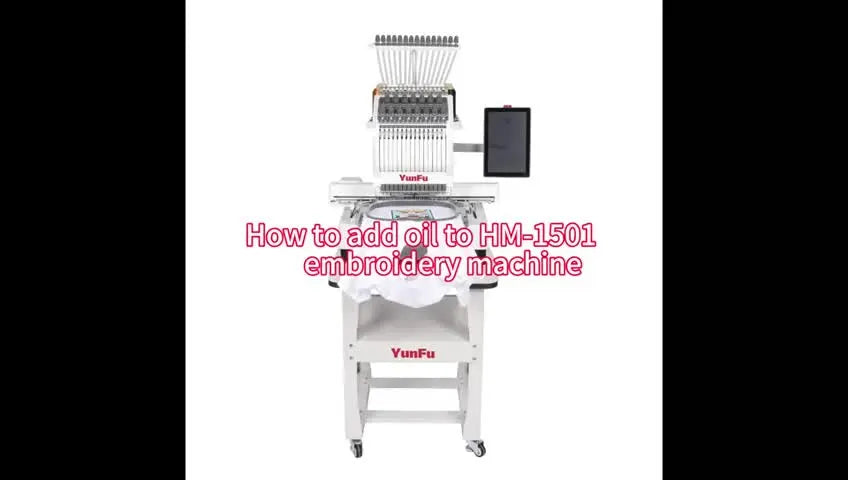

Stop the Squeaks Before They Become Downtime: Oiling the YunFu HM-1501 15-Needle Embroidery Machine (Daily, Weekly, Semi-Annual)

Commercial multi-needle machines don’t usually “fail suddenly”—they complain first. Within my twenty years on the shop floor, I have learned that a machine speaks a language of vibration and sound long before it throws an error code. A slightly harsher metallic hiss at the rotary hook, a head that doesn’t glide as smoothly on the rail, or a needle bar that feels "dry" to the touch—these are the cries for help.

If you are running a YunFu HM-1501 or similar 15-needle commercial workhorse, the difference between a machine that prints money and a machine that prints frustration is a hygiene rhythm. It is not about drowning the machine in oil; it is about maintaining a microscopic film of protection.

This guide is your operational blueprint. I have calibrated the steps in the video to include "safety buffers" for beginners and sensory checks so you know—without a doubt—that you have done it right.

The “Don’t Panic” Primer for the YunFu HM-1501 Rotary Hook: Why Oil Is Cheaper Than Repairs

The rotary hook is the heart of your machine. It spins at speeds up to 1,000 or 1,200 RPM, creating friction, heat, and attracting lint like a magnet. The maintenance routine starts here for a reason: a dry hook creates inconsistent tension, thread breaks, and eventually, a seized bearing that costs hundreds of dollars to replace.

You need a practical mindset shift: You aren’t “adding oil because the manual says so.” You are managing a thermal barrier. Without oil, metal rubs against metal, expanding with heat until tolerances vanish.

If you are operating a 15 needle embroidery machine daily, this hook-and-arm routine is the non-negotiable insurance policy for your business.

The Hidden Prep Pros Do First: Choosing the Right Lubricants (and Keeping Them Out of Your Thread Path)

Before we touch the machine, we must address the chemistry. Using the wrong lubricant is worse than using none. The video distinguishes between three specific substances. Do not mix them up.

The Lubricant Triad

1. Clear Sewing Oil (The "Daily" Oil): This is a low-viscosity, non-staining mineral oil. It is designed to wick into tight tolerances (like the hook race) and wash away quickly. Use only on the hook and arm holes.
2. Synthetic Spray Lubricant (The "Slider" Oil): Often labeled as synthetic motor oil spray or silicone-based embroidery spray. It creates a slick film that doesn't attract as much dust as grease. Use on rails and needle bars.
3. White Lithium Grease (The "Heavy" Greases): This is thick and sticky. It is designed to stay on gear teeth under high pressure. Use only on the internal color-change cams.

Warning: Review Your Safety Protocols. Turn the machine power OFF (unplug if possible) before you oil or grease internal components. Keep fingers, loose sleeves, jewelry, and magnetic tools away from the needle area and moving linkages. When rotating the manual main shaft knob, move slowly. A sudden slip with a screwdriver can gouge a sensor or puncture your hand.

Prep Checklist: The "Flight Check"

• Power Status: Machine is confirmed OFF.
• Surface Protection: A piece of cardboard or a drop cloth is placed under the hook area to catch drips.
• Consumable Check: You have lint-free wipes (not paper towels that leave dust).
• Lubricant Audit: You have identified the Oil vs. the Spray vs. the Grease.
• Visibility: You have a small flashlight or headlamp ready to see into the dark recesses of the casting.


Daily Maintenance on the YunFu HM-1501: Oil the Rotary Hook and the Two Arm Holes Without Making a Mess

This needs to be part of your morning coffee routine. We focus on the high-speed/high-heat areas.

1) Daily oiling the rotary hook (with bobbin case removal)

The rotary hook race is the track where the hook basket sits.

Action Steps:

1. Remove the Bobbin Case: Take it out completely.
2. The "Q-Tip" Sweep: Before adding oil, use a brush or a Q-tip to sweep out the lint. Oil poured onto lint creates a grinding paste.
3. Position the Hook: Manually rotate the main shaft knob until the hook assembly creates a clear opening to the "race" (the gap between the spinning part and the stationary part).
4. The Precision Drop: Aim the long spout into the rotary hook raceway.
5. Dose Control: The video suggests 3-5 drops. Expert Calibration: For beginners, I recommend 1-2 drops initially. 5 drops can cause "oil lash" (oil splattering onto your fabric). It is better to oil lightly twice a day than to flood it once.
6. Cycle the Motion: Manually rotate the hand wheel 3-4 full turns to distribute the film.




Sensory Check (The "Sheen" Test): Shine your light into the hook. You should see a glistening "wet look" on the metal, but no pooling liquid at the bottom. If you see a pool, you have over-oiled. Blot it with a cloth.

Expected Outcome: The sound of the hook should change from a dry "hiss" to a dampened "whir."

2) Daily oiling the two lower arm holes (sewing oil only)

Turn your attention to the left side of the cylinder arm, near the needle plate base.

Action Steps:

1. Locate the maintenance holes marked in the casting.
2. Insert the long spout.
3. Apply 2-3 drops of sewing oil into each hole.


Checkpoint: strictly use Clear Sewing Oil here. Never spray into these holes, as spray can coat the thread trimmers and cause cutting failures.

Setup Checklist (Daily Routine Sign-off)

• Bobbin case area is free of "sludge" (oil mixed with lint).
• Rotary hook received 1-3 drops (adjusted for extensive usage).
• Main shaft was rotated manually to distribute oil.
• Wipe-down complete: No oil residue on the needle plate or needle bar.
• Test Sew: Run a scrap fabric test for 30 seconds to catch any oil splatter before putting a customer's garment on.

Weekly Lubrication That Saves Your Rails: Using the Main Shaft Knob to Spread Oil Evenly on the Head Mechanism

While the hook manages speed, the head rails manage precision. If these interact poorly, your satin stitches will look jagged.

For this, we switch to the Synthetic Spray. The goal here is "Film," not "Flow."

1) Weekly oiling the head rails (behind the head)

This rail supports the heavy moving head (the pantograph).

Action Steps:

1. Shake the Can: Ensure the propellant and lubricant are mixed.
2. Target Acquisition: Position the red straw at the rail behind the moving head.
3. Apply & Move: Spray a short burst (or apply 3-5 drops if using liquid) on the left and right sides.
4. The "Distribute" Move: Immediately rotate the black main shaft knob (usually to 100 degrees) to slide the head back and forth. You must move the head to spread the oil.




Sensory Check: The head should glide. If you feel "sticky spots" or resistance while turning the knob, clean the rail with a solvent (like alcohol) to remove old gummed-up oil, then re-lubricate.

2) Weekly oiling the needle bar springs and shafts (Hard-to-reach Zone)

This is tricky. The needle bars must move up and down freely to prevent "flagging" or timing issues.

Action Steps:

1. Aim the red straw carefully into the gap where the needle bars pass through the frame.
2. Apply light pressure to the spray nozzle. You want a dribble, not a fire hose.
3. Navigate through the needle range (Color 1 to Color 15) to ensure all bars get a treatment.


Expert Tip: Holding a piece of cardboard behind the needle bars prevents overspray from hitting the electronics or thread stand behind the head.

3) Weekly oiling the upper needle bar sections

1. Insert straw into the front housing slots.
2. Treat each needle bar individually.
3. Check for "black rings" on the bars—this indicates old oil collecting aluminum dust. Wipe this off before re-oiling.


4) Weekly oiling the Y-axis linear guide rail

This is the silver rail on the side of the pantograph.

1. Wipe the rail clean first (it collects dust).
2. Apply a thin bead of oil/spray along the length.


Expected Outcome: When you run a single head embroidery machine through a large design, the movement should sound rhythmic and consistent, without grinding noises during long travel jumps.

Semi-Annual Grease Service on the HM-1501 Color-Change Cam: The Quiet Fix Most Shops Skip

The color-change system is a high-torque mechanical action. It uses a cam and gear system to physically shove the heavy head left and right. Oil is too thin here; it drips off. You need grease.

This service is typically done every 6 months, or every 3 months for 24/7 shops.

1) Remove the side cover

Action Steps:

1. Use a proper fitting Phillips screwdriver. (Do not strip these screws; they are soft metal).
2. Gently remove the plastic cover.




2) Apply white grease with a brush

Action Steps:

1. Identify the metal gears and the cam track.
2. The "Paint" Technique: Dip a small brush into the white grease. Paint the teeth of the gears.
3. The Distribution Cycle: Rotate the black main shaft knob to turn the gears. Watch the white grease transfer from one gear to the next.
4. Ensure the "valleys" of the gear teeth have a coat, but aren't packed solid.


Sensory Check: The color change operation (when the machine switches needles) should sound like a dull "thud-thud," not a metal-on-metal "clack-clack."

3) Reattach the cover

1. Align the cover carefully to avoid pinching wires.
2. Tighten screws hand-tight.


The “Why” Behind the Video’s 3-Tier Schedule: Friction, Heat, and Motion Type

Understanding the physics helps you stick to the routine:

1. Daily (Sewing Oil): The hook generates Heat. The oil acts as a coolant and a lubricant. Because of centrifugal force, this oil is flung off rapidly, necessitating daily replenishment.
2. Weekly (Spray/Slides): The rails involve Reciprocating Sliding. The goal is to reduce drag. Synthetic spray persists longer than sewing oil but doesn't attract as much dust as grease.
3. Semi-Annual (Grease): The cams involve High Pressure Loading. Only grease has the viscosity to cushion the impact of steel teeth meshing together.

Warning: Magnetic Interaction & Health Safety. If you utilize magnetic frames (Magnetic Hoops) to improve your workflow, treat them with extreme respect. These commercial-grade magnets are powerful enough to pinch skin severely, damage credit cards, or interfere with pacemakers. Never let two magnetic frames snap together uncontrolled on a metal workbench.

Troubleshooting the “Scary Sounds” After Oiling: Symptom → Likely Cause → What to Do Next

Sometimes, maintenance creates new noises. Don't panic. Here is your diagnostic matrix.

The Upgrade Path That Actually Makes Sense: Maintenance First, Then Speed and Profit

A well-oiled machine is the baseline. But if you are looking to increase profit margins, maintenance alone won't get you there. You need to look at your workflow bottlenecks.

In my experience, the biggest thief of time in an embroidery shop isn't stitch speed—it's hooping time.

1) If hooping is your bottleneck, upgrade the tool

If you are struggling with traditional plastic hoops—straining your wrists, leaving "hoop burn" (white rings) on delicate fabrics, or fighting to hoop thick Carhartt jackets—mechanical lubrication won't fix that.

This is where upgrading to magnetic embroidery hoops transforms your production line. Because they hold fabric with magnetic force rather than friction, they eliminate hoop burn and allow you to hoop thick seams that plastic hoops can't handle. For volume shops, pairing this with a magnetic hooping station ensures every logo is placed in the exact same spot, reducing the time spent measuring and marking shirts.

2) Decision Tree: Fabric → Stabilizer Approach

A lubricated machine runs smooth, but the wrong stabilizer will still cause breaks.

• Is the fabric stretchy (T-shirt/Polo)?
  • Yes: Use Cutaway stabilizer. (Tearaway will result in distorted designs).
• Is the fabric stable (Canvas/Hat)?
  • Yes: Tearaway is acceptable.
• Is the fabric thick/plush (Sherpa/Fleece)?
  • Yes: Use a Magnetic Hoop to avoid crushing the pile + Water Soluble Topping to keep stitches visible.

3) Strategic Expansion

If you have mastered the maintenance of your single-head and your order volume is exceeding your capacity, you are ready to scale. Many owners looking for a ricoma mt 1501 embroidery machine or similiar 15-needle models are actually looking for reliability. By mastering the maintenance on your current machine, you prove you are ready for a multi-head system or a fleet of single-heads.

Operation Checklist (The "I Did It Right" Sign-off)

Before you authorize the machine for a production run, verify these 5 points:

• Clean Bill of Health: No loose screws left on the table.
• The Sound Check: Run the machine at 600 SPM (Stitches Per Minute). It should hum, not rattle.
• The Visual Check: No oil streaks visible on the needle bar or presser feet.
• The Tension Check: Run an "H" test. The white bobbin thread should show as a perfectly centered column (1/3 width) on the back of the satin stitch.
• The Safety Check: All covers (especially the color change cover) are securely screwed in.

Consistency is your currency. A machine maintained this way doesn't just last longer—it behaves predictably. And in the embroidery business, predictability is the only thing that lets you sleep at night.

FAQ

• Q: How many drops of clear sewing oil should be used on the YunFu HM-1501 rotary hook each day to avoid oil splatter on garments?
  A: Start with 1–2 drops in the rotary hook race; add more only if the machine runs heavily, because over-oiling causes “oil lash.”
  • Remove the bobbin case and brush/Q-tip out lint before adding oil.
  • Rotate the main shaft knob by hand 3–4 full turns to spread the oil film.
  • Blot any visible pooling at the bottom of the hook area with a lint-free cloth.
  • Success check: The hook looks “wet/shiny” with no puddle, and the sound changes from a dry hiss to a dampened whir.
  • If it still fails: Run a 30-second scrap test first; if oil still spots, reduce to 1 drop and wipe the needle plate area again.
• Q: What are the correct lubricant types for YunFu HM-1501 maintenance (clear sewing oil vs synthetic spray vs white lithium grease), and where should each one be used?
  A: Use clear sewing oil only for the hook and lower arm holes, synthetic spray for rails/needle bars, and white lithium grease only for the internal color-change cams/gears.
  • Confirm the machine power is OFF (unplug if possible) before applying any lubricant.
  • Apply clear sewing oil to the rotary hook race and the two lower arm holes—never spray into the arm holes.
  • Apply synthetic spray lightly to head rails, needle bar springs/shafts, and the Y-axis linear guide rail.
  • Apply white lithium grease with a brush to the color-change cam/gears on the semi-annual schedule.
  • Success check: No oil/grease appears in the thread path or on the needle plate after wipe-down and a short test run.
  • If it still fails: Stop and clean overspray/drips immediately; re-lubricate using smaller amounts and re-test on scrap fabric.
• Q: What should the YunFu HM-1501 rotary hook look and sound like after correct daily oiling (sensory “sheen test”)?
  A: The rotary hook should have a light glistening sheen without pooling oil, and the sound should soften from a dry hiss to a smoother whir.
  • Shine a flashlight into the hook area after oiling and manual rotation.
  • Look for a thin “wet look” film on metal surfaces, not a puddle at the bottom.
  • Wipe any excess off the needle plate/nearby surfaces before sewing production items.
  • Success check: Visible sheen + no pooled oil + noticeably quieter/less harsh hook sound.
  • If it still fails: Remove the bobbin case, clean out lint thoroughly, then re-oil with 1 drop and re-check.
• Q: Why does a YunFu HM-1501 rotary hook sound louder or rougher right after oiling, and what is the fastest fix?
  A: This is commonly lint/debris getting “activated” into sludge because oil was applied over lint—clean first, then re-oil lightly.
  • Stop the machine and remove the bobbin case completely.
  • Clean the hook area thoroughly using compressed air and a brush/Q-tip (remove all lint paste).
  • Re-apply a small amount of clear sewing oil (a safe restart is 1 drop) and rotate by hand to distribute.
  • Success check: The rough sound disappears and the hook returns to a smooth, dampened whir.
  • If it still fails: Inspect again for remaining sludge in the raceway; repeat cleaning before adding any more oil.
• Q: What causes jerky head movement on the YunFu HM-1501 pantograph after weekly rail lubrication, and how do you correct it using the black main shaft knob?
  A: Jerky motion is usually uneven lubrication on the rail—apply a thin film and then move the head fully left-to-right to distribute it.
  • Spray a short burst (or apply a small amount) on both left and right sides of the rail behind the moving head.
  • Rotate the black main shaft knob (often to 100 degrees) to slide the head and spread lubricant across the rail.
  • If “sticky spots” remain, wipe the rail with alcohol to remove gummed-up oil, then re-lubricate lightly.
  • Success check: The head glides smoothly with consistent resistance when turning the knob.
  • If it still fails: Clean again for old buildup; avoid heavy application that can trap dust and worsen drag.
• Q: What is the safest way to lubricate YunFu HM-1501 needle bar springs and shafts with synthetic spray without contaminating electronics or the thread path?
  A: Use very light spray (a dribble, not a blast) and block overspray with cardboard so lubricant does not reach electronics or thread areas.
  • Power OFF the machine before working near needle bars and linkages.
  • Aim the red straw into the gap where needle bars pass through the frame, applying minimal pressure.
  • Move across the full needle range (Color 1 to Color 15) so each bar gets a light treatment.
  • Hold cardboard behind the needle bars to shield the thread stand/electronics from overspray.
  • Success check: Needle bars move freely and no visible spray mist or oily residue appears on nearby wiring/components.
  • If it still fails: Wipe off excess oil (especially any “black ring” residue on bars), then re-apply a smaller amount.
• Q: What safety rules should be followed when using magnetic embroidery hoops or magnetic frames in a commercial embroidery shop to prevent injury and device interference?
  A: Treat magnetic hoops as high-force tools—keep them controlled and separated, because they can pinch skin and may interfere with pacemakers.
  • Keep fingers clear when bringing magnetic hoop parts together; never let two frames snap together uncontrolled.
  • Avoid placing magnetic frames on a metal workbench where they can jump/shift suddenly.
  • Keep magnetic frames away from credit cards and sensitive medical devices (especially pacemakers).
  • Success check: Magnetic frames are handled with two-hand control, no uncontrolled “snap,” and no near-miss pinches.
  • If it still fails: Stop using the magnetic frames in that setup and change the work surface/handling method to prevent snapping before continuing.
