Stop Thread Breaks on Your SWF Multi-Needle Machine: The 10-Minute Diagnosis That Saves Hours of Rework

The "Random" Thread Break Myth: A Field Guide to Diagnostics and Repair

Thread breaks are the silent killers of profit margins. If you are running a production shop—or even a serious home studio—you know the real cost isn't the fifty cents of wasted thread. It’s the rhythm you lost, the ruined garment, and that sinking feeling of dread when you hear the machine stop again.

But here is the truth derived from twenty years on the production floor: Thread breaks are almost never random. They are a language your machine is speaking.

In this guide, we will operationalize the troubleshooting method used by industry veteran Deborah Jones. We will move beyond "guessing" and "tension tweaking" into a structured, diagnostic approach that isolates the root cause in under five minutes.

The "Panic Pause": Stop Touching the Tension Dials

When a thread snaps, the novice instinct is to grab the tension knob. Stop.

Unless you just changed the bobbin or the top cone, tension is rarely the culprit for a sudden, sharp break. In 90% of cases, the issue falls into one of two "buckets." Identifying the bucket is 80% of the battle.

The Two Buckets of Failure:

1. A Localized Issue: The problem is affecting only one or two specific needles. (Think: Upper thread path, the cone itself, or a specific needle bar).
2. A Shared-Path Issue: The problem is affecting all needles. (Think: The needle plate hole, the rotary hook, or the bobbin case).

Once you make this distinction, you stop chasing ghosts.

Phase 1: The Pre-Flight Inspection (Do This First)

Before you pick up a screwdriver or change a setting, we need to eliminate the "invisible" variables: Environmental damage and Consumables.

Natural fiber threads (Rayon, Cotton) are organic. They rot. If a cone has been sitting in a sunbeam or a humid garage for six months, it may have dry-rotted.

The "Snap Test" (Sensory Anchor): Pull a foot of thread off the cone. Wrap it around your hands and give it a sharp tug.

• Good Thread: Should require firm force to break and make a sharp snap sound.
• Bad Thread: Will drift apart effortlessly or break with a dull, "mushy" feel.

If the thread passes the snap test, establish your Control Variable: Identify one needle bar on your machine that is currently stitching perfectly. You will need this for comparison later.

Prep Checklist (The "Do No Harm" Phase):

• Identify the Scope: Is the break on Needle #1 only, or all Needles?
• The Snap Test: Verify the thread cone itself isn't dry-rotted.
• Needle Check: Run your fingernail down the front of the installed needle. If you feel a "click" or catch near the eye, the needle is bent or burred. Replace it immediately.
• Establish Control: Note which needle bar is your "Safe Zone" (working perfectly).
• Safety First: If working on a swf embroidery machines or similar industrial interaction, engage the E-Stop before putting hands near the needle plate.


Phase 2: Diagnosing Localized Breaks (1-2 Needles)

If your machine is running fine on Needle 1, 2, and 4, but snapping constantly on Needle 3, do not touch the rotary hook. The problem is upstairs.

The Swap Test (The Golden Rule of Diagnostics)

Deborah’s method for isolating bad cones vs. bad paths is the industry standard.

1. Move the "Bad" Cone: Take the thread cone from the breaking position (e.g., Needle 3) and move it to your "Safe Zone" (e.g., Needle 1).
2. Move the "Good" Cone: Take the known good thread from Needle 1 and put it on the suspect Needle 3.
3. Run a Test Stitch: A simple block letter "I" or a satin column.

Interpreting the Data:

• Scenario A: The break follows the cone to the new position.
  • Verdict: Bad thread. Toss the cone.
• Scenario B: The break stays with the needle bar (Needle 3 still breaks, even with good thread).
  • Verdict: Physical obstruction in the upper thread path of Needle 3.






Warning: Mechanical Safety
Never place your hands near the take-up levers or needle bars while the machine is powered or in a "Ready" state. Servo motors on modern swf 12 needle embroidery machine units are powerful and instant. They do not forgive errors.

Setup Checklist (The Swap Validation):

• Perform the Swap Test exactly as described above.
• If the break stays with the needle bar, get a flashlight.
• The Mirror Check: Visually trace the thread path of the broken needle alongside the working needle. Look for missed eyelets, thread wrapped around a guide, or lint buildup in the tension disc.
• The Floss Check: "Floss" the thread through the tension discs. You should feel smooth, consistent resistance (like pulling dental floss through tight teeth), not a gritty or "sticky" sensation.


Phase 3: Diagnosing Global Breaks (All Needles)

If every needle is breaking thread, or if you are getting breaks across random colors, the issue is likely in the Lower Thread Path.

This is the "Kill Zone" for production. It usually happens because of a Needle Strike. When a needle hits the metal plate (often caused by a thick seam, a cap bill, or poor stabilization causing fabric deflection), it leaves a tiny nick on the metal. This nick acts like a razor blade, slicing every thread that passes it.

The Hidden Saboteur: Needle Deflection

On high-speed runs (800+ SPM), the needle can bend slightly as it penetrates thick fabric. If it grazes the side of the needle plate hole, it creates a Burr.

Sensory Anchor (The Fingernail Test): Remove the needle plate. Run the tip of a fingernail or a Q-tip around the inside of the needle hole.

• Smooth: Your nail/cotton glides silently.
• Burred: You feel a catch, or the cotton snag prevents smooth movement. That catch is what is cutting your thread.

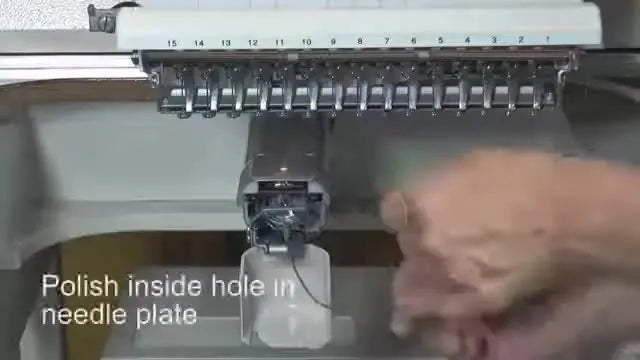

The Fix: Structural Polishing

We don't just want to clean it; we need to re-surface it. Deborah recommends Crocus Cord. This is a specialty card impregnanted with Jeweler's Rouge (a fine polishing compound).

Why this works: It removes the sharp burr without changing the dimension of the needle hole or destroying the timing mechanism.

The "Shoe-Shine" Technique

1. Thread the Cord: Pass the Crocus Cord through the needle plate hole.
2. The Grip: Hold one end in each hand.
3. The Motion: Use a gentle, rhythmic back-and-forth motion (like shining a shoe). Rotate the angle slightly to hit all sides of the hole's interior.
4. The Check: Run the Q-tip test again. It should be flawlessly smooth.






Warning: Abrasive Caution
Crocus Cord is mild, but sandpaper is not. Never use standard sandpaper or metal files on your rotary hook or needle plate unless you are a trained technician. You can permanently alter the clearance gaps, destroying the machine's ability to form a stitch.

The Bobbin Case: The Unsung Suspect

Remember: The top thread wraps around the bobbin case twice for every single stitch. If your bobbin case has a scratch, a ding from a needle drop, or lint under the tension spring, it will shred top thread instantly.

Pro Tip: Treat bobbin cases as consumables, not permanent fixtures. Keep 2-3 spares in your drawer. If you suspect a bobbin case issue, swap it out. If the problem vanishes, throw the old one in the trash. It is not worth the downtime to fix.

Also, check the Hook Point (the sharp metal point on the rotary hook assembly). If you maintain a swf mas 12-needle embroidery machine, this area is prone to nicks. Use the Crocus Cord gently here if a burr is detected.

The Decision Tree: Print This and Tape it to Your Wall

When the machine stops, follow this path to avoid panic.

START: Thread Break Occurs

1. Is the thread shredded/frayed?
   • Yes: Check for burrs/needle eye issues.
   • No (Clean Cut): Check for thread cutting knife issues or improper tension (too tight).
2. Is it isolated to 1-2 Needles?
   • YES:
     • Inspect Needle (Bent/Sticky?).
     • Perform Swap Test (Rule out bad cone).
     • Perform Mirror Check (Rule out mis-threading).
   • NO (Happening on All Needles):
     • Inspect Needle Plate: use Q-tip test for burrs. -> Fix: Polish with Crocus Cord.
     • Inspect Bobbin Case: Check for nicks/lint. -> Fix: Swap Bobbin Case.
     • Inspect Rotary Hook: Check for scratches. -> Fix: Polish gently.

Prevention: The "Tool Up" Strategy

Troubleshooting is good; prevention is better. Most needle strikes (which cause the burrs, which cause the breaks) happen because of Flagging.

Flagging is when the fabric bounces up and down with the needle because it isn't held tightly enough. This deflection causes the needle to smash into the plate.

Level 1: Consumables

Ensure you are using the correct backing.

• Stretchy Fabric (Knits/Polos): Must use Cutaway backing. Tearaway creates a "trampoline" effect that leads to breaks.
• Stable Fabric (Woven): Tearaway is usually fine.

Level 2: The Hoop Upgrade

If you are struggling with "hoop burn" (marks left on fabric) or you simply cannot get thick items tight enough in standard plastic hoops, this is where Magnetic Hoops become a production necessity, not a luxury.

• Why: They use powerful magnets to clamp fabric without forcing it into a ring, reducing hand strain and virtually eliminating "flagging."
• Application: Users of embroidery hoops for swf often switch to magnetic frames for continuous production runs to save hooping time and save their needle plates from deflection strikes.
• Search Intent: Many professionals look for magnetic embroidery hoop solutions specifically to solve the "thick garment" flagging issue.

Warning: Magnetic Field Safety
Magnetic Hoops (Mighty Hoops/Sewtech) employ industrial-strength magnets.
* Pinch Hazard: They clamp instantly with extreme force. Keep fingers clear of the mating surface.
* Medical Devices: Maintain a safe distance from pacemakers and insulin pumps.

Level 3: The Productivity Upgrade

Sometimes, the machine isn't broken—it's just overloaded. If you are pushing a single-head home machine to run 500 patches a week, you aren't experiencing "breakdowns"; you are experiencing normal wear-and-tear accelerated by volume. This is the trigger point to investigate commercial embroidery machines that solve the capacity bottleneck.

Operation Checklist: The "Zero-Break" Routine

Keep your machine humming with this daily protocol:

• The Paper Test: Once a week, slide a piece of paper under the tension spring of your bobbin case to dislodge lint.
• The Q-Tip Swipe: Check the needle plate hole for burrs every time you change a needle.
• Inventory Check: distinct "Hidden Consumables" you need on hand:
  • Crocus Cord (for polishing).
  • Spare Bobbin Cases (at least 2).
  • New Needles (change every 8 hours of running time).
  • Stabilizer/Backing (Cutaway and Tearaway).
  • Temporary Spray Adhesive (for stabilization).

By moving from "guessing" to "diagnosing," you turn a frustrating afternoon into a 5-minute minor maintenance stop. Treat the machine with respect, listen to what the thread breaks are telling you, and upgrade your tools when the volume demands it.

FAQ

• Q: On a SWF multi-needle embroidery machine, should the upper thread tension dials be adjusted immediately after a sudden thread break?
  A: No—pause and diagnose first, because sudden breaks are usually not caused by tension changes unless a cone or bobbin was just changed.
  • Stop the machine and identify scope: confirm whether the break is isolated to 1–2 needles or happening across all needles.
  • Perform a quick needle check: replace the needle if a fingernail catch is felt near the eye.
  • Re-run a simple test stitch (a satin column or block “I”) before touching tension.
  • Success check: the test stitch runs for several seconds without another stop, and the thread is not fraying at the break point.
  • If it still fails: move to a localized “Swap Test” (1–2 needles) or inspect the needle plate/bobbin case (all needles).
• Q: How does the “Snap Test” confirm whether rayon or cotton embroidery thread cones are dry-rotted before running an SWF embroidery machine?
  A: Pull and snap a short length of thread—dry-rotted thread breaks too easily and feels “mushy,” not sharp and strong.
  • Pull about a foot of thread from the cone and wrap it around both hands.
  • Tug sharply once to simulate real stitching stress.
  • Success check: good thread needs firm force to break and makes a sharp “snap” sound; bad thread parts easily or feels dull/soft.
  • If it still fails: discard the cone and retest with a fresh cone before changing machine settings or parts.
• Q: On a SWF 12-needle embroidery machine, how does the Swap Test identify whether thread breaks are caused by a bad cone or a problem in one needle bar thread path?
  A: Swap the “bad” cone with a known-good cone between needle positions—then see whether the break follows the cone or stays with the needle bar.
  • Move the cone from the breaking needle position to a “safe” needle position that is currently stitching perfectly.
  • Move the known-good cone from the safe needle position to the breaking needle position.
  • Run a small, repeatable test stitch (like a satin column or block “I”).
  • Success check: if breaks follow the cone, the cone/thread is the issue; if breaks stay at the same needle bar, the upper thread path is obstructed or mis-threaded.
  • If it still fails: do a mirror check of the suspect thread path and “floss” the thread through the tension discs to feel for gritty or sticky resistance.
• Q: On an SWF commercial embroidery machine, what causes thread breaks on all needles after a needle strike, and how does the Q-tip test find a burr in the needle plate hole?
  A: A needle strike can leave a tiny burr that acts like a razor and cuts every thread; the Q-tip or fingernail test locates the snag point.
  • Power down safely and remove the needle plate for access.
  • Run a fingernail or Q-tip around the inside edge of the needle plate hole.
  • Mark the exact spot where the cotton snags or the nail “catches.”
  • Success check: “smooth” feels like silent gliding with no snag; “burred” produces a definite catch or cotton pull.
  • If it still fails: inspect the bobbin case and rotary hook next, because scratches there can shred top thread quickly.
• Q: What is the safest way to polish a burred needle plate hole on an SWF multi-needle embroidery machine without damaging stitch formation clearance?
  A: Use Crocus Cord with a gentle “shoe-shine” motion—avoid standard sandpaper or metal files.
  • Thread Crocus Cord through the needle plate hole and hold one end in each hand.
  • Polish with a light back-and-forth motion, changing angles to reach all sides inside the hole.
  • Re-test with a Q-tip or fingernail after polishing.
  • Success check: the Q-tip slides through without snagging, and test stitching no longer shows frayed/shredded breaks across multiple needles.
  • If it still fails: swap in a spare bobbin case and inspect the hook point for nicks (polish gently only if a burr is clearly detected).
• Q: On a SWF embroidery machine, why can a scratched bobbin case instantly shred top thread, and what is the fastest confirmation test?
  A: The top thread wraps around the bobbin case twice per stitch, so a nick, ding, or lint under the tension spring can cut thread fast; the quickest test is a bobbin case swap.
  • Remove the current bobbin case and check for visible scratches/dings and lint under the tension spring.
  • Slide a piece of paper under the tension spring to dislodge trapped lint.
  • Swap to a known-good spare bobbin case and run a short test design.
  • Success check: the same design runs cleanly after the swap, with no immediate shredding or repeated breaks.
  • If it still fails: inspect the needle plate hole and rotary hook for burrs caused by needle strikes.
• Q: What safety steps should be followed before inspecting take-up levers, needle bars, or the needle plate on an SWF industrial embroidery machine?
  A: Put the machine in a safe state first—servo motors can move instantly, so hands must stay clear unless the machine is fully stopped and secured.
  • Engage the E-Stop (or equivalent stop) before placing hands near the needle area.
  • Wait until all motion is fully stopped before opening covers or removing the needle plate.
  • Use a flashlight and tools—do not “reach in” to feel around moving linkages.
  • Success check: the machine is not in a “Ready” state, and the needle bar area remains completely still while inspection is performed.
  • If it still fails: stop troubleshooting and consult the machine manual or a trained technician for any procedure that requires timing or hook-area adjustment.
• Q: If thick garments cause flagging and repeated thread breaks on an SWF multi-needle embroidery machine, when should stabilizer changes, magnetic embroidery hoops, or a commercial embroidery machine upgrade be considered?
  A: Start with stabilization, then upgrade hooping control, then upgrade capacity if volume is driving wear—use a stepwise approach instead of guessing.
  • Level 1 (technique): switch backing correctly—knits/polos generally need cutaway backing because tearaway can “trampoline” and increase needle strikes.
  • Level 2 (tool): use magnetic embroidery hoops to clamp thick items firmly with less fabric bounce, reducing flagging and needle plate strikes.
  • Level 3 (capacity): consider a commercial embroidery machine when production volume is pushing constant wear-and-tear and repeated downtime.
  • Success check: fabric stays flatter during stitching (less bounce), and break frequency drops noticeably on thick seams or bulky items.
  • If it still fails: re-check for needle strikes (burrs), bobbin case damage, and confirm threading paths with a mirror check before changing tension.
