Stop Tracing in Embird: Build Perfect Symmetry Fast with Circles, Duplicate, and the Union Tool

If you have ever sat in front of your screen, clicking node after node, bending Bezier curves until your wrist throbs—only to end up with a shape that looks “close enough” but stitches out with a wobble—this guide is your reset button.

The source video demonstrates two workflows for digitizing a simple, symmetrical dog bone shape in Embird: (1) the traditional manual tracing method (which often creates frustration), and (2) a geometric construction method using "primitives" (circles + rectangles) merged with the Union tool.

As someone who has trained thousands of embroiderers, I can tell you that cognitive load is the enemy of creativity. When you are fighting the software, you aren't designing. This guide rebuilds the tutorial into a production-ready Standard Operating Procedure (SOP). We will cover the specific clicks, the hidden parameters you need to verify, and the physical reality of how these digital files translate to needle and thread.

The Panic Is Normal: Why Manual Node Tracing in Embird Feels Slow (and Why It’s Not Your Fault)

Manual tracing works conceptually: you select a closed object tool, click points around the perimeter of your background image, and then push/pull the lines to match the curve.

Here is the honest truth from the production floor: manual tracing is not "wrong," but it is expensive in terms of time and consistency. Every extra node you place is a potential failure point. In the industry, we call this "Node Fatigue." When you manually trace a geometric shape, you risk:

• Flat spots: A curve needs smooth mathematics; a human hand often creates tiny straight edges.
• Asymmetry: Your left curve rarely matches your right curve perfectly.
• The "Wobble" Effect: A shape that looks smooth at 100% zoom often looks like a potato when stitched because the tension pulls on those uneven nodes.

The video host admits this reality: it takes minutes to trace even a simple bone shape, and the result is often just "okay."

When manual tracing is the right call: If the artwork is organic, complex, asymmetrical, or artistic (like a flower or a hand-drawn sketch).

When it is a trap: When the shape is geometric (bones, badges, pill shapes, rounded rectangles). That is where the "Fast Way" (Boolean construction) is superior.

The “Hidden” Prep in Embird Editor: Importing a Bitmap Without Setting Yourself Up for Bad Scale

The tutorial begins by bringing in a background image of a dog bone to use as a template.

What the video does (The Steps)

1. Go to the Image menu.
2. Choose Import.
3. A popup asks if you want to scale the image to fit the current hoop. The host clicks Yes.


You will see the brown dog bone bitmap appear on your grid.

Why this matters (The "Experience" Check)

Novice digitizers often skip the Setup Phase, and it destroys them later. If your background image is imported at 10 inches wide but you want a 2-inch patch, you are "digitizing to a lie." You will create a file that, when shrunk down later, has density that is far too thick (bulletproof embroidery) or satin stitches that are too narrow (thread breaks).

The 1.5-Inch Rule: The video references a 1.5-inch target size. This is a safe "sweet spot" for patches. Before you drop a single node, look at your grid. In Embird, the grid squares are your reality check.

Hidden Consumable Alert: Before you start serious digitizing projects, ensure you have your physical "toolkit" ready for the test stitch: temporary spray adhesive, water-soluble marking pens, and fresh 75/11 needles. Software preparation is wasted if your physical tools aren't ready.

Prep Checklist (Do this BEFORE you draw)

• Grid Verification: Is the grid visible? (View > Grid). Do you know what one square represents (usually 10mm or 1 inch)?
• Image Scale: after importing, measure the background image on screen. Is it roughly the size of the final patch you want?
• Hoop Selection: Is your digital hoop set to the same size as your physical hoop? This prevents the "Design exceeds hoop limits" error later.
• Physical Prep: If you are planning to stitch this out, ensure you understand the basics of hooping for embroidery machine setups, as even a perfect file will distort if the fabric is loose.

The Slow Way (Manual Tracing): How to Do It Without Creating a Lumpy Outline

The host briefly demonstrates the manual method to show why we won't be using it. This involves clicking around the perimeter and editing nodes.

The Sensorial Signal of a Mistake

The video captures a critical moment: the mouse slips or double-clicks, placing a node where it shouldn't be. You can almost feel the frustration.

The Fix: Immediately hit Undo (Ctrl+Z). The Lesson: Never build on top of a mistake. If a line isn't straight or a curve isn't smooth, don't say "I'll fix it later." Delete the node and redo it. Bad geometry is like a bad foundation—it will eventually crack.

Expected Outcome

When you generate stitches from a manually traced object, you get a shape that is serviceable but likely imperfect. This is why the host deletes it and moves to the construction method.

Warning: Mechanical Safety. When you eventually move to the machine to test these designs, never put your hands near the needle bar while the machine is running. If a needle breaks on a dense node cluster, shards can fly at high velocity. Always wear eye protection when monitoring a new design test.

The Fast Way in Embird: Build the Bone with Circles + Duplicate (Symmetry on Autopilot)

This is the "aha!" moment. We aren't drawing a bone; we are assembling one from perfect geometry.

1) Create the First Circle (The Master Component)

In the video:

1. Select the Solid (closed object) tool.
2. Open the Shape dropdown menu.
3. Choose Circle (2 elements).
4. Drag out a circle that perfectly matches the curvature of one corner of the bone.




The host generates stitches immediately to visualize the shape.

2) Duplicate for Perfection

Right-click the circle and choose Duplicate. Drag this copy to the next corner. Repeat until you have four perfect circles.

Why this wins: This is the "Symmetry Cheat Code." A human hand cannot draw four identical curves. The computer can copy them perfectly. This ensures that your final patch is mathematically symmetrical.

Pro Tip: This concept of "repeatable precision" applies to hardware too. Just as you duplicate an object to ensure the left matches the right, production shops use an embroidery hooping station to ensure that the logo on Shirt #1 is in the exact same spot as on Shirt #50. Consistency is the hallmark of a professional.

The “It Looks Weird” Phase: Connecting the Circles with a Rectangle (and Why Overlap Is Your Friend)

Now we have four floating circles. We need to connect them.

1. Select the Solid Fill Object tool again.
2. Select Rectangle (or draw a simple box).
3. Draw a rectangle that spans the length of the bone, connecting the top and bottom pairs of circles.
4. Crucial Step: Make sure the rectangle overlaps into the circles.


At this stage, your screen looks like a mess. You have a rectangle sitting on top of circles, with lines crossing every which way.

The Physics of Overlap coverage

New digitizers are afraid to overlap objects. Do not be afraid. In the Boolean (Shaping) workflow, overlap is your safety margin. If you try to make the rectangle edge distinctively touch the circle edge, you risk creating a "micro-gap."

When the machine stitches, the thread pulls the fabric tight (Pull Compensation). A micro-gap on screen becomes a visible hole in the fabric. By overlapping significantly, you ensure the Union tool has plenty of "material" to weld together.

Setup Checklist (The "Pre-Weld" Inspection)

• Map Check: Do you see 4 circles and 1 connecting rectangle?
• Gap Check: Zoom in. Is the rectangle clearly overlapping into the circles? There must be NO white space between the shapes.
• Selection Check: Have you selected ALL 5 objects in the object list? (Hold Shift + Click).
• Production Check: If this is for a bulk order, think about your hardware. High-volume runs benefit from a hooping station for machine embroidery to match the speed of this digitizing workflow.

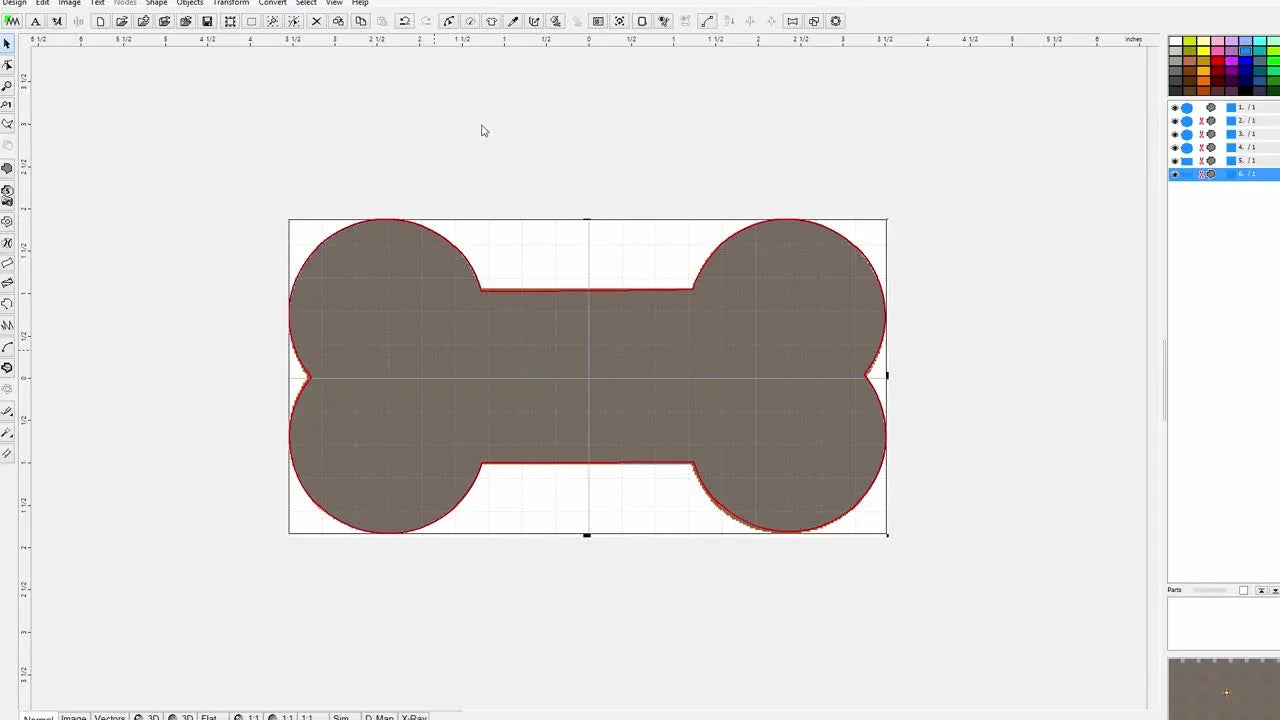

The Union Tool in Embird Shaping: The One Click That Turns “Parts” into a Perfect Closed Object

This is the magic trick.

1. Ensure all 5 objects are selected.
2. Go to the Shaping menu.
3. Choose Union.


The internal lines vanish. The overlapping chaos disappears. You are left with a single, continuous, mathematically perfect outline.

Expected Outcome

• Visual: One object in the list, not five.
• Geometry: The curves are identical. The straight lines are perfectly straight.
• Psychology: Relief. You didn't have to fight the Bezier curves.

The "Save As" Discipline: The host notes that the original parts are still in the history. In production, we call this "Non-Destructive Editing." Always keep a source file with the parts before the Union, just in case the client says "make the bone thicker" later.

Generate Stitches in Embird: What the Video Shows (and What to Check Before You Stitch It Out)

Finally, we turn the vector shape into embroidery data.

• Right-click the new merged object.
• Select Generate Stitches.


Decoding the Parameters

The video shows the panel with Density: 4.0 and Layout: Solid.

• Density: In Embird's metric, 4.0 often refers to the density setting (steps per mm). Beginner Sweet Spot: For standard polyester thread (40wt) on cotton, a standard density is usually around 4.0 to 4.5 lines/mm (or 0.4mm spacing depending on your version's units).
• Pull Compensation: The video doesn't explicitly tweak this, but you must. Set Pull Compensation to at least 0.2mm - 0.4mm. Why? Thread has tension. It pulls the sides of the bone in. Without compensation, your bone will look skinny.

The "Hoop Burn" Factor

A perfectly digitized large solid fill (like this bone) puts stress on the fabric. If you use a traditional screw-tightened hoop, you might see "hoop burn" (shiny crushed fibers) around the design because you had to crank it tight to prevent shifting. This is a common pain point. Advanced users often switch to magnetic embroidery hoops because they hold fabric firmly without the mechanical crushing action of traditional inner/outer rings, preserving the fabric's integrity.

Warning: Magnetic Hazard. If you choose to upgrade to magnetic hoops, be aware they use neodymium industrial magnets. They snap together with immense force. Pinch Hazard: Keep fingers clear of the mating surfaces. Medical Safety: Keep them at least 6 inches away from pacemakers.

A Practical Decision Tree: Fabric, Stabilizer & Hoop Selection for this Design

You have the file. Now, how do you stitch it without ruining a shirt? Use this logical flow to make your decision.

START: What fabric are you stitching this bone onto?

1. Stable Woven (Denim, Canvas, Twill caps):
   • Stabilizer: Tear-away (2 layers) is usually sufficient.
   • Needle: 75/11 Sharp.
   • Hooping: Standard hoop.
   • Risk: Low.
2. Unstable Knit (T-Shirt, Hoodie, Polo):
   • Stabilizer: Cut-away is non-negotiable. (2.5oz - 3.0oz).
   • Needle: 75/11 Ballpoint (to push fibers aside, not cut them).
   • Hooping: Do not stretch the fabric!
   • Upgrade Option: If you struggle with stretching the knit while hooping, a magnetic embroidery hoop allows you to "float" the fabric or clamp it gently without the "tug of war" required by screw hoops.
3. High Volume (50+ Left Chest Logos):
   • Constraint: Speed and placement accuracy.
   • Solution: Manual hooping will kill your wrists and your profit margin. This is where a hoop master embroidery hooping station becomes an investment, not a cost. It standardizes the physics so your operator can keep up with the machine.

Troubleshooting the “Simple Shape” Workflow: Symptoms, Causes, Fixes

Even simple shapes have their gremlins. Here is your structured troubleshooting guide.

The Upgrade Path: Turn This Trick into Production Speed

The comments on this video reflect a universal sentiment: "I wish I knew this sooner." The transition from drawing (Manual Tracing) to building (Boolean Construction) is your first step toward professionalism.

Here is how to scale this mindset:

1. Level 1 (Software Efficiency): Stop tracing geometry. Use the Union tool for badges, bones, and frames. It is 5x faster and 10x cleaner.
2. Level 2 (Hardware Consistency): If you find that your software output is perfect but your physical placement varies by 0.5 inches every time, look into a hoopmaster system to lock in your placement variables.
3. Level 3 (Material Mastery): If standard hoops are leaving marks or causing you pain, explore SEWTECH's range of embroidery hoops magnetic. They are designed to match the speed and precision of the modern workflow you just learned.

Final Operation Checklist:

• Scale: Bitmap imported and sized correctly (approx 1.5 - 2 inches).
• Construction: 4 Circles + 1 Rectangle, strictly overlapping.
• Action: Union command executed successfully.
• Generation: Stitches generated with correct Density (4.0) and Pull Comp (0.2mm+).
• Safety: Machine area clear, eyes protected during test stitch.

Digitizing is not magic; it is engineering. Build your shapes correctly, stabilize your fabric securely, and trust the process. Now, go stitch that perfect bone.

FAQ

• Q: What consumables should be prepared before digitizing and test-stitching an Embird solid-fill patch design (like a 1.5-inch dog bone)?
  A: Prepare the physical test-stitch kit first, because software-perfect files can still fail on fabric without the right basics.
  • Gather: temporary spray adhesive, water-soluble marking pen, and fresh 75/11 needles before starting.
  • Plan: match stabilizer type to fabric (cut-away for knits is not optional).
  • Run: stitch a small test sample before committing to production.
  • Success check: the test stitch runs without repeated thread breaks and the shape matches the expected size on fabric.
  • If it still fails: re-check design scale on the grid and reduce variables (new needle + correct stabilizer + stable hooping).
• Q: How do I prevent wrong design scale in Embird when importing a bitmap template and clicking “Yes” to fit the hoop?
  A: Verify the bitmap size on the grid immediately after import so the digitizing is done at the real final size.
  • Turn on: View > Grid, and confirm you understand what one grid square represents in the current setup.
  • Measure: visually confirm the template is roughly the target patch size (the workflow references about 1.5 inches as a safe target).
  • Match: set the digital hoop size to the same size as the physical hoop to avoid later “design exceeds hoop limits” surprises.
  • Success check: the bitmap looks correctly sized relative to the grid before any objects are drawn.
  • If it still fails: delete the background image and re-import after confirming the hoop setting and target size.
• Q: How do I fix an Embird outline “kink” caused by accidental node placement during manual tracing?
  A: Undo immediately and redo the segment—do not build on top of bad geometry.
  • Press: Undo (Ctrl+Z) as soon as the wrong node appears.
  • Delete: the incorrect node/segment instead of trying to “smooth it later.”
  • Re-draw: the curve cleanly, or switch to the circle + rectangle construction method for geometric shapes.
  • Success check: the outline looks smooth at close zoom without flat spots or sudden angle changes.
  • If it still fails: avoid manual tracing for this shape and construct it from duplicated circles plus a connecting rectangle, then Union.
• Q: How do I fix tiny white gaps inside an Embird shape after using circles + rectangle + Union for a dog bone patch?
  A: Increase overlap before Union—micro-gaps on screen become visible holes when stitched.
  • Zoom in: inspect where the rectangle meets the circles.
  • Extend: push the rectangle deeper into each circle so there is clearly overlap and no white space.
  • Select: all objects (4 circles + 1 rectangle) and run Shaping > Union again.
  • Success check: internal crossing lines disappear and the object list shows a single merged object.
  • If it still fails: confirm all five objects were selected before Union and re-check overlap at higher zoom.
• Q: What pull compensation should be used in Embird for a solid-fill dog bone patch to prevent the stitched shape from looking “skinny”?
  A: Use pull compensation as a baseline starting point (about 0.2–0.4 mm) and confirm with a test stitch, because thread tension can pull edges inward.
  • Set: Pull Compensation to at least 0.2 mm, commonly 0.3 mm+ for safer coverage.
  • Test: stitch the design on the actual fabric/stabilizer combo you will use.
  • Adjust: increase pull compensation if the stitched edges look pulled-in or narrow.
  • Success check: the stitched bone keeps its intended width and the edges look filled without visible “shrink-in.”
  • If it still fails: re-check density settings and confirm the design was digitized at the correct final size (not scaled down later).
• Q: How can I reduce hoop burn on knit shirts when stitching a large Embird solid-fill design using a traditional screw-tightened hoop?
  A: Reduce the need to “crank tight” by improving stabilization first, then consider a magnetic hoop if hoop marks are still happening.
  • Switch: use proper stabilizer for knits (cut-away is the standard requirement for unstable knit fabrics).
  • Hoop: clamp firmly without stretching the knit—avoid a tug-of-war during hooping.
  • Consider: magnetic hoops to hold fabric firmly with less crushing compared to some traditional inner/outer ring pressure patterns.
  • Success check: fabric around the design does not look shiny/crushed after unhooping and the fill stitches do not pucker.
  • If it still fails: test a different stabilization method (stronger cut-away) and re-evaluate hooping pressure and fabric stretch.
• Q: What safety steps should be followed when test-stitching a new Embird digitized design to avoid needle injury and flying needle shards?
  A: Keep hands away from the needle area during operation and protect eyes, especially on dense designs where needle breaks can happen.
  • Keep clear: never put fingers near the needle bar while the machine is running.
  • Wear: eye protection when monitoring a first test stitch of a new file.
  • Stop first: pause/stop the machine before adjusting fabric, hoop, or thread path.
  • Success check: the test stitch completes without unsafe reaching-in or emergency grabs near the needle area.
  • If it still fails: reduce density-related stress (review stitch generation settings) and re-test under controlled conditions.
• Q: What magnetic hoop safety rules should be followed when using neodymium magnetic embroidery hoops to avoid pinch injuries and pacemaker risk?
  A: Treat magnetic hoops like industrial magnets—keep fingers out of the mating surfaces and keep magnets away from pacemakers.
  • Keep fingers clear: prevent pinching by guiding magnets together from the sides, not between the faces.
  • Control the snap: bring the halves together slowly and deliberately.
  • Maintain distance: keep magnetic hoops at least 6 inches away from pacemakers.
  • Success check: hoops close without finger pinches and can be handled without sudden uncontrolled snapping.
  • If it still fails: stop using the magnetic hoop until a safer handling method is established and follow the machine/hoop safety guidance for your setup.
