Tame the Brother Luminaire 2 11x16 Extra Large Hoop: Cleaner Appliqué Trims, Bolder Blanket Stitch, Less Desk Chaos

Mastering the 11x16 "Grand Dream": A Specialized Guide to Large-Format Appliqué

If you have ever snapped a giant 10-5/8" x 16" frame onto your machine and immediately thought, "Where on earth am I supposed to put this thing down?"—you are experiencing a very specific type of spatial anxiety. You are not alone.

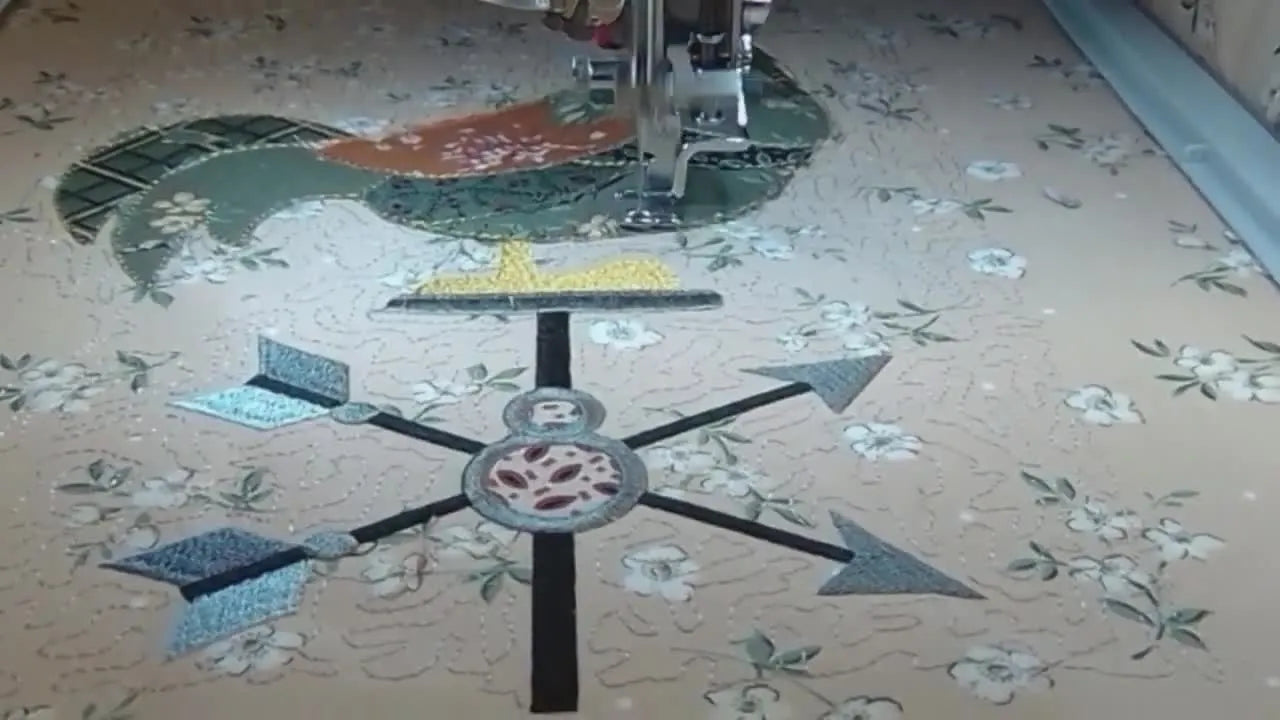

In this analysis, we examine a "Crazy Blanket Stitch Farm Quilt" rooster design (from an Anita Good Design collection) running on a Brother Luminaire 2. While the machine executes the stitches, the real challenge is logistics: hoop clearance, the physics of fabric movement, and the repetitive strain of trimming.

As an embroidery educator, I see many users blame themselves for "poor results" when the culprit is actually poor workspace ergonomics or the wrong choice of hoop mechanism. I am going to rebuild this workflow with "shop-floor" precision, adding the sensory cues and safety margins that turn a stressful project into a meditative one.

Don’t Panic: The Brother Luminaire 2 + 11x16 Extra Large Hoop Is Fine—Your Workspace Is the Bottleneck

Sue, the operator in our case study, identifies the core struggle immediately: it isn't the machine, it's the sheer mass of the frame. When you attach a hoop this size (often called the "Grand Dream" or XP1 hoop), you are changing the physics of your embroidery.

Two realities hit fast:

1. The Inertia Factor: A hoop this large, loaded with batting and fabric, carries significant weight. When the pantograph moves rapidly to the back, it needs stopping distance.
2. The Trimming Paradox: The hoop is too large to manipulate easily while attached to the machine, yet removing it 20 times for 20 appliqué pieces feels like a marathon.

Expert Calibration: If you are used to a standard 5x7 hoop, you must adjust your machine speed. For an 11x16 hoop loaded with quilt layers, I recommend capping your speed at 600-700 SPM (Stitches Per Minute).

• Why? At 1050 SPM, the momentum of a heavy hoop can cause slight registration shifts (gaps in outlines) due to "flagging" (the fabric bouncing). Slowing down ensures the friction-held fabric stays stable.


The “Hidden” Prep Before You Stitch: Batting, Scraps, and a Trimming Plan That Won’t Fail Mid-Project

The project base is fabric with batting underneath. This "quilt sandwich" structure creates drag. In a standard friction hoop (inner ring inside outer ring), thick batting fights you. It wants to pop out.

Here is the "Old Hand" preparation protocol to prevent the dreaded "Hoop Pop" mid-stitch:

Prep Checklist: The "Pre-Flight" Inspection

• Verify Stabilization: For a quilt block like this, use a medium-weight Cutaway stabilizer (2.5oz). Tearaway is risky here because the heavy satin stitches later can perforated it, causing the block to fall apart.
• The "Drum Skin" Test: Tap the hooped fabric. It should sound like a dull thud, not a high-pitched ping. Too tight distorts the bias; too loose causes puckering.
• Gather "Hidden" Consumables:
  • Temporary Spray Adhesive (e.g., Odif 505): Essential for holding the batting to the stabilizer without shifting.
  • Curved Appliqué Scissors: Flat scissors will gouge your background fabric.
  • New Needle: Install a fresh Topstitch 90/14. The larger eye protects the thread from shredding against the thick batting.
• Plan the Thread Palette: High-contrast thread is vital for placement lines on busy "crazy quilt" backgrounds.

Commercial Note: If you struggle to hoop thick quilt sandwiches without "hoop burn" (the shiny ring marks left by friction), this is a mechanical limitation of standard hoops. A hooping station for embroidery machine can assist with leverage, or you can look into magnetic framing solutions (discussed later) that rely on vertical clamping force rather than friction.

Set Up the Brother Luminaire 2 for the 11x16 Hoop Without Smashing Into the Wall Behind You

The 11x16 hoop travels significantly further back than standard frames. I have seen expensive repairs caused by a carriage arm hitting a wall or a coffee cup.

The "Safety Zone" Setup: You need exactly 20 inches of clearance behind the machine tower for full travel safety on a Luminaire.

Setup Checklist: The Physical Clearance Protocol

• Slide the Machine Forward: Create a physical "No Fly Zone" behind the machine.
• The "Hand Walk" Test: Before powering on, or using the "Check Size" feature, gently move the carriage (if unlocked) or visualize the path.
• Clear the Left Flank: As the hoop moves extreme left, ensure it doesn’t hit your thread stand or scissor cup.
• Establish a "Landing Pad": You will be removing this large hoop frequently. Clear a 24" x 24" flat space on your desk to the right of the machine. Do not try to trim on your lap.

If you are a Luminaire owner tackling large projects, many embroiderers eventually migrate to a brother luminaire magnetic hoop upgrade. The reason is ergonomic: standard hoops require unscrewing and prying to open; magnetic hoops allow you to just lift the magnets, making the repetitive trim-work 50% faster and easier on the wrists.

The Appliqué Rhythm That Makes This Rooster Work: Placement → Tack-Down → Trim (Repeat… a Lot)

This design follows the classic In-The-Hoop (ITH) appliqué architecture. Your success depends on entering a rhythm state.

The Loop:

1. Placement Line: The machine stitches a roadmap.
2. Stop & Cover: You lay the scrap fabric down. Crucial: Ensure the scrap extends 1/4" past the line on all sides.
3. Tack-Down: The machine stitches the fabric in place.
4. Trim: You cut away the excess.

Sue notes that the light yellow thread was hard to see. This is a common failure point. Expert Rule: Forget color matching for the Placement Line. Use a dark gray or navy bobbin thread in the top for the placement stitch if your background is light. You need to see the line to cover it. The tack-down will cover this dark thread anyway.

Trimming Appliqué Fabric in a Giant Hoop: The Desk Method That Prevents “Appliqué Chicken Failed”

Sue attempts to trim while the hoop is attached. She immediately realizes: "It simply never works."

Trimming while attached is dangerous for two reasons:

1. Torque: Pressing down on the hoop while it is suspended on the carriage arm puts stress on the stepper motors.
2. Parallax Error: You cannot see the back of the needle bar. You are likely to snip the fabric you want to keep.

The Correct Protocol:

1. Stop & Park: Ensure the needle is up.
2. Remove: Take the hoop off completely.
3. Rotate: Place it on your specific "Landing Pad." Spin the entire hoop so your cutting hand is always cutting away from the center.
4. Tactile Feedback: Slide the lower blade of your curved scissors on top of the stabilizer but under the appliqué fabric. You should feel the "shelf" of the tack-down stitches. Glide against that shelf.

Warning: Mechanical Safety. When reinstalling the 11x16 hoop, listen for the distinct "CLICK" of the locking mechanism. On the Luminaire, a hoop that is not fully locked in will appear to work for 10 seconds, then fly off when the speed ramps up, potentially shattering a needle. Verify the lock every time.

When You Forget to Trim (or Trim Too Short): What to Do Without Ruining the Whole Block

We all make mistakes. Here is how to perform triage when things go wrong.

Troubleshooting Matrix

If you encounter frequent slippage or "flagging," standard hoops relying on friction may be losing grip on the thick batting. magnetic embroidery hoops secure the "sandwich" with intense vertical pressure, preventing the fabric from pulling inward (the "draw-in" effect) as you stitch.

Fabric Choices That Look “Crazy Quilt” on Purpose: Layer Cakes, Contrast Pieces, and Why Repeats Are Fine

Sue uses "Layer Cakes" (pre-cut 10" squares). This is brilliant for organization, but requires a physics check.

The Bias Caution: Scrap fabric is often cut off-grain. When you lay a piece of fabric on the bias (diagonal to the weave), it stretches. Test: Pull the scrap gently. If it stretches like a rubber band, do not pull it tight during the "Tack-Down" phase. Lay it flat and "float" it. If you pull a stretchy bias fabric tight, it will snap back after you unhoop, puckering your quilt block.

Decision Tree: Pre-Cut vs. Trim-in-Hoop

Should you use a scanner (like ScanNCut) or scissors?

• Scenario A: One-off Project (Like this rooster)
  • Decision: Trim-in-Hoop.
  • Reason: Digitizing exact cut files takes longer than using scissors for a single block. The tack-down line is the ultimate accurate guide.
• Scenario B: Production Run (50 Roosters)
  • Decision: Pre-Cut with Iron-on Backing.
  • Reason: Use a laser or cutter. Iron on HeatnBond Lite. This creates stiff, distinct shapes that drop into place instantly, saving 5 minutes of trimming per bird.


Thread Color Choices That Make the Blanket Stitch Pop: Why Sue Switched from Burgundy to Gold/Yellow

Sue switched to gold/yellow thread because the burgundy blended into the dark scraps.

In "Crazy Quilting," the stitch is not just structural; it is the hero. Visual Anchor: You want the stitch to sit on top of the fabric, not bury into it.

• The Fix: If your blanket stitch looks sunken, your top tension is too high. Lower your top tension slightly (try 3.0 or 2.8 on the Luminaire) so the thread relaxes and "blooms" over the raw edge.

Note on Variegated Thread: A viewer asked about variegated thread. While beautiful, be careful. If the color change interval is too short (e.g., changing every inch), a blanket stitch can look "spotty." Use variegated threads with long color runs (changing every 5-10 inches) for this technique.

Running the Finishing Stitches Cleanly: Satin + Blanket Stitch Without Letting Bulk Build Up

Finishing stitches hide the raw edges. However, they add density. The "Bird's Nest" Risk: With a 11x16 hoop, the center of the design is very far from the clamp points. As stitches build up, the stabilizer weakens.

• Observation: Watch the center of the design. If it starts bouncing up and down ("flagging") more than 5mm, slow the machine to 400 SPM.
• Maintenance: Clean the bobbin area before starting the heavy satin border. Lint buildup changes bobbin tension, leading to loops on top.


Operation Checklist: The Repeatable Loop That Keeps Big-Hoop Appliqué Stress-Free

Repetition induces complacency. Use this checklist to stay sharp.

Operation Checklist (Per Appliqué Layer)

• Visual Confirmation: "I see the placement line."
• Coverage Check: "Fabric covers the line by 1/4 inch."
• Adhesion: "Fabric is tacked/sprayed and won't flip over."
• Trim Safety: "Hoop is OFF the machine for trimming."
• Re-Lock: "Heard the CLICK when reattaching hoop."
• Clearance: "Tail threads are trimmed so they don't get sewn over."

If you find yourself dreading the "Unhoop - Trim - Rehoop" cycle because the clips are hard to open, this is the primary indicator you are ready for a generic or branded magnetic hoop.

The Upgrade Path That Actually Matches the Pain Point: Less Hoop Bulk, Faster Trimming, Better Grip

Sue's wall hanging is a triumph, but the video reveals the physical toll of large-hoop management. Here is the commercial diagnostics logic used by professional shops:

1. The "Hoop Burn" & Wrist Pain Issue: If you struggle with the physical force required to snap plastic rings over thick batting, or if you ruin fabric with "burn" marks:

• Solution Level 1: Use thinner batting or lighter tension (risky).
• Solution Level 2 (Recommended): Upgrade to magnetic hoops for brother luminaire. These use magnets to clamp. There is zero friction on the fabric fibers, eliminating burns, and the "open/close" mechanism is zero-effort, saving your wrists.

2. The Compatibility Check: Not all hoops fit all machines. The mounting bracket is specific.

• Solution: Ensure you search for hoops for brother embroidery machines that specifically list the XP/Luminaire mount.

3. The Production Volume Issue: If you plan to make 20 quilts for sale:

• Solution: A single-needle machine requires a thread change for every color stop. This rooster had 10+ stops. Consider a SEWTECH Multi-Needle Machine. You set the colors once, and the machine runs the entire appliqué sequence without you threading a needle.

Warning: Magnet Safety. Magnetic hoops contain powerful Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Medical Devices: Maintain a 6-inch safe distance from pacemakers.
* Electronics: Do not place phones or computerized embroidery cards directly on the magnets.

Final Reveal Mindset: Big Hoops Make Quilts Fast—If You Respect the Setup and Trim Like a Pro

Big hoops are leverage multipliers. They multiply the speed of the project, but they also multiply the cost of a mistake (a shift in an 11x16 hoop ruins a huge piece of fabric).

The rooster block proves that if you respect the physics—clear the desk, slow the machine, and trim on a flat surface—you get gallery-quality results.

The Wall Hanging Payoff: Why This Rooster Block Looks So Good Even with “Real Life” Mistakes

Sue shows the final wall hanging next to an apple block. It is stunning. The "3-Foot Rule": In embroidery education, we teach the 3-Foot Rule. If a mistake (like a slightly jagged trim) is not visible from 3 feet away, it does not exist. The viewer sees the vibrant gold blanket stitch and the "crazy" fabric choices. They do not see the struggle.

By upgrading your workflow logistics and potentially your hooping tools, you remove the struggle so you can focus entirely on the art.

FAQ

• Q: What stitch speed should be used on a Brother Luminaire 2 when running the 11x16 “Grand Dream” hoop with quilt layers to reduce registration shifts and flagging?
  A: Cap the Brother Luminaire 2 speed at 600–700 SPM for a loaded 11x16 hoop to keep the heavy frame from “overshooting” and shifting outlines.
  • Reduce speed before starting the design, especially when batting + fabric create extra mass and drag.
  • Slow further to around 400 SPM if the center starts bouncing (“flagging”) more than about 5 mm during dense stitches.
  • Success check: Outline stitches land cleanly with no new gaps, and the fabric surface looks steady instead of fluttering.
  • If it still fails: Re-check hoop grip and stabilization, because heavy quilt sandwiches can slip in friction-style hoops.
• Q: How can Brother Luminaire 2 users set up safe clearance for the 11x16 hoop so the embroidery carriage does not hit a wall or objects behind the machine?
  A: Create a measured safety zone—Brother Luminaire 2 setups need about 20 inches of clear space behind the machine tower for the 11x16 hoop travel.
  • Slide the machine forward to establish a true “no-fly zone” behind the machine.
  • Clear the left side too, so the hoop does not strike a thread stand, cup, or tools at extreme left travel.
  • Prepare a flat 24" x 24" “landing pad” on the right side for frequent hoop removal and trimming.
  • Success check: Using the machine’s size/check routine (or a careful visual/hand-walk), the hoop path clears all surfaces without coming close.
  • If it still fails: Reposition the entire workstation; large hoops are often limited by furniture layout, not the machine.
• Q: What stabilization and “pre-flight” supplies help prevent hoop pop and shifting when hooping a quilt sandwich for 11x16 appliqué on a Brother Luminaire 2?
  A: Use medium-weight cutaway stabilizer and a simple pre-flight kit so the quilt sandwich stays controlled during repeated appliqué cycles.
  • Choose a medium-weight cutaway stabilizer (about 2.5 oz) for quilt blocks; tearaway can be risky when later stitches get dense.
  • Use temporary spray adhesive (for example, Odif 505) to keep batting from creeping on the stabilizer.
  • Install a fresh Topstitch 90/14 needle to reduce thread shredding through thick layers.
  • Success check: The hooped area passes the “drum skin” test as a dull thud (not a high ping), and the layers do not start walking during stitching.
  • If it still fails: Consider that thick batting may exceed what a friction hoop can hold consistently and may benefit from a different hooping method.
• Q: How can Brother Luminaire 2 users safely trim appliqué fabric when using the 11x16 hoop without stressing the carriage or cutting the base fabric?
  A: Always remove the 11x16 hoop from the Brother Luminaire 2 before trimming appliqué pieces; trimming while attached can torque the carriage and encourages bad cutting angles.
  • Stop with the needle up, then fully remove the hoop and place it on a dedicated flat “landing pad.”
  • Rotate the entire hoop on the desk so the cutting hand always cuts away from the center.
  • Glide curved appliqué scissors along the tack-down “shelf,” with the lower blade riding on top of stabilizer but under the appliqué fabric.
  • Success check: Trims are clean and close to the tack-down without accidental nicks in the background fabric.
  • If it still fails: Switch to sharper curved scissors and verify the appliqué fabric was placed with enough margin before tack-down.
• Q: What should Brother Luminaire 2 users do if an appliqué step is missed, such as forgetting to trim or cutting too short (“appliqué chicken”) before the satin stitch runs?
  A: Stop and triage immediately—most appliqué mistakes can be patched without ripping the entire block out.
  • If trimming was forgotten and satin stitch has not started, trim now before resuming.
  • If satin stitch already covered the area, use fine tweezers and sharp snips to clean outside the stitch line as safely as possible.
  • For “appliqué chicken” gaps, place a tiny matching scrap under the gap area before the satin stitch runs so the satin can secure it.
  • Success check: After the satin/blanket stitch, the raw edge is fully covered with no visible base showing through at normal viewing distance.
  • If it still fails: Re-check the “cover by 1/4 inch” rule for every placement and use adhesive to reduce slip during tack-down.
• Q: How can Brother Luminaire 2 users adjust thread visibility and tension so placement lines are easy to follow and blanket stitches look “on top” instead of sunken?
  A: Use a high-contrast placement line thread and slightly reduce top tension if blanket stitches look buried.
  • Run the placement line in a dark, easy-to-see thread on busy or light backgrounds; the tack-down later will cover it.
  • If the blanket stitch looks sunken, lower top tension slightly (a safe starting point mentioned is around 3.0 to 2.8 on the Luminaire 2) and test.
  • Success check: The placement line is clearly visible for coverage, and the finished blanket stitch “blooms” over the raw edge instead of pulling into the fabric.
  • If it still fails: Verify needle freshness and re-check stabilization, because bounce/flagging can mimic tension problems.
• Q: What are the most important Brother Luminaire 2 safety checks when reattaching the 11x16 hoop, and what magnetic hoop safety precautions apply if upgrading to a magnetic embroidery hoop?
  A: Confirm the Brother Luminaire 2 hoop lock “clicks” every time, and treat magnetic hoops as pinch- and device-hazard tools.
  • Listen and feel for the distinct locking “CLICK” when reinstalling the 11x16 hoop; incomplete locking can let the hoop release after speed ramps up.
  • Keep hands off the carriage path and never leave objects behind the machine where the hoop travels.
  • For magnetic hoops, keep fingers clear when magnets snap together, and keep magnets at least 6 inches from pacemakers; avoid placing phones/cards directly on the magnets.
  • Success check: The hoop stays fully seated through the first ramp-up and stitch-out without movement, noise, or wobble.
  • If it still fails: Stop immediately and re-seat the hoop; do not “let it run,” because an ejected hoop can break needles and damage parts.
