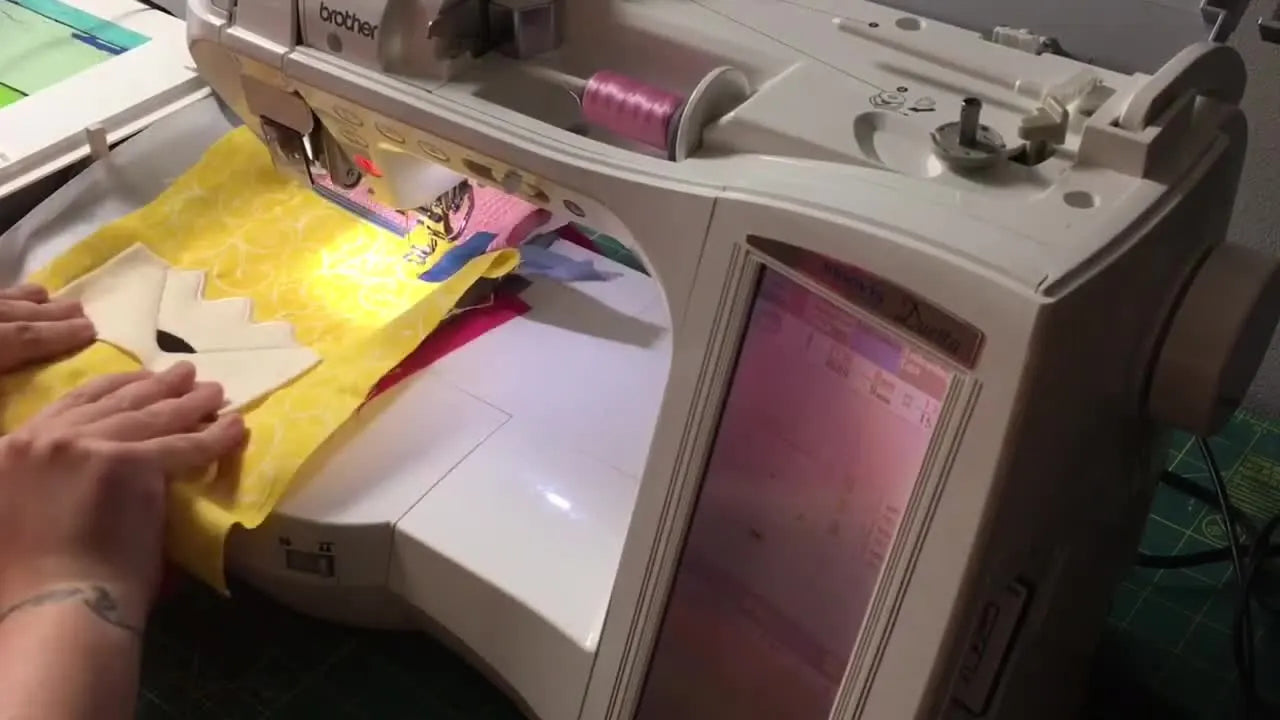

The ITH Pencil Zipper Bag That Actually Turns Right-Side Out: A Brother Innov-is 700II 5x7 Workflow You Can Trust

Mastering the ITH Pencil Zipper Bag: A Production-Grade Guide for Brother Innov-is Users

If you have ever finished an In-The-Hoop (ITH) zipper project only to realize you stitched the pocket shut—or worse, sealed the zipper slider outside the bag—you know the specific flavor of panic this project can trigger. It is a rite of passage, but it is not mandatory.

As someone who has overseen thousands of hours of machine embroidery time, I can tell you that ITH projects are less about "art" and more about engineering discipline. The machine will do exactly what you tell it to do. If you tell it to stitch through a folded lining, it will obediently ruin your project.

This guide rebuilds the workflow for a Brother Innov-is 700II (or similar single-needle machines) using a 5x7 hoop. However, we are moving beyond just "following steps." We are applying production-level habits—sensory checks, safety protocols, and tool optimizations—to ensure your twentieth bag is just as perfect as your first.

The Calm-Down Check: Anatomy of an ITH Failure

Before we thread the needle, we must understand the "physics" of this pencil-shaped bag. It is built in layers: Stabilizer -> Zipper -> Applique -> Backing -> Lining.

Most "disasters" on this style of ITH pouch come from three predictable mechanical failures:

1. The "Zipper Drift": The coil shifts under the presser foot vibration, causing the needle to hit the teeth (the dreaded "Crunch of Death").
2. The "Lining Creep": The underside fabric creates a hidden fold, which gets stitched into the main seam.
3. The "Sealed Tomb": Forgetting to unzip the slider before the final stitch, trapping the bag inside itself forever.

If you treat these three areas as non-negotiable checkpoints, the rest is easy.

The Hidden Prep Pros Do First: Fabric Map & "Hidden" Consumables

Before the hoop ever touches the machine, organize your workspace. This project uses a "floating" technique, meaning we hoop stabilizer only and tape everything else on top.

The Fabric Map (Cut & Label these):

• Outside (3 pcs): Front yellow body, small top "eraser" piece, full back piece.
• Inside (3 pcs): Matching lining pieces for the body, eraser, and full back.
• Applique: A scrap of cream felt/fabric for the pencil tip.
• Zipper: Nylon coil zipper (avoid metal teeth for ITH projects to save your needles).

The "Hidden" Consumables List:

• Medium Tear-Away Stabilizer: Ideal for woven cottons. It provides rigidity during stitching but tears away cleanly for sharp corners.
• Odif 505 Spray: Crucial for preventing "fabric creep."
• Blue Painter’s Tape: Do not use Scotch tape; it leaves residue on the needle.
• Applique Scissors (Duckbill): Mandatory for trimming close without snipping the base fabric.
• New 75/11 Needle: A burred needle causes thread shredding on zipper tape.

Production Insight: If you plan to make these in batches (e.g., 50+ for a craft fair), standard screw-hooping will fatigue your wrists. This is where professionals switch to a magnetic embroidery hoop. The magnetic force clamps fabric instantly without the "unscrew-adjust-tighten" dance, effectively doubling your setup speed.

Prep Checklist (Do not skip)

• Fabric Ironed: Wrinkled fabric equals puckered embroidery. Press everything flat.
• Zipper Check: Ensure it is a nylon coil zipper, longer than the 5x7 design width.
• Bobbin Check: Use 60wt or 90wt bobbin thread. A full bobbin is safer; running out mid-zipper-tack is a nightmare to fix.
• Needle Clearance: Ensure the needle is fresh. If you feel a "pop" sound when it penetrates fabric, change the needle immediately.


The "Drum-Tight" Moment: Hooping Mechanics

The video demonstrates hooping a single layer of medium tear-away stabilizer.

The Sensory Check: Once hooped, tap the center of the stabilizer with your middle finger.

• Bad: A dull, flabby thud (too loose).
• Bad: Visible white stress marks at the corners (too tight/warped).
• Good: A crisp, high-pitched "drum" sound.

If you are struggling with hooping for embroidery machine technique—specifically "hoop burn" (shiny marks on fabric) or keeping stabilizer taut—this is often a hardware limitation. Traditional inner rings can slip. If this is a recurring frustration, upgrading to a magnetic system eliminates the friction-based damage to fabrics.

Zipper Alignment & Taping Strategy (Avoiding The "Crunch")

Run the first placement stitch directly on the stabilizer. This draws a box with a line down the center.

The Critical Alignment:

1. Center the zipper coil exactly over the center placement line.
2. Zipper Pull Placement: For this design, ensure the pull is at the designated end (usually the left, but check your specific pattern).
3. The Tape Anchor: Tape the top and bottom edges of the zipper tape fiercely.

Warning: Physical Safety
Keep your fingers away from the needle zone when smoothing tape. Never attempt to "hold" the zipper while the machine is running initially. A needle moving at 600 stitches per minute (SPM) does not forgive.

The "No-Go Zone" Rule: Do not place tape across the center of the zipper where the needle will travel during the tack-down stitch. Adhesive builds up on the needle, leading to thread breaks and skipped stitches.

Once taped, run the tack-down stitch. Listen to your machine. A rhythmic, soft thump-thump is good. A loud CRACK usually means you hit the metal zipper stop or the slider.

The Flip-and-Check Habit: The First Fabric Sandwich

Now we begin the "Floating" technique.

1. Front: Place the yellow fabric Right Side Down along the zipper line.
2. Back: Flip the hoop over. Place the lining fabric Right Side Down on the back.
3. Secure: Tape the corners of the back lining to the stabilizer.

The Gravity Trap: Gravity wants to pull the underside lining away from the hoop. When you slide the hoop back into the machine, the feed dog cover can snag loose lining.

The Fix: Use enough tape that the fabric defies gravity. If you struggle to align backing fabrics while holding the hoop upside down, a hooping station for embroidery acts as a third hand, holding the hoop stable while you align perfectly.

Setup Checklist (Pre-Applique)

• Front fabric overlaps the zipper tape but stays clear of the zipper teeth zone (if required by pattern).
• Underside Check: Look under the hoop. Is the lining smooth?
• Tape Check: Is tape secured to the stabilizer, not just loosely onto the frame?


Applique Without Tears: The "Lift and Separate" Discipline

This section is where 40% of beginners fail. They accidentally stitch the pocket shut.

The video demonstrates a crucial maneuver: Keeping the lining out of the way. When you add the cream felt for the pencil tip/wood, you are working on the top of the hoop. However, the machine will stitch through everything.

The Protocol:

1. Identify where the lining is underneath.
2. If the pattern instructions say "Fold lining back," do it. Use tape to pin it away from the stitch area.
3. Stitch the pencil tip placement -> Place Felt -> Stitch Tack-down.


Trimming Sensitivity: Remove the hoop (do not unhoop the fabric) to trim the excess felt.

• Rule: Rest the hoop on a flat table.
• Tool: Use duckbill scissors. The wide "bill" pushes the good fabric down while the blade cuts the felt.
• Sensory: You should feel the scissors gliding against the stabilizer, not digging in.

Warning: The Shift Risk
Do not pop the fabric out of the hoop while trimming! If you unhoop now, alignment is lost forever.

Satin Stich Physics: Density & Speed Control

The machine will now likely run a satin stitch (zigzag column) to cover the raw edges of the felt.

Speed Limit Recommendation: Satin stitches add massive tension to the fabric. High speeds (800+ SPM) on a domestic machine can cause the fabric to "pull" or pucker, creating gaps.

• Beginner Sweet Spot: Lower your speed to 400-600 SPM for this step.
• Why: Slower speed allows the thread tensioner to recover between stitches, laying the thread flat rather than pulling the fabric.

If you are using a brother embroidery machine, check your screen for the speed adjustment icon (usually a tortoise/hare symbol) before hitting start on the satin section.

The Eraser Section: Directional Logic

We repeat the process for the top "eraser" part.

1. Fold lining back down (if it was pinned up).
2. Float Eraser fabric Top (Right Side Down).
3. Float Eraser Lining Bottom (Right Side Down).
4. Tack down.

Crucial Note on Hoop Burn: At this stage, your hoop has been clamped for 20+ minutes. Traditional plastic hoops can lose grip or leave crushed fibers ("burn") on delicate velvets or softer cottons. If you see fabric slipping (gaps appearing in outlines), your hoop tension is failing. This maintains the argument for a magnetic hoop for brother upgrade—the continuous magnetic clamping pressure does not relax over time like a screwed plastic hoop can.

The Optional Loop: Handling Thick Spots

The video adds a Fold Over Elastic (FOE) loop.

• Tip: When taping FOE, ensure the tape is outside the stitch path. Adhesive on loops makes them gummy and attracts lint.
• Leveling: If the loop is thick, the presser foot might tilt. Pause the machine, raise the foot, and verify clearance before stitching.


The Point of No Return: THE HALF-UNZIP

STOP. Read this twice. Before you attach the final back pieces, you MUST unzip the zipper halfway.

• Logic: Once you sew the final back pieces on, the zipper slider is sealed inside the sandwich. If the slider is left at the top (closed) position, you will have a finished bag that you cannot turn right-side out because the slider is inaccessible.
• Visual Check: Move the slider to the exact center of the hoop. Tape the pull tab down if it’s dangly so it doesn’t catch the needle.


The Final Assembly: Managing Bulk

Now we seal the deal.

1. Top: Place Final Exterior Backing Face Down (covering the whole design).
2. Bottom: Place Final Lining Face Down on the back.

The "Shift" Danger: Because you are covering the whole bag, you can't see if the underneath layers are bunching.

• Fix: Use Odif 505 spray lightly on the corners of your lining fabric to make it "sticky" against the stabilizer. Tape aggressively.

If you are running a business and doing this 50 times a day, magnetic hoops for embroidery machines are superior here because they handle the "sandwich thickness" better. Standard hoops struggle to close over 4 layers of fabric + zipper + stabilizer, often popping open mid-stitch.

Operation Checklist (Final Seam)

• ZIPPER IS OPEN TO CENTER. (Check again).
• Exterior fabric fully covers the design borders.
• Lining fabric fully covers the back design borders.
• Finger Guard: Watch your fingers; the machine will travel the full perimeter now.


The Birth of the Bag: Tear, Turn, and Press

1. Unhoop: Release the release mechanism.
2. Tear: Remove stabilizer. Support the stitches with your thumb while tearing to avoid popping threads.
3. Trim: Cut around the shape.
   • Corner Science: Clip your curves! Cut small notches in the seam allowance around the rounded pencil tip. This ensures it turns round, not square.
4. Turn: Reach through the lining opening, find the open zipper, and pull the bag through.
5. Poke: Use a chopstick or turning tool to push the pencil point out gently. Don't push too hard or you'll poke through the felt.


Decision Tree: Troubleshooting Your Materials

Scenario A: Needle Keeps Breaking on Zipper

• Cause: Hitting the metal stop or slider?
• Fix: Check placement.
• Cause: Density too high?
• Fix: Use a Size 14/90 Needle for thick sandwiches.

Scenario B: The "Pencil Tip" is Puffy/Distorted

• Cause: Fabric wasn't stable.
• Fix: Use Cutaway stabilizer instead of Tearaway for the next batch, or spray-basting the felt more securely.

Scenario C: Wrist Pain / Hooping Struggles

• Diagnosis: Fighting the hoop screw.
• Treatment: If you are doing volume production, the brother 5x7 magnetic hoop is the ergonomic solution.
• Safety Note: Magnet Warning. Magnetic hoops are powerful. Do not let them snap on your fingers. Keep away from pacemakers.

The Professional Path Forward

You have now completed an ITH Pencil Bag. If it’s perfect, congratulations—you have mastered the variables. If it’s crooked, don't worry. Machine embroidery is an iterative science.

To move from "Hobbyist" to "Production Studio":

1. Systematize: Cut all fabrics for 10 bags at once.
2. Optimize Tools: Replace standard scissors with Applique shears. Replace standard hoops with embroidery machine hoops that use magnetism to reduce prep time by 30%.
3. Maintenance: Clean the lint from your bobbin case after every zip-bag project (zipper fuzz is real).

The difference between a frustrating afternoon and a profitable run of products is rarely the machine—it’s the workflow. Keep stitching, keep unzipping, and trust your hands.

FAQ

• Q: How can Brother Innov-is 700II users prevent an ITH zipper bag from stitching the zipper slider outside the bag during the final seam?
  A: Unzip the zipper halfway before placing the final back pieces, then tape the pull tab so it cannot wander into the needle path.
  • Stop the machine before final assembly and move the slider to the exact center position.
  • Tape the pull tab down if it is dangly, keeping tape outside the stitch path.
  • Re-check the slider position again right before starting the perimeter seam.
  • Success check: the zipper opening is visible and reachable after stitching, so the bag can be turned right-side out.
  • If it still fails: seam-rip only the section needed to access the slider, then resew slowly after repositioning the slider to center.
• Q: What is the “drum-tight” hooping test for Brother 5x7 embroidery hoops when hooping medium tear-away stabilizer for ITH projects?
  A: Hoop only the stabilizer and aim for a crisp “drum” sound when tapping the center—tight enough to be firm, not tight enough to warp.
  • Tap the hooped stabilizer with a middle finger before stitching.
  • Reject a dull, flabby thud (too loose) and reject visible white stress marks at corners (too tight/warped).
  • Re-hoop until the stabilizer is evenly tensioned across the frame.
  • Success check: the stabilizer makes a high-pitched, crisp tap and stays flat with no corner stress lines.
  • If it still fails: consider a magnetic hoop to reduce slipping and hoop-pressure marks, especially if hoop burn or loosening is recurring.
• Q: How do Brother Innov-is single-needle users stop an ITH zipper from drifting so the needle hits the zipper teeth during the tack-down stitch?
  A: Center the nylon zipper coil exactly on the placement line and tape the zipper tape firmly at the top and bottom—never across the stitch path.
  • Stitch the placement box/center line first, then align the zipper coil directly over the center line.
  • Tape the top and bottom edges of the zipper tape aggressively to the stabilizer.
  • Keep tape out of the “no-go zone” where the needle will travel to avoid adhesive buildup and skipped stitches.
  • Success check: the tack-down stitch runs with a steady, soft rhythm (not a loud crack), and the needle does not strike teeth or stops.
  • If it still fails: verify the zipper is nylon coil (avoid metal teeth) and re-check that the slider/stop is not positioned under the needle path.
• Q: What needle, bobbin, and tape choices reduce thread breaks and sticky needles on Brother Innov-is zipper ITH projects?
  A: Start with a fresh 75/11 needle, use 60wt or 90wt bobbin thread, and use blue painter’s tape (not Scotch tape) to minimize residue and shredding.
  • Install a new 75/11 needle; change it immediately if you hear or feel a “pop” as it penetrates.
  • Wind/insert a full bobbin with 60wt or 90wt bobbin thread to avoid running out mid tack-down.
  • Use blue painter’s tape and keep adhesive away from the needle travel zone.
  • Success check: the machine stitches zipper sections without repeated thread shredding, skipped stitches, or gummy needle buildup.
  • If it still fails: reduce adhesive use (or reposition tape), and re-check that the needle is not contacting a zipper stop or slider.
• Q: How can Brother Innov-is users prevent “lining creep” when floating fabric for an ITH zipper bag so the lining doesn’t get stitched into the seam?
  A: Treat the underside lining as a separate checkpoint—smooth it, tape it to the stabilizer, and verify it stays flat before every stitch sequence.
  • Flip the hoop over and place the lining right side down, then tape the lining corners to the stabilizer (not loosely to the frame).
  • Before sliding the hoop into the machine, look under the hoop and remove any hidden folds.
  • Use enough tape that the underside fabric “defies gravity” and cannot sag into the stitch path.
  • Success check: the underside lining remains smooth with no ridges or folds visible under the hoop before stitching.
  • If it still fails: use a hooping station to stabilize the hoop during alignment, and add light spray-basting at corners when allowed by the project workflow.
• Q: What is a safe Brother Innov-is speed setting for satin stitch sections on ITH applique, and how can users tell when speed is too high?
  A: Slow down to about 400–600 SPM for satin stitch to reduce puckering and gaps, especially on domestic single-needle machines.
  • Lower the speed before starting the satin column that covers applique edges.
  • Watch for fabric pull or small gaps along the satin edge as signs of too much stress.
  • Keep the project stable in the hoop and avoid rushing this section.
  • Success check: satin stitches lay flat and fully cover the raw felt edge without visible gaps or puckering.
  • If it still fails: re-check hoop tightness and stabilization choice; switching stabilizer type for the next batch may help when distortion repeats.
• Q: What safety rules should Brother Innov-is users follow when taping a zipper and running 600 SPM tack-down stitches on ITH projects?
  A: Keep fingers completely out of the needle zone, never “hand-hold” the zipper while stitching starts, and stop immediately if the sound changes to a crack.
  • Tape and smooth materials with the needle stopped and hands away from the presser foot area.
  • Let tape do the holding; do not pinch the zipper near the needle as the machine starts.
  • Listen for a loud crack (often contact with a stop/slider) and stop the machine to inspect before continuing.
  • Success check: hands stay clear throughout, and the tack-down runs without sudden impact sounds.
  • If it still fails: reposition the zipper so the slider/stop is away from the stitch path and restart at a slower speed until stable.
• Q: When should Brother Innov-is 5x7 hoop users switch from a standard screw hoop to a magnetic embroidery hoop for ITH zipper bag production?
  A: Switch when hoop burn, slipping, wrist fatigue, or thick “sandwich” layers repeatedly cause misalignment or hoop closure problems—optimize technique first, then upgrade the hoop for speed and consistency.
  • Level 1 (technique): re-check drum-tight hooping, tape to stabilizer, and use spray-basting lightly at corners for final assembly.
  • Level 2 (tool): use a magnetic hoop to clamp quickly, reduce screw-hooping fatigue, and maintain pressure better over long runs and thicker stacks.
  • Level 3 (capacity): if volume is daily and time-critical, consider production-focused equipment upgrades after the workflow is stable.
  • Success check: outlines stop drifting over a 20+ minute hoop time, and hooping/setup time drops without fabric marks or slipping.
  • If it still fails: review layer thickness and placement steps; magnetic hoops are powerful—avoid finger pinch injuries and keep them away from pacemakers.
