If you’ve ever nailed the front logo on a cap—then immediately felt a knot in your stomach at the thought of re-hooping to add a number on the left and a slogan on the right—you are not alone. This is the "Cap Gap": the distance between knowing how to stitch a front logo and mastering the full 270-degree capability of your machine.

Side panels are curved, the seams lie to your eyes, and one “close enough” placement can turn into a crooked, off-panel disaster.

Juliette’s video workflow solves that problem the way production shops actually solve it: measure the physical reality first, then force the software to obey the math. The secret is a repeatable offset (her “magic number”) that lets you stitch multiple positions in a single hooping using a Wide Angle Cap Frame (WACF).

Below is the full workflow, rebuilt into a shop-ready process with specific safety parameters, sensory checkpoints, and the "sweet spot" settings that keep you from breaking needles.

Don't Panic: Wide Angle Cap Frame placement is predictable once you stop eyeballing seams

Cap side embroidery feels “mystical” because you’re working on a conical surface, and your brain desperately wants to reference the seam lines. The seam is useful for orientation—but it is not a reliable ruler. Seams on mass-produced caps often drift by 2-3mm.

What is reliable is physics: if you always measure from the true center of the side panel to the true front center seam, and you always apply that exact distance as an X-axis offset in your software, your placements become mathematically repeatable.

In this workflow, we use a standard Wide Angle Cap Frame. This hardware allows for a 270° sewing field, covering the front and sides in one go.

Know your hardware: The foundation of repeatability

Before we touch software or needles, we must address the physical setup. If your cap isn't held rigidly while you measure it, your numbers will be worthless.

To execute this technique, you need a Cap Driver (the machine attachment) and a Hooping Station (the desk attachment). The hooping station is the critical variable here. If you are researching hooping stations to upgrade your shop, look for one specific feature: the ability to lock the cap driver cylinder in place so it doesn't rotate while you are pulling the sweatband.

The Stability Check: When the cap is on the station, try to wiggle the bill left and right. If there is more than 2mm of play, you need to tighten your station's gauge. Movement here equals crooked logos later.

The “Hidden” Prep: Stabilizer, Sweatbands, and Friction

Juliette’s hooping sequence looks simple, but there are pro-level details buried in the movement that prevent the dreaded "flagging" (bouncing fabric) which breaks needles.

1. The Stabilizer Sandwich

You must install the backing (stabilizer) before the cap. Use a clip to secure it to the absolute bottom of the cylinder.

• Pro Tip: For structured caps (like Richardson 112s), use a 2.5oz to 3.0oz Tearaway.
• The "Crunch" Test: Good tearaway should feel crisp, not soft like a paper towel.

2. Taming the Sweatband

This is where 80% of beginners fail. You must pull the sweatband out and down so it sits flat against the backing.

• Sensory Anchor: When you smooth the sweatband down, it should feel like you are unrolling a fresh pair of socks—snug and smooth against the metal cylinder. If you feel a lump, stop. That lump will push the cap away from the needle plate and cause thread breaks.




Warning: Pinch Hazard. Keep fingers clear of the locking levers on the cap driver and frame hardware. Never leave pins in the hat where the needle path could hit them—if a needle strikes a pin at 800 SPM, it can shatter the metal and permanently damage your rotary hook.

Prep Checklist (Do this BEFORE measuring)

• Stabilizer: Backing strip is clipped to the cylinder; it is taut and straight.
• Sweatband: Pulled completely out and smoothed down against the backing.
• Seating: The cap is pushed as far onto the driver as it will physically go.
• Bill: Flattened slightly and verified to be centered (look at the alignment hash mark on the driver).
• Tools: You have a flexible tailor’s tape (do not use a rigid ruler).

Hooping the hat: The 60-second routine for consistency

The goal of hooping isn't just to hold the hat; it's to create "Drum Skin" tension.

Juliette wraps the cap strap around the frame and locks it.

• Sensory Check: Tap the front panel of the cap with your finger. It should sound like a dull thud or drum. If the fabric ripples, it's too loose.
• Friction Management: If you are struggling to get the strap tight without hurting your wrists, or if the strap slips, this is a common fatigue point. Many production shops switch to magnetic systems here to reduce strain.




Find the TRUE center of the side panel

Forget where the eyelets are. Forget the seams.

Juliette measures the side panel from stitch line to stitch line.

1. Measure Width: In her example, the panel is 4 inches wide.
2. Find Center: She marks the halfway point at 2 inches.
3. Mark It: Place a pin or use a water-soluble pen/chalk mark at this spot.

Do this for both the left and right sides. Never assume they are symmetrical—caps are sewn by humans, not robots.

The “Magic Number” Calculation

Now, we translate the physical world into data the machine understands.

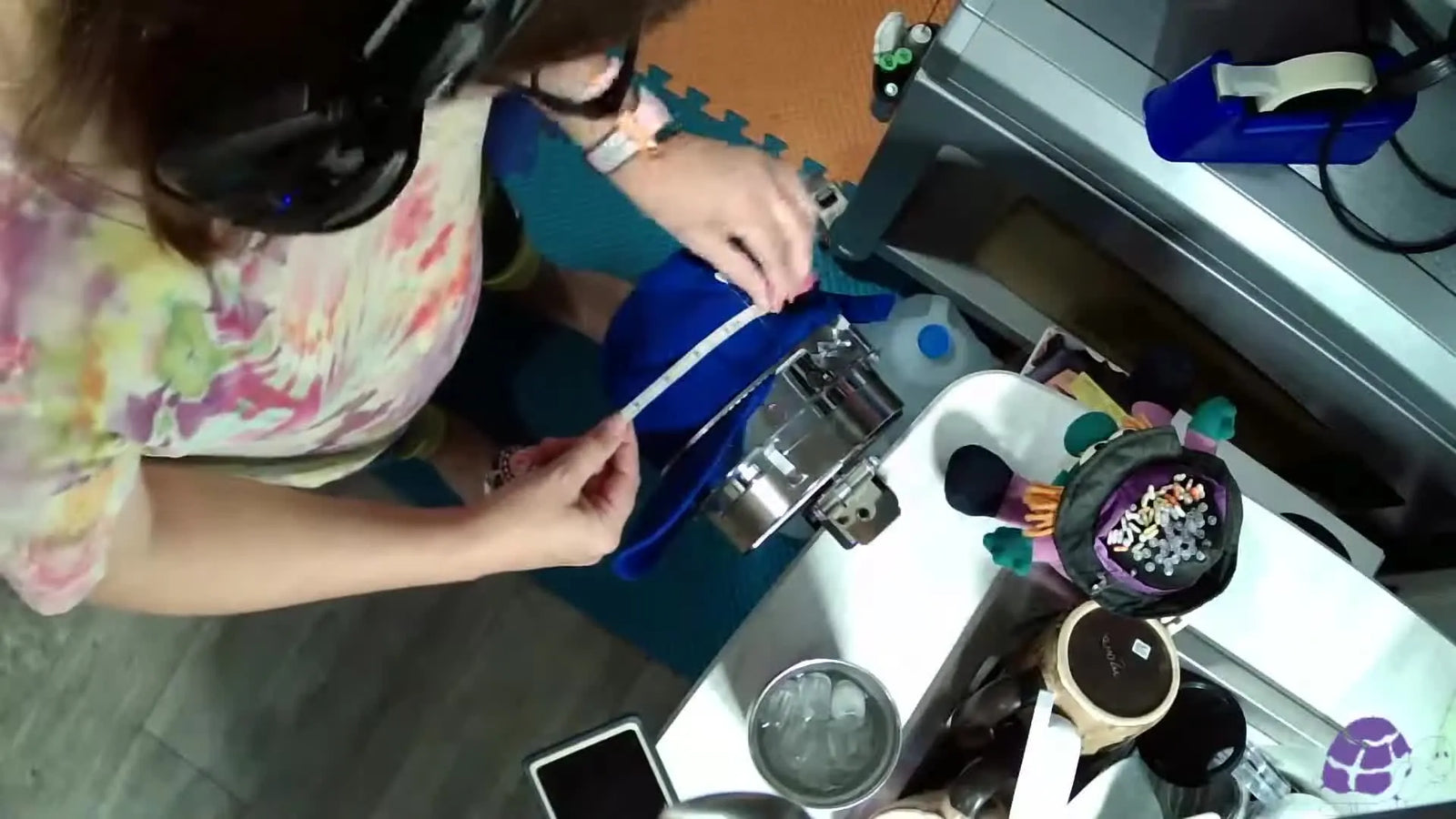

Juliette creates a continuous measurement line. She measures from the side panel center pin to the absolute center seam on the front of the hat.

• Critical Technique: The tape measure must hug the curve of the cap perfectly. Do not pull it tight like a bowstring across the air.
• The Result: In this video, the distance is 5.5 inches.

This 5.5 is your "Magic Number." It is the X-axis offset.

Note on Variability: This number is a "Cap Constant." It applies to this specific brand (e.g., Flexfit 6277) on your specific hoop. If you switch to a flimsy dad hat, re-measure. The curve will be different.

Software Setup: Making Chroma Obey the Tape Measure

Back in your digitizing software (Juliette uses Chroma, but this logic applies to Wilcom, Hatch, etc.), you will build a layout that matches your measurements.

1. Create 3 Elements:
   • Center Logo (Position: X = 0)
   • Left Text ("14")
   • Right Text ("2020 Champs")
2. Apply the Magic Number:
   • Using the grid (where one box = 0.5 inches) or the coordinate box, move the side designs until their center point is exactly 5.5 inches away from the center logo (X = -5.50 and X = +5.50).
3. Resize for Curvature:
   • Juliette resizes her side text to 2.5 inches wide.
   • Pro Rule: Keep side designs under 2.25 inches in height. As you get closer to the top or bottom of the side panel, the cap curves away from the needle plate, increasing the risk of needle deflection.

If you are using ricoma embroidery machines or similar modern equipment, the software often mirrors the machine's coordinate system practically 1:1, making this method highly effective.

The Y-Axis Reality: Why "Center" Isn't Always Center

Juliette issues a vital warning: X-axis (Left/Right) is math; Y-axis (Up/Down) is an art form.

Due to the conical shape of the cap, a straight line in software might look like a rainbow or a smile on the actual hat. The "visual center" of the side panel often sits slightly lower than the mathematical center.

The "Sacrificial Hat" Protocol: Always run the first cap of a batch as a test.

1. Stitch the design.
2. Measure how far off the Y-axis is visual.
3. Adjust the file up/down.
4. Save this adjusted file as your master template.

Verify or Ruin: The Sewing Field Check

Before you press start, toggle on the hoop template view in your software (the red outline of the WACF).

In the video, the right-side design is within 0.25 inches of the limit.

• The Safety Buffer: Never put a design closer than 10mm (approx 0.4 inches) to the physical metal frame.
• The Risk: If the needle bar hits the clamp, you don't just break a needle—you can knock the machine's timing out, requiring a technician visit.

If you are currently shopping for cap hoop for embroidery machine upgrades, check the "usable sewing field" specs. A larger field gives you a larger safety buffer for side logos.

Operation Flow: Speed and Settings

Juliette flips the design upside down (standard for cap drivers). But here are the machine settings you need for success:

• Speed (SPM): Do not run this at 1000 SPM.
  • Beginner Safe Zone: 600 SPM.
  • Pro Safe Zone: 750-850 SPM.
  • Why? The side of a cap acts like a trampoline. High speeds cause the fabric to bounce, leading to skipped stitches or thread looping.
• Stitch Order: Center First -> Left -> Right (or Center -> Right -> Left). Always finish a clear section before rotating to the next.

Operation Checklist (The "Save Your Hat" Check)

• Orientation: The design is rotated 180° (upside down) on the screen.
• Trace: You have run a "Trace" or "Contour" check on the machine. You watched the laser pointer to ensure it didn't hit the metal ring.
• Bobbin: You have a full bobbin. (Running out of bobbin on a side panel is a nightmare to align perfectly again).
• Clearance: You visually confirmed the side designs have at least 0.5 inches of clearance from the frame edge.

Decision Tree: Fabric, Tools, and Stabilizers

Use this logic flow to make the right choices for your specific project.

Start: What is the rigidity of the cap?

• Scenario A: Stiff, Structured Cap (e.g., Flexfit, Snapback)
  • Stabilizer: 2.5oz Tearaway.
  • Hooping: Standard manual WACF is usually fine.
  • Speed: Up to 800 SPM.
• Scenario B: Unstructured, "Floppy" Dad Hat
  • Stabilizer: Must use Cap Cutaway or two layers of heavy Tearaway.
  • Hooping: Requires high tension. If your manual hoop slips, use binder clips on the bottom to secure the excess material.
  • Speed: Reduced to 600 SPM.
• Scenario C: High Volume Production (50+ Hats)
  • The Bottleneck: Wrist fatigue and slow measuring.
  • The Fix: This is the trigger point to investigate magnetic hooping station systems or upgrading to multi-needle machines (like SEWTECH models) that handle color changes automatically while you hoop the next hat.

Troubleshooting: Symptoms & Cures

Even pros encounter "Bad Hats" (like the Velcro failure in Juliette's video). Here is how to diagnose problems quickly.

The Upgrade Path: When to Switch Tools

If you are a hobbyist doing one hat a week, the manual tape-measure method is perfect. However, if you are running a business, you must calculate the cost of your time.

1. The "Third Hand" Problem:
   If you find yourself wishing for a third hand to hold the backing while you clamp the hat, traditional hoops are fighting you. This creates inconsistent tension. Many professional shops transition to Magnetic Hoops for caps. These clamps snap shut instantly, holding difficult materials (like thick Carhartt beanies or stiff caps) with zero slippage.
2. The Scaling Problem:
   If you are using a single-needle machine, every color change is a stoppage. Following a complex side-panel workflow like this on a single-needle machine is painful.
   • Terms like melco hat hoop often appear in searches by users frustrated with standard hoops.
   • The Solution: When you reach 20+ hats per week, a SEWTECH Multi-Needle Machine becomes a profit multiplier. It allows you to queue the colors and trust the machine, freeing you to focus entirely on the precise hooping technique described above.

Warning: Magnetic Field Safety. Powerful magnetic hoops can pinch skin severely. Keep them away from pacemakers, ICDs, and other implanted medical devices. Always store them with the provided separator to prevent them from snapping together dangerously.

Setup Checklist (Software Final)

• Elements: Front, Left, and Right designs are present.
• Offset: Side designs are moved +/- X inches based on your measured Magic Number.
• Field Check: Hoop template (WACF) is ON; designs are inside.
• Save: File saved as .DST (or machine native format) and the editable working file.

Pro Habit: The "Template Library"

Don't re-measure every time. Smart shops keep a "Cheat Sheet" near the machine:

• Richardson 112: Magic Number 5.5", Y-axis -5mm.
• Yupoong 6606: Magic Number 5.25", Y-axis -3mm.
• Otto Cap: Magic Number 5.6", Y-axis 0mm.

Build this library, and you transform a scary 20-minute setup into a confident 2-minute routine.

If you are currently looking for a hooping station for machine embroidery to standardize this process, remember: the goal is repeatability. The best tool is the one that lets you get the same result, on the 100th hat, as you did on the first.

FAQ

• Q: How do I set a Wide Angle Cap Frame (WACF) X-axis offset so a cap front logo and side logos stitch in one hooping?
  A: Use one measured “Magic Number” per cap style and enter it as the left/right X offset in software.
  • Measure: Find the true center of the side panel (stitch line to stitch line, then mark halfway).
  • Measure: Run a flexible tailor’s tape from the side-panel center mark to the absolute front center seam while the tape hugs the cap curve (do not chord it through the air).
  • Apply: Set center design at X=0, then set side designs to X = -Magic Number and X = +Magic Number.
  • Success check: Side logos land centered on the side panels without “creeping” toward the back after stitching.
  • If it still fails: Re-measure with the cap fully seated on the driver and the sweatband pulled flat; changing cap models often changes the constant.
• Q: How do I stop cap side-panel “flagging” on a Wide Angle Cap Frame (WACF) that causes thread looping or birdnesting?
  A: Increase stability at the needle plate by tightening hoop tension and adding the right backing so the cap cannot bounce.
  • Add: Use a crisp 2.5–3.0 oz tearaway for structured caps; for floppy dad hats, switch to cap cutaway or use two layers of heavy tearaway.
  • Tighten: Strap and lock the cap so the fabric is rigid, not rippling.
  • Smooth: Pull the sweatband out and down flat against the backing so no lump pushes the cap away from the needle plate.
  • Success check: Tap the front/side panel—fabric should feel “drum-skin” tight (a dull thud, not a flutter).
  • If it still fails: Reduce speed to the beginner-safe 600 SPM and verify there is no visible gap between cap and needle plate during stitching.
• Q: What is the correct prep order for stabilizer and sweatband on a Wide Angle Cap Frame (WACF) to avoid crooked placement and thread breaks?
  A: Install backing first, then seat the cap fully, then pull the sweatband completely out and smooth it down before measuring or clamping.
  • Clip: Secure the backing strip to the absolute bottom of the driver cylinder so it stays taut and straight.
  • Seat: Push the cap as far onto the driver as it will physically go, then verify the bill is centered using the driver alignment mark.
  • Smooth: Pull the sweatband out and down so it lies flat against the backing (stop if you feel a lump).
  • Success check: The sweatband feels snug and smooth against the metal cylinder with no bumps, and the cap does not shift while you handle it.
  • If it still fails: Tighten the hooping station gauge—more than ~2 mm of bill wiggle on the station usually means the setup will drift.
• Q: How close can a design be to the Wide Angle Cap Frame (WACF) metal edge before needle strikes become a risk?
  A: Keep embroidery at least 10 mm (about 0.4 in) away from the physical metal frame to protect needles and machine timing.
  • Toggle: Turn on the hoop template view in software and confirm every element stays inside the usable sewing field.
  • Trace: Run the machine’s Trace/Contour and watch the pointer/path to ensure it never approaches clamps or the ring.
  • Reposition: If clearance is tight, move or reduce the side design rather than “hoping it clears.”
  • Success check: Trace completes without any point traveling near the metal ring, and stitching runs without needle contact noises.
  • If it still fails: Rebuild the layout with a smaller side design width and re-check the safety buffer before sewing.
• Q: What cap embroidery speed (SPM) is safest on a Wide Angle Cap Frame (WACF) for side logos to reduce skipped stitches and needle breaks?
  A: Start at 600 SPM for safety; experienced operators often run 750–850 SPM, but high speed increases bounce on side panels.
  • Set: Use 600 SPM as the beginner safe zone, especially on curved side panels.
  • Sequence: Stitch Center → Left → Right (or Center → Right → Left) to finish one clear area before moving on.
  • Confirm: Use a full bobbin before starting to avoid a hard-to-realign restart mid-side panel.
  • Success check: Stitches form cleanly without looping and the cap does not visibly “trampoline” while sewing.
  • If it still fails: Keep speed at 600 SPM and improve stabilization/tension first; speed will not fix a loose hoop.
• Q: How do I fix a crooked cap logo on a Wide Angle Cap Frame (WACF) when the design tilts after stitching?
  A: Re-hoop with the cap seated straight and locked rigidly; most tilt comes from mis-seating or slack in the station/strap.
  • Align: Re-check the bill against the driver’s alignment hash mark before locking.
  • Tighten: Pull the sweatband tighter and lock the strap so the cap cannot rotate on the driver.
  • Verify: Do the station stability check—if the bill wiggles more than ~2 mm, tighten the station gauge.
  • Success check: With the cap mounted, you cannot twist the bill left/right by hand without moving the entire driver.
  • If it still fails: Re-measure side-panel centers instead of trusting seams; seam drift of a few millimeters can create a visible tilt.
• Q: When should a shop switch from a manual Wide Angle Cap Frame (WACF) workflow to magnetic hoops or a SEWTECH multi-needle embroidery machine for cap production?
  A: Upgrade when repeatability or throughput is limited by hand strain, slipping straps, or frequent stops—not just because a cap is “hard.”
  • Level 1 (technique): Standardize the prep and measuring routine, then build a cap “template library” (Magic Number + Y tweak) so setup becomes repeatable.
  • Level 2 (tool): If strap tightening causes wrist fatigue or slipping tension, magnetic hoop systems often reduce strain and improve consistency.
  • Level 3 (capacity): If weekly volume reaches the point where single-needle color changes become the bottleneck (often around 20+ hats/week), a multi-needle machine like SEWTECH can reduce stoppage time while you focus on hooping accuracy.
  • Success check: The same cap model stitches with the same placement on the 50th hat as on the first without re-measuring every time.
  • If it still fails: Treat the first hat as a sacrificial test, adjust Y-axis visually, save the corrected master file, and only then scale the run.
