The MC15000 “Created Stitches” Workflow That Actually Sticks: Import .STX from Stitch Composer, Save It Permanently, and Avoid the Usual USB Traps

If you have ever designed a decorative stitch in Stitch Composer, saved it with pride, and then stared blankly at your Janome Horizon Memory Craft 15000 wondering, “Why won’t the machine see the file?”—you are experiencing a very specific, shared frustration.

The MC15000 is an engineering marvel, but its file management system often feels like it operates on logic from a different era. The machine is incredibly "picky" about file extensions, specific folder trees, and—most confusingly—on-screen modes that hide essential save buttons.

This guide is not just a tutorial; it is a workflow reconstruction. We will walk through the exact process shown in the source material, but I will overlay it with the safety protocols and sensory checks used by professional digitizers. We will ensure you never lose a custom stitch, never crush a needle during a test run, and understand exactly when to stop fighting the software and start upgrading your hardware workflow.

Start Calm: The Janome MC15000 “Created Stitches” System Is Real—Just Easy to Misread

Let’s ground ourselves in facts to lower the anxiety. The video references the printed manual (specifically page 63). This is important because it confirms that moving stitches from PC to machine is a supported feature, not a hack.

However, the emotional reality is that the MC15000 interface can feel “high stakes.” When the screens don't show previews, or when the "Save" icon vanishes, it triggers a fear response: Did I just lose my work? Is the file corrupt?

You aren't losing your mind. You just need a navigational chart. The system works perfectly, provided you follow a disciplined, unbending sequence.

The “Hidden” Prep That Prevents 90% of Import Failures

Before you even open the software, we need to address the physical environment. Most import failures happen because the "bridge" (the USB stick) or the "passenger" (the file type) is incompatible.

1. The File Format: It Must Be .STX

The MC15000 speaks two languages:

• .JEF: This is for embroidery designs (hooped projects).
• .STX: This is for Decorative Stitches (sewing mode).

If you try to load a decorative stitch file via the embroidery "Direct Connect" or Wi-Fi, it will vanish into the ether. As the instruction highlights, Stitch Composer writes .stx files directly to USB.

2. The USB Stick: Format It in the Machine

Don't grab a random USB drive from your desk drawer that’s full of Excel spreadsheets.

• Action: Insert a USB stick (2GB–8GB is the sweet spot; avoid massive 64GB+ drives which unused machines sometimes struggle to index) into the MC15000.
• Action: Format it using the machine’s settings menu.
• Why? This forces the machine to create its own rigid folder structure (Embf, OrdF, etc.). If these folders don't exist, the Stitch Composer software has nowhere to put the file.

3. Workflow Context

Think of your digital file management like your physical workspace. If you use a hooping station for embroidery to organize your garments and backing, you know that preparation prevents errors. Treat your USB stick with the same respect: label it, format it, and dedicate it solely to this machine.

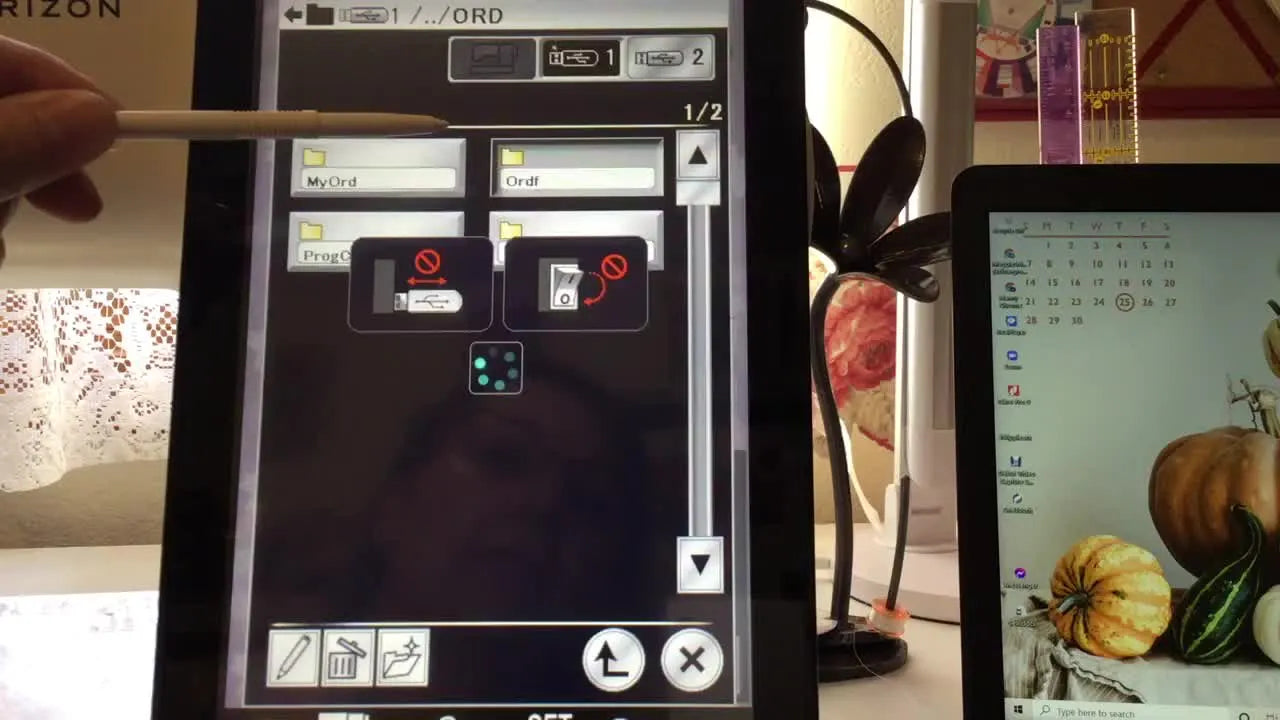

Exporting from Stitch Composer: “Write a Design” Must Land in /ORD/OrdF

In the Stitch Composer software, you won't use "Save As" to get the file to the USB. You will use the function Write a Design.

The Critical Path

When the file explorer window opens, you cannot just drop the file on the root of the USB drive. You must click through this exact path:

1. Open the ORD folder.
2. Open the OrdF folder.

This is the only mail slot the MC15000 checks for Created Stitches.

The Naming Discipline

The software often defaults to generic names like Design1.

• The Trap: The MC15000 import screen does not show image previews for .stx files; it only lists names. If you have Design1, Design2, and Design3, you will have no idea which is your "Vintage Leaf" and which is your "Star Border."
• The Fix: Rename the file immediately in the export window. Use short, descriptive names like VintLeaf or StarBord.


Warning: Data Corruption Risk
USB file operations are fragile. As shown in the workflow, never yank the USB stick out immediately after saving.
1. Minimize the software.
2. Click the "Safely Remove Hardware" icon on your PC taskbar.
3. Wait for the confirmation message.
Pulling a drive early can leave you with a "ghost file"—a filename that exists but contains zero data, which can crash the machine's import loader.

Importing on the Janome Horizon Memory Craft 15000

Move the USB stick to the machine (Port 1 is standard). Here is the button sequence, which is not intuitive:

1. Home Screen
2. Decorative Stitch (Not Embroidery Mode!)
3. Created Stitches category tab.
4. Import Icon (The arrow pointing into a machine/chip).
5. USB Tab.
6. Open OrdF folder.
7. Select your named .stx file.

Managing Expectations

The creator notes a storage limitation: the "Created Stitches" category has finite slots (roughly two pages worth). This is a temporary holding area, not a permanent library.

This interface often surprises new owners of a premium janome embroidery machine. Why does it feel so retro? Because industrial-grade reliability prioritizes stability over flashy graphics. The machine prioritizes reading the code correctly over generating thumbnails. Accept this limitation, trust your file naming, and the frustration will dissolve.

Prep Checklist (Do this BEFORE you press 'Sew')

• File Logic: Is it an .stx file located in the /OrdF folder?
• Visual ID: Does the filename describe the stitch (since you won't see a preview)?
• Backup: Before exporting, did you save a master copy on your PC hard drive?
• Consumables: Do you have fresh scrap fabric and stabilizer? (Never test on the final garment!)
• Needle Check: Is the needle type appropriate for the fabric? (e.g., Ballpoint for knits, Sharp for wovens).

The Result Check That Matters: The Single Unit vs. The Repeat

After import, the stitch appears on your sewing screen.

The Confusion: The screen might show only a single iteration of your design (e.g., one leaf). The Reality: The machine is in "Decorative Stitch" mode. It is programmed to repeat that unit forever until you take your foot off the pedal.

You do not need to copy/paste the design 50 times on the screen.

The “Why Can’t I Save This?” Moment

You have imported the stitch. It looks great. You want to save it to the machine's internal memory so you don't need the USB stick next time.

You look for a "Save" folder icon. It is gone.

This is the psychological breaking point for many users. The logic is hidden:

• Standard Mode: Allows sewing, but assumes the stitch is temporary. No Save.
• Combined Mode: Allows editing/sequencing. Enabled Save.

The Fix: You must tap the Combined Mode icon (often looks like chain links or a combination symbol). Once this mode is active, the "Folder/Save" icon magically appears.

This logic is similar to how users organize libraries for physical tools. If you are shopping for janome embroidery machine hoops, you organize them by size and function. The machine expects you to organize stitches the same way: You must enter "Library Mode" (Combined Mode) to file things away.

Saving Permanently to Internal Memory

Once in Command Mode:

1. Tap Save to Folder.
2. Select the Machine icon (Internal Memory).
3. The video creator strongly advises: Rename it again. Do not let it revert to M001.
4. Save.

Now the stitch lives in your machine's hard drive, freeing up the temporary "Created Stitches" slots for new imports.

Stitch-Out Test on Fabric: Sensory Evaluation

The video demonstrates a live stitch-out. This is where theory meets physics.

1. The Sound

Listen to the machine. A custom stitch should sound rhythmic—thump-thump-thump.

• Warning Sound: A sharp clack-clack or a grinding noise suggests the stitch density is too high (too many needle penetrations in one spot). If you hear this, stop immediately. The design may need editing in Stitch Composer to reduce density.

2. The Look

Watch the repeats.

• The Join: Look closely at where one pattern ends and the next begins. Is there a gap? Is there a heavy lump of thread? If the join isn’t seamless, you may need to adjust the start/end points in the software.

3. The Feed

Standard decorative stitches rely on the feed dogs.

• Fabric Drift: If your straight line creates a curve, the fabric is slipping. This is rarely the file's fault. It is a stabilization issue.
• Solution: Use a tear-away or iron-on stabilizer under your test fabric.


Warning: Physical Safety
When testing a custom stitch for the first time, run the machine at medium speed (approx. 400-600 SPM). Keep your fingers at least 2 inches away from the foot.
Why? If you accidentally designed a stitch with zero stitch length (needle hammering one spot), the needle can heat up, bend, and shatter instantly. Eye protection is recommended for the first test run of any new digital file.

Operation Checklist: The "Go-No-Go" Sequence

• Mode Check: Is the machine in "Sewing" mode (not Embroidery)?
• Foot Check: Are you using the correct foot (usually F or A foot) that allows visibility and clearance?
• Speed: Is the speed slider set to 50% for the first pass?
• Stop Plan: Do you know how to use the "Lock Stitch" button to finish the pattern cleanly?
• Observation: Are you watching the fabric feed, not the screen, during the operations?

Quick Decision Tree: File Management

Use this logic to keep your machine clean:

• Is this a one-time experiment?
  • Yes: Leave it in the "Created Stitches" temp slot. Delete after sewing.
• Is this a stitch you will use for a specific project this week?
  • Yes: Import to temp slot. Keep until project is done.
• Is this a "Signature Stitch" (e.g., custom hem, branding)?
  • Yes: Import -> Enable Combined Mode -> Save to Internal Memory. Then delete from the temp slot to save space.

The Upgrade Path: When "DIY" Becomes a Bottleneck

This entire tutorial addresses a bottleneck: getting custom creativity out of the machine. But what if your bottleneck is physical?

We often see intermediate users mastering these software steps, but struggling with the fundamental mechanics of holding fabric.

• The Symptom: You have perfect digital files, but your finished embroidery has puckering, or "hoop burn" (shiny rings left by tight plastic hoops).
• The Diagnosis: Traditional friction hoops are excellent for basics but harsh on delicate fabrics and slow to mount.
• The Solution (Level 1): Use better stabilizers.
• The Solution (Level 2 - Tool Upgrade): Consider a magnetic embroidery hoop.
  • Why? Magnets hold fabric with distributed tension without crushing the fibers. They allow you to hoop a garment in seconds, not minutes.
  • Context: If you are constantly re-hooping towels or thick jackets, the struggle is likely the hoop, not your skill.

If you are running small batches (e.g., 10 shirts for a local club), consistency is key. Professionals use magnetic hoops for janome embroidery machines not just for speed, but because the magnet force doesn't loosen over time like a screw-tightened hoop might.

Warning: Magnet Safety
Magnetic hoops use powerful industrial magnets.
* Pinch Hazard: They can snap together with extreme force. Keep fingers clear of the mating surfaces.
* Medical Devices: Maintain a safe distance from pacemakers and sensitive electronics.
* Storage: Store them with the provided separators to prevent them from locking together permanently.

Finally, compatibility matters. If you are researching upgrades, you might see search terms like janome mc400e hoops pop up. Always verify your specific model (MC15000) before purchasing, as attachment mechanisms vary wildly between Janome generations.

Troubleshooting Guide

Mastering the MC15000 is about mastering its rules. Once you accept the strict folder paths and the hidden "Combined Mode," the frustration vanishes, leaving you free to create.

FAQ

• Q: Why does a Janome Horizon Memory Craft 15000 decorative stitch not show up on the machine after exporting from Stitch Composer?
  A: The Janome MC15000 will only detect decorative stitches when the file is .STX and saved into /ORD/OrdF/ on a USB drive.
  • Export: Use Write a Design in Stitch Composer (not “Save As”) and browse to ORD → OrdF.
  • Verify: Confirm the filename ends in .stx (not .jef) before removing the USB.
  • Use: Insert the USB into the MC15000, go to Decorative Stitch → Created Stitches → Import → USB → OrdF.
  • Success check: The .stx filename appears in the OrdF list on the MC15000 (even without a thumbnail preview).
  • If it still fails: Format the USB in the MC15000 to recreate the required folder structure, then export again.
• Q: How do I fix “No File Found” when importing an .STX decorative stitch on a Janome Horizon Memory Craft 15000?
  A: “No File Found” on the Janome MC15000 most often means the .stx file is in the wrong folder, so move it into /ORD/OrdF/.
  • Check: Plug the USB into a PC and confirm the path is ORD/OrdF/ (not the USB root).
  • Re-export: Use Stitch Composer Write a Design and explicitly click into ORD → OrdF before saving.
  • Re-try: On the machine, open the USB tab, then open OrdF (do not expect previews).
  • Success check: The file list is no longer empty and the stitch can be selected by name.
  • If it still fails: Reformat the USB using the MC15000 settings menu, then repeat the export/import.
• Q: Why is the “Save to Folder” icon missing after importing a decorative stitch on a Janome Horizon Memory Craft 15000?
  A: The Janome MC15000 hides the save function in Standard mode; switch to Combined Mode to make the Save/Folder icon appear.
  • Tap: Enter Combined Mode (the combination/chain-link style icon).
  • Save: Tap Save to Folder, then choose the Machine (Internal Memory) icon.
  • Rename: Rename the stitch during saving so it does not revert to a generic ID.
  • Success check: The stitch appears in the MC15000 internal memory list and can be recalled without the USB.
  • If it still fails: Re-enter Combined Mode and confirm the machine is in Decorative Stitch (sewing) mode, not Embroidery mode.
• Q: Why does a Janome Horizon Memory Craft 15000 show only one unit of a created decorative stitch after import?
  A: This is normal—Janome MC15000 decorative stitches display one repeat unit, but the machine repeats the unit continuously while sewing.
  • Start: Sew in Decorative Stitch mode and let the machine feed normally.
  • Control: Stop the repeat by releasing the foot control (or stopping the machine).
  • Plan: Use the machine’s finish/stop controls if a clean ending is needed for the pattern.
  • Success check: The stitch repeats smoothly on fabric without needing to copy/paste multiple units on screen.
  • If it still fails: Confirm the correct stitch file was imported by using a descriptive filename (since there is no preview).
• Q: What is the safest way to test-stitch a new custom .STX file on a Janome Horizon Memory Craft 15000 without breaking a needle?
  A: First-run any new custom stitch at medium speed (about 400–600 SPM) on scrap fabric with stabilizer, and stop immediately if the stitch sounds wrong.
  • Prepare: Use scrap fabric plus a stabilizer (tear-away or iron-on) and the appropriate needle type for the fabric.
  • Run: Set speed to a medium range for the first pass and keep fingers at least 2 inches from the foot.
  • Listen: Stop if a sharp clack-clack or grinding starts (this can indicate overly dense needle strikes).
  • Success check: The machine sounds rhythmic and the stitch forms clean repeats without harsh impact noises.
  • If it still fails: Edit the stitch in Stitch Composer (density/start-end behavior may need adjustment) and re-test on scrap.
• Q: How do I prevent fabric drift or curved lines when sewing a created decorative stitch on a Janome Horizon Memory Craft 15000?
  A: Fabric drift during decorative stitches is often a stabilization issue, so add stabilizer under the test fabric before blaming the .STX file.
  • Add: Place tear-away or iron-on stabilizer under the fabric for the test run.
  • Watch: Observe the fabric feed (not the screen) to catch drifting early.
  • Re-test: Sew a longer line to confirm the feed stays straight across repeats.
  • Success check: A straight stitch path stays straight, and repeat joins remain consistent without creeping curves.
  • If it still fails: Re-check needle choice for the fabric and test again on a fresh stabilized scrap.
• Q: What are the key magnetic embroidery hoop safety rules when upgrading from standard hoops due to hoop burn or slow hooping?
  A: Magnetic embroidery hoops can reduce hoop burn by distributing tension, but the magnets can snap shut violently—treat them like a pinch hazard tool.
  • Keep: Keep fingers clear of mating surfaces when closing the magnetic frame.
  • Avoid: Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Store: Store hoops with separators so magnets do not lock together permanently.
  • Success check: The fabric is held firmly without crushed/shiny hoop rings, and hooping time drops significantly on repeat items.
  • If it still fails: Step back to Level 1 (improve stabilizer choice/usage) or consider whether repeated production work would benefit from a higher-capacity workflow (often a dedicated tool upgrade or machine upgrade).
