The “Ouch Band-Aid” Patch That Actually Covers Raw Edges: Repair a Hole or Make a Clean Standalone Embroidery Patch (4x4 & 5x7)

The Ultimate Guide to the "Ouch Band-Aid" Embroidery Design: From Quick Fix to Professional Patch

When you are staring at a hole in a favorite pair of shorts—or your child’s pants that have mysteriously torn for the third time this month—you do not need a "perfect" art project. You need a salvage operation that looks intentional.

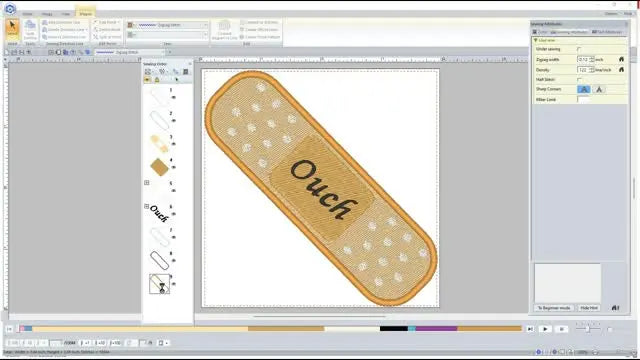

Regina’s revised “Ouch Band-Aid” design is a masterclass in functional embroidery. It is a playful cover-up that can be stitched directly onto clothing (Repair Mode) or created as a standalone patch (Patch Mode).

However, as any seasoned embroiderer knows, the difference between a "home-made" look and a "professional" finish lies in the engineering of the stitch file and the physics of your setup. This revision addresses the specific failure point of most amateur patches: raw edges peeking out. By widening the satin border and adding a dedicated backing step, this design moves from "crafty" to "commercial quality"—but only if you execute the mechanics correctly.

The “Don’t Panic” Primer: Engineering for Durability

If you are reading this because you have a garment emergency, take a breath. This design is built to be forgiving, but it requires you to choose a lane immediately. In my 20 years of experience, 90% of failures happen because the operator treats a patch like a direct repair, or vice versa.

Regina outlines two distinct workflows:

• Repair Mode: Stitching directly onto the garment using tear-away stabilizer. This seals the hole permanently.
• Patch Mode: Stitching on water-soluble stabilizer (WSS), removing it, and applying an adhesive backing later. This creates a movable asset.

Understanding this "Two-Lane" approach is critical because the Push and Pull Compensation (how much the fabric distorts under the needle) behaves differently in each scenario.

Phase 1: The Hidden Prep (Physics & Chemistry)

Before you even touch the machine interface, you must stabilize your foundation. If your foundation is weak, your satin stitches will distort, no matter how good the digitized file is.

The Stabilizer Protocol

• For Repair Mode (Direct on Garment):
  • The Material: Use a medium-weight Tear-Away Stabilizer.
  • The "Why": You need stability during the stitch, but you want to remove the bulk from the inside of the clothing so it doesn't scratch the skin.
  • Sensory Check: When hooped, the stabilizer should be taut. Drum on it lightly with your finger—it should sound like a dull thud, not loose paper.
• For Patch Mode (Standalone):
  • The Material: Heavy-weight Water-Soluble Stabilizer (fibrous type, not the thin film).
  • The "Why": Film is too weak for dense satin borders; it will perforate and rip. Fibrous WSS holds the stitch integrity until you wash it away.

The Adhesive Arsenal

Once a patch is stitched, it needs a way to bond. Don't just grab "glue."

• Hot Fix Adhesive / HeatnBond Ultra: For permanent, no-sew applications.
• Steam-A-Seam / HeatnBond Lite: If you plan to sew the patch onto the garment later (this gum doesn't gum up your needle).

The "Duckbill" Secret

Regina highlights a critical moment: Trimming. In appliqué, you must trim the excess fabric after the zigzag tack-down but before the final satin stitch.

• The Tool: You need double-curved appliqué scissors (often called Duckbill scissors).
• The Technique: The "bill" holds the fabric down while the blade cuts flush against the stitches. This prevents you from snipping the stitches you just made.

Warning: Mechanical Hazard
When trimming inside the hoop, keep your hands clear of the start button. It sounds obvious, but a sudden machine start while your fingers are near the needle bar can result in severe injury. Always engage the “Lock” mode on your screen if your machine supports it before putting scissors near the needle.

Prep Checklist: The "Go / No-Go" Gauge

• Lane Selected: Confirmed Repair Mode (Tear-Away) OR Patch Mode (WSS).
• Consumables: Adhesive backing chosen (Hot Fix for iron-on, Lite for sewing).
• Tools: Applique scissors (Duckbill) located.
• Hygiene: Bobbin area cleaned of lint (use a brush, not canned air).
• Bobbin Check: Bobbin is at least 50% full (you do not want to run out mid-satin stitch).


Phase 2: Variable Hooping Geometry (4x4 vs. 5x7)

Regina discusses the limitation of the 4x4 hoop. To rotate the Band-Aid horizontally for a better visual angle, the file size often forces a move to a 5x7 hoop.

The Constraint of the Standard Hoop

If you are operating within the constraints of a standard brother 4x4 embroidery hoop, you are in the "Quick Repair" lane. This is excellent for small knees or elbows, but maneuvering a pant leg into a small plastic frame is a physical wrestling match.

The Friction Problem: Traditional plastic hoops rely on friction (jamming the inner ring into the outer ring) to hold fabric. On thick seams (like jeans) or delicate knits, this causes:

1. Hoop Burn: Permanent friction marks on the fabric.
2. Pop-outs: The hoop springing open mid-stitch due to bulk.

The Professional Upgrade: Magnetic Logic

If you are moving into 5x7 files or doing bulk repairs, this is where a brother 5x7 magnetic hoop becomes a game-changer. Unlike friction hoops, magnetic hoops use vertical clamping force.

• The Benefit: You can float the pant leg over the bottom frame and snap the top frame on without wrestling seams. It reduces hooping time by ~40% and eliminates hoop burn entirely.
• The Trigger: If you fail to hoop a garment twice in a row, stop. It's not your skill; it's the physics of the hoop.

Warning: Magnetic Field Safety
magnetic embroidery hoop systems use powerful Neodymium magnets.
* Pinch Hazard: Keep fingers away from the contact zone; they snap shut instantly.
* Medical Devices: Maintain a 6-inch safe distance from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

Phase 3: The Stitch Sequence Map (Sensory Walkthrough)

Understanding the sequence allow you to predict the machine's behavior. Here is the translated workflow with Sensory Anchors—what you should see and hear.

1) Placement Stitch (The "Blueprint")

• Action: Machine stitches a single running line on the stabilizer.
• Visual Check: This shows you exactly where the fabric needs to cover.
• Data: Run pitch ~2.50mm.


2) Tack Down (The "Anchor")

• Action: You place your fabric over the blueprint. The machine stitches a second line to lock it.
• Tactile Tip: Lightly spray the back of your patch fabric with temporary adhesive spray (like ODIF 505) to prevent it from rippling during this step.

3) Background Fill (Optional)

• Context: Regina notes this creates the tan "skin" of the Band-Aid.
• Optimization: If you are using tan fabric/felt, you can skip this color stop to save thread and stiffness.


4) Decorative Elements

• Sequence: Center pad -> Dots -> Text ("Ouch").
• Speed Limit: Slow your machine down to 600 SPM (Stitches Per Minute) here. Small text and circles require precision; high speed leads to "bird nesting."


5) Backing Application (The "Pro" Step)

• The Trick: In Patch Mode, the machine stops. You slide a piece of backing material under the hoop (floating it).
• The Result: The machine tacks this down. This hides all the messy bobbin threads and jump stitches inside the patch. It makes the back look as clean as the front.

6) Border Finishing: The Critical Zigzag & Satin

This is the make-or-break moment.

1. Zigzag: Secures the raw edge.
   • STOP HERE. Remove the hoop (do not un-hoop the fabric).
   • Trim: Cut the fabric as close to the zigzag as possible without cutting the thread. Sensory Check: You should hear the crisp snip of the scissors. If you are sawing at it, sharpen your blades.
2. Satin Stitch: The final seal.
   • Data: Regina revised this to 3.50mm width. This is the "Safety Zone." A standard 2.0mm satin often misses raw edges; 3.5mm consumes them.
   • Density: ~0.4mm spacing. This creates a solid bar of color.


Setup Checklist (Pre-Flight)

• Orientation: File rotated correctly for the hoop size (4x4 vs 5x7).
• Needle: New 75/11 Embroidery Needle installed. (Burred needles cause thread shreds).
• Thread Path: Re-thread the top thread just to be safe. Ensure it is seated in the tension discs (floss it in!).
• Plan: You know exactly when to stop and trim (After Zigzag, Before Satin).


The Physics of the Revision: Why "Pull Compensation" Matters

Regina’s revision isn't just aesthetic; it’s an engineering fix.

• The Phenomenon: When a machine puts thousands of stitches into fabric, the fabric shrinks inward. This is called "Pull."
• The Failure: Without compensation, the final satin border pulls inward, leaving the raw edge of your fabric patch exposed (the "white gap of death").
• The Fix: By increasing the satin width and adding Pull Compensation (Regina uses 0.20mm), the design deliberately overstitches the boundary to account for shrinkage.

If you consistently see gaps between your border and your fill, your hooping is likely too loose. A magnetic embroidery hoop solves this by maintaining constant, even tension across the entire field, minimizing fabric shift better than manual tightening.

Color Logic: The "Predictable Path" for Kids

Regina grouped the dots by color, stitching top-to-bottom.

• Production Insight: This minimizes "Jump Stitches" (the long threads the machine drags between objects).
• Creative Control: This grouping allows you to stop and change colors easily—making pink/purple dots without reprogramming the machine.




Decision Tree: Repair vs. Patch Mode

Use this logic flow to prevent wasted materials.

Step 1: Is the garment accessible?

• YES, and it fits in the hoop:
  • Action: Repair Mode.
  • Method: Hoop garment with tear-away.
  • Pros: Immediate fix, softest feel.
  • Cons: Hard to hoop awkward spots (crotch, pocket).
• NO (or it's too thick/awkward):
  • Action: Patch Mode.
  • Method: Hoop WSS, create patch, iron/sew on later.

Step 2: Is the fabric stretchy (T-shirt/Leggings)?

• YES: You must use Cut-Away Stabilizer (Repair Mode) or a rigid iron-on backing (Patch Mode). Tear-away will result in a distorted, wavy patch on stretchy fabric.
• NO (Denim/Canvas): Tear-away is fine.

Step 3: Are you fighting the hoop?

• YES: If you are struggling to close the hoop on thick jeans, do not force it. You risk breaking the hoop attachment.
• Solution: This is the specific use case for a magnetic hoop for brother. It clamps thick seams without stress on the machine’s pantograph.


Troubleshooting Guide: The "Why Does It Look Bad?" Matrix

The Efficiency Upgrade: when to Invest in Your Tools

If you are a hobbyist stitching one patch a month, standard tools are sufficient. However, if you are a parent repairing knees weekly, or a small business selling custom patches, time and consistency are your currency.

1. The Hooping Station

If you find that your logos are always slightly crooked, a hooping station for embroidery aligns the garment and hoop geometrically. This eliminates the "eyeball and pray" method. While generic stations help, systems like the hoop master embroidery hooping station are the industry standard for repeatability in commercial shops.

2. The Magnetic Frame

We mentioned this earlier, but it bears repeating for production: The #1 cause of "Hoop Burn" (permanent rings on crushed velvet, corduroy, or dark cotton) is the friction of standard hoops. Learning how to use magnetic embroidery hoop technology will save you from ruining customer garments. You simply lay the fabric down and snap the magnets—zero friction, zero burn.

Final Operational Checklist (Post-Production)

• Inspect: Check the back of the patch. Are the bobbin threads balanced (1/3 white in the center)?
• Seal: If you cut a "Repair Mode" stabilizer, heat seal the edges of the patch with an iron to bond the stitches into the fabric.
• Record: Save a photo of your successful settings (Tension, Speed) for next time. Machine embroidery is an empirical science—your data is your most valuable asset.

FAQ

• Q: Which stabilizer should be used for the “Ouch Band-Aid” embroidery design in Repair Mode vs Patch Mode?
  A: Use medium-weight tear-away stabilizer for Repair Mode and heavy fibrous water-soluble stabilizer (not thin film) for Patch Mode.
  • Choose Tear-Away when stitching directly on clothing to keep the inside softer after removal.
  • Choose Fibrous WSS when making a standalone patch so dense satin borders do not perforate and rip the base.
  • Success check: When hooped, the stabilizer feels taut and “drums” with a dull thud (not loose paper).
  • If it still fails: Switch lanes—many “bad patches” happen because Patch Mode steps are attempted on a Repair Mode foundation (or the reverse).
• Q: How can embroidery hooping be judged correctly to prevent border gaps on the “Ouch Band-Aid” patch satin edge?
  A: Hoop tighter than you think—border gaps usually come from hoop slippage, not the stitch file.
  • Hoop until the stabilizer is evenly taut across the whole field (avoid soft spots near seams).
  • Re-hoop if the garment shifts when the machine starts the dense border sequence.
  • Success check: The satin border fully covers the fabric edge with no “white gap” showing at the perimeter.
  • If it still fails: Stop fighting friction hoop physics and move to a magnetic embroidery hoop to maintain constant, even clamping tension.
• Q: When should the fabric be trimmed with double-curved Duckbill appliqué scissors in the “Ouch Band-Aid” embroidery design?
  A: Trim after the zigzag tack-down but before the final satin stitch—this is the step that prevents raw edges from peeking out.
  • Stop the machine after the zigzag step and remove the hoop from the machine (do not un-hoop the fabric).
  • Trim the fabric as close to the zigzag as possible without cutting the thread line.
  • Success check: Trimming sounds like crisp snips (not sawing), and no fabric fuzz extends beyond the zigzag.
  • If it still fails: Sharpen/replace scissors and consider applying Fray Check to control “hairy” edges.
• Q: What should be checked before stitching the “Ouch Band-Aid” embroidery design to avoid thread shredding and mid-border failures?
  A: Do a fast pre-flight: new 75/11 embroidery needle, bobbin at least 50% full, and a lint-free bobbin area.
  • Install a fresh 75/11 Embroidery Needle before running dense satin borders (burred needles shred thread).
  • Clean lint from the bobbin area using a brush (avoid canned air).
  • Confirm the bobbin has enough thread to finish the satin border section.
  • Success check: The machine runs the satin border without thread breaks and without a sudden change in stitch sound.
  • If it still fails: Re-thread the top thread and make sure it is seated in the tension discs (thread with presser foot UP).
• Q: How can bird nesting (thread bunching under the fabric) be stopped when stitching small text and dots on the “Ouch Band-Aid” embroidery design?
  A: Re-thread completely with the presser foot UP and slow the machine to 600 SPM for the small details.
  • Lift the presser foot, then re-thread so the thread seats correctly in the tension discs.
  • Reduce speed to 600 SPM during the “Ouch” text and dot/circle elements.
  • Success check: The underside shows controlled stitches rather than a growing knot near the start of a color stop.
  • If it still fails: Pause immediately and remove the nest before it jams under the throat plate, then restart after confirming correct threading.
• Q: What safety steps prevent finger injuries when trimming inside the hoop during the “Ouch Band-Aid” embroidery appliqué process?
  A: Lock the machine before scissors go near the needle area—accidental starts are the real hazard.
  • Engage the machine “Lock” mode (if available) before trimming near the needle bar.
  • Keep hands clear of the start button and never trim while the machine is “ready to run.”
  • Success check: The machine cannot begin stitching while hands and scissors are positioned inside the hoop area.
  • If it still fails: Power off the machine before trimming if the control panel cannot be locked reliably.
• Q: What magnetic embroidery hoop safety rules should be followed when clamping thick seams for garment repairs?
  A: Treat magnetic hoops like industrial clamps: avoid pinch points and keep magnets away from pacemakers and sensitive electronics.
  • Keep fingers out of the contact zone when snapping the magnetic top frame onto the bottom frame.
  • Maintain at least a 6-inch distance from pacemakers.
  • Keep phones and credit cards off the magnets (do not set them on the hoop).
  • Success check: The hoop closes cleanly without finger pinches and the garment stays flat without hoop burn.
  • If it still fails: Stop forcing the setup—reposition the garment to reduce bulk stacking before clamping again.
