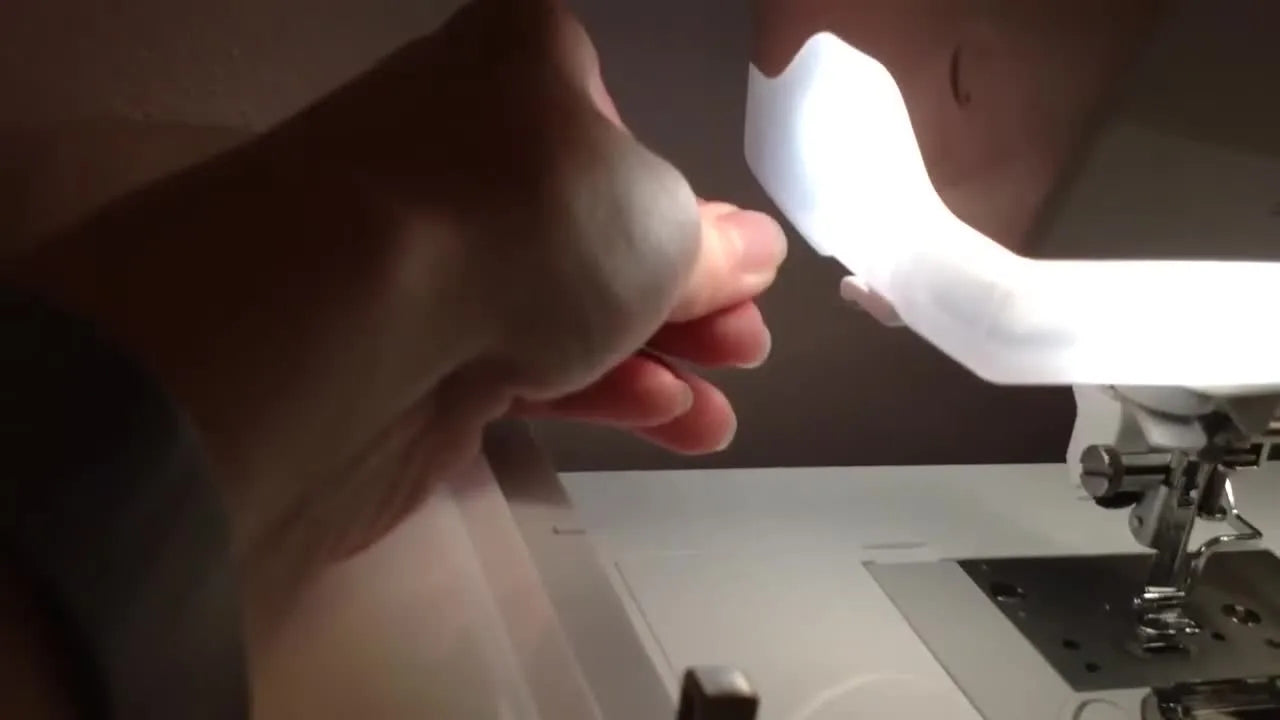

Threading the Baby Lock Spirit Without Breaking the Auto Threader: A Calm, Fast Routine That Actually Works

Top Threading is not just a chore; it is the central nervous system of your Baby Lock Spirit. If the thread isn't seated in the tension discs—specifically deep inside the upper path—the machine cannot form a stitch, resulting in the dreaded "bird's nest" of looped thread on the underside of your fabric.

If you are new to the Baby Lock Spirit, the threading path can feel like a minefield. One missed guide, or a needle bar that is 2mm too low, can lead to a bent automatic threader hook and a repair bill that costs as much as a new set of hoops.

This guide goes beyond the manual. It is a "White Paper" on the physics of threading, designed to give you the sensory anchors—what it should feel and sound like—so you can approach your machine with the confidence of a 20-year veteran. We will rebuild the routine shown in the source video, verify the engineering checks, and ensure you never have to guess if you are "doing it right."

The “Don’t Panic” Primer: Why Sequence Is Safety

The Baby Lock Spirit’s automatic needle threader is a marvel of convenience, but it is mechanically fragile if misused. It relies on precise alignment between a tiny metal hook and the eye of the needle.

Here is the Golden Rule of Safety: The machinery moves, the needle carries the thread, but the sequence protects the wallet.

• The Danger Zone: Engaging the auto-threader when the needle is not at its absolute zenith (highest point).
• The Result: The hook hits the needle shaft instead of the eye. Crunch.
• The Fix: Always, without fail, use the Needle Up/Down button to reset the cycle before touching the threader lever. Never rely on hand-turning the wheel for this specific step unless you are aligning to the specific mark.


Phase 1: The "Hidden" Prep – Consumables and Physics

Before you touch guides 1–7, you must establish a "clean feed." Friction is the enemy of embroidery. If the thread drags on the spool cap or catches on a nick in the plastic, the tension sensors will panic, and the thread will shred.

The Toolkit: What You Actually Need

In the video, we see a specific setup. Let’s decode why it matters.

• Top Thread: 40wt Polyester Embroidery Thread (The industry standard for sheen and strength).
• Bobbin Thread: 60wt or 90wt Bobbin Thread (thinner than the top to prevent bulk).
• The "Secret" Weapon: The Mini Spool Cap (included in your accessory kit).
• Hidden Consumables:
  • New Needle: If you’ve stitched for 8 hours, change it. A burred needle shreds thread regardless of threading perfection.
  • Tweezers: For grabbing that elusive tail.
  • Embroidery Scissors: Curved tip, for close trimming.


The Physics of the Spool Cap

Size matters. The spool cap must be slightly larger than the spool's inner core diameter but smaller than the outer rim of the thread itself.

• Cap too large: The thread "puddles" behind the cap, wraps around the pin, and snaps.
• Cap too small (or missing): The spool bounces, creating "waves" in tension that result in loopiness.
• The Amazon Spool Issue: Many budget-friendly threads bought online (like the one in the video) have narrow tops. The standard "A" cap is too wide. The Mini Cap is the only safe option here.


Prep Checklist: The "Pre-Flight" Inspection

Perform this check before every color change or new project.

• Verify Thread Weight: Confirm you are using 40wt Poly. (Cotton behaves differently and generates more lint).
• Inspect Spool Cap Fit: Ensure the cap fits inside the spool end or sits flush. Shake the spool pin gently; there should be zero rattle.
• Clear the Deck: Open the top cover fully. Blow out any visible dust with a manual air puffer (never canned air).
• Lighting Check: Ensure the area above the needle (Guide #6) is illuminated.
• Safety Protocol: Keep fingers clear of the Start/Stop button while threading.

Warning: Mechanical Safety Hazard. Keep hands, tools, and loose hair away from the needle area when utilizing the automatic needle threader or pressing the "Needle Up" button. These mechanisms utilize high-torque servos that can snap plastic and pierce skin instantly if obstructed.

Phase 2: Bobbin Installation – The "P" for Perfect Rule

The video correctly identifies that the bobbin must be loaded first. The Baby Lock Spirit uses a "Quick-Set" drop-in bobbin system. It is designed to maintain drag on the bobbin thread to counterbalance the top tension.

The Procedure (Sensory Guide)

1. Remove Cover: Slide the latch and lift the plastic cover.
2. Orientation: Hold the bobbin so the thread hangs off the Left side. It should look like the letter "P". If it looks like a "9" or "q", flip it over. This is the Counter-Clockwise rule.
3. Insertion: Drop it in. Place your index finger gently on top of the bobbin to stop it from spinning. This is crucial—if it spins, you won't get the thread under the tension spring.
4. The Tension Path: Pull the thread through the slit (groove). You should feel a slight, smooth resistance—like pulling dental floss.
5. The Cut: Guide it around the track and pull firmly across the built-in cutter. Listen for the satisfying snick of the thread cutting.
6. Close: Replace the cover.


Why "Counter-Clockwise" Matters

If the bobbin unspools clockwise, the thread bypasses the tension spring. The result? Zero bobbin tension. The top thread will pull the bobbin thread straight to the top of the fabric, looking like a straight line of white (or black) amidst your color.

Phase 3: The Spool Cap Swap – Fixing the "Amazon Spool" Problem

As noted in the video, standard spool caps are often incompatible with after-market thread brands.

The Fix

1. Remove the standard cap.
2. Install your thread spool.
3. Locate the gray/white Mini Spool Cap (it looks like a small button).
4. Press it firmly against the spool. It should grip the inner spindle of the thread spool.


Expert Insight: Workflow Friction

Dealing with finicky spools is a specialized friction point. In a professional environment, we eliminate these variables. While you are learning, using the correct cap is sufficient. However, if you eventually scale up to a Multi-Needle machine, the thread stands are designed to handle these cones without caps at all.

This desire for consistency is also why many users move from standard hoops, which can leave "hoop burn" (friction marks), to advanced holding systems. When you are fighting with fabric slippage, terms like hooping for embroidery machine transition from abstract concepts to daily necessities for maintaining registration accuracy.

Phase 4: The Two-Button Pre-Check (Critical Safety Step)

This step is the difference between a successful thread and a broken auto-threader.

The Action

1. Presser Foot UP: Raise the lever.
   • The "Why": When the foot is UP, the tension discs (hidden inside the machine) are OPEN. This allows the thread to slide deep into the mechanism. If you thread with the foot down, the thread floats on top of the discs = Zero Tension = looping.
2. Needle UP: Press the Needle Up/Down button twice to cycle it. Ensure the alignment mark on the handwheel is at the 12 o'clock position.


The Production Mindset

In a hobby setting, checking these buttons adds seconds. In a production setting, skipping them costs hours. As you get more serious, you will look for tools that standardize these setups. Just as checking the needle height standardizes threading, using a hooping station for embroidery machine standardizes your fabric placement, ensuring that "Chest Logo Left" is in the exact same spot on 50 shirts in a row.

Phase 5: The Upper Threading Path (1–5) – The "Flossing" Technique

Do not just lay the thread in the guides. Seat it.

The Path

1. Guide 1 (Metal Clip): Go under securely.
2. Guide 2 (Top Loop): Up and over.
3. Guide 3 (Down Channel): Pull down the right channel. Sensory Check: Hold the thread spool with your right hand and the thread end with your left. Floss it into the channel. You want to ensure it isn't caught on any plastic edges.
4. Guide 4 (U-Turn): Go under the U-turn and up the left channel.
5. Guide 5 (Take-Up Lever): This is the "Heart" of the machine.
   • Action: Bring the thread from Right to Left into the metal hook.
   • Visual Verification: Look inside the slot. Is the thread inside the eyelet hole? If it's just resting on top, the thread will fly out instantly.


The Consistency Factor

If you find yourself struggling to maintain rhythm because your hands are tired from fighting stubborn plastic hoops, this is usually the point where I suggest looking into magnetic hooping station setups. They reduce the physical strain of the setup phase, allowing you to focus your dexterity on these precise threading tasks.

Phase 6: Guide #6 – The Ninja Guide

This is the number one missed step on the Baby Lock Spirit. Guide #6 is a tiny wire bar located strictly above the needle clamp.

The Tactile Technique

You often cannot see this guide clearly because of the machine housing shadows. You must feel it.

1. Hold the thread taut horizontally with both hands.
2. Slide the thread behind the metal bar located just above the needle screw.
3. Sensory Anchor: You will feel a slight "pop" or resistance as it slides into the groove.
4. Verification: If you pull gently to the left, the thread should stay constrained near the needle bar, not flop around loosely.


Phase 7: The Final Cut & Auto-Thread – The Sequence Change

Now—and only now—do we change the machine state.

The Sequence

1. LOWER the Presser Foot.
   • Critical: The auto-threader mechanism relies on the tension being engaged (discs closed) to hold the thread taut so the hook can grab it. If you leave the foot up, the thread is too loose, and the threader will miss.
2. Guide 7: Hook the thread through the plastic guide on the left.
3. Cut: Pull the thread firmly through the side cutter (blade) on the left of the machine.
4. Execute: Press the Automatic Threading Button.


The Result

With a mechanical whir-click, the hook passes through the eye, grabs the thread, and pulls a loop back through. Gently pull this loop to bring the tail out to the back.

Setup Checklist: The "Green Light" Protocol

Confirm these five points before pressing the specific "Auto Thread" button.

• Needle Position: Highest point (Handwheel line perfectly vertical).
• Presser Foot: DOWN (This is opposite to the start of threading).
• Guide #6: Thread is securely behind the needle bar wire.
• Tension: Thread feels taut, not loose.
• Hands: Clear of the needle zone.

Warning: Magnet Safety Advisory. If you upgrade to efficiency tools like magnetic embroidery hoops or generic baby lock magnetic embroidery hoops, treat them with extreme caution. These use industrial-grade neodymium magnets. They can pinch skin severely and are dangerous for individuals with pacemakers. Always slide them apart—never pry—and store them with the provided spacers.

Troubleshooting: Diagnostic Logic

If the machine is not stitching correctly, do not blame the digitizer yet. 90% of issues are physical.

Decision Tree: The Path to Upgrade

You have mastered threading. Now, where do you find efficiencies?

1. Is your pain point "Setup Time"?
   • Scenario: You spend 10 minutes hooping for a 5-minute stitch out.
   • Solution: Look into a hoop master embroidery hooping station. It mechanically aligns the hoop, saving time.
2. Is your pain point "Hoop Burn" or "Wrist Pain"?
   • Scenario: Tightening the thumbscrew is physically difficult, or the hoop leaves rings on delicate velvet/performance wear.
   • Solution: magnetic hoops for babylock embroidery machines clamp automatically without friction abrasion.
3. Is your pain point "Throughput"?
   • Scenario: You have orders for 20 polo shirts, and the single-needle color changes are driving you crazy.
   • Solution: This is the ceiling of the Spirit. It is time to look at a Sewtech Multi-Needle machine to automate color changes.

Operation Checklist: Go/No-Go for Launch

Perform this immediately before pressing "Start".

• Tail Check: Top thread tail is pulled through the foot and is not tangled.
• Hoop Check: Hoop is locked firmly into the carriage (listen for the click). Note: If using aftermarket magnetic embroidery hoops, ensure the arm clearance is sufficient.
• Clearance: No fabric is bunched under the hoop (a classic error dubbed "sewing a shirt to itself").
• Speed: For the first 100 stitches, reduce speed to 50% to watch for issues.
• Sound: Listen. A happy machine purrs. A thumping machine is a warning—stop immediately.

Mastering the Baby Lock Spirit is about respect for the sequence. Threading is not just a setup step; it is the calibration of the machine's soul. Treat it with precision, and the machine will reward you with flawless satin stitches for years to come.

FAQ

• Q: How do I prevent Baby Lock Spirit bird’s nest loops on the underside when starting an embroidery design?
  A: Re-thread the Baby Lock Spirit upper path with the presser foot UP so the thread seats inside the tension discs.
  • Raise presser foot, fully unthread, then re-thread guides 1–5 using a firm “flossing” motion down/up the channels.
  • Confirm the thread is actually captured in the take-up lever eye (not resting on top of the hook).
  • Thread Guide #6 above the needle clamp (feel the “pop” as the thread slips behind the wire).
  • Success check: With the presser foot DOWN, the top thread should feel taut (not floppy) when gently pulled.
  • If it still fails: Re-check the bobbin is installed counter-clockwise in the “P” orientation and re-seat it through the slit/tension spring.
• Q: Which spool cap should I use on a Baby Lock Spirit when aftermarket “Amazon spools” cause snapping or puddling behind the cap?
  A: Use the Baby Lock Spirit Mini Spool Cap when the standard cap is too wide for narrow-topped spools.
  • Remove the standard spool cap and install the thread spool.
  • Press the Mini Spool Cap firmly so it grips the inner core area correctly.
  • Watch for smooth thread feed with no “puddling” behind the cap and no bouncing on the pin.
  • Success check: The spool should not rattle when the spool pin is gently shaken, and the thread should unwind smoothly without jerks.
  • If it still fails: Change to a new needle (a burred needle can shred thread even with perfect threading).
• Q: What is the correct Baby Lock Spirit drop-in bobbin direction to prevent bobbin thread showing on top of the fabric?
  A: Load the Baby Lock Spirit bobbin so the thread hangs off the LEFT, forming a “P” shape (counter-clockwise), then seat it into the tension path.
  • Hold the bobbin as a “P,” drop it in, and keep a finger on the bobbin to prevent spinning.
  • Pull the thread through the slit/groove and feel smooth, slight resistance.
  • Pull firmly across the built-in cutter and listen for a clean “snick.”
  • Success check: The pull through the groove should feel like dental floss—smooth resistance, not free-spinning.
  • If it still fails: Re-seat the bobbin again; a clockwise (“9/q”) orientation can bypass the tension spring.
• Q: How do I use the Baby Lock Spirit automatic needle threader without bending the hook or causing a miss?
  A: Only engage the Baby Lock Spirit auto-threader with the needle at the absolute highest position, then set the correct presser-foot state for the threading step.
  • Press the Needle Up/Down button twice to cycle and confirm the handwheel alignment mark is at 12 o’clock.
  • Thread the upper path completely (including Guide #6 above the needle clamp) before touching the auto-thread button.
  • LOWER the presser foot right before using the auto-thread function to keep the thread taut for the hook grab.
  • Success check: You should hear a clean “whir-click,” and a loop should appear through the needle eye that pulls out smoothly.
  • If it still fails: Press Needle Up/Down again to re-confirm zenith and verify the thread is taut (foot down) and captured in Guide #6.
• Q: How can Baby Lock Spirit users confirm Guide #6 is threaded correctly when the thread keeps missing or looping?
  A: On the Baby Lock Spirit, Guide #6 must be behind the small wire bar above the needle clamp; use touch, not sight.
  • Hold the thread taut horizontally and slide it behind the wire just above the needle screw area.
  • Feel for a slight “pop”/resistance as it drops into the guide groove.
  • Gently pull left; the thread should stay constrained close to the needle bar, not flop forward.
  • Success check: The thread path near the needle bar stays controlled and aligned, not loose and wandering.
  • If it still fails: Re-thread from Guide 1 onward to ensure the take-up lever is properly captured and the presser foot was UP during the main threading.
• Q: What safety steps should be followed on a Baby Lock Spirit before pressing Needle Up/Down or using the automatic needle threader?
  A: Keep hands and tools out of the needle zone and control the sequence; the Baby Lock Spirit needle mechanisms can move with high force.
  • Keep fingers, tweezers, and loose hair away from the needle area before pressing Needle Up/Down or the auto-thread button.
  • Use the Needle Up/Down button (not casual handwheel guessing) to set the needle to the highest point before engaging the threader.
  • Avoid touching Start/Stop while threading; treat threading as a “machine-safe” mode.
  • Success check: The needle area is clear before movement, and the threader action completes without any “crunch” contact.
  • If it still fails: Stop immediately and re-check needle position and alignment before attempting again.
• Q: When Baby Lock Spirit embroidery setup feels too slow or hooping causes hoop burn and wrist pain, what is a practical upgrade path?
  A: Diagnose the main pain point first, then apply a tiered fix: technique optimization → magnetic hoops → multi-needle production.
  • Level 1 (Technique): Standardize the two-button pre-check (presser foot UP for threading, needle cycled to highest point) and use the correct spool cap/needle changes.
  • Level 2 (Tooling): If hoop burn, fabric slippage, or wrist strain is the blocker, consider magnetic embroidery hoops to clamp without thumbscrew friction.
  • Level 3 (Capacity): If the blocker is throughput from constant color changes, a multi-needle embroidery machine is the next ceiling to address.
  • Success check: Setup time drops consistently and early stitches run clean at 50% speed without looping or thread breaks.
  • If it still fails: Re-run the Go/No-Go launch checks (thread tail, hoop lock “click,” fabric not bunched, and abnormal thumping sounds).
