Tiny Eyes, Sharp Mouths: Wilcom Hatch Settings That Keep Micro Details Visible on a 10x10cm Hoop

Tiny details are where digitizing stops being “software” and becomes physics.

If you’ve ever stitched a cute little face—only to watch the eyes and mouth disappear into a patterned background—take a breath. Nothing is “wrong” with you. On a 10x10cm (4x4) scale, the background texture creates physical peaks and valleys that swallow small objects.

Luciana’s video demonstrates a clean, repeatable workflow for fixing this problem in Wilcom Hatch / EmbroideryStudio. But simply following the clicks isn't enough; you need to understand the tension, the texture, and the mechanics.

Here is your masterclass on creating tiny details that don't vanish.

The Diagnosis: Why Tiny Eyes Vanish (It’s Not Just Your Eyes)

Luciana starts by showing a failed stitch-out: the facial features are technically there, but they’re “ghosted.” The background fill and the feature stitches have blended into a single messy texture.

The Physics of Failure:

• Matching Angles: When background stitches run horizontally and eye stitches run horizontally, light reflects off them the same way. Your brain sees one object.
• Thread Spread: Thread has mass. If a satin column is too narrow (under 1.5mm), it tends to roll over and look like a lump rather than a defined bar.
• Sinking: Without sufficient underlay or density, top stitches sink into the "valleys" of the background tatami fill.


Pro Tip: Do not rely on your screen preview alone. A digital screen has perfect pixels; physical thread has fuzz, twist, and shadow.

Phase 1: The Foundation - Building a Non-Competing Background

Luciana begins by digitizing the heart shape using Digitize Closed Shape with a Tatami fill (Pattern 1).

Why this matters: A Tatami fill is an aggressive texture. It’s not a blank canvas; it’s a competitor. You are about to design the eyes and mouth to win a fight against this texture.

Hidden Prep: The "Zero-Movement" Environment

Before digitizing the eyes, you must ensure your canvas (the fabric) stops moving. Tiny details require sub-millimeter precision. If your fabric shifts even 0.5mm, your crisp eye becomes a smudge.

For standard projects, you might fight with traditional screw-hoops to get perfect tension without "hoop burn" (the white ring left on fabric). However, when precision is non-negotiable, many professionals upgrade to magnetic embroidery hoops. These prevent the "gathering" effect often caused by forcing inner and outer rings together, providing a flat, drum-tight surface essential for micro-work.

**PREP CHECKLIST: Do this BEFORE touching the software**

• Fabric Match: Are you testing on the exact same material as the final project? (A loose weave behaves differently than tight denim).
• Hoop Check: Ensure your hoop inner ring has no lint/residue that causes slippage.
• Needle Inspection: Run your finger down the needle tip. Sensory Check: If you feel a burr or scratch (like a snagged fingernail), throw it away. A burred needle shreds tiny details.
• Bobbin Tension: Visual Check: Look at a previous stitch-out. Is the white bobbin thread showing about 1/3 width in the center of the satin column? If not, adjust before trying detail work.
• Consumables: Have fine-tip snips and a fresh size 75/11 needle ready (or 60/8 for extreme detail).


Phase 2: Digitizing - The Structure vs. The Outline

For the eyes, Luciana uses Digitize Blocks.

The Technique:

• Left Click: Creates a sharp corner.
• Right Click: Creates a curve.
• Zig-Zag Motion: You click top-bottom-top-bottom to define the width of the column manually.

Why Blocks? Unlike a simple "running stitch outline," blocks create a defined object with volume. This gives you control over stitch angles—your primary weapon against the background.

Warning: Mechanical Safety
During stitch-outs of tiny details, the machine moves rapidly in a small area. Keep your hands clear. Do not attempt to trim connecting threads (jump stitches) while the machine is running, even if they look messy. A needle through the fingernail is a common "rushing" injury.

Phase 3: The Contrast Rule - Vertical vs. Horizontal

Luciana shows a "failed" TrueView where the eyes are horizontal, matching the horizontal background. Her fix is immediate:

1. Select the eye object.
2. Use Reshape.
3. Force the stitch angle to Vertical (90°).




The Science of Light: Thread is shiny (chatoyancy). Light hits horizontal thread and vertical thread differently. By making the eyes perpendicular to the background, you create Directional Contrast. Even if the colors are identical, the light will separate the object for the viewer.

Phase 4: Opens Shapes & "Pull Compensation" Logic

Novices digitize shapes exactly as they look on the artwork. Experts digitize shapes as they will distort.

Luciana uses Reshape to drag the nodes outward, opening the geometry of the eye/mouth.

The Physics:

• Thread has thickness.
• The hole closes up when stitched because stitches pull inward.
• The Fix: You must create a "hole" that looks too big on screen to get a result that looks "just right" on fabric.


Visual Anchor: Imagine drawing the eye with a thick felt-tip marker on a napkin. The ink spreads. Digitizing opened nodes is like drawing narrower lines to account for the spread.

Phase 5: Density - Finding the Sweet Spot

In Object Properties, Luciana tightens the spacing:

• Default: 0.014 inches (~0.36mm)
• Tuned: 0.012 inches (~0.30mm)




Expert Calibration: Tightening density improves coverage, but it creates a stiff, bullet-proof patch.

• Sensory Check: Provide a "squeeze test." If the embroidery feels like hard plastic, your density is too high.
• Sweet Spot: For tiny details, 0.30mm - 0.35mm is safe. Below 0.30mm, you risk needle deflection (breaking needles) or cutting the fabric.

Phase 6: Stitch Type - When to Abandon Satin

Luciana demonstrates a crucial pivot: Satin isn't always the answer.

• Satin: Great for bold lines, but fails below 1mm width.
• Backstitch / Triple Run: Better for clean, thin definitions (like the mouth).

Luciana switches the mouth to a Triple Run. This provides a bold line without the bulk of a satin column.

Commercial Reality Check: Running stitches (like Triple Run) are unforgiving. If your fabric slips, the registration will be off. This is where standard hoops struggle. If you notice your outlines don't line up with your fills, check your hooping. Many production shops rely on embroidery machine hoops with magnetic clamping to ensure the fabric grain remains perfectly straight without distortion.

Phase 7: The Background Rotation Trick

To ensure maximum readability, Luciana rotates the background fills to a diagonal angle.

• Eyes: Vertical (90°)
• Background: Diagonal (45°)

This ensures that no matter which way the light hits, the eyes will pop against the heart.

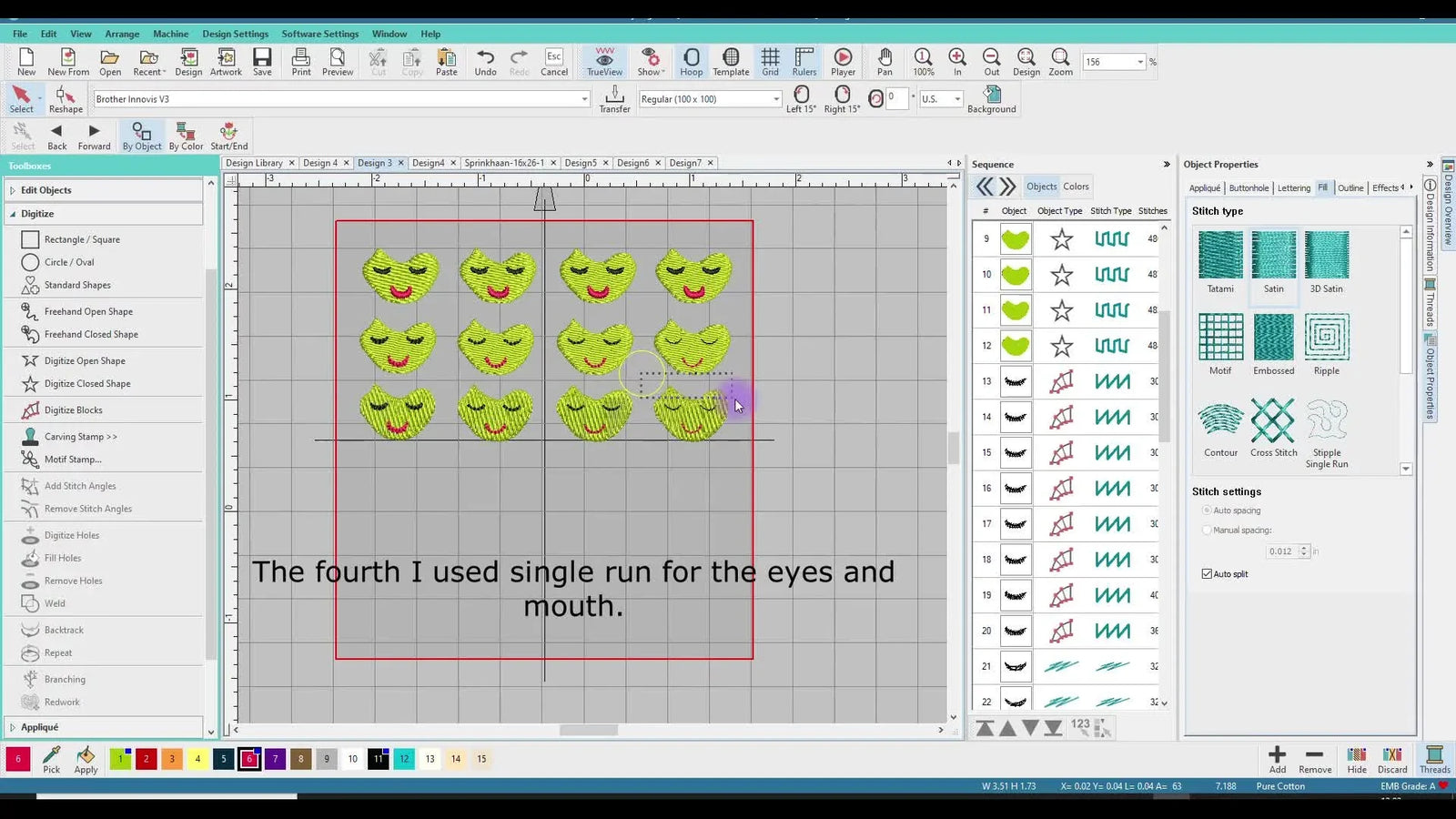

Phase 8: The "Grid Test" - Compare 6 Versions at Once

Don't stitch one test, find a mistake, re-digitize, and re-stitch. That takes hours. Luciana duplicates the design into a grid and changes one variable per copy (e.g., Pattern #1 vs Pattern #6 vs Pattern #44).

Workflow for Efficiency: If you are doing production runs or testing frequently, the time it takes to screw and unscrew hoops adds up to wrist fatigue and lost profit. High-volume studios often use hoopmaster hooping station systems or hooping stations paired with magnetic hoop for brother (or your specific machine brand) to snap fabrics in and out in seconds. This allows you to run three test grids in the time it usually takes to run one.

Warning: Magnetic Field Safety
magnetic embroidery hoops use powerful neodymium magnets.
1. Pinch Hazard: They snap shut instantly. Keep fingers away from the contact zone.
2. Medical Devices: Keep at least 6 inches away from pacemakers or insulin pumps.

**SETUP CHECKLIST: The "Flight Plan"**

• One Variable Rule: Ensure each test copy changes ONLY one thing (e.g., density OR angle), not both.
• Color Stop: Verify your machine is set to stop/trim between each test object.
• Hoop Tension: Tactile Check: Tap the hooped fabric. It should sound like a dull drum (thump-thump), not loose paper, and absolutely not stretched so tight it distorts the grain.

Stabilizer Decision Tree

Luciana uses a woven test swatch, but your project might differ. Use this logic flow to choose the right support:

DECISION TREE: Fabric & Stabilizer Selection

1. Is the fabric stretchy (T-shirt, Knit, Beanie)?
   • YES: Cut-Away stabilizer is mandatory. (Tear-away will allow the tiny eyes to shift and disconnect).
   • NO: Go to Step 2.
2. Is the fabric textured/fluffy (Towel, Fleece, Velvet)?
   • YES: Use Water Soluble Topping (Solvy) on top to prevent stitches from sinking. Use Cut-Away or Tear-Away on bottom.
   • NO: Go to Step 3.
3. Is the fabric standard woven (Denim, Twill, Canvas)?
   • YES: Tear-Away is acceptable, but Cut-Away provides crisper tiny details (bolder definition).

Troubleshooting: The "Symptom-Fix" Table

If your stitch-out fails, start at the top of this list (Physical fixes) before moving to the bottom (Software fixes).

Conclusion: From Test to Production

Luciana’s final result is a grid of clear, readable faces. She selects the winner based on visual contrast and clarity.

The Commercial Upgrade Path: Mastering these settings turns you from a novice to a competent digitizer. But as your volume grows, your bottlenecks shift from software to hardware.

1. Level 1 (Technique): Use the angles and density tricks in this guide to improve quality.
2. Level 2 (Workflow): If you struggle with hoop burn or slow re-hooping, embroidery hoops magnetic are the industry standard for solving these physical pain points.
3. Level 3 (Scale): When you are ready to stitch these patches by the hundreds, shifting to a multi-needle machine (like the SEWTECH series) allows you to set up 15 colors at once and run production speed without babysitting thread changes.


**OPERATION CHECKLIST: Final Quality Control**

• Visual Check: Hold the embroidery at arm's length (about 2 feet). Do the eyes read as eyes? (Most people won't inspect it with a magnifying glass).
• Tactile Check: Rub your finger over the detail. Is it scratchy? If yes, the density is likely too high or the underlay is poking through.
• Documentation: Don't rely on memory. Save the "winning" file with the fabric type in the filename (e.g., Heart_Face_Denim_v3.EMB).

Master the physics, and the software becomes easy. Now, go stitch something tiny.

FAQ

• Q: What pre-stitch checklist prevents tiny facial details from disappearing in Wilcom Hatch / EmbroideryStudio stitch-outs?
  A: Use a physical-prep checklist before changing any digitizing settings—most “vanishing details” start with fabric movement or a consumable issue, not software.
  • Verify fabric match: Test on the exact same fabric as the final item.
  • Inspect the needle: Feel for a burr/scratch; replace immediately if the tip snags like a rough fingernail.
  • Check bobbin tension visually: Aim for bobbin thread showing about 1/3 width in the center of a satin column on a prior sample.
  • Prepare the right consumables: Use fine-tip snips and a fresh 75/11 needle (or 60/8 for extreme detail).
  • Success check: A simple satin sample shows clean edges and stable coverage without the detail “melting” into the background.
  • If it still fails… Re-check hoop slippage and stabilizer choice before tightening density.
• Q: How can embroidery hooping tension be checked for micro-detail embroidery so outlines line up with fills?
  A: Stabilize the fabric so it cannot shift—tiny details need sub-millimeter registration, and even ~0.5 mm movement can blur features.
  • Clean the hoop: Remove lint/residue from the inner ring that can cause slipping.
  • Hoop flat (not stretched): Keep the grain straight and avoid distortion from over-tightening.
  • Tap-test the hooped fabric: Aim for a dull “drum” sound (thump-thump), not loose paper and not overly stretched.
  • Success check: Running-stitch outlines land exactly where intended relative to the fill, with no offset or “shadow” edges.
  • If it still fails… Consider upgrading to a magnetic embroidery hoop to reduce gathering and improve repeatable clamping.
• Q: In Wilcom Hatch / EmbroideryStudio, how do vertical stitch angles (90°) stop tiny eyes from blending into a horizontal tatami background?
  A: Force the eye stitches to 90° (vertical) so the eyes and background reflect light differently and separate visually even at small sizes.
  • Select the eye object and open Reshape.
  • Set/force the stitch angle to vertical (90°) for the eye object.
  • Keep the background fill on a different direction (many users choose a diagonal direction for separation).
  • Success check: In a test stitch-out held at arm’s length, the eyes read clearly as eyes instead of “ghosting” into the texture.
  • If it still fails… Open the eye geometry slightly (pull-compensation logic) and re-test before increasing density.
• Q: Why do tiny satin details become a shapeless blob under 1.5 mm width, and what is the fix in Wilcom Hatch / EmbroideryStudio?
  A: Very narrow satin columns tend to roll and spread, so the fix is to digitize for distortion by opening the shape before stitching.
  • Use Reshape to drag nodes outward so the “hole” looks a bit too open on screen.
  • Avoid copying artwork exactly; account for pull-in as stitches tighten the shape.
  • Test on the same fabric/stabilizer combo you will use in production.
  • Success check: The stitched eye/mouth keeps a defined opening and crisp edge rather than collapsing into a lump.
  • If it still fails… Switch the element from satin to a Triple Run for thin lines (especially mouths).
• Q: What density (spacing) is a safe starting point for tiny details in Wilcom Hatch / EmbroideryStudio without creating a stiff “bullet-proof” patch?
  A: Start near 0.30–0.35 mm spacing for tiny detail coverage; going tighter can make the design stiff and raise needle/fabric risk.
  • In Object Properties, adjust spacing from a default around 0.014" (~0.36 mm) toward about 0.012" (~0.30 mm) only as needed.
  • Do a squeeze test: If the embroidery feels like hard plastic, back off density.
  • Watch for mechanical stress signs when density is very tight.
  • Success check: The detail is readable, and the embroidery remains flexible (not board-stiff) when squeezed.
  • If it still fails… Loosen density back toward 0.014–0.015" rather than forcing coverage by “overpacking” stitches.
• Q: When should Wilcom Hatch / EmbroideryStudio digitizers abandon satin and use Triple Run for a tiny mouth outline?
  A: Use Triple Run when the line is too thin for satin to stay clean—satin often fails for sub-1 mm definitions, while Triple Run gives a bold line without bulk.
  • Convert the mouth (or ultra-thin feature) to a Triple Run instead of satin.
  • Prioritize stable hooping because running stitches show registration errors immediately.
  • Test stitch on the final fabric type to confirm the line weight and placement.
  • Success check: The mouth stitches as a clean, continuous line without becoming a raised, lumpy satin ridge.
  • If it still fails… Re-check hoop slippage and fabric movement before changing stitch settings again.
• Q: What safety rules prevent injuries during high-speed micro-detail stitch-outs and when using magnetic embroidery hoops?
  A: Keep hands away during rapid small-area stitching, and treat magnetic hoops as pinch hazards with medical-device precautions.
  • Do not trim jump stitches while the machine is running; wait for a full stop/needle-up before reaching in.
  • Keep fingers out of the magnetic hoop closing zone; magnets can snap shut instantly.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: Thread trimming and re-hooping are done only at safe stops, with no “rushing” hand movements near the needle or magnet contact points.
  • If it still fails… Slow the workflow down intentionally: stop the machine, confirm needle position, then trim—speed comes after repeatable safety habits.
