Topaz 30 Lettering Without the “Stop After Every Letter” Headache: A Clean, Repeatable Workflow for Names Like “Sara”

The "Stop" Panic: Why Your Topaz 30 Pauses After Every Letter (And How to Fix It for Good)

If your Husqvarna Viking Topaz 30 keeps pausing after every single letter, you’re not doing anything "wrong"—you show me a new owner who hasn't panicked over this, and I'll show you a liar. You’re just running into a default behavior that surprises almost everyone. I’ve watched beginners panic, assume the machine is broken, and start mashing buttons. That is the exact moment when thread nests form, alignment slips, and expensive blanks get ruined.

This post rebuilds the workflow shown in the video—covering built-in font lettering, hoop selection, positioning, and the famous Stop-button trick—but with the extra guardrails I’d teach you if you were sitting in my studio. We are going to cover how to prep so your text actually lands where you drew the line, how to keep tension from turning your clean satin letters into a bumpy mess, and how to avoid the "Hoop Burn" that destroys customer garments.

First, breathe: The Topaz 30 behavior is feature, not a bug

When you choose built-in lettering on the Topaz 30, the machine doesn't know you are stitching a single word in a single color. It treats every letter as an individual object. It behaves like it’s stitching a multi-color design: it wants to stop so you can "change thread color." With lettering, that means it creates a command to stop after the S, then after the a, then after the r.

The key to mastering this is understanding there are two different controls you’ll use during stitching. Do not confuse them:

1. Start/Stop Button: This is your gas pedal and your brake. It creates a physical action.
2. Stop Function (The lit LED): This is a logic command. It tells the software when to brake automatically.

Once you visualize that difference—physical vs. logical—the rest of this becomes calm and repeatable.

The "Hidden" Prep: Quality is decided before you touch the screen

The video shows yellow patterned fabric with white stabilizer and blue thread. These are simple materials, but the difference between "homemade" and "pro" lettering usually happens on the cutting table, not the machine. Lettering is unforgiving. A satin column is high-density; if your fabric shifts even 1mm, your "straight" name will look like it’s falling off a cliff.

4 Pre-Flight Checks for Satin Lettering

1. Fabric Grain vs. Draw Line: If you drew a guideline with a water-soluble pen, make sure the fabric weave is straight. If your fabric is hooped crooked, your "straight" programmed name will stitch beautifully straight... at a 15-degree angle on the shirt.
2. Stabilizer Coverage: The stabilizer must extend at least 1 inch past the hoop edge on all sides. It creates the "stage" for the fabric.
3. Needle Tactile Check: Run your fingernail down the needle tip. If you feel a "catch" or scratch, throw it away. A burred needle shreds satin thread.
4. The "Dental Floss" Tension Check: Before threading, pull a length of thread through the path with the presser foot down. You should feel resistance similar to pulling dental floss between teeth—consistent and firm. If it jerks, clean your tension discs.

If you are doing a lot of names (team gear, Christmas stockings, small orders), this is where standard hoops become a bottleneck. Traditional screw-tightened hoops work, but they are slow and often cause "hoop burn" (white rings on dark fabric). That’s why many shops move toward advanced hooping for embroidery machine methods using magnetic systems to reduce handling time and eliminate circular burn marks.

Prep Checklist (Do this once per project)

• Clean the bobbin area: Remove the needle plate and blow out lint. (Lint = lumps in satin stitching).
• Fresh Needle: Insert a Size 75/11 Embroidery needle (sharp tip) for cotton; Ballpoint for knits.
• Bobbin Check: Look at your bobbin. Is it wound evenly? If it looks spongy, toss it.
• Gather "Hidden" Consumables: Have your curved scissors, tweezers, and temporary spray adhesive ready.

Program the Name: Clarendon 20 and Clean Entry

In the tutorial, the built-in font selected is Clarendon 20, and the name is "Sara".

Here is the clean way to input it on the Topaz 30:

1. Navigate to the Font Folder icon.
2. Select Clarendon 20.
3. Clear any previous text (the trash can icon is your friend).
4. Type Sara:
   • Select Uppercase for S.
   • Toggle to Lowercase for a-r-a.

Pro Tip on "Missing" Fonts: New owners often panic saying, "My USB stick doesn’t show fonts!" The video uses built-in fonts stored on the machine's motherboard. If you buy a font online (like a .dst or .hus file) and put it on a USB stick, the machine sees it as a design, not a font. You cannot type with it on the screen; you must merge the letters individually. Treat built-in fonts and USB fonts as two different species.

Don’t Skip the Bridge: The "Program" Button

This is the specific step where 50% of beginners get stuck. You type the name, you see it on the screen, but the machine won't let you stitch.

You must press the hard button labeled Program. This acts as a bridge. It tells the machine, "I am done editing the text; now treat this as an embroidery file ready for setup."

Success Indicator: The screen changes from a keyboard layout to a hoop visualization grid.

Hoop Selection: Why 360x200 Matters

In the video, the hoop selected is the large 360x200.

On the Topaz 30 screen:

1. Tap Hoop Options.
2. Select 360x200 from the list.

Why this matters: If the screen thinks you are using a 120x120 hoop but you attach a 360x200 hoop, the machine will refuse to stitch or, worse, it might slam the needle bar into the plastic frame because the center points valid.

If you plan to upgrade your gear, when you search for embroidery hoops for husqvarna viking, ensure you are buying the correct attachment width for the Topaz series. A mismatch here leads to wobbly hoops and broken needles.

Positioning at the Top (Using X/Y Like a Pro)

The video moves the design toward the top of the hoop using arrow keys in Alt mode.

• Final Coordinates: X: -3 mm | Y: 169 mm


The "Production Mindset" Trick: Write these numbers down on a sticky note. X -3, Y 169. If the thread breaks and you accidentally nudge the screen, or if you have to reboot the machine, you can type these numbers back in and land on the exact same millimeter. Guessing invites ghosting (double image stitching).

The Clearance Reality: You cannot stitch to the absolute plastic edge. The presser foot needs about 15-20mm of clearance. If you force the design past the safe zone, the machine will beep and refuse to move. Don't fight the software; it's protecting your sewing foot from a collision.

Getting this alignment perfect on the fabric inside the hoop is the hardest skill to learn. If you find yourself re-hooping a shirt five times to get it straight, consider a hooping station for machine embroidery. These tools use standard placement grids to ensure what you see is what you hoop, cutting frustration by half.

Setup Checklist (Before you press Start)

• Hoop Match: Does the screen say 360x200? Is the physical hoop 360x200?
• Clearance: Is the design inside the grid lines, not touching the safety border?
• Obstruction Check: Is the fabric draped freely? Ensure no sleeve or shirt back is tucked under the hoop.
• Thread Path: Is the thread safely in the take-up lever? (The lever that goes up and down).

Warning: Keep fingers, scissors, and loose sleeves away from the needle area once you press Start/Stop. The Topaz 30 moves the embroidery arm rapidly. Never try to trim a thread while the machine is moving.

The Start Sequence: The Count-to-Three Rule

The video demonstrates a critical thread-management move. Do not ignore this, or you will get a "bird's nest" (a giant knot of thread) on the underside.

1. Hold the tail: Pinch the top thread tail gently.
2. Press Start/Stop: The machine makes a few tiny "fix" stitches.
3. The Pause: The machine will stop.
4. Trim: Cut the tail close to the fabric.
5. Resume: Press Start/Stop again.


The Sensory Detail: When you hold the tail, hold it with the tension of a limp noodle. If you pull it tight like a guitar string, you will bend the needle as it enters, causing it to hit the throat plate.

The "Secret" Button: Turning off the Stop LED

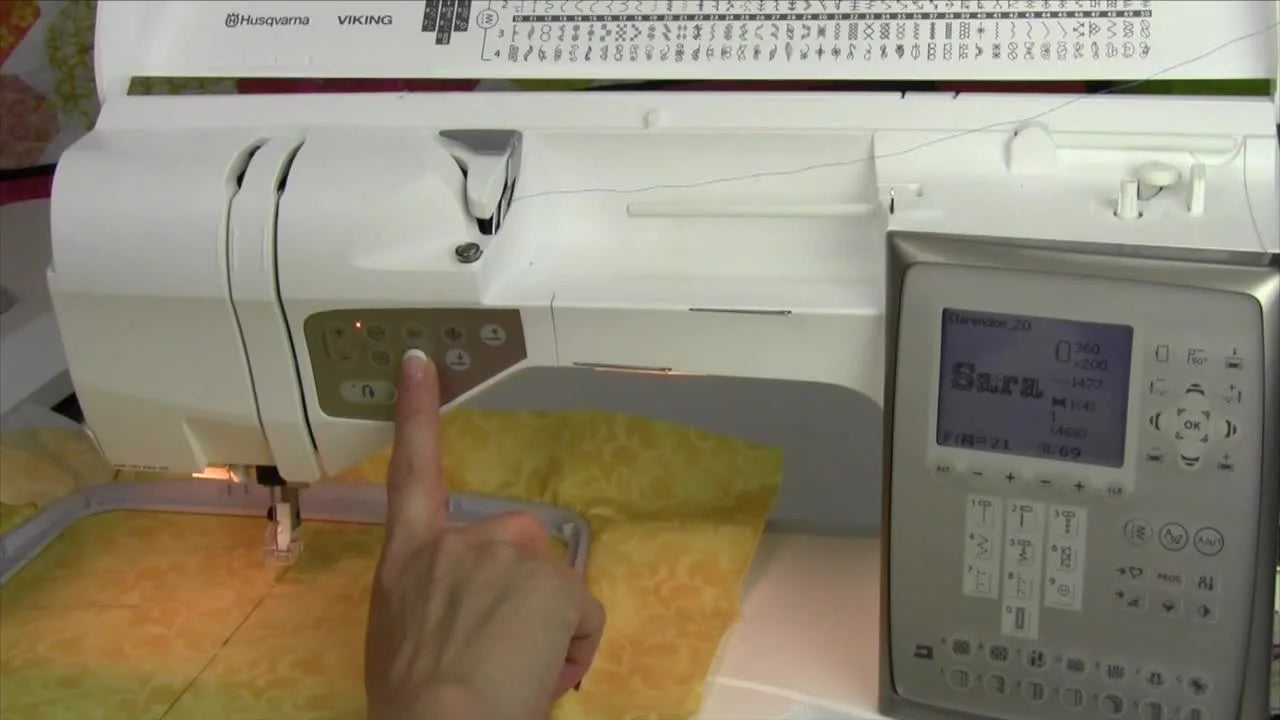

This is the heart of the tutorial. This is the fix.

When you start lettering, the Stop LED is lit by default. This is the logic command saying "Pause after every color change." Since the machine thinks every letter is a color change, it pauses.

The Fix:

1. When prompted to change color, touch OK on the screen.
2. Look at the physical buttons on the machine head.
3. Press the Stop button.
4. Confirm: The LED light must turn OFF.
5. Press Start/Stop to stitch.


Expected Outcome: The machine brings the thunder. It will stitch the 'S', jump to the 'a', stitch the 'a', and keep going until the name is done.

Crucial Distinction: Use the Stop LED button to program behavior. Use the Start/Stop button to physically pause. If you mix them up, you will re-enable the annoyance.

While It Stitches: Read the Machine

The video points out the stitch count display.

Sensory Monitoring (What to listen for):

• Standard Sound: A rhythmic, mechanical "chug-chug-chug."
• Danger Sound: A sharp "slap" or "thud." This usually means the needle is dull (thumping) or the thread is catching on the spool cap (slapping).
• Visual: Watch the bobbin thread on the back. You should see a white strip down the middle taking up about 1/3 of the width of the satin columns. If you see no white (all top color), your top tension is too loose. If you see all white, your top tension is too tight.

Finishing Strong

When the design is finished:

1. The machine displays "Embroidery Finished." Touch OK.
2. Use the Stitch Menu (Park Position) to move the arm out of the way.


Remove the hoop and use sharp, curved application scissors to trim the jump stitches between letters.

Troubleshooting Guide (Symptom -> Cause -> Fix)

Stabilizer Decision Tree: Don't Guess

Lettering puts a lot of stitches in a small area. If your fabric is soft, the letters will pucker.

1. Is the fabric stretchy (T-shirt, Hoodie, Knit)?
   • YES: You MUST use Cutaway Stabilizer. Tearaway will not work; the stitches will stretch the paper and distort the letters.
   • NO: Go to step 2.
2. Is the fabric stable (Quilting Cotton, Denim, Canvas)?
   • YES: You can use Tearaway Stabilizer.
   • NO: When in doubt, Cutaway is the safer bet for longevity.

The Production Workflow: When to Upgrade?

If you are stitching one name for a grandchild, the standard 360x200 hoop and the process above is perfect.

However, if you are tackling a team order of 20 shirts, the standard screw-hoop becomes your enemy. It hurts your wrists, it leaves "hoop burn" rings that you have to steam out, and it's slow.

This is where professionals upgrade to a magnetic hoop for husqvarna viking.

• The Logic: Instead of screwing inner and outer rings together (which creates friction and burn), magnets clamp the fabric straight down.
• The Benefit: It is 3x faster, causes zero hand strain, and allows you to adjust the fabric without "popping" the hoop.
• The Scale Up: If you find yourself limited by the single-needle color changes (stopping to swap spools manually), that is the trigger to look at multi-needle husqvarna embroidery machines or dedicated production units like SEWTECH systems that handle 10-15 colors automatically.

Warning (Magnets): magnetic embroidery hoop systems use industrial-strength magnets. They are powerful enough to pinch fingers severely. Do not use them if you have a pacemaker or implanted medical device affected by magnets. Keep them away from credit cards and machine screens.

Operation Checklist (Final 30 Seconds)

• Stop LED: Is it OFF? (For continuous lettering).
• Presser Foot: Is it clear of the hoop edge?
• Speed: If this is your first time, lower the speed on the screen. Satin stitches look better at 600-700 SPM than at top speed.
• Exit Strategy: Do you have your scissors ready for the jump stitches?

Mastering the logic of the "Stop" button is your gateway to enjoying the Topaz 30. Once you stop fighting the pauses, you can focus on the art.

FAQ

• Q: Why does the Husqvarna Viking Topaz 30 stop after every letter when stitching built-in font lettering?
  A: Turn OFF the physical Stop button LED during the first “change color” prompt so the Topaz 30 stops treating each letter like a color change.
  • Tap OK on the screen when the machine prompts a color change.
  • Press the Stop button on the machine head until the LED turns OFF.
  • Press Start/Stop once to run continuously through the whole name.
  • Success check: The Topaz 30 stitches the next letter automatically without pausing after each character.
  • If it still fails: Verify you are pressing Stop (logic LED), not Start/Stop (physical pause), and confirm the LED is truly OFF.
• Q: What is the correct way to start stitching lettering on a Husqvarna Viking Topaz 30 to prevent a bird’s nest underneath?
  A: Hold the top thread tail for the first fix stitches, let the machine pause, trim, then resume.
  • Pinch the top thread tail gently before pressing Start/Stop.
  • Let the machine make the first small fix stitches and stop.
  • Trim the tail close to the fabric, then press Start/Stop again to continue.
  • Success check: The underside shows clean stitches (no wad of thread forming immediately at the start).
  • If it still fails: Rethread the top thread with the presser foot UP, then repeat the start sequence while holding the tail with light tension.
• Q: How can Husqvarna Viking Topaz 30 users tell if top tension is correct during satin lettering?
  A: Use the underside “bobbin strip” look as the fastest tension indicator while stitching satin columns.
  • Watch the back of the embroidery while the machine runs.
  • Adjust only after confirming threading is correct and the fabric is stabilized.
  • Listen for smooth, rhythmic stitching rather than slaps or thuds.
  • Success check: A visible bobbin thread strip appears down the middle of satin columns at about 1/3 of the column width; not all top color and not all bobbin color.
  • If it still fails: Clean lint from the bobbin area and re-check the “dental floss” feel through the thread path (consistent resistance with presser foot down).
• Q: Why does the Husqvarna Viking Topaz 30 require pressing the physical Program button before stitching built-in font names?
  A: Pressing the hard Program button is required to exit text editing and convert the lettering into a stitchable embroidery setup screen.
  • Type the name in the built-in font screen.
  • Press the Program button on the machine.
  • Select the hoop size and positioning only after the screen switches modes.
  • Success check: The display changes from the keyboard/text entry to a hoop visualization grid.
  • If it still fails: Clear old text (trash can icon), re-enter the name, then press Program again before attempting to start stitching.
• Q: What happens if the Husqvarna Viking Topaz 30 hoop selection (for example 360x200) does not match the physical hoop attached?
  A: A hoop mismatch can cause the Topaz 30 to refuse to stitch or risk a collision with the hoop frame, so always match the on-screen hoop size to the real hoop.
  • Tap Hoop Options on the screen.
  • Select the same size as the physical hoop attached (example shown: 360x200).
  • Confirm the design stays inside the safe grid border (do not force it to the plastic edge).
  • Success check: The machine allows movement/stitching without beeping or blocking motion near the edges.
  • If it still fails: Re-seat the hoop securely and re-check that the design is not pushed into the clearance/safety boundary.
• Q: What pre-flight checks prevent bumpy or shaggy satin lettering on a Husqvarna Viking Topaz 30?
  A: Do the quick prep checks (needle, stabilizer coverage, bobbin quality, and lint cleaning) before touching the screen—lettering is unforgiving.
  • Replace the needle if the tip feels scratched or catches a fingernail; use 75/11 embroidery needle for cotton (ballpoint for knits).
  • Extend stabilizer at least 1 inch beyond the hoop edge on all sides.
  • Clean the bobbin area under the needle plate to remove lint before satin lettering.
  • Success check: Satin columns stitch smooth (not lumpy), and thread does not shred during dense areas.
  • If it still fails: Upgrade stabilizer support (often cutaway for softer fabrics) and consider using temporary spray adhesive to bond fabric to stabilizer.
• Q: What safety rules should Husqvarna Viking Topaz 30 users follow around the needle area and magnetic embroidery hoops?
  A: Keep hands/tools clear once stitching starts, and treat magnetic hoops as industrial pinch hazards with medical-device restrictions.
  • Keep fingers, scissors, loose sleeves, and fabric edges away from the needle area after pressing Start/Stop.
  • Never try to trim thread while the embroidery arm is moving.
  • Avoid magnetic hoops if you have a pacemaker or implanted medical device affected by magnets; keep magnets away from cards and screens.
  • Success check: No accidental contact with the moving needle/arm, and no pinched fingers when handling magnets.
  • If it still fails: Slow down, set up an “exit strategy” (scissors positioned before start), and handle magnetic components one piece at a time with deliberate finger placement.
• Q: When should Husqvarna Viking Topaz 30 users upgrade from standard screw hoops to magnetic hoops or a multi-needle embroidery machine for name lettering orders?
  A: Upgrade based on the pain point: optimize technique first, then reduce hooping strain/time with magnetic hoops, then scale production with multi-needle machines if manual color changes limit throughput.
  • Level 1 (Technique): Use the Stop-LED OFF method for continuous lettering, stabilize correctly, and record X/Y placement numbers for repeatability.
  • Level 2 (Tool): Move to magnetic hoops if screw hoops are slow, cause wrist strain, or leave hoop burn rings that require rework.
  • Level 3 (Capacity): Consider multi-needle equipment when frequent manual thread changes become the main bottleneck on larger batches.
  • Success check: Cycle time drops (less re-hooping/rework), hoop marks reduce, and repeat placements hit the same position without guesswork.
  • If it still fails: Identify whether the real bottleneck is hooping speed, placement accuracy, or manual thread changes—then upgrade only the constraint.
