Topaz 40 Tension Panic? Fix Bobbin Thread on Top Fast—Without Ripping Out a Single Satin Stitch

Bad embroidery tension has a unique way of inducing panic. One minute your machine is humming effectively; the next, it looks like it "forgot how to sew," leaving your satin stitches looking like they have a bad case of dandruff.

If you are operating a Husqvarna Viking Topaz 40 and seeing white bobbin thread popping up on the front of your design, take a deep breath. You haven’t broken the machine. You are simply witnessing a physics imbalance where the top thread is winning the "tug-of-war" against the bobbin.

This guide rebuilds the workflow from a chaotic troubleshooting session into a structured, step-by-step masterclass. We will intentionally creating the problem to understand the "feel" of it, correct the settings via the ALT menu, and utilize a controversial but effective production rescue technique: re-stitching directly over the mistake without ripping a single stitch.

The Topaz 40 “White Specks” Moment: What Bad Satin Stitch Tension Looks Like (and Why It Feels So Wrong)

When your top tension is dialed too tight (or your bobbin is too loose), the top thread yanks the knot straight up through the fabric. On satin stitch lettering, this is catastrophic for aesthetics.

The Sensory Diagnosis: What to Look and Feel For

• Visual: Instead of a glossy, solid block of color, you see tiny white "specks" or "railroad tracks" along the edges of the letter.
• Tactile: Run your finger over the satin column. Correct tension feels smooth and domed. Bad tension feels scratchy, rough, and serrated, like fine-grit sandpaper.

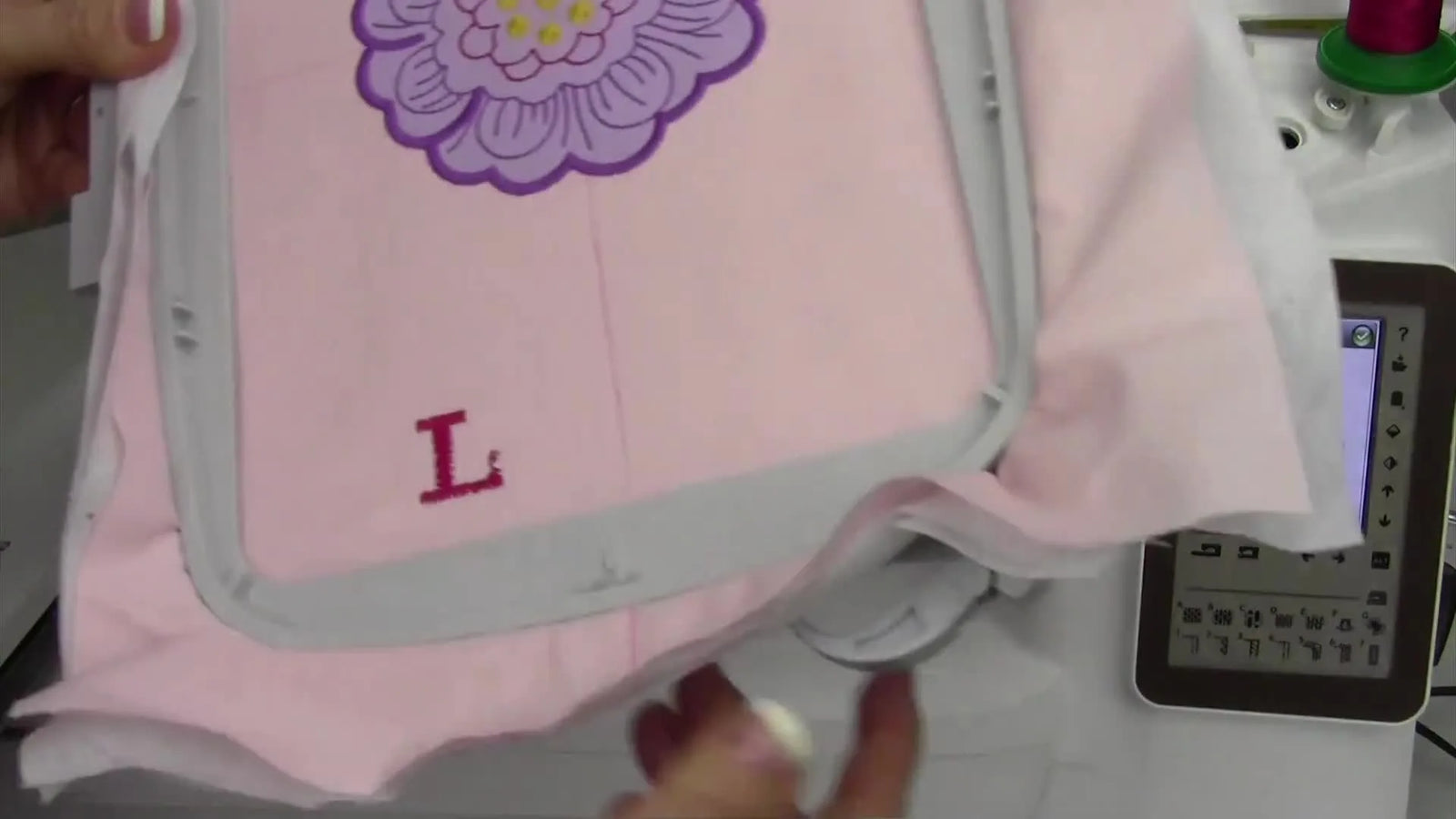

The video demonstrates this using pink fabric and white bobbin thread to make the defect obvious. However, if you are stitching white thread on white fabric, your eyes might miss it. Trust your fingertips—if it feels rough, your tension is too tight.

The “Hidden” Prep Before You Touch Tension: Thread Path, Needle, Stabilizer, and Hooping Discipline

Before you assume the machine’s brain is broken, perform a "Sanity Check." In 20 years of diagnostics, I’ve found that 80% of "tension issues" are actually pathing or physical issues.

Tension is a system. If your fabric creates a "trampoline effect" because of poor hooping, the needle creates a flag, and tension goes haywire. When mastering generic terms like hooping for embroidery machine setup, remember the goal is a "neutral, stable drum skin," not a stretched rubber band.

Prep Checklist (The "Do Not Skip" List):

• Check the Path: Rethread the top completely. Ensure the thread is deeply seated in the tension discs (floss it in—you should feel resistance).
• Check the Bobbin: Is it inserted in the correct direction (usually counter-clockwise/P-shape)? Is the casing free of lint?
• Fresh Needle: Use a fresh 75/11 Embroidery Needle. A burred needle snags thread, mimicking high tension.
• Consumables: Have your curved snips, tweezers, and temporary adhesive spray ready.
• Hoop Check: Ensure the inner and outer rings are flush. If using a standard hoop, tighten the screw until the fabric doesn't slip, but don't distort the weave.

Warning: Keep your workspace clear. Never reach under the presser foot to grab a thread tail while the machine is active. Modern machines like the Topaz 40 have high torque; a needle strike can shatter the needle and send metal shrapnel flying toward your eyes.

Lock In the Correct Hoop on the Topaz 40: 240x150 Recognition and a Clean Starting Position

The Topaz 40 is smart; it wants to know exactly where boundaries are. In the demonstration, the machine prompts “Attach Hoop 240x150”.

Why this matters: If you select the wrong hoop size in the settings, the machine may calculate the tension and movement speed for a different frame mass, or worse, slam the needle into the plastic frame.

The Workflow:

1. Select: Use the touchscreen to choose the specific hoop size you are physically using.
2. Position: Use Move Hoop to slide your lettering (e.g., "LOVE") to a clear area.
3. Attach: Slide the hoop onto the embroidery arm until you hear a distinct, solid CLICK.

When looking for accessories or husqvarna viking topaz 40 embroidery hoops, prioritize rigidity. A floppy hoop causes registration errors (where outlines don't line up with the fill), which often looks like a tension issue but is actually a stability failure.

The ALT Button Tension Test on a Topaz 40: How to Reproduce the Problem on Purpose (So You Can Recognize It Later)

To defeat the enemy, you must know the enemy. We are going to intentionally break the tension settings to see the result.

The Experiment:

1. Tap ALT on the screen to open secondary options.
2. Select the Tension icon (usually looks like a thread spool or tension disc).
3. Press “+” repeatedly. Standard tension is often around 2.8–3.0. Crank it up to 5.0 or higher for this test.

The Physics: By increasing this number, you are clamping down harder on the top thread. The machine now has to pull much harder to feed thread. The bobbin, having less resistance, will be yanked up to the top.

Stitch One Letter, Stop on Purpose: Using the Topaz 40 “Stop” Function to Diagnose Lettering

Production wisdom dictates: Never stitch the whole design if the first inch looks bad.

The video utilizes the Stop command. This forces the machine to pause after the first color block or segment (in this case, the letter "L").

Why use STOP? It gives you a "Safe Fail" buffer. If you stitch an entire name with bad tension, you have ruined the garment. If you stitch one letter, you can fix it (as we will show later).

Note: Do not obsess over specific numbers you see online. A setting of "2.6" on my machine might be a "3.0" on yours due to lint buildup or spring age. Use 0.2 increments to find your machine's "sweet spot."

Read the Front Like a Pro: Spotting Bobbin Thread on Top Before You Waste the Whole Design

The machine stops after the "L". Now, perform a forensic inspection. Do not just glance at it; inspect it.

How to Inspect:

1. Tilt: Tilt the hoop 45 degrees under strong light.
2. Look: You are looking for breaks in the sheen. Satin stitches should reflect light evenly.
3. Identify: Do you see the white dots? Are the edges jagged?

If you are researching features on a new embroidery machine husqvarna Topaz or similar, look for "smart tension" features, but know that manual visual inspection is still superior to any sensor. Sensors tell you thread is moving; your eyes tell you if it looks beautiful.

Flip the Hoop Over: The Backside “Column of Color” Test That Never Lies

The front tells you there is a problem; the back tells you what the problem is.

Flip the hoop over.

• The Symptom (Bad): You see a solid white column of bobbin thread, with almost no pink top thread pulled to the back. This confirms the top thread is holding on too tight.
• The Goal (Good): You want to see the "One-Third Rule". The back of a satin column should look like: 1/3 Top Color | 1/3 Bobbin White | 1/3 Top Color.

If you see almost all top color on the back, your top tension is too loose (looping). If you see all bobbin on the back (and consequently bobbin on the front), your top tension is too tight.

The Fix That Actually Works: Lower Top Tension in the ALT Menu Until the Knot Returns to the Back

Now that we have confirmed the top thread is too tight, we release the grip.

The Adjustment:

1. Return to the ALT menu -> Tension.
2. Press the “-” (Minus) button.
3. The Formula: Drop the value by 0.6 to 1.0 from your "bad" setting to see a change. For fine-tuning, use 0.2 steps.

Expert Tip: If you have to drop the tension to nearly zero (0.6 or lower) to get a good stitch, your problem isn't the dial—it's likely a clogged thread path or a thread caught in the tension discs. Floss the path with a thick un-waxed dental floss to clear debris.

The “Don’t Rip It Out” Rescue: Re-Stitch the Same Letter Using Color Block #1 to Hide the Mistake

Here is the trick that separates productive sewers from frustrated pickers. Satin stitches are dense enough to cover their own mistakes.

Instead of spending 20 minutes picking out the bad "L" (and risking cutting the fabric), we will bury it.

The Process:

1. Go to the Color Block/Navigation tab on the screen.
2. Step back to Color Block #1 (or the start of the design).
3. Press Start.

The machine will stitch the "L" again, directly over the first one, but this time with the correct looser tension. The new stitches will wrap around the old, tight ones, effectively hiding the white bobbin specks.

Constraint: This works best on dense fabrics (denim, canvas, heavy cotton). Be very careful doing this on thin t-shirts, as the double density might create a "bulletproof" stiff patch.

Verify the Repair Before You Commit: What “Fixed” Looks Like on the Front (and What to Listen For)

As the machine re-stitches the "L", engage your senses.

Auditory Check: The machine will sound different. Since the needle is penetrating existing thread, you will hear a duller thump-thump sound rather than a sharp click-click. This is normal. However, if you hear a sharp, grinding noise, STOP immediately—your needle may be deflecting off the previous knot.

Fabric Stability Check: Re-stitching adds stress. If you are using standard machine embroidery hoops, ensure the fabric hasn't slipped. If the alignment is off by even 1mm, your "fix" will look like a blurry shadow.

Finish the Word Cleanly: Turning Off “Stop” So the Topaz 40 Runs OVE Without Pausing

Once the "L" is rescued and looks glossy, we need to finish the word "LOVE".

Workflow Shift:

1. Disable Stop: Go into settings and turn off the Stop command so the machine forces through the rest of the letters smoothly.
2. Verify Speed: For satin lettering, I recommend slowing your machine down slightly (e.g., from 800 SPM to 600 SPM). Speed creates vibration; slowing down increases precision.

Operation Checklist (Pre-Run):

• Hoop: Still tight?
• Tail: Is the starting thread tail trimmed so it doesn't get sewn under?
• Screen: Is the cursor at the start of the "O"?
• Speed: Reduced to ~600-700 SPM for safety.


The Backside After the Full Stitch-Out: What “Balanced” Tension Should Resemble

Upon completion, flip the hoop again. The "L" might look a bit messy on the back because it has double thread, but the "O-V-E" should represent perfection.

Success Metric: You should see that 1/3 - 1/3 - 1/3 ratio. The white bobbin thread should be centered in the column, hugging the fabric, with pink thread wrapping around the edges. This "I-Beam" structure is the hallmark of a balanced machine.

Jump Stitches, Thread Cutter, and Messy Tails: When the Topaz 40 Auto Cutter Makes Small Text Look Worse

The Topaz 40 has an auto-cutter, which is great for large designs but can be a nightmare for small text. It leaves little "tails" that can poke through to the front.

The Professional Choice:

• Auto-Cut ON: Good for speed.
• Auto-Cut OFF: Better for quality on text smaller than 1 inch. Jump stitches will remain, but you can trim them manually with curved snips for a much cleaner look.


A Stabilizer Decision Tree for Satin Lettering: Stop Blaming Tension When the Fabric Is the Real Culprit

You cannot diagnose tension if your foundation is crumbling. Often, users blame the tension dial when the issue is actually the fabric buckling.

Use this decision tree to ensure your base is solid:

Decision Tree: Fabric Specific Strategy

1. Is the fabric stretchy (T-shirt/Polo/Knit)?
   • Yes: You MUST use Cut-Away Stabilizer. (Tear-away will shatter stitches). Do not pull the fabric while hooping.
   • No: Proceed to step 2.
2. Is the fabric unstable/slippery (Silk/Rayon)?
   • Yes: Use Fusible Mesh or float an extra layer of tear-away under the hoop.
   • No: Standard wovens (Step 3).
3. Is it a standard Woven (Cotton/Canvas/Denim)?
   • Yes: Tear-Away Stabilizer is acceptable, but Cut-Away always provides a better satin finish.

Using an embroidery hooping station can help ensure that your stabilizer and fabric are mated perfectly flat before they ever enter the machine.

Hooping Physics That Prevents “Mystery Tension” (and Saves Your Wrists in Production)

Traditional hooping relies on friction (inner ring against outer ring). If you have weak wrists, or if the fabric is thick, you might not be tightening the screw enough. This causes the fabric to "flag" (bounce up and down with the needle), which creates loopies and ugly text.

The Upgrade Path: If you struggle with hoop burns (white rings left on fabric) or wrist pain, consider switching to Magnetic Hoops.

• Physics: They utilize magnetic force to clamp fabric automatically, adjusting for thickness without the need to tighten screws.
• Result: Zero "hoop burn" and consistent tension across the entire surface.

Warning: Magnetic Hoop Safety. These magnets are industrial strength. They can pinch fingers severely causing blood blisters. DANGER: Keep strong magnets away from pacemakers, insulin pumps, and magnetic storage media (credit cards/hard drives).

When looking for embroidery hoops for husqvarna viking, ensure the magnetic frame is rated for your specific machine's arm attachment to avoid damaging the carriage.

When This Becomes a Business Problem: Time Math, Repeatability, and the Upgrade Path That Pays Back

We just spent time fixing one letter. If you are doing this for a hobby, it is a learning experience. If you are running a business, it is a loss of profit.

The Commercial Reality:

1. Level 1 (Technique): Use the "Re-Stitch" method to save a garment.
2. Level 2 (Tooling): Upgrade to Magnetic Hoops to drastically reduce hooping time and eliminate "fabric slip" tension errors.
3. Level 3 (Scale): If you are constantly fighting tension because you are switching threads manually on a single-needle machine, consider the SEWTECH Multi-Needle ecosystem. These machines have independent tension knobs for each needle, allowing you to set white tension perfectly for text and black tension perfectly for outlines, without ever touching a dial between runs.

The “Do This Every Time” Operating Routine for Clean Lettering on a Topaz 40

Consistency is the antidote to fear. Adopt this routine for every session.

Operation Checklist:

• Path: Floss the top thread into the tension discs.
• Test: Run a small "H" or "I" test file on scrap fabric before the main garment.
• Inspect: Check the back of the test for the 1/3 rule.
• Tooling: Ensure your hoop (magnetic or standard) is firmly attached with no wiggle.
• Consumable Check: Is your stabilizer correct for the fabric (Cut-away for knits)?

Whether you are using a standard hoop or a high-end hoop master embroidery hooping station system, the physics remain the same: Stable Fabric + Balanced Tension = Perfect Satins.

FAQ

• Q: Why does white bobbin thread show on the front of satin stitches on a Husqvarna Viking Topaz 40?
  A: This usually means the Husqvarna Viking Topaz 40 top tension is too tight (or the bobbin is effectively too loose), pulling the knot to the front.
  • Stop after one letter/segment and inspect under strong light at a 45° angle.
  • Flip the hoop and check the satin column on the back for the 1/3 top color | 1/3 bobbin | 1/3 top color balance.
  • Lower top tension in the ALT → Tension menu in small steps (use larger drops first, then fine-tune).
  • Success check: the satin feels smooth and domed (not scratchy), and the back shows the centered bobbin “column.”
  • If it still fails, completely rethread the top thread and make sure the thread is seated deeply in the tension discs.
• Q: How do I change top thread tension using the ALT menu on a Husqvarna Viking Topaz 40 for satin lettering?
  A: Use the Husqvarna Viking Topaz 40 ALT screen to adjust tension, then test on a single letter before committing to the full word.
  • Tap ALT → open the Tension icon.
  • Press “–” to reduce tension when bobbin thread is popping to the front; adjust in small increments while testing.
  • Stitch one letter, then stop and inspect the front and back before continuing.
  • Success check: the front satin is glossy and even, and the back follows the 1/3 rule.
  • If it still fails, clean/floss the thread path (debris in the tension area can force you to run abnormally low tension).
• Q: What is the “one-third rule” for checking satin stitch tension on the back of embroidery on a Husqvarna Viking Topaz 40?
  A: The “one-third rule” is a fast way to confirm balanced tension: 1/3 top color, 1/3 bobbin thread, 1/3 top color across the satin column on the back.
  • Flip the hoop and look at the back of the satin lettering column (not just the front).
  • Identify whether you see mostly bobbin (top too tight) or mostly top thread (top too loose/looping).
  • Adjust the ALT → Tension value, then re-test one letter.
  • Success check: the bobbin thread sits centered like an “I-beam,” not dominating one side.
  • If it still fails, verify correct bobbin insertion direction and remove lint from the bobbin area.
• Q: What prep checks should be done before adjusting tension on a Husqvarna Viking Topaz 40 when satin stitches look rough?
  A: Do a quick “sanity check” first—most Husqvarna Viking Topaz 40 “tension problems” are actually threading, needle, bobbin, or hooping problems.
  • Rethread the top from scratch and “floss” the thread into the tension discs until resistance is felt.
  • Replace the needle with a fresh 75/11 embroidery needle.
  • Confirm the bobbin is inserted in the correct direction and the bobbin area is lint-free.
  • Hoop fabric so it is stable and flat (secure, but not weave-distorted).
  • Success check: the satin stitch surface feels smooth (not serrated) when you run a fingertip across it.
  • If it still fails, reassess stabilizer choice for the fabric (knits typically need cut-away to prevent distortion that mimics tension issues).
• Q: How do I prevent a Husqvarna Viking Topaz 40 from ruining a full name when satin stitch tension looks wrong at the start?
  A: Use the Husqvarna Viking Topaz 40 Stop function to force a “safe fail” after the first letter so tension can be corrected early.
  • Enable Stop and stitch only the first letter/segment.
  • Inspect the front for specks/railroad edges and feel for roughness.
  • Flip to the back and verify the 1/3 rule before continuing.
  • Success check: the first letter looks glossy and solid before you let the machine run the rest of the word.
  • If it still fails, slow down and re-check hoop stability—fabric flagging can make good settings stitch badly.
• Q: Can a Husqvarna Viking Topaz 40 fix white bobbin specks on satin lettering without ripping stitches out?
  A: Often yes—on dense fabrics, the Husqvarna Viking Topaz 40 can re-stitch the same letter by returning to Color Block #1 and sewing directly over the mistake after correcting tension.
  • Lower top tension in ALT → Tension until the knot returns to the back.
  • Navigate to Color Block/Design position and step back to Color Block #1 (start of the design).
  • Re-stitch the same letter directly over the original stitches.
  • Success check: the second pass covers the white specks and the letter returns to a smooth, glossy finish.
  • If it still fails, stop immediately if alignment shifts (even small fabric slip can create a blurry “shadow”) and re-hoop before attempting again.
• Q: What safety rules should be followed when troubleshooting needle and thread issues on a Husqvarna Viking Topaz 40?
  A: Treat the Husqvarna Viking Topaz 40 as high-torque equipment—keep hands clear and stop the machine before reaching near the needle area.
  • Keep the workspace clear so thread tails and tools cannot snag during stitching.
  • Never reach under the presser foot to grab thread tails while the machine is active.
  • Use Stop/Pause before trimming or inspecting near the needle.
  • Success check: troubleshooting steps can be performed with the machine fully stopped, with no need to “catch” thread while it’s moving.
  • If it still fails, do not force a run—rethread and restart calmly to avoid needle strikes that can shatter needles.
