Topaz 50 Design Combos That Don’t Crash Into Your Last Stitch: Center a Monogram, Trace Placement, and Skip the Fill

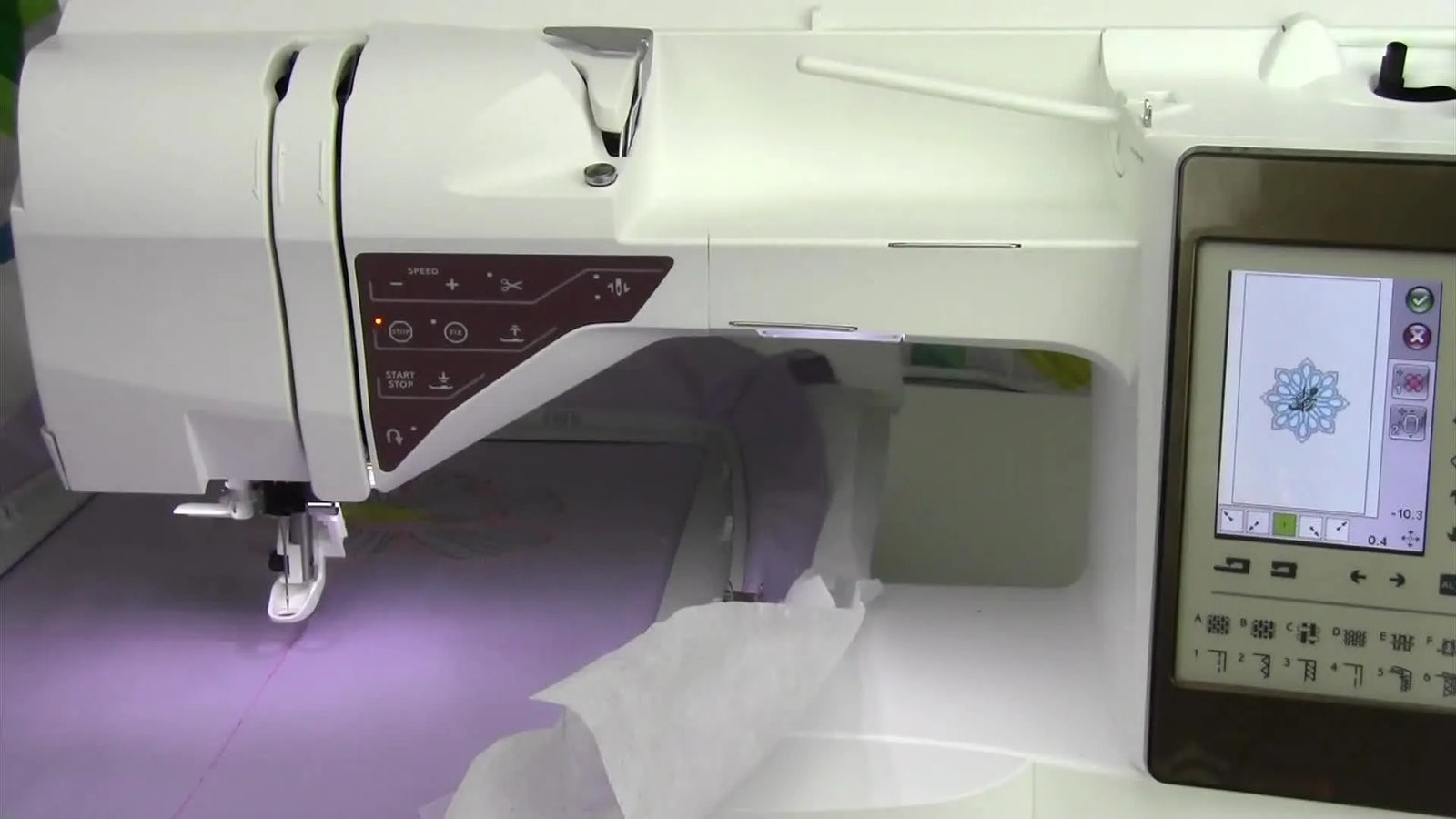

If you’ve ever stared at your Husqvarna Viking Topaz 50 screen thinking, “It looks centered… but will it stitch centered?”—you’re not alone. The panic usually hits when you’re working close to a previous design (like a towel corner or a gift set) and you realize one wrong start point can stitch right into yesterday’s work.

Machine embroidery is 20% art and 80% engineering. This walkthrough rebuilds the exact workflow shown in the video: combine a built-in frame (Design #22) with a monogram letter in Palace Script, zoom in to center it the right way, physically trace where the needle will land using Basic Design Positioning, and then skip the background fill by starting at Color Block #3.

Clear the Topaz 50 Canvas First—Because Old Designs Love to Haunt New Ones

Before you combine anything, the instructor deletes the previously used flower design from the screen using the trash can icon. That tiny habit prevents a very real problem: accidentally stitching a leftover element because it’s still sitting in the edit field.

A lot of intermediate users skip this because they’re excited to “just add a letter.” But on machines like the Topaz 50, clean setup equals predictable stitch order.

Pro tip from the comment section: If you’re wondering what the small clips that came with your machine are for, they are stabilizer clips. Use them to secure the excess stabilizer or fabric edges to the inner hoop. This prevents the bulk from flipping over and getting stitched into your design—a disaster known as "sewing the garment to the hoop."

Combine Built-In Design #22 + Palace Script 30 Without Guessing Your Layout

On the Topaz 50, the instructor goes to built-in designs and selects Design #22, then switches to alphabets and chooses Palace Script in the largest size shown (size 30). She types the letter “S” and confirms with the green checkmark.

If you’re building monograms for towels, gifts, or small batches, this is the sweet spot where a home machine feels surprisingly powerful—because you’re not digitizing on a computer, you’re composing directly on the machine.

One note mentioned in the video: you can download more fonts using the Quick Font option from the Husqvarna Viking website.

When operating husqvarna embroidery machines for client work, treat built-in fonts like "production fonts." Unlike downloaded internet files which may be poorly digitized, built-in fonts are engineered by the manufacturer to stitch reliably at specific sizes, reducing thread breaks during rush orders.

The 400% Zoom Trick on the Topaz 50: Center the Monogram Like a Pro (Not Like a Guess)

Here’s the move that separates “looks fine on screen” from “stitches clean in real life.” The instructor uses the Alt button and the Zoom icon, then draws a box around the center area to zoom in—over 400% (the video shows 402%).

At that zoom level, she drags the green “S” into the center of the frame where it visually belongs. Without zooming, your finger or stylus is too clumsy to achieve perfect alignment.

Two veteran notes that matter:

1. Optical alignment vs. Mathematical alignment: The instructor mentions the letter is “kind of leaning,” so she offsets it slightly. In typography, a script letter often needs to be nudged slightly to the left or right to look centered to the human eye, even if the math says otherwise.
2. The "Jump" Factor: At 100% zoom, moving the design might jump 1mm at a time. At 400% zoom, you gain micro-precision.

If you’re using your monogram machine for high-stakes items like bridal handkerchiefs, this zoom-and-drag step is non-negotiable. It creates the professional polish that distinguishes a $50 custom item from a hobby project.

Basic Design Positioning on the Topaz 50: Trace the Stitch Field Before You Commit

This is the part I wish every embroiderer learned in week one.

The instructor has fabric hooped with a previous design nearby. She presses Go, then activates Basic Design Positioning (the icon described as a little flower with four arrows). Using the on-screen arrows, she moves the design position while watching the hoop move physically, checking whether the needle will get too close to the earlier embroidery.

The Golden Rule: Never trust the screen alone. Screen pixels don't know that your towel is fluffy or your hoop is crooked.

In the video, she notes the design is about 1.5 inches away from the previous embroidery—so she has room, but she still verifies.

The "Physics of Hooping": When fabric is hooped, it is under tension. As you stitch, fibers relax and pull. If you are doing hooping for embroidery machine projects on unstable items like knitwear, your "safe distance" can shrink by 2-3mm during the process. Always leave a safety buffer.

Warning: Keep hands clear! When using Design Positioning, the hoop moves automatically. Keep fingers, scissors, and loose thread away from the needle area. A moving hoop can pinch fingers against the machine arm, or worse, drive a needle through a finger if you accidentally hit the start button while adjusting fabric.

Skip Color Blocks 1 & 2 on the Topaz 50: Get the Outline-Only Look (and Cut Stitch Time)

Now the fun part: customizing the design without digitizing software.

The instructor opens the Color Block menu and explains the stitch order:

• The frame design stitches in the first four colors.
• The monogram is the fifth color.

She identifies that Color Blocks 1 and 2 are the background fill (the teal area she doesn’t want). To remove that fill, she simply selects Color Block #3 so the machine starts stitching from that point onward.

Why Skipping Fills Improves Quality:

1. Time: Fills can take 10-20 minutes. Outlines take 2 minutes.
2. Drape: An outline design leaves the fabric soft. A solid fill creates a "bulletproof patch" feel that can be stiff on delicate towels.
3. Puckering: Massive fills pull fabric inward (the "hourglass effect"). Skipping the fill reduces tension on the fabric.

If you are developing an efficient embroidery hooping system for repeat orders, simplifying designs to outlines is a smart commercial move. It lowers thread usage and machine wear while increasing daily output.

The “Hidden” Prep Pros Do Before Combining Designs on a Single-Needle Machine

The video focuses on on-screen editing, but real-world success happens before you touch the screen. Beginners often blame the machine for issues caused by poor physics.

Prep Checklist (Do this OR Fail)

• Needle Check: Run your fingernail down the needle tip. If you feel a "click" or scratch, throw it away. A burred needle will shred thread. Standard: Size 75/11 Embroidery Needle.
• Bobbin Audio Check: Drop your bobbin in. Listen for the specific "click" of the tension spring engaging. If it rattles, re-seat it.
• Hoop Tension (The "Drum" Test): Tap the hooped fabric. It should sound like a dull drum—taut but not stretched to death. Caution: Do not stretch the fabric; tighten the hoop screw instead.
• Clearance Check: Ensure the machine arm has free space behind it. A wall or thread stand bumping the hoop causes "phantom layer shifting."

This is also the moment to evaluate your tools. If you are fighting with thick towels or struggling to get the inner ring to pop in without leaving "hoop burn" (shiny crush marks), standard plastic hoops are the culprit. Many professionals upgrade to a magnetic hoop for husqvarna viking because the magnets hold thick fabric gently without the friction burn of traditional hoops.

Warning: Magnet Safety. Magnetic hoops use high-power neodymium magnets.
* Pinch Hazard: Do not let the top frame "snap" onto your fingers.
* Health Safety: Keep magnets at least 6 inches away from pacemakers and insulin pumps.

Setup on the Topaz 50 Screen: A Clean Sequence That Prevents “Why Did It Stitch There?” Moments

Once you’re prepped, follow the same on-screen order the instructor demonstrates. The sequence matters because it keeps your edits predictable.

1. Clean Slate: Delete the previous design (trash can icon).
2. Import: Select Built-in Design #22.
3. text: Select Palace Script 30, type letter, confirm.
4. Zoom & Align: Alt + Zoom to 400%. Drag to center.
5. Verify: Press Go, run Basic Design Positioning to trace the corners.
6. Edit: Open Color Block menu, select Block #3 to skip the fill.

If you find yourself constantly shopping for embroidery hoops for husqvarna viking because your current frames are slipping or cracking, consider the root cause. If you cannot reproduce the exact position twice, the issue is likely the hooping method, not the frame itself.

Setup Checklist (Right Before Green Button)

• Visual Check: Is the "plus" sign on the screen actually over the fabric center?
• Thread Path: Is the thread caught on the spool pin? (Common rookie error).
• Speed Governor: For this detailed monogram, set the speed to medium (approx. 600 SPM). Don't run full throttle on delicate script text.
• Color Block: Verify the machine screen highlights Block #3 as the starting point.

Operation: Stitch the Outline, Then the Monogram—And Keep the Machine “Sounding Happy”

After selecting Color Block #3, the machine stitches the outline portions first, then finishes with the monogram letter.

The Sensory Operator: Stop watching the screen. Watch and listen to the needle.

• Sound: You want a rhythmic "thump-thump-thump." A harsh "clack-clack" or grinding noise means the needle is dull or hitting the hoop.
• Sight: Watch the thread flowing off the spool. It should be smooth. If it jerked, stop immediately.

Handling Thread Breaks: If the Topaz 50 stops and alerts a thread break, do not panic.

1. Do NOT unhoop.
2. Rethread the top thread completely (floss it through the tension discs).
3. Use the "Stitch Back" (-) button on the screen to back up 5-10 stitches so the new thread locks over the old break.

If you are aiming for higher efficiency, usage of magnetic embroidery hoops allows for faster recovery from errors. If you must unhoop to fix a bobbin nest, re-hooping with magnets is instant and keeps the alignment easier to restore than struggling with a screw-tightened ring.

Operation Checklist (During Stitch-out)

• First 10 Seconds: Watch the needle start. If a "bird's nest" (tangle) forms under the plate, stop instantly.
• Pause & Trim: After the outline finishes, the machine will stop for the monogram color. Trim the jump threads now so they don't get stitched under the letter.
• Final Inspection: Check the back. You should see 1/3 white bobbin thread down the center of the satin column.

A Simple Stabilizer Decision Tree for Monograms on Cotton vs Towels (So Your Centering Stays Centered)

The video uses a cotton swatch with white stabilizer. However, shifting is the enemy of centering. Stabilizer is your anchor.

Decision Tree: Fabric → Stabilizer → Why

The "Hooping Station" Concept: Correct stabilizer is useless if hooped crookedly. A hooping station for embroidery (or a simple grid mat on your table) helps align the stabilizer, fabric, and hoop perfectly square before you clamp them.

Troubleshooting the Topaz 50 Workflow: Symptoms → Likely Cause → Fix

Diagnose like a technician, not a gambler.

The Upgrade Path That Actually Makes Sense: When to Stick With Standard Hoops vs Go Magnetic

You don’t need new tools to do what the video demonstrates—but you do need repeatability if you are doing this weekly.

The "Three-Tier" Growth Path:

1. The Hobbyist (0-5 items/week): Stick with the heavily engineered standard plastic hoops that came with your Topaz 50. They are precise, free, and work well for flat cottons. focus on mastering your stabilizer recipes.
2. The Pro-Sumer (Gift Sets / Towels / 20+ items):
   If you dread hooping thick towels or suffer from wrist pain, upgrade to an embroidery magnetic hoop.
   • Why? It eliminates the "unscrew-push-pull-screw" cycle. You just lay the fabric and snap the magnet.
   • ROI: Saves ~3 minutes per hoop. Prevents "hoop burn" on velvet and terry cloth.
3. The Small Business (Bulk Orders):
   If you are turning away orders because your single-needle machine is too slow (changing threads 5 times per design), it is time to look at multi-needle machines (like SEWTECH). These stitch faster and eliminate thread-change downtime, allowing you to scale from "fun" to "profit."

The instructor’s final result—an outlined frame with a centered monogram and no background fill—is the perfect example of "working smarter, not harder." It saves thread, saves time, and produces a softer, more professional result.

FAQ

• Q: How do I clear the Husqvarna Viking Topaz 50 screen so a leftover design does not stitch into a new monogram layout?
  A: Delete the previous design from the edit field before importing anything new so the stitch order stays predictable.
  • Tap the trash can icon to remove the old design from the screen.
  • Import Built-in Design #22 only after the screen is clean.
  • Add the Palace Script letter and confirm with the green checkmark.
  • Success check: Only the frame and the new letter are visible on the screen before pressing Go.
  • If it still fails: Re-open the edit field and verify no extra objects are hidden off-screen before starting.
• Q: How do I center a Palace Script monogram letter on the Husqvarna Viking Topaz 50 without “guessing” the alignment?
  A: Use Alt + Zoom to about 400% and drag the letter at high zoom for micro-precision (script letters often need a tiny visual nudge).
  • Press Alt, tap Zoom, and draw a box around the center area to zoom in (the example shows ~402%).
  • Drag the monogram into the frame center while zoomed in, then zoom back out to confirm overall balance.
  • Adjust slightly left/right if the script “leans” and looks off even when mathematically centered.
  • Success check: The monogram looks visually centered inside the frame at normal zoom, not just “on the green center point.”
  • If it still fails: Run Basic Design Positioning to verify the needle landing area matches what the screen suggests.
• Q: How do I use Husqvarna Viking Topaz 50 Basic Design Positioning to prevent stitching too close to previous embroidery on a towel corner?
  A: Use Basic Design Positioning to physically trace where the hoop moves so the needle path is verified on the real fabric, not just the screen.
  • Press Go, then activate Basic Design Positioning (flower icon with four arrows).
  • Use the on-screen arrows to move the design position while watching the hoop move in the machine.
  • Leave a safety buffer because hooped fabric tension can relax and shift during stitching, especially on unstable materials.
  • Success check: The traced position shows clear space from the previous embroidery before stitching begins.
  • If it still fails: Stop and re-hoop straighter; do not “force” the design to fit by pulling fabric in the hoop.
• Q: How do I skip Color Blocks 1 and 2 on the Husqvarna Viking Topaz 50 so Built-in Design #22 stitches as an outline-only frame?
  A: Start stitching from Color Block #3 so the machine bypasses the background fill and goes straight to the outline sequence.
  • Open the Color Block menu and review the stitch order.
  • Select Color Block #3 as the starting point before pressing Start.
  • Confirm the highlight/selection stays on Block #3 right before the green button.
  • Success check: The machine begins with outline stitching, not a large background fill area.
  • If it still fails: Stop immediately and re-check the Color Block list—starting block selection is the most common cause of “fill stitched anyway.”
• Q: What are the Husqvarna Viking Topaz 50 stabilizer clips used for, and how do they prevent sewing the garment to the hoop?
  A: Use the stabilizer clips to secure excess stabilizer or fabric edges to the inner hoop so loose material cannot flip into the stitch field.
  • Clip down excess stabilizer/fabric around the hoop perimeter before stitching.
  • Keep bulky edges flat and away from the needle path, especially on towels and garments.
  • Re-check after moving the hoop with Design Positioning, because motion can pull loose edges upward.
  • Success check: No fabric edge or stabilizer tail can reach the needle area when the hoop moves.
  • If it still fails: Reduce bulk (trim excess stabilizer) and reposition the fabric so nothing is hanging near the design area.
• Q: What is the quickest pre-stitch checklist for cleaner stitching on a Husqvarna Viking Topaz 50 monogram (needle, bobbin, hoop tension, clearance)?
  A: Do the “needle-bobbin-hoop-clearance” checks before touching the screen edits—most stitch problems come from setup physics, not the design.
  • Replace the needle if a fingernail test feels a click/scratch; a safe starting point is a 75/11 embroidery needle (confirm in the manual).
  • Re-seat the bobbin and listen/feel for the tension spring engagement “click.”
  • Tap the hooped fabric for a dull drum sound—taut, not stretched; tighten the hoop screw instead of pulling fabric.
  • Clear space behind the machine arm so nothing bumps the hoop and causes shifting.
  • Success check: The machine runs with a smooth rhythmic sound and the fabric stays stable without drifting.
  • If it still fails: Slow to a medium speed (about 600 SPM is suggested for detailed script) and re-check threading through the tension discs.
• Q: What are the safety risks when using Husqvarna Viking Topaz 50 Design Positioning and magnetic embroidery hoops, and how do I avoid injuries?
  A: Keep hands and tools out of the needle/hoop path during Design Positioning, and handle magnetic hoops slowly to avoid pinch injuries and medical device interference.
  • Keep fingers, scissors, and loose thread away while the hoop moves automatically in Design Positioning.
  • Never hover hands between the hoop and the machine arm—automatic movement can pinch.
  • Lower magnetic hoop tops gently; do not let magnets snap onto fingers (pinch hazard).
  • Keep magnetic hoops at least 6 inches away from pacemakers and insulin pumps.
  • Success check: Adjustments can be made without hands entering the moving hoop area, and magnets are placed without snapping.
  • If it still fails: Pause, power down if needed, and reposition the work area so you can adjust safely with clear access and visibility.
