Bobbin tension is the "Ghost in the Machine" for most embroiderers. It is the invisible force that turns a perfect digital design into a "bird’s nest" disaster or a puckered mess. When it’s off, you feel like you are fighting against the machine, leading to broken threads, broken needles, and—let’s be honest—broken spirits.

Here is the calm, empirical truth: Tension is not magic; it is physics. It is measurable, repeatable, and fixable.

This guide rebuilds the workflow of industry experts like Donna, transforming "feel" into "data." We will use the TOWA gauge (both manual and digital) to establish a "Zero Point" for your machine. Whether you are running a single-needle home machine or a 15-needle production beast, the rules of physics remain the same.

Bobbin Case Tension on an Embroidery Machine: The Fastest Way to Stop Random Breaks and Ugly Stitch Balance

If your embroidery suddenly starts acting up—looping on top, white dots showing on the front, or random shredding—bobbin tension is your Patient Zero. Why? Because it is the foundation. You cannot tune the "roof" (top tension) if the "foundation" (bobbin tension) is shifting like sand.

Expert embroiderers don't guess; they measure. Donna’s target provides a safe "Sweet Spot" for standard 40wt polyester thread:

• Manual TOWA gauge: 22g – 25g
• Digital TOWA gauge: 220 mN – 250 mN

The "Safe Zone" Reality: While Donna aims for 25g (250mN), industry consensus suggests a safe operating range between 220mN and 260mN for polyester thread.

• Too Low (<180mN): The bobbin thread is too loose. You will see loops on top, and the machine sounds "slappy."
• Too High (>300mN): The bobbin is fighting the top thread too hard. This causes puckering, bobbin thread snapping, and "caterpillar" lines on the back.

Your goal isn't just hitting a number; it's staying inside this controlled window every single time you change a bobbin.

The “Hidden Prep” Before You Touch a Screw: Cleaning the Bobbin Case Tension Spring Like a Pro

90% of "tension problems" are actually "cleaning problems." A tiny piece of lint the size of a grain of sand trapped under the tension leaf spring will hold the spring open. This drops your tension to zero, no matter how much you tighten the screw.

The "Floss" Method: Do not use a metal pin (it scratches the metal). Donna’s method is safer and cheaper:

1. Take a crisp business card or a piece of stiff cardstock.
2. Slide the corner under the tension spring leaf.
3. Action: Pull it through in the direction of thread travel.
4. Sensory Check: Look at the card. Do you see a grey smudge or fuzz? That was your problem.

Prep Checklist (Pre-Flight Protocol):

• Clean: Debris removed from under the tension spring using cardstock/paper.
• Inspect: Check the bobbin case pigtail (for L-style cases) for grooves or burrs.
• Consumables: Ensure you have the correct screwdriver. If the tip is worn, you will strip the tiny brass screw.
• Thread Match: Use the exact same thread type for testing that you use for production.
• Stabilize: Ensure your stance is steady. Shaky hands give shaky readings.


Magnetic Core Bobbins + Anti-Backlash Spring: Remove This One Part or You’ll Create Thread Drag

This is a critical hardware configuration step that separates pros from amateurs. Inside standard bobbin cases, there is often a thin, wave-shaped metal washer or a spring-loaded insert. This is the anti-backlash spring.

The Rule of Friction:

• Standard Paper/Plastic Sided Bobbins: Leave the spring IN. It prevents the bobbin from over-spinning when the machine stops.
• Magnetic Core Bobbins: Take the spring OUT. The magnet is your anti-backlash mechanism. It clings to the case to stop spinning. If you leave the metal spring in, you create "double friction"—magnet drag plus spring drag—which causes erratic, ultra-tight tension.

Warning: Use extreme care when prying out the anti-backlash spring. It is under tension and can fly out into your eye. Also, standard screwdrivers can slip and stab your fingers. Use a proper removal tool or tweezers and wear safety glasses. Do not throw this spring away! Tape it inside your toolbox; you will need it if you switch brands.

Thread the Bobbin Case Correctly First—Then Measure (Don’t Wrap the Pigtail Yet)

This is the most common mistake beginners make with TOWA gauges.

The Setup Sequence:

1. Insert: Drop the bobbin in. (For magnetic cores, ensure the magnetic side faces the inside of the case).
2. Slot: Pull thread through the angled slit.
3. Under the Leaf: Pull thread under the tension spring until you hear/feel a distinct "Click."

The Critical Distinction:

• For Sewing: You wrap the thread through the final pigtail (the curlicue wire).
• For Measuring (TOWA): DO NOT wrap the pigtail yet.

The gauge simulates the machine's pull. If you wrap the pigtail and use the gauge, you are measuring the pigtail's friction, not just the spring's tension, giving you a falsely high reading.

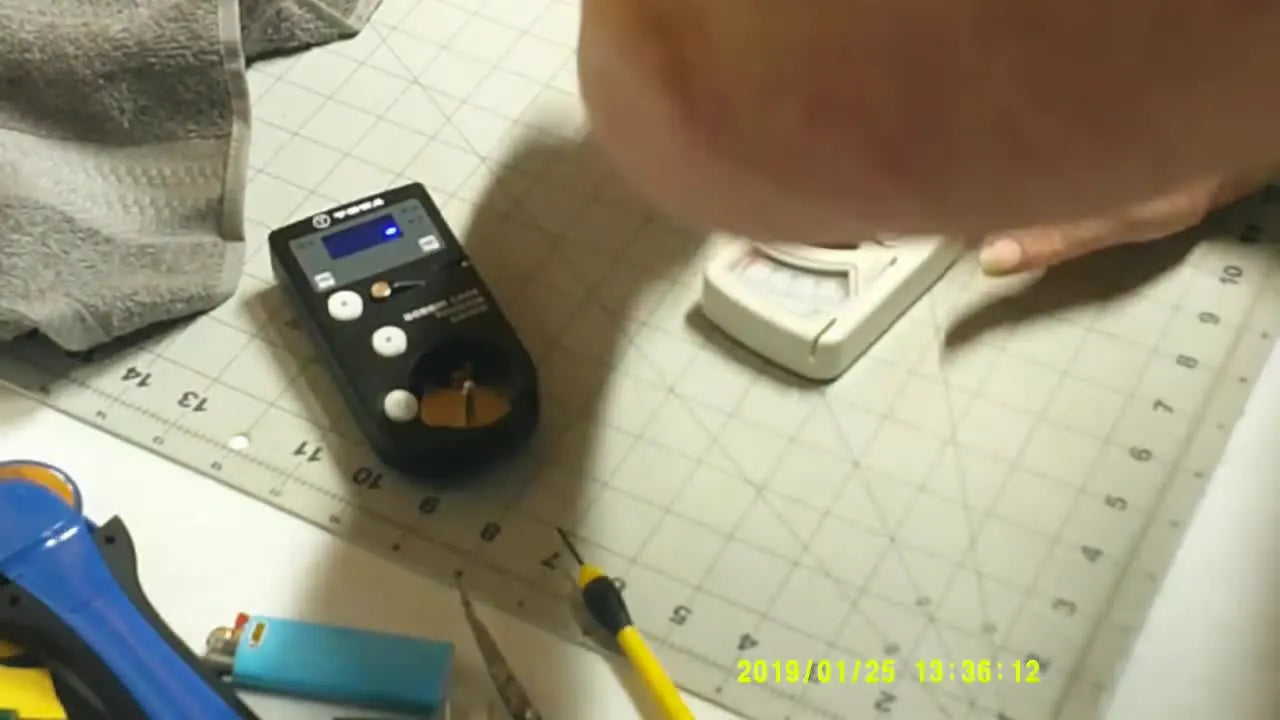

Manual TOWA Bobbin Case Tension Gauge: The “Click-In + S-Path” That Makes Readings Repeatable

The manual gauge is an analog tool—it relies on your hand speed. To get a reading you can trust, you must master the "S-Path."

1. The Anchoring Click

Insert the bobbin case onto the gauge’s spindle. Rotate it until the latch locks into place.

• Sensory Check: Listen for the Click. Try to wiggle the case. It should be rock solid. If it wobbles, your numbers are wrong.

2. The Thread Path (The S-Curve)

Donna’s specific routing is non-negotiable for accuracy:

• Pass thread Clockwise around the first smooth pulley.
• Pass thread Counter-Clockwise around the second pulley.
• Hook it around the tension lever arm.

3. The Pull

• Action: Pull the thread slowly, steadily, and directly away from the gauge.
• Sensory Anchor: Imagine you are pulling a bowstring or dental floss. Smooth, constant velocity. No jerking.
• The Adjustment: Use a screwdriver to turn the larger screw on the bobbin case.
  • Right (Clockwise): Tighter (Higher number).
  • Left (Counter-Clockwise): Looser (Lower number).
  • Sensitivity: Moves in "Minutes," not "Hours." Turn the screw the distance of 5 minutes on a clock face (a micro-turn).

Setup Checklist (Manual Gauge):

• Bobbin case is locked onto the spindle (no wobble).
• Thread bypasses the pigtail (pigtail is empty).
• Thread path follows the S-Curve (CW -> CCW).
• Pull speed is consistent (approx. 2 inches per second).
• Reading is stable between 22g and 25g.


The 25g / 250mN Rule: Translating Manual TOWA Readings to Digital Without Confusion

Don't let the units confuse you. It is a simple decimal shift.

• Manual Gauge: Reads in Grams (g). Target: 25.
• Digital Gauge: Reads in Millinewtons (mN). Target: 250.

Expert Tip: Write "Target: 250mN" on a piece of masking tape and stick it to your gauge. When you are tired or rushing a large order, you don't want to rely on memory.

Digital TOWA Tensioner: Set GF Mode and Match the Insert to Your Bobbin Style (501 L vs 502 M)

Digital gauges offer higher resolution, but they require stricter setup. Only numbers generated in the correct mode matter.

1. Mode Selection

Power on the device. Press the 'Mode' button until the screen displays GF (Gram Force) or mN depending on your model preference, but Donna uses GF mode logic (matching the 250 target).

2. The Form Factor (L vs. M)

You cannot put a square peg in a round hole, and you cannot test an M-style bobbin case with an L-style insert.

• Insert 501 (TM-1): For L-Style Bobbins (Home machines, lighter commercial machines).
• Insert 502 (TM-3): For M-Style Bobbins (Large industrial multi-needles).
• Check: Look at the plastic insert in the gauge. It usually has the number stamped on it. If it’s loose or the wrong size, your bobbin case will rattle, and the reading will be garbage.


Digital TOWA Thread Path: The “Three-Pulley Dance” That Makes the Screen Settle

The digital gauge uses a load cell, which is very sensitive to vibration.

1. Seating the Case

Clip the bobbin case in so the stud/notch is strictly on the left. The retention clip must snap down firmly.

2. The Route

• Clockwise under the bottom pulley.
• Clockwise over the top pulley.
• Counter-Clockwise under the middle pulley (creating the tension).
• Clockwise over the sensor arm.

Observation: Donna pulls and gets a 280 mN (28g) reading. This is on the high side of the safe zone. While runnable, it might cause puckering on satin fabrics. She decides to tune it down.

Fine-Tuning the Bobbin Case Screw: Why “Not Much” Is the Only Safe Amount

When Donna adjusts the screw to drop from 280 to 250, notice how barely her hand moves.

The "Over-Steering" Phenomenon: New users tend to turn the screw a full half-turn. This will drop tension from 250 down to 50 instantly. The screw has a very short active thread range.

• Technique: Insert screwdriver -> Apply pressure -> "Tick" it to the left (loosen) just a hair -> Remove screwdriver -> Re-measure.
• Verification: Pull a good 6-10 inches of thread. Watch the digital readout. It should fluctuate slightly (e.g., 245-255) but settle on the average.

Operation Checklist (Digital Gauge):

• Gauge is set to GF/mN mode.
• Correct Insert (501/502) is installed and seated.
• Thread path engages all three pulleys correctly.
• Adjustment screw turned in "Micro-ticks" only.
• Final reading stabilizes near 250 mN (+/- 10 mN).


Don’t Overthink Top Tension: Use the H-Test After Bobbin Tension Is Set

Golden Rule: Never touch your Top Tension knobs until you have verified your Bobbin Tension with a gauge.

Donna admits the TOWA gauge is poor for measuring top thread (too many variables in the thread path). Instead, we use the "H-Test" (The Fox Test):

1. Digitize a block letter "H" or a satin column approx 4mm wide.
2. Sew it out on two layers of felt or stable fabric.
3. Visual Audit: Flip the fabric over.
   • Perfect: You see 1/3 white bobbin thread in the center, flanked by 1/3 colored top thread on each side.
   • Top Too Loose: You see mostly top color on the back (bobbin strip is narrow).
   • Top Too Tight: You see almost all white bobbin thread (bobbin strip is wide).

Once your bobbin is locked at 250mN, you regulate the stitch using the top tension knobs only.

Decision Tree: When to Change Bobbin Tension vs When to Leave It Alone and Fix Something Else

Embroidery is a diagnostic science. Use this flowchart before grabbing a screwdriver.

START HERE

Q1: Is the machine making a "bird’s nest" underneath?

• YES: This is clear upper threading failure or no tension. Action: Re-thread machine top path. Do not touch bobbin screw.
• NO: Go to Q2.

Q2: Is the Gauge Reading erratic (e.g., jumps from 150 to 300)?

• YES: Action: Deep clean the bobbin spring (Cardstock method). Check for lint.
• NO: Go to Q3.

Q3: Are you using Magnetic Core Bobbins?

• YES: Action: Verify the metal anti-backlash spring is REMOVED.
• NO: Go to Q4.

Q4: Is the tension consistently outside 220-260 mN?

• YES: Action: Adjust Bobbin Screw (Micro-turns).
• NO: Go to Q5.

Q5: Is the design puckering or outlining misaligned?

• YES: Bobbin tension is likely fine. Action: Check your Hooping and Stabilizer. (See Upgrade Path below).
• NO: You are good to sew.


Troubleshooting TOWA Gauge Readings: Symptoms, Causes, Fixes (So You Don’t Waste a Whole Afternoon)

The Shop-Floor “Why”: What Bobbin Tension Really Controls (And Why Tiny Screw Turns Matter)

Think of the bobbin tension spring as the Brake Caliper of your embroidery machine.

• Too Little Brake (Loose): The thread spools out uncontrollably. The top thread pulls it all the way to the surface (loops).
• Too Much Brake (Tight): The thread anchors so hard that it bends the needle or snaps the thread under the high-speed impact (~1000 stitches per minute).

The screw adjusts the physical pressure of a metal leaf against the thread. Because we are dealing with microns of clearance, a 1-degree rotation changes the friction coefficient significantly. This is why "feel" is unreliable—your fingers cannot detecting a 5-gram difference, but the machine can.

The Upgrade Path: When Better Hooping and Workflow Beats More Tension Tweaks

This is the secret most technicians won't tell you immediately: 60% of "tension issues" are actually "hooping issues."

If your bobbin gages at 250mN and your H-Test looks perfect, but you still see outlining gaps, puckering, or registration errors, your fabric is moving in the hoop. No amount of screw-turning will fix shifting fabric.

1. The "Hoop Burn" & Pain Problem: Traditional hoops require physical force and can leave permanent rings on delicate garments. If you are fighting to tighten screws or your wrists hurt from production runs, your technique will suffer.
2. The Solution - magnetic embroidery hoops: These use strong magnets to hold fabric without forcing it into a distorted ring. They allow the fabric to lay naturally flat, which immediately solves many "puckering" issues that look like tension problems.
3. For Home Users: A magnetic embroidery hoop significantly speeds up the process and protects velvet, leather, and performance wear from crush marks. It turns a 5-minute struggle into a 10-second "snap."
4. For Production (Multi-Needle): Speed is money. A magnetic embroidery frame allows for rapid-fire swapping. Because the hold is consistent, the tension on the fabric is consistent, meaning your stitch quality doesn't fluctuate from operator to operator.
5. Scaling Up: If you are managing multiple garments, a hooping station ensures that every logo is placed in the exact same spot. Combined with a magnetic hoop, a machine embroidery hooping station standardizes your production line.
6. The Professional Edge: Many professionals use a hooping station for embroidery to eliminate the variable of "human error" in placement.

When your fabric is secure and relaxed (not stretched to death), the tension settings you dialed in with your TOWA gauge will actually hold true.

Warning: Magnetic Safety
magnetic embroidery hoops use powerful industrial magnets.
* Pinch Hazard: Keep fingers clear when snapping hoops together. They can pinch blood blisters instantly.
* Medical Devices: Keep magnets away from pacemakers, insulin pumps, and sensitive electronics.

The Last 60 Seconds Before You Sew: Put It Back Together the Way the Machine Expects

You have measured, adjusted, and verified. Now, transition from "Lab Mode" back to "Production Mode."

1. Unload: Remove bobbin case from the TOWA gauge.
2. Thread for Sewing: NOW you must route the thread through the Pigtail (the curlicue). If you forget this, you will have zero tension.
3. Install: Insert into the machine rotary hook. Listen for the distinct Click.
4. Verify: Pull the thread tail. It should feed smoothly with that "floss-like" resistance.
5. Run: Do the H-Test first.

By following this protocol, you stop guessing. You stop hoping today is a "good machine day." You make every day a good machine day because you are operating on data, not luck.

FAQ

• Q: How do I measure embroidery machine bobbin case tension with a manual TOWA gauge without getting falsely high readings from the bobbin case pigtail?
  A: Bypass the bobbin case pigtail during measurement and use the required S-path, then re-thread the pigtail only for sewing—this is the fastest way to get repeatable numbers.
  • Thread: Insert bobbin, pull thread through the slit, then under the tension spring until a distinct “click,” but do not wrap the pigtail.
  • Route: Follow the manual TOWA S-path (clockwise around the first pulley, counter-clockwise around the second, then to the lever arm).
  • Pull: Pull smoothly at a steady speed (no jerking) and adjust the large screw in micro-turns only.
  • Success check: The bobbin case is locked with no wobble and repeated pulls land around 22–25g rather than jumping wildly.
  • If it still fails: Re-check that the bobbin case fully “clicks” under the spring and clean under the tension leaf with cardstock.
• Q: What bobbin case tension range should an embroidery machine run for 40wt polyester thread when using a TOWA gauge (manual grams vs digital mN)?
  A: Use 22–25g on a manual TOWA gauge or 220–250 mN on a digital TOWA gauge, and treat 220–260 mN as a practical safe operating window for polyester.
  • Set target: Aim near 25g (manual) or 250 mN (digital) for a stable baseline.
  • Compare: If the reading is under ~180 mN, expect looping/slappy sound; if over ~300 mN, expect puckering or bobbin thread snapping.
  • Standardize: Measure every time a bobbin is changed to keep the “foundation” consistent.
  • Success check: Stitch balance becomes predictable and readings stay inside the safe window across multiple pulls.
  • If it still fails: Clean under the bobbin tension spring and verify correct thread routing on the gauge before touching top tension.
• Q: How do I clean an embroidery machine bobbin case tension spring to fix erratic TOWA gauge readings without scratching the metal?
  A: Use the cardstock “floss” method under the bobbin tension leaf spring—most “tension problems” are actually lint holding the spring open.
  • Cut: Use a crisp business card or stiff cardstock corner (avoid metal pins).
  • Slide: Insert the corner under the tension spring leaf.
  • Pull: Draw it through in the direction the thread travels.
  • Success check: The card shows grey smudge/fuzz and the gauge reading stops jumping (for example, it no longer swings 150 to 300).
  • If it still fails: Inspect the bobbin case pigtail/edges for grooves or burrs and ensure the case seats solidly on the gauge (no rattle/wobble).
• Q: What should I do with the anti-backlash spring in an embroidery machine bobbin case when switching to magnetic core bobbins to prevent thread drag and gritty pull?
  A: Remove the anti-backlash spring when using magnetic core bobbins, because the magnet acts as the braking system and leaving the spring in creates double friction.
  • Confirm: For standard paper/plastic-sided bobbins, keep the spring installed; for magnetic core bobbins, take it out.
  • Handle: Pry carefully with a proper tool or tweezers and control the spring as it releases.
  • Store: Tape the spring in your toolbox so it can be reinstalled if you switch bobbin styles later.
  • Success check: Thread pull feels smooth (not gritty) and tension readings stop trending ultra-tight/erratic.
  • If it still fails: Re-measure with the pigtail bypassed and verify the bobbin is oriented correctly in the case (magnetic side facing inside the case).
• Q: How do I set up a digital TOWA bobbin tension gauge correctly (GF/mN mode, 501 vs 502 insert, and pulley routing) so the screen settles?
  A: Set the gauge to GF/mN mode as required, install the correct insert (501 for L-style, 502 for M-style), and follow the three-pulley thread path exactly to prevent vibration-based fluctuation.
  • Set: Press Mode until GF (or mN depending on model) is displayed and keep units consistent with your target (250 mN / 25g logic).
  • Match: Use insert 501 for L-style cases and 502 for M-style cases; reject any setup where the case rattles in the insert.
  • Route: Follow the specified pulley path (CW under bottom, CW over top, CCW under middle, CW over sensor arm).
  • Success check: The readout fluctuates slightly but settles (for example, averaging near 250 mN rather than drifting endlessly).
  • If it still fails: Re-seat the case with the stud/notch positioned correctly and deep-clean the bobbin spring area for hidden lint.
• Q: How much should I turn an embroidery machine bobbin case tension screw to move from about 280 mN down to 250 mN without over-correcting?
  A: Turn the bobbin screw in micro-ticks only—new users commonly over-steer and drop tension dramatically with a half-turn.
  • Press: Keep firm screwdriver pressure to avoid stripping and to control the tiny movement.
  • Tick: Loosen (counter-clockwise) just a hair, then remove the screwdriver and re-measure.
  • Verify: Pull 6–10 inches of thread and watch the average, not single spikes.
  • Success check: The digital reading stabilizes near 250 mN (about ±10 mN) across multiple pulls.
  • If it still fails: If the screw turns but tension does not change, suspect a stripped screw or bent spring and consider replacing the bobbin case.
• Q: What is the safest order for fixing embroidery stitch balance—bobbin tension first or top tension first—and how do I verify with the H-test?
  A: Set bobbin tension with a gauge first, then use the H-test on stable material to tune top tension—don’t touch top tension knobs until bobbin tension is verified.
  • Gauge: Lock bobbin tension near the target (around 250 mN / 25g for standard polyester workflow).
  • Sew: Stitch a satin “H” (about 4 mm wide) on two layers of felt or similarly stable fabric.
  • Read: Flip the sample and adjust top tension only after bobbin is stable.
  • Success check: On the back, the white bobbin thread shows about 1/3 centered, with 1/3 top thread color on each side.
  • If it still fails: If there is a bird’s nest underneath, re-thread the upper path first (do not touch bobbin screw); if puckering/registration persists with a perfect H-test, evaluate hooping and stabilizer rather than more tension changes.
• Q: What safety steps should I follow when removing an embroidery machine bobbin case anti-backlash spring or working around strong magnetic embroidery hoops?
  A: Treat both as pinch-and-projectile hazards—control spring release, protect eyes, and keep magnetic hoops away from fingers and medical devices.
  • Protect: Wear safety glasses when prying out an anti-backlash spring because it can launch unexpectedly.
  • Control: Use tweezers or a proper removal tool (avoid slipping screwdrivers that can stab fingers).
  • Pinch-proof: Keep fingers clear when snapping magnetic hoops together; pinch injuries can happen instantly.
  • Success check: Parts are removed/installed without sudden release, and hands stay clear during magnet closure.
  • If it still fails: Stop and reset hand position/tools before trying again; if magnets are used, keep them away from pacemakers, insulin pumps, and sensitive electronics.
