Turn a Paw Print Monogram into Clean Appliqué in Wilcom Hatch (Without the Usual Trim-Edge Headaches)

If you’ve ever stitched a cute filled design and thought, “This would look so much better as fabric appliqué,” you’re in the right place. Converting a filled paw print or monogram frame into appliqué isn’t just about changing a setting—it’s about engineering a file that respects the physics of fabric.

Novices often end up with files that trim poorly, edges that fray after one wash, or awkward satin “bridges” that close up shapes unintendedly.

Donna from Thread Treasures Embroidery demonstrates a fast, repeatable Wilcom Hatch workflow: convert fills to outlines, duplicate objects into functional layers, and then use specific stitch parameters (width and density) to separate placement, tack-down, and cover behavior.

Here is the "Industry White Paper" breakdown of that process, calibrated for safety, quality, and repeatability.

The “Don’t Panic” Moment: Understanding Appliqué Architecture

When people say “make it appliqué,” they often confuse the software function with the physical necessity. Your file must perform three distinct physical jobs in a strict order:

1. Placement Line (The Map): A simple running stitch that shows you exactly where to lay your fabric.
2. Tack-down Line (The Anchor): A holding stitch (often a zigzag or narrow satin) that secures the fabric so you can trim safely without shifting.
3. Cover Stitch (The Finish): The final wide satin stitch that encases the raw fabric edge.

Donna’s method creates these jobs by copying and pasting the same outline and assigning each copy a different role. That’s the core concept: One shape, three personalities.

Expert Note: Appliqué success is rarely about one magic software setting. It is about Edge Control—managing the tension between your stabilizer, your fabric grain, and the pull of the thread.

Phase 1: The Hidden Prep (So the File Stitches Like a Product)

Before you touch a single stitch setting, you need to "clean the room."

• Zoom In: Identify which objects are fills that need converting.
• Isolate: Decide which elements will be appliqué (the paw pads and the split frame bars).
• Stop Command Strategy: You must plan color changes to force the machine to stop. Donna uses a color she names “Strawberry” specifically for placement lines to trigger this pause.


Prep Checklist (Pre-Flight):

• Visual Clear: Can you clearly see object boundaries at 400% zoom?
• Object Type: Confirm the paw pads are currently filled objects.
• Stop Color: Select a specific color (e.g., Strawberry red) that indicates "STOP & PLACE FABRIC."
• Consumables Check: Do you have curved appliqué scissors and temporary spray adhesive (or fusible web) ready?
• Undo Readiness: Keep Ctrl+Z handy—selecting layers in improper order is the #1 error here.

Phase 2: Convert Paw Pad Fill to Outline (The Foundation)

Donna starts with the first paw pad. This is the one click that changes the data type from "fill" to "border."

1. Select the first paw pad fill object.
2. Click Convert to Outline.
3. Visual Check: The solid color should disappear, replaced by a thin, hairline outline.


Why this matters: You cannot easily stack appliqué layers on a "fill" object. An "outline" object is the skeleton we will dress up in the next steps.

Phase 3: Build Placement + Appliqué Layers (The "Sandwich" Method)

For the paw pads, Donna uses a streamlined two-layer approach. Since paw pads are small, she combines the tack-down and cover stitch, though for larger items, we recommend separating them.

1. Duplicate: Copy and paste the outline to create a second layer on top of the first.
2. Layer 1 (Placement): Change the first copy’s color to Strawberry. This tells the machine: "Stitch this run line, then FREEZE so the human can work."

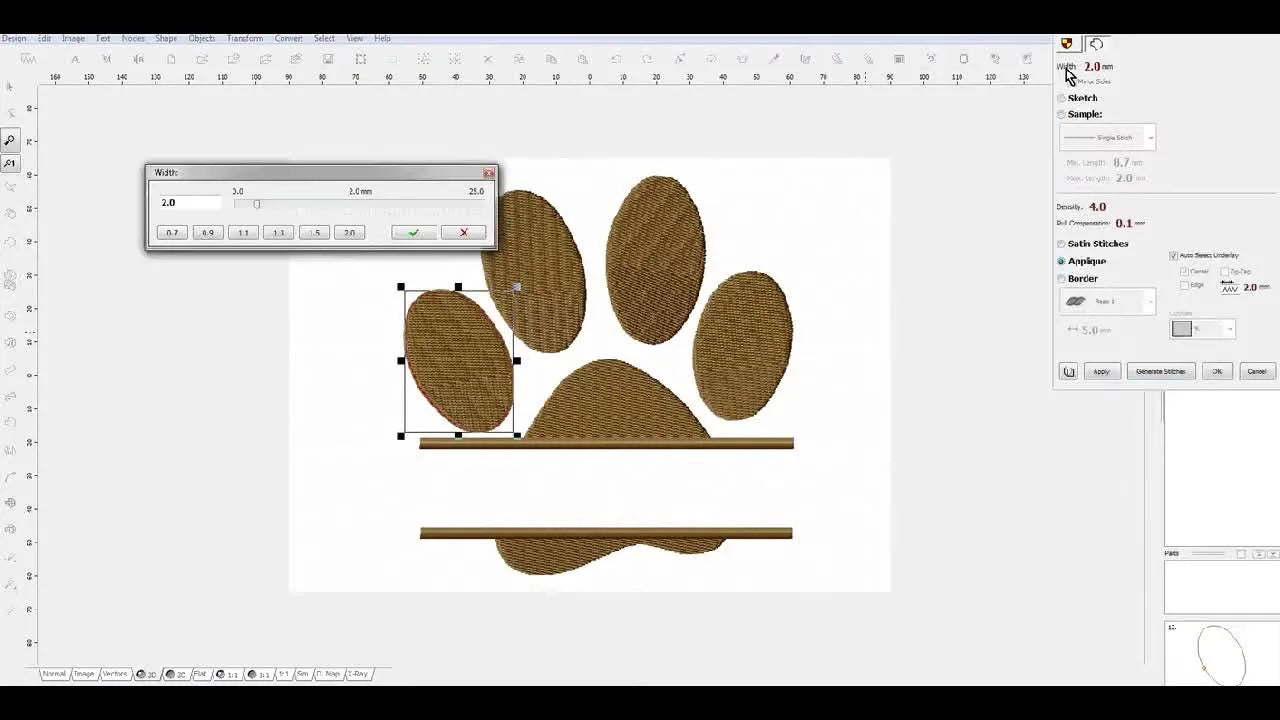

3. Layer 2 (Cover): Select the second copy and open Object Properties.
4. Parameter Setting: Set it to Appliqué stitch type. Set the width to 3.0 mm.
   • Beginner Sweet Spot: 3.0 mm to 3.5 mm is the safety zone. Anything narrower than 2.5 mm risks the fabric fraying out from underneath; anything wider than 4.5 mm often looks chunky on small designs.


5. Clean Up: Delete the original "source" layer if it's still lingering. You only need the Placement and the Cover.

Phase 4: Repeat & Align (Avoiding the "Drift")

Donna repeats the process for the remaining three pads: Convert → Duplicate → Color Stop → Width Set.

The Pitfall: When nudging paw pads for spacing, a common mistake is moving only the placement line, leaving the cover stitch behind. This results in "ghosting"—where the machine outlines a shape that isn't there.

• The Fix: Always drag a selection box around the entire pad (capturing both Strawberry and Cover layers) before moving.


Expert Insight on Hooping Physics: Even if your digital alignment is perfect to the millimeter, physical fabric shifts. If you notice your outlines rarely line up with your fills, your hooping technique might be the variable. Terms like machine embroidery hoops are your gateways to understanding efficient production; using high-quality hoops ensures the fabric tension remains "drum-tight" (listen for a deep thump when tapped) throughout the multi-step appliqué process.

Phase 5: The Split Frame Bar (Advanced Tack-Down Logic)

The frame bars require a more robust approach because they are larger and subject to more pull.

1. Convert the frame curve to an outline.
2. Duplicate x2: You want three distinct events here.
3. Layer 1: Strawberry (Placement).
4. Layer 2: Tack-down.
   • Stitch Type: Satin.
   • Width: 1.5 mm (narrow enough to hide under the cover).
   • Density: Donna tests 8, then increases to 12.
   • Note: In Wilcom, higher numbers can sometimes mean stitch count (more dense) or spacing (less dense) depending on version settings. Goal: You want a firm grip, like a tight zigzag, but not a solid wall of thread.






Why use a Satin Tack-down? A simple run stitch often isn't enough to hold fray-prone fabrics (like cotton wovens) during the trimming phase. A narrow satin acts like a clamp.

Warning: Mechanical Safety
High-density tack-down stitches create heat and friction. If you hear a sharp "popping" sound or see the needle creating large holes, your density is too high for the fabric. This can lead to needle breaks (flying metal shards). Always start with standard density and only increase if the fabric is slipping.

If you are running production and your operators complain that hooping complex garments is the slowest part of the day, looking into a hooping station for embroidery machine can standardize the tension and alignment, preventing the fabric distortion that makes tack-downs fail.

Phase 6: The "Open Curve" Node Edit (Surgery on the Stitch)

The frame bar is "split," meaning it shouldn't be a closed loop (a donut). It should be an open shape (a horseshoe). If you leave it as a default closed shape, the software will stitch a straight line across the gap, ruining the design.

1. Select the final Cover Layer (Satin, Width 3.0 mm).
2. Use the Reshape tool (Node Editing).
3. The Cut: Identify the vector line closing the shape. Select the node connecting it and Delete.
4. Visual Check: You should see the satin jump bar disappear, leaving two open ends.




This node editing is what separates "auto-digitizing" from professional file creation.

Phase 7: The Run Stitch Bridge (Travel Logic)

Since the bar is split, how does the machine get from the left side to the right side? If you don't tell it, it will create a long jump stitch (which you have to trim) or drag the thread across your fabric.

Donna manually digitizes a Run Stitch that travels through the center of the design (where the name or logo will go) to bridge the gap.

Why this works: It keeps the machine burying the lock knots and trims in the back, rather than generating them on the delicate satin tips.

Pro Tip: Determine if your embroidery project involves bulky items like tote bags or heavy jackets. In these scenarios, standard hoops struggle. magnetic embroidery hoops can reduce hoop burn and make it easier to slide these "bridges" under the needle without the clamp popping open mid-stitch.

Warning: Magnetic Safety
Magnetic hoops are powerful. They can pinch fingers severely if snapped shut carelessly. Always keep them away from pacemakers and implanted medical devices due to the strong magnetic field.

Phase 8: Consistency & Mirroring

Donna repeats the sequence for the bottom bar:

1. Placement (Strawberry).
2. Tack-down (1.5mm width, firm hold).
3. Node edit (Open the shape).
4. Cover Stitch (3.0mm width).
5. Connecting run stitch bridge.






Decision Tree: Fabric vs. Stabilizer Strategy

Before you stitch, verify your "Physical Stack." The software settings above assume a standard cotton setup.

• Is base fabric STRETCHY (T-shirt/Polo)?
  • Risk: Pucker/Tunneling.
  • Sol: Use Cutaway Stabilizer (Mesh). Do not use Tearaway. Consider lowering satin density by 10%.
• Is base fabric TEXTURED (Towel/Fleece)?
  • Risk: Stitches sinking and disappearing.
  • Sol: Use Water Soluble Topping (Solvy) on top. Increase "Pull Compensation" in software to 0.4mm.
• Is base fabric STABLE (Denim/Canvas)?
  • Risk: Needle deflection/Breaking.
  • Sol: Use 75/11 Sharp needles. medium Tearaway is acceptable.

Setup Checklist (The "Save" Button Moment):

• Layer Order: Placement FIRST, Tack-down SECOND, Cover LAST.
• Cover Width: Set to 3.0 mm (or 3.5 mm for high-pile fabrics).
• Tack-down: Verified distinct from placement (e.g., Narrow Satin 1.5mm).
• Bridges: Are there connecting run stitches to prevent massive jumps?
• Open Curves: Did you remove the closing segment on the split bars?

Operation: Stitching It Out

When you are at the machine, follow this rhythm:

1. Placement Line Stitches. Machine Stops.
2. Action: Spray partial adhesive on the back of your appliqué fabric (light mist!). Place it over the line.
3. Tack-down Stitches. Machine Stops.
4. Action: Remove hoop (or slide out if valid). Trim fabric close to the stitches.
   • Sensory Check: Use "Duckbill" appliqué scissors. You should feel the blade gliding against the stabilizer, not cutting it.
5. Cover Satin Stitches.
   • Sensory Check: The sound should be a consistent hum. If it sounds like "thump-thump-thump," your density is too high or needle is dull.

If you struggle with the fabric sliding during the "Placement" step, or if hooping leaves "burn marks" on sensitive fabrics, learning how to use magnetic embroidery hoop systems can resolve these friction points by clamping the fabric vertically rather than forcing it into an inner ring.

Troubleshooting: Symptoms & Cures

The Commercial Upgrade Path

Converting designs is a Level 1 skill. Consistent production is Level 3.

If you are doing this as a hobby, the steps above are perfect. However, if you are scaling a business:

1. Level 1 (Technique): Use the correct solvent-free spray adhesives and dedicated appliqué scissors to clean up your cuts.
2. Level 2 (Workflow): If consistent hooping is your bottleneck, a hooping station for embroidery ensures every logo placement is identical, reducing "do-over" costs.
3. Level 3 (Efficiency): If your hands are cramping or you are damaging customer garments with hoop burn, switching to a magnetic embroidery hoop transforms the setup process from a struggle to a "snap."
4. Level 4 (Scale): When you have 50 shirts to do, single-needle changes kill profit. This is when multi-needle machines (like SEWTECH’s commercial lineup) pay for themselves by handling the 3-layer color stops automatically without re-threading.


Final Inspection

Before exporting your design (Save As -> Machine Format):

• Confirm Paw Pads are 3.0 mm wide appliqué.
• Confirm Split Bars have 1.5 mm tack-down and 3.0 mm cover.
• Simulate the stitch-out on screen (Press Shift+R in Hatch) to watch the sequence.


By following this architectural approach, you move from "hoping it works" to "knowing it will hold." Happy stitching.

FAQ

• Q: In Wilcom Hatch, why does the appliqué placement line not stop the embroidery machine for fabric placement during a paw pad appliqué conversion?
  A: Assign Placement, Tack-down, and Cover to different thread colors so the machine is forced to pause at color changes.
  • Change the Placement outline color to a dedicated “STOP & PLACE FABRIC” color (the blog example names it Strawberry).
  • Verify Tack-down and Cover are different colors from Placement (do not leave all layers the same color).
  • Re-run the on-screen stitch sequence to confirm a color change happens right after the placement run.
  • Success check: The machine finishes the placement run, then pauses and prompts/advances to the next color before stitching tack-down.
  • If it still fails: Check the exported machine file (not just the Hatch workspace) to confirm the color changes were preserved.
• Q: In Wilcom Hatch, how do I convert a filled paw pad object into an appliqué-ready outline for a paw print design?
  A: Use “Convert to Outline” on the fill first—appliqué layers stack reliably on outline objects, not fill objects.
  • Select the paw pad fill object in the design.
  • Click Convert to Outline to change the object type from fill to border/outline.
  • Duplicate the outline to build separate Placement and Cover (and Tack-down if needed) layers.
  • Success check: The solid fill disappears and you see a thin hairline outline instead of a filled area.
  • If it still fails: Zoom in (around 400%) and confirm the correct object is selected—mis-selecting layers is a common cause.
• Q: In Wilcom Hatch appliqué digitizing, what satin cover stitch width prevents fabric fraying on small paw pad appliqué shapes?
  A: Set the appliqué cover satin to about 3.0 mm (3.0–3.5 mm is a safe starting range for small shapes).
  • Open Object Properties on the Cover layer and set stitch type to Appliqué (satin cover behavior).
  • Set width to 3.0 mm for small paw pads; only nudge wider if fabric edges “peek” after trimming.
  • Trim close before the cover stitch runs so the satin can fully wrap the raw edge.
  • Success check: After stitching, no fabric edge is visible outside the satin border after gentle handling.
  • If it still fails: Re-trim closer (aim for very tight trimming) and/or increase cover width slightly (e.g., to 3.5 mm).
• Q: During paw pad appliqué in Wilcom Hatch, why do the placement outline and the satin cover stitch drift apart after repositioning objects?
  A: Move the entire appliqué “stack” together (Placement layer + Cover layer), not just one layer.
  • Drag a selection box around the full paw pad so both layers are captured before nudging.
  • Re-check each pad after moving: Placement should sit directly under the intended cover path.
  • Avoid editing when only one layer is visible/active—this is where “ghosting” starts.
  • Success check: The placement run stitches exactly where the cover satin will land, with no offset outline.
  • If it still fails: Undo and reselect using a larger selection box; confirm no extra “source” outline layer was left behind.
• Q: For Wilcom Hatch split frame bar appliqué, how do I stop the software from stitching a straight satin line across the open gap?
  A: Use Reshape (node editing) on the Cover layer and delete the closing segment so the curve becomes an open shape.
  • Select the final Cover Layer (satin, width set for the finish).
  • Enter Reshape and find the node/segment that closes the curve across the gap.
  • Delete that closing node/segment so the “jump bar” disappears.
  • Success check: On-screen, the satin no longer bridges the opening; you see two clean open ends.
  • If it still fails: Confirm you edited the Cover layer (not the placement or tack-down layer), then re-simulate the stitch-out.
• Q: What needle-break safety warning applies when increasing tack-down density for Wilcom Hatch appliqué on large frame bars?
  A: Increase tack-down density cautiously—over-dense tack-downs can create heat/friction, loud “popping,” big holes, and needle breaks.
  • Start with standard/normal density, then increase only if fabric is slipping during trimming.
  • Stop immediately if you hear sharp popping or see enlarged needle holes forming.
  • Reduce density and/or reassess fabric/stabilizer pairing before continuing production.
  • Success check: The machine runs with a steady, consistent sound and the fabric holds firmly without perforation.
  • If it still fails: Change to a fresh needle and revert to a less aggressive tack-down setting per your machine guidance.
• Q: What magnetic hoop safety precautions should be followed when using magnetic embroidery hoops for bulky appliqué projects?
  A: Treat magnetic hoops as high-force tools—keep fingers clear and keep magnetic hoops away from pacemakers and implanted medical devices.
  • Close the magnetic frame slowly and deliberately to avoid finger pinches.
  • Store and handle magnets with separation control so they do not snap together unexpectedly.
  • Keep the hoop away from anyone with a pacemaker or implanted medical device.
  • Success check: The hoop closes without sudden snapping, and fabric is clamped securely without shifting during multi-step stops.
  • If it still fails: Switch back to a conventional hoop for that job and revisit technique/training before reintroducing magnets.
• Q: When repeated hoop burn and fabric shifting slow appliqué production, what is the recommended upgrade path from technique fixes to magnetic hoops and multi-needle embroidery machines?
  A: Follow a tiered approach: optimize technique first, then standardize hooping, then upgrade clamping and finally upgrade throughput if volume demands it.
  • Level 1: Improve cutting and handling—use appliqué scissors and light temporary adhesive so fabric does not creep during placement.
  • Level 2: Standardize alignment—use a hooping station if consistent placement/tension is the bottleneck.
  • Level 3: Reduce hoop burn and speed setup—use magnetic hoops if delicate fabrics mark easily or operators struggle with clamping.
  • Level 4: Increase output—move to a multi-needle setup when frequent color stops and rethreading limit profitability.
  • Success check: Placement lines consistently match cover stitches, operators spend less time re-hooping, and rejects drop.
  • If it still fails: Re-check stabilizer choice for the fabric type (stretch vs textured vs stable) before investing further.
