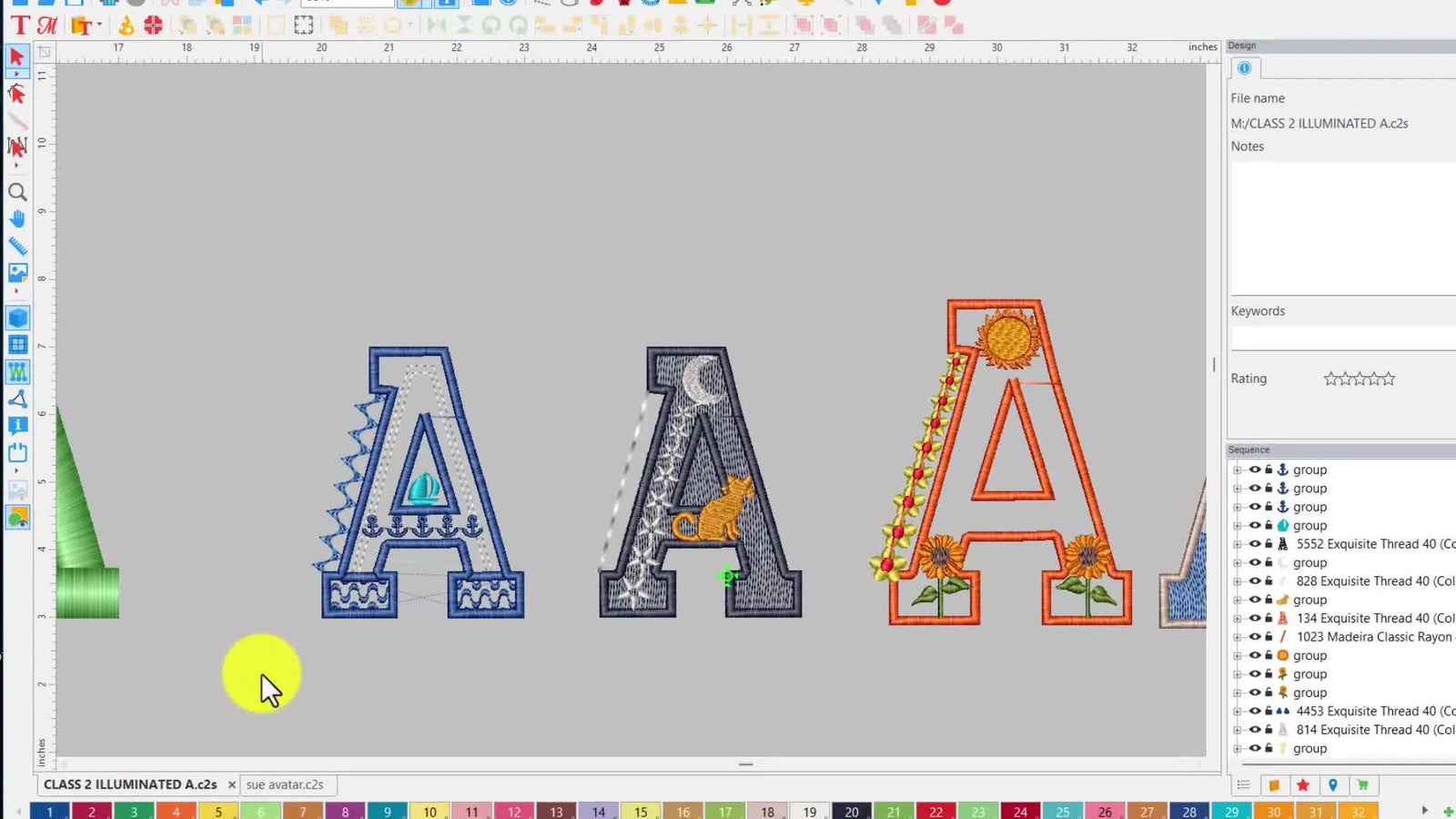

Turn Any Built-In Font into an “Illuminated Letter” Embroidery Design (Without the Usual Digitizing Headaches)

If you’ve ever looked at a fancy “illuminated” letter and thought, “That’s gorgeous… but digitizing is above my head,” you’re not alone. In my 20 years on the production floor, I’ve watched thousands of stitchers hit the same wall: fonts feel rigid, outlines feel unpredictable, and the moment you add motifs or symbols, the border turns messy like a bird’s nest.

But here is the secret: The machine doesn't know "art." It only knows coordinates and physics.

This post rebuilds the exact workflow shown in the video—cleanly, in order, and with the "Experience-Grade" checkpoints that keep you from wasting an hour on a design that looks good on screen but shreds your thread in reality.

Calm the Panic: “Digitizing Is Above My Head” Usually Means You Skipped One Tiny Software Move

One viewer said they were confused from the start, and that’s the most honest comment in the whole thread. The good news: this project isn’t “advanced math.” It’s a repeatable sequence of small moves—break apart, outline, convert, smooth, decorate, reorder.

Here’s the mindset that keeps you steady: you’re not inventing a font from scratch. You’re borrowing a built-in font, then reshaping it into your own artwork by editing pieces and layering stitches.

The Reality Check: Whether you use Embroidery Tool Shed, Hatch, or PE Design, the physics remain the same. The video uses Embroidery Tool Shed, but we are focusing on the principles of density and structure that apply to every machine from a single-needle home unit to a 15-needle commercial beast.

The “Hidden” Prep Before You Touch Embroidery Tool Shed: Pick a Letter That Won’t Fight You

Sue starts by choosing a built-in font (she mentions “New Brington”) and immediately edits what she doesn’t like—like a swirl that becomes a tail, or moving the crossbar of an “A.” That’s the right instinct: choose a font with strong structure, then customize.

Two practical realities from the video matter here:

• The Satin Stitch Limit: When you scale lettering too large (usually over 7mm-10mm wide), satin stitches become long, loose loops that snag easily.
• The "Shape Source" Concept: For these illuminated letters, you’re often using the font as a cookie cutter outline, not as a final satin-lettering file.

Experience Note: Illuminated letters are dense. They pull fabric inward. If you use standard hoops on a t-shirt without perfect technique, you will get "puckering"—where the fabric ripples around the letter.

If you’re already using hooping for embroidery machine techniques that work for light monograms, stop. Treat illuminated letters as a different category: they behave more like heavy patches. This is where many professionals switch to magnetic frames to hold the fabric tension evenly without the "ring burn" causing distortion.

Prep Checklist (Do this once per project)

• Structure Check: Does the font have thick enough legs to hold a motif? (Thin scripts will fail).
• Consumable Check: Do you have the right needle? (Switch to a 75/11 Ballpoint for knits or 75/11 Sharp for wovens before starting).
• The "Undo" Safety Net: Save a copy of the original letter before you start editing.
• Grid Check: Turn on your grid (usually command+G or View > Grid). You cannot eyeball alignment on a computer screen accurately.


Break Up Text on the New Brington Font: The Fastest Way to Remove Swirls and Move Crossbars

The first technique is pure power: break the text into editable pieces so you aren't fighting the software's auto-formatting.

Action Steps:

1. Isolate: Right-click the text object.
2. Break: Choose Break Up Text.
3. Ungroup: Verify the letter components become independent objects.
4. clean: Click the specific swirl or bar you dislike and hit Delete.

Sensory Check: You’ll know it worked when the big box around the whole word disappears. Each part of the letter should have its own little "handles" (nodes).

Why this matters: If you don't break the text, the software will try to recalculate stitches every time you resize, often ruining your custom adjustments.

The “Inside” Checkbox in Create Outline: The One Click That Saves the Hole in Your A

Next, Sue demonstrates creating an outline from a letter shape. This is the foundation of the illuminated look.

Action Steps:

1. Select: Click your letter.
2. Tool: Open Create Outline.
3. Distance: Set the outline distance (Video suggests 0.08 inches or 2mm).
4. CRITICAL: Check the box labeled Inside. This preserves the "counter" (the empty hole in A, O, P, B).
5. Execute: Click OK.

Sensory Check: You should see a new line drawing appear exactly parallel to your original letter. If the inside hole is missing, your letter will look like a solid blob.

Expert Tip: If the software refuses to recognize the hole, your font might be too small. Try enlarging the source letter by 20%, creating the outline, and shrinking it back down later.

Warning: Safety First. When test-stitching these dense borders later, keep fingers clear of the needle area. Long border runs can create "loops" if tension is loose—do not try to grab a loose thread while the machine is running at 800 SPM.

Convert Outline to Complex Fill, Then Delete Nodes Like a Pro (Less Points = Cleaner Curves)

Sue immediately converts the outline into a fill and cleans up the shape.

Action Steps:

1. Convert: Right-click the outline $\rightarrow$ Convert to Complex Fill.
2. Edit: Select the Shape Tool / Node Editor.
3. Simplify: Look for clusters of many nodes (dots) close together. Delete them!

The "Why" (Physics of Embroidery): Every node is a coordinate directive. If you have 50 nodes on a simple curve, your machine's pantograph has to micro-stutter 50 times. This creates vibration, noise, and jagged edges. A smooth curve needs only 3 nodes: start, end, and the curve handle.

Sensory Check: The line on screen should look smooth, not crunchy. When stitching, a clean curve sounds like a consistent hummmmm, not a jit-jit-jit-jit.

Build a Second Outline at 0.08 Spacing, Then Switch to Bean Stitch for a Bold Border

Now Sue adds the decorative border that sits outside the filled shape. This frames the art.

Action Steps:

1. Select: Click your newly filled shape.
2. Tool: Create Outline again.
3. Distance: Set 0.08" (2mm). Uncheck "Inside" this time.
4. Stylize: Convert this new line to a Bean Stitch (often called Triple Run).

Data Sweet Spot:

• Stitch Length: Set between 2.5mm and 3.0mm. Anything shorter (under 2mm) in a triple-bean stitch can perforate the fabric, literally cutting your text out like a stamp.

Expected Outcome: You should see visible daylight between the fill and the border. If they touch on screen, they will overlap messily on the machine due to "Push" (thread expanding). The gap is your friend.

Add Motif Stitch Texture: Draw One Line, Convert to Motif, Then Choose a Pattern That Matches Your Theme

Sue’s workflow turns a flat fill into a textured masterpiece.

Action Steps:

1. Draw: create a vector line down the center of the letter leg.
2. Convert: Change properties to Motif Stitch.
3. Select: Browse the library and pick a pattern (Open/Airy patterns work best).

The Texture Trap: Avoid dense, heavy motifs on top of dense fills. If your base fill is standard density (0.4mm spacing), and you add a heavy motif on top, you reach "Bulletproof" status. This leads to needle breaks.

• Solution: Lighten the density of the base fill by 20% if you plan to put a heavy motif on top.

Sensory Check: The visual texture should look "woven into" the letter, not plastered on top like a sticker.

Use Symbols (Snowflakes, Paw Prints, Nautical Icons) Without Making the Letter Look Like Clipart Soup

Sue drags in icons like snowflakes or paw prints. This is where "Digital Art" meets "Physical Limitation."

Action Steps:

1. Import: Open Symbols $\rightarrow$ Drag icon onto letter.
2. Scale: Resize. Golden Rule: Do not scale standardized icons down by more than 20% or up by more than 20% without adjusting their density.
3. Place: Use the grid to center it.

The Stability Factor: Small icons inside a dense letter require extreme stability. If your fabric shifts even 1mm, the snowflake won't be centered—it will be crooked. This is a primary reason professionals invest in magnetic embroidery hoops. Unlike traditional hoops which rely on hand-tightened screws (subject to human error and hand fatigue), magnetic systems clamp the fabric instantly and evenly, ensuring that your "Snowflake" lands exactly in the center of your "A".

The Stitch Sequence Trick That Makes Everything Look “Tucked Under” the Satin Border

This is the single most critical technical fix. If you get this wrong, your design looks amateur.

The Logic: Think of it like building a house. You don't put the carpet down after you build the walls? No. You want the edges covered.

1. Base Fill (Foundation)
2. Motifs / Symbols (Decoration)
3. Satin/Bean Border (Trim)

Action Steps:

1. Inspect: Open Sequence View.
2. Reorder: Drag the Motif/Symbol layer so it is above (before) the Boarder layer.
3. Preview: Run the "Slow Redraw" simulator.

Success Metric: You should see the border stitching last, covering the messy start/stop points of the inside decorations.

When Auto-Outline Refuses to Capture the Inside Hole: Don’t Fight It—Digitize the Counter Yourself

Sue hits a real-world problem: The software ignores the hole in the "A".

Troubleshooting Decision Tree:

1. Try: Undo and increase outline offset slightly.
2. Try: Check "Inside" box is actually ticked.
3. Fail? Stop fighting the algorithm.
4. Fix: Select the "Digitize Closed Shape" tool. Click 4-5 points around the hole manually. Convert to fill/cut.

Expert Mindset: "One-click" tools have a 90% success rate. You are paid (or praised) for handling the 10% failure rate. Manual digitizing is the backup parachute.

The “Too Large Satin Stitch” Problem: Why Big Letters Fail, and How Outlines + Fills Save the Day

A standard satin stitch longer than 7mm (approx 1/4 inch) is dangerous. It snags on buttons, zippers, and washing machines. When Sue scales up a letter, she converts satins to fills.

The Physics of Pull: Large filled letters pull fabric toward the center. This is "Flagging." To prevent this, you must match your stabilizer to your fabric and your design density.

Stabilizer Decision Tree (For Dense Designs)

• Fabric is Stretchy (T-Shirt/Polo)?
  • Must Use: Cutaway Stabilizer (2.5oz).
  • Why: Tearaway will disintegrate under the thousands of needle penetrations in an illuminated letter, causing the design to distort.
• Fabric is Lofty (Towel/Fleece)?
  • Must Use: Water Soluble Topper (Solvy) + Cutaway/Tearaway Combo on back.
  • Why: The topper prevents the stitches from sinking into the pile.
• Production Volume High?
  • Consider: hooping stations. If you are doing 50 shirts, eyeballing the placement is a recipe for crooked letters. A station ensures every letter lands 3 inches from the collar, every time.


Candlewicking and Extra Lines: Add Texture, But Keep the Letter Readable at a Distance

Sue adds candlewicking (thick distinct knots).

Designer's Rule of Thumb: Stand 6 feet back from your monitor. Can you tell it's an "A"? If the decoration obscures the letter shape, delete 30% of the decor.

Commercial Reality: Complex stitches like Candlewicking take longer to run and consume more thread. If you are selling these, price accordingly. Also, ensure your holding method is secure. A magnetic hooping station setup is often discussed in forums not just for speed, but because it holds thick items (like Carhartt jackets or towels) without the "pop-out" risk of standard plastic hoops.

Fix Motif Overlap Fast: The One-Layer Drag That Cleans Up 90% of “Messy Border” Complaints

Symptom: The cute snowflakes are stitching on top of the black border line. Diagnosis: Sequencing error. Cure: Go to Sequence view. Drag "Snowflake" UP. Drag "Border" DOWN.

Note: Always let the heavy border be the final "victory lap" of the machine. It hides all sins.

Practice Without Pressure: Copy, Paste, Rebuild—That’s How You Get Fluent

Sue mentions copying and pasting to build an alphabet.

Efficiency Hack: Create one "Master Letter" with the correct settings:

• Fill Density: 0.4mm
• Underlay: Perpendicular
• Border: Bean Stitch 2.5mm
• Sequence: Correct

Then, copy this "Master" and just change the letter shape. You retain the settings without re-programming every time.

Tools of the Trade: When you start doing alphabets (multiple hoopings), your hands will get tired. The repetitive motion of tightening hoop screws is a real occupational hazard (Carpal Tunnel). This is why experienced shops compare systems like hoopmaster or the SEWTECH magnetic frames. The ability to "Clap and Go" rather than "Align, Screw, Tighten, Adjust, Screw" saves massive physical strain.

Warning: Magnetic Safety. Powerful magnetic frames use Neodymium magnets. They can pinch skin severely. Keep them away from pacemakers. If you have an implanted medical device, check with your doctor before using magnetic hooping systems.

The Upgrade Path: When Better Hooping Beats “More Software Tricks”

Once your digitizing is clean, result quality becomes a physical problem. You can have the perfect file, but if the fabric moves, the file fails.

The "Pain Point" Diagnostic:

• Pain: "I hate hoop burn on delicate fabrics."
• Pain: "I can't hoop thick towels; the inner ring pops out."
• Pain: "My wrist hurts from tightening screws."

The Solution Ladder:

1. Level 1 (Consumables): Use Spray Adhesive (like 505) to help secure fabric to stabilizer.
2. Level 2 (Workflow): Incorporate dime magnetic hoops or SEWTECH Magnetic Frames. They float the fabric, eliminating burn and accommodating varying thicknesses automatically.
3. Level 3 (Scale): If you are running orders of 20+ pieces, a single-needle machine is your bottleneck. Upgrading to a SEWTECH Multi-Needle Machine allows you to set up the next hoop while the current one runs (and hold 10+ colors without re-threading), turning your hobby into a profit center.

Final Operation Checklist (The "Pre-Flight" Check)

• Bobbin Check: Do you have enough bobbin thread for a dense fill? (Don't run out halfway).
• Sequence Check: Do the Borders stitch LAST?
• Gap Check: Is there a tiny gap between fill and border to account for push?
• Hidden Consumable: Did you use a fresh needle? (Dense fills dull needles fast).
• Safety: Are fingers clear? Frame clear of wall/obstacles?

Now, load the file. Listen for that rhythmic thump-thump of a happy machine. You’ve got this.

FAQ

• Q: In Embroidery Tool Shed, how do I keep the inside hole (counter) of an “A/O/P/B” when using Create Outline for an illuminated letter?
  A: Check Inside in Create Outline before clicking OK, or the counter will collapse into a solid shape.
  • Select the letter shape, open Create Outline, set the offset (the video example is 0.08" / 2mm).
  • Tick Inside and run the outline again before converting anything to fill.
  • Success check: The new outline shows an inner outline that matches the letter’s hole, not a filled-in “blob.”
  • If it still fails: Enlarge the source letter about 20%, create the outline, then scale it back down; if the software still ignores the hole, manually digitize the counter with a Digitize Closed Shape tool using 4–5 points.
• Q: In Embroidery Tool Shed, how do I stop “crunchy” curves and jagged borders after converting an outline to Complex Fill?
  A: Delete extra nodes after Convert to Complex Fill—fewer points usually stitch cleaner and smoother.
  • Right-click the outline and choose Convert to Complex Fill.
  • Open the Shape Tool / Node Editor and remove clusters of nodes along smooth curves.
  • Success check: On-screen curves look smooth (not “stepped”), and the machine motion sounds steady rather than a rapid “jit-jit-jit.”
  • If it still fails: Undo and simplify earlier (before multiple edits), then re-convert to Complex Fill and clean nodes again.
• Q: In Embroidery Tool Shed, why does a Bean Stitch (Triple Run) border perforate fabric or “cut out” large letters on illuminated designs?
  A: Increase bean stitch length and avoid overly short settings; the blog’s safe range is 2.5–3.0mm for this bold border.
  • Convert the outer outline line to Bean Stitch (Triple Run).
  • Set stitch length to 2.5mm–3.0mm (very short settings under 2mm can perforate like a stamp).
  • Success check: The border looks bold and continuous without tearing the fabric edge when you handle the sample.
  • If it still fails: Reduce overall density/decoration in that area and re-test on the same fabric + stabilizer combination.
• Q: In Embroidery Tool Shed Sequence View, how do I stop snowflakes/paw prints from stitching on top of the border and making an illuminated letter look messy?
  A: Reorder the stitch sequence so the border stitches last and “tucks” everything underneath.
  • Open Sequence View and identify Base Fill, Motifs/Symbols, and Border objects.
  • Drag Motifs/Symbols above the Border so they sew before the border.
  • Run Slow Redraw to preview layer coverage.
  • Success check: The final border pass visually covers motif start/stop points and the edge looks clean.
  • If it still fails: Verify there is a small visible gap between fill and border on-screen (push can close small gaps during stitching).
• Q: When illuminated letters pucker or distort on T-shirts and polos, what stabilizer choice prevents shifting and “flagging” during dense fills?
  A: Use 2.5oz cutaway stabilizer on stretchy knits; tearaway often breaks down under dense illuminated stitching.
  • Match stabilizer to fabric: choose cutaway (2.5oz) for T-shirts/polos before test stitching.
  • Test-stitch one letter first—dense designs behave more like patches than light monograms.
  • Success check: Fabric around the letter stays flatter with fewer ripples and the letter edges remain true after unhooping.
  • If it still fails: Improve holding method (better hooping technique or a magnetic frame) and confirm needle choice is appropriate for knit vs woven.
• Q: What needle should be used before stitching dense illuminated letters on knits vs wovens, and what is the quick pre-flight checklist to avoid mid-design failures?
  A: Start by swapping to the correct 75/11 needle type and confirm bobbin capacity before running a dense fill.
  • Install 75/11 Ballpoint for knits or 75/11 Sharp for wovens before the first test run.
  • Check bobbin thread amount (dense fills can run long and stopping mid-fill shows).
  • Save a copy of the original letter file before edits so “undo” is always available.
  • Success check: Stitching runs without repeated thread issues and the sample shows consistent coverage without missing sections.
  • If it still fails: Re-check stitch sequence (border last) and reduce layering density when adding motifs on top of fills.
• Q: What safety rules should be followed when test-stitching long illuminated borders at high speed (for example around 800 SPM) on a multi-needle embroidery machine?
  A: Keep fingers completely clear and never grab loose thread while the machine is running—border runs can form loops if tension is off.
  • Stop the machine before touching any thread near the needle area.
  • Watch the first minutes of a long border run so loops are caught early without intervention.
  • Success check: No hand approaches the needle path during motion, and the border line forms without visible looping.
  • If it still fails: Pause, cut away any loose loop safely, then troubleshoot upper tension and sequencing before restarting.
• Q: How do I decide between technique fixes, magnetic embroidery hoops/frames, and upgrading to a SEWTECH multi-needle embroidery machine when illuminated letters keep shifting, causing hoop burn, or slowing production?
  A: Use a level-based upgrade path: fix consumables first, then upgrade holding, then upgrade capacity when volume demands it.
  • Level 1 (Technique/consumables): Apply spray adhesive (like 505) to help secure fabric to stabilizer and use a fresh needle for dense fills.
  • Level 2 (Holding upgrade): Switch to magnetic hoops/frames when hoop burn, thick-item pop-outs, or inconsistent tension causes motif misplacement.
  • Level 3 (Capacity upgrade): Move to a SEWTECH multi-needle machine when orders (often 20+ pieces) make single-needle color changes and slow hooping the real bottleneck.
  • Success check: Letters land consistently (icons centered), fabric shows less distortion after unhooping, and cycle time becomes predictable.
  • If it still fails: Add a hooping station for repeatable placement and re-test one “master letter” before committing to a full run.
