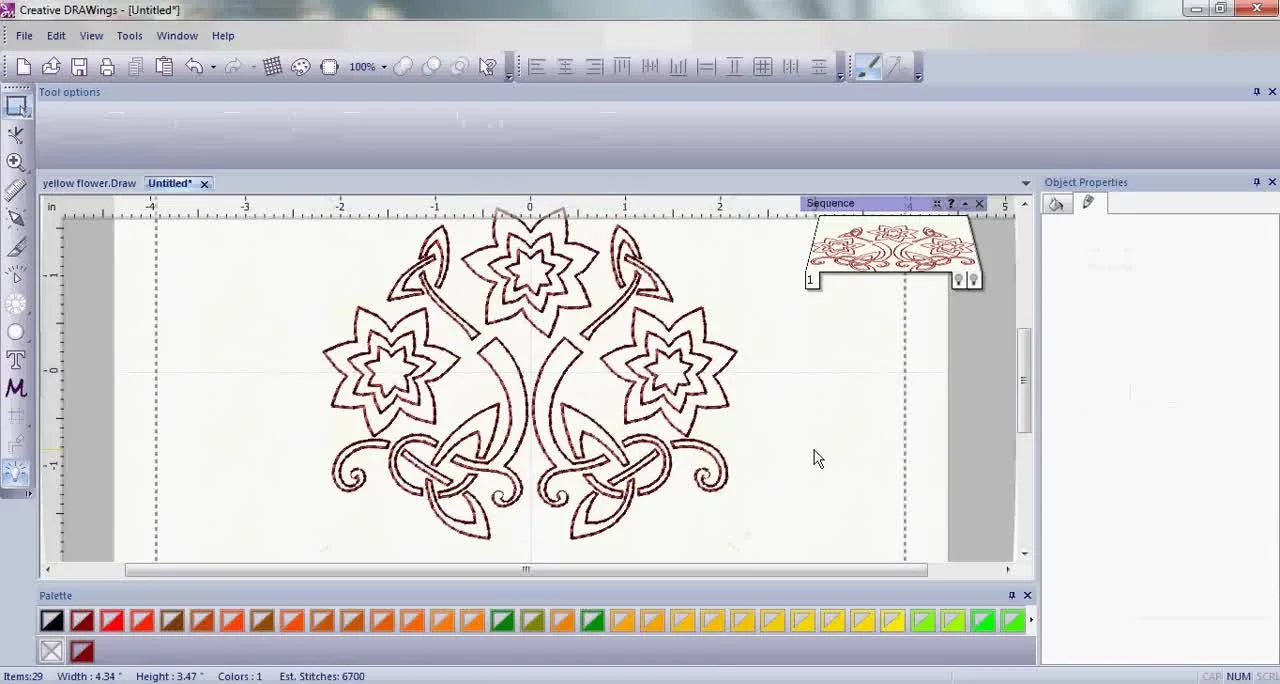

Turn Any Embroidery into Bold Redwork or a True Continuous-Line Quilting File in Artistic Suite V6 (Without Surprise Jump Stitches)

If you have ever watched a “simple” digital design turn into a thread-cutting, stop-and-go disaster on your machine, you are not alone. You aren't doing anything “wrong,” but you are likely fighting against physics. Most embroidery files are static images converted to stitches; they were not built to flow like liquid the way Redwork or a continuous-line quilting path must.

This white paper reconstructs the exact workflow demonstrated in Artistic Suite Version 6, but we are going to look at it through the lens of a production floor manager. We will convert a standard flower into Redwork, and then into a continuous quilting line.

But more importantly, we will bridge the gap between the software click and the physical stitch, ensuring that when you press "Start," you hear the rhythmic thump-thump of success, not the grinding noise of a birds-nest forming.

Don’t Panic: Artistic Suite V6 Can Convert Designs Fast—But You Still Have to Think Like a Stitch Path

The video tutorial makes the conversion look effortless—and within the software, it is. But here is the truth I have learned after twenty years of analyzing stitch files: Software generates coordinates; you are responsible for the physics.

Redwork and quilting lines are unforgiving. A specialized fill pattern can hide a multitude of sins, but a single running line exposes everything. A gap of just 1mm between objects becomes an unwanted jump stitch. A poor stitch order creates unnecessary travel lines that shadow through light fabric. And a “pretty” outline can distort perfectly rectangular tea towels into trapezoids if the stabilization fails.

We will follow the video’s steps, but I will layer in the "Safety Checks" that prevent the classic headaches: puckering, wobbly outlines, and the dreaded "hoop burn."

The Setup That Saves You Later: Fabric Type “Cotton” + Stabilizer Suggestion (00:21–00:48)

In Artistic Suite V6, the tutorial begins by selecting the fabric type—specifically Cotton for a tea towel. Do not skip this. The software is not just labeling the file; it is calculating Pull Compensation.

When a needle penetrates cotton, the thread pulls the fabric inward. If the software doesn't add "compensation" (making the design slightly fatter than it looks on screen), your outline will not line up.

The "Hidden" Consumables: While the software suggests a stabilizer, a tea towel requires a physical recipe for success.

• Needle: Switch to a 75/11 Sharp or Embroidery needle. Universal needles can push the weave apart rather than piercing it.
• Adhesive: Use a light mist of Temporary Spray Adhesive (like 505) to bond the towel to the stabilizer. This prevents the "shifting" that ruins outline alignment.

A Note on Consistency: Cotton tea towels vary wildly. Some are tight weaves; others are loose and shifty. If you are building a repeatable workflow (e.g., making 20 gifts), your physical setup must be identical every time. This is where a dedicated machine embroidery hooping station becomes a critical asset. Even a simple, consistent layout tool reduces handling time and ensures every towel is hooped with the exact same tension, preventing the "drift" that ruins geometric borders.

Prep Checklist (Pre-Digitizing):

• Fabric Definition: Select Cotton in software to activate auto-compensation.
• Consumable Check: Do you have a fresh 75/11 needle and temporary spray adhesive?
• Intent Check: Decide now—are you doing Redwork (bold, visible outline) or Quilting (subtle, continuous texture)? This dictates your stitch choice later.
• Test Material: Have a scrap piece of similar cotton ready for a tension test.


Lock the Workspace to Reality: Hoop 12 (300 × 300) Before You Generate Anything (00:49–01:05)

Next, the video sets the hoop size. This is not just a digital boundary; it is a physical commitment.

Defining the hoop early forces the design to live inside real machine limits. If you edit first and size later, you often end up scaling the design down to fit, which compresses the stitch density and creates bulletproof, stiff embroidery.

The Hoop Burn Dilemma: Tea towels are notorious for showing "hoop burn"—the crushed texture left by the rings of a standard hoop. This is often permanent on waffle-weave or delicate cottons.

• Trigger: You finish a beautiful design, unhoop it, and see a crushed white ring that steam won't remove.
• Criteria: If you are spending more time steaming out marks than stitching, or if you can't hoist thick towels into standard plastic hoops.
• Solution Level up: This is the primary use case for magnetic embroidery hoops. By using magnetic force rather than friction to hold the fabric, you eliminate the "crush" effect on the fibers and make hooping thick towels instant.


Strip It Down to True Redwork: Add Outline, Then Delete Fills (01:13–01:34)

Here is the core conversion:

1. Add an outline to the entire design.
2. Delete the fill objects, leaving only the wireframe.

The "Ghost Stitch" Danger: When deleting fills, look closely at your screen. Do you see tiny stray dots or lines left behind? These are "artifacts." If you don't delete them, your machine will travel to them, make a single knot, and travel back. This creates a mess of jump threads.

Sensory Check: Zoom in until the design looks jagged. Click on the white space. If you see bounding boxes around "nothing," you have artifacts. Delete them.

Make the Flower Yours: Delete Inner Shapes, Then Add Pieces Back (01:42–02:08)

The tutorial suggests deleting detailed inner parts to simplify the look. From a production standpoint, this is pure gold.

• Less is More: Heavy detail in Redwork often turns into a "blob" of thread because there is no color contrast to separate the lines.
• Speed: Removing 500 stitches of interior detail might save only 1 minute per piece, but over a run of 50 towels, that is an hour of machine life saved.

Optimization Tip: If you plan to sell these, remove any lines that are shorter than 2mm. They don't read well visually and just add needle penetrations that weaken the fabric.

Triple Stitch vs Running Stitch in Artistic Suite V6: Pick the Look You Want (02:11–02:27)

The video switches the outline to Triple Stitch (often called Bean Stitch).

• Triple Stitch (Forward-Back-Forward): Creates a bold, hand-embroidered look. Excellent for decorative tea towels.
• Running Stitch (Single Pass): Thin, subtle. Ideal for quilting backgrounds where you don't want the thread to dominate.




Warning: Heat and Friction
Triple Stitch means the needle enters the exact same hole three times.
* Risk: On tight cotton, this builds heat. On knits, it can cut the fabric.
* Safety Protocol: If using Triple Stitch, lower your machine speed to 600-700 SPM (Stitches Per Minute). Do not run this at 1000+ SPM. Give the thread time to cool and settle.

The Continuous-Line Trick That Stops Jump Stitches: Physically Bridge the Gaps (02:44–03:30)

This is the most critical section for "Quilting" files. The goal is a Continuous Line—one start, one stop, zero trims.

The tutorial shows dragging an element until it touches the adjacent path. Crucial Distinction: "Touching" visually isn't always enough. You want them to merge.

The "Floss Test" for Jumps: In software, a 0.5mm gap looks like a connection. To the machine, that is a jump.

• Action: After connecting shapes, run the simulator.
• Sensory Check: Watch for the "dashed line" movement in the simulator. If you see the virtual needle lift and move without stitching, you have a gap. You must bridge it by overlapping the lines slightly or using the "Weld" tool if available.

Reshape Petals Like a Digitizer, Not Like a Mouse: Bezier Handles and Smooth Curves (03:41–03:51)

The video uses Bezier handles (the little arrows attached to nodes) to smooth out the petals.

Why this matters: Machine pantographs operate on X and Y axes. A sharp, jagged geometry forces the machine to decelerate rapidly to hit the corner, then accelerate. This causes vibration. A smooth Bezier curve allows the machine to maintain a constant, hum-like momentum (Fluid Motion).

• Result: Better stitch tension and quieter operation.

The Inside-to-Outside Rule: Optimization Strategy + Sequence Manager Check (03:55–04:20)

The tutorial sets optimization to Inside to Outside. This is non-negotiable for large areas.

The Physics: As the needle adds thread, it pushes the fabric slightly.

• Outside-In: If you stitch the border first and work inward, you push a "bubble" of loose fabric into the center. It has nowhere to go, so it puckers.
• Inside-Out: You stitch the center anchor, and push any loose fabric out toward the hoop edges, which is safe.

Slow Redraw at Speed 6400: The Simulation Pass That Catches Expensive Mistakes (04:25)

Never skip the Slow Redraw. Set the speed to 6400 (or high) and watch the entire movie.

Visual Verification Checklist:

1. Start/End: Does it start where you expect (usually the center) and end at the edge?
2. The "Jump" Hunt: Are there any straight lines that appear instantly? That is a jump stitch you missed.
3. Backtracking: Does the machine stitch over the same line 4-5 times? That will cause a thread nest.

Setup Checklist (Software Final):

• Stitch Type: Confirmed Triple (limit speed) or Running (quilting).
• Continuity: Visual check for zero jumps in simulation.
• Sequence: Verified Inside-to-Outside order.

Export to Quilt or Save for Your Embroidery Machine: Choose the Correct Format (04:47)

Save the file in your machine's native format (PES, DST, VP3, etc.).

• Pro Tip: If using a commercial multi-needle machine, DST is often preferred as it locks the coordinates, though you lose color information (not that it matters for Redwork).

The “Hidden” Physical Prep Nobody Mentions in Software Tutorials: Hooping, Stabilizer, and Towel Control

The software is done. Now the real work begins. Your result depends 20% on the file and 80% on how you control the towel.

Decision Tree: Stabilizer & Hooping Strategy

1. Is the Tea Towel Stretchy/Loose Waven?
   • Yes: Use Cutaway stabilizer. Tearaway will not hold the outline shape; the square border will distort.
   • No (Stiff Cotton): Tearaway is acceptable, usually paired with temporary spray adhesive.
2. Does the Towel have a "Waffle" or "Terry" texture?
   • Yes: You MUST use a Water Soluble Topping (Solvy) on top. This prevents the thin Redwork stitches from sinking into the texture and disappearing.
3. Are you fighting the hoop screw?
   • Symptom: Hand strain, inability to close the hoop, or "burn marks."
   • Solution: This is the time to switch to Magnetic Frames.

Warning: Magnetic Safety
If you upgrade to magnetic embroidery frames, sound safety practices are mandatory. These magnets are industrial strength.
* Pinch Hazard: Never place your fingers between the magnets.
* Medical: Keep magnets away from pacemakers and implanted medical devices.
* Technique: Slide the magnets off; do not try to pull them directly apart.

Troubleshooting Jump Stitches in Quilting Files: Symptom → Cause → Fix

Even with perfect software prep, things happen. Use this logic flow:

The Upgrade Path When You’re Ready to Produce: Speed, Consistency, and Less Rework

Once you master the software conversion, the bottleneck shifts to your hands.

If you are making one towel for a grandmother, standard tools are fine. But if you are producing 50 custom towels for a boutique:

1. Hooping Speed: Manual screw hoops are slow. hooping stations standardize the placement so every logo is in the exact same spot.
2. Fabric Safety: magnetic hoops for embroidery machines remove the friction burn that ruins inventory.
3. Machine Capacity: If you find yourself changing thread constantly or waiting for a single-needle machine to finish, this is the trigger to look at SEWTECH Multi-Needle Machines. The stability of a fixed-needle bar system is inherently better for the precision required in Redwork.

Operation Checklist (The "Go" Button):

• Hoop Check: Is the fabric "drum tight" (but not stretched)?
• Top Check: Is water-soluble topping in place if the towel is textured?
• Speed Check: Is the machine set to a safe speed (e.g., 600 SPM for Triple Stitch)?
• Bobbin Check: Do you have enough bobbin thread to finish the continuous line without a splice?

By combining the digital precision of Artistic Suite V6 with these physical safeguards, you transform a fragile digital file into a robust, beautiful physical product.

FAQ

• Q: In Artistic Suite Version 6, why should the fabric type be set to Cotton before converting a tea towel design to Redwork or a continuous quilting line?
  A: Set the fabric type to Cotton first because Artistic Suite Version 6 uses it to calculate pull compensation, which helps outlines align after stitching.
  • Select Cotton before generating stitches, not after resizing or heavy editing.
  • Install a fresh 75/11 Sharp or Embroidery needle and use a light mist of temporary spray adhesive to bond towel to stabilizer.
  • Success check: The stitched outline meets itself cleanly at corners and borders without “drifting” or mismatching.
  • If it still fails: Re-hoop for consistent tension and re-check stabilization choice (cutaway vs tearaway) for that specific towel weave.
• Q: In Artistic Suite Version 6, why must the hoop size (for example Hoop 12 / 300×300) be set before generating Redwork stitches for a tea towel?
  A: Set the hoop size first to keep the design inside real machine limits and avoid last-minute scaling that can create overly dense, stiff stitching.
  • Choose the correct hoop boundary before creating outlines or converting stitch types.
  • Avoid “edit first, size later” workflows that force compression of stitch spacing.
  • Success check: The design fits the hoop with comfortable margins and stitches feel flexible rather than board-stiff.
  • If it still fails: Revisit the design size choice instead of scaling down aggressively; simplify inner details to reduce stitch load.
• Q: In Artistic Suite Version 6, how can stray “ghost stitches” appear after deleting fills for Redwork, and how do you remove them before stitching?
  A: After deleting fill objects, hidden artifacts can remain and cause random single stitches and extra jumps, so you must zoom in and delete leftovers.
  • Zoom in until edges look jagged, then click empty areas to reveal unexpected selection boxes.
  • Delete any tiny dots/lines left behind after fill removal.
  • Run the simulator to confirm no surprise travel moves remain.
  • Success check: The simulation shows continuous stitched paths without the needle “teleporting” to isolated points.
  • If it still fails: Repeat the artifact hunt at higher zoom and re-check any small internal shapes you partially removed.
• Q: In Artistic Suite Version 6, how do you stop jump stitches when creating a continuous-line quilting file (one start, one stop, zero trims)?
  A: Don’t rely on “touching” visually—overlap or weld paths so the software creates a true merged connection.
  • Drag/reshape segments so paths slightly overlap where they connect.
  • Run the simulator and look specifically for “dashed line” movement that indicates a jump.
  • If available in the toolset, use a join/weld-style function to fuse nodes.
  • Success check: The simulator shows one uninterrupted stitched line with no needle lifts/trim actions.
  • If it still fails: Re-check for micro-gaps (even ~0.5 mm can jump) by zooming in deeply and reconnecting.
• Q: In Artistic Suite Version 6 Redwork, when should you choose Triple Stitch (Bean Stitch) vs Running Stitch, and what machine-speed limit is a safe starting point for Triple Stitch?
  A: Choose Triple Stitch for a bold hand-stitched look and Running Stitch for subtle quilting texture; for Triple Stitch, slow the machine to about 600–700 SPM to reduce heat and friction.
  • Select Triple Stitch for decorative tea towels where you want the outline to stand out.
  • Select Running Stitch for quilting-style continuous lines where you want minimal thread dominance.
  • Reduce speed for Triple Stitch because the needle penetrates the same hole multiple times.
  • Success check: Stitching sounds steady and the thread forms clean lines without fraying or frequent breaks.
  • If it still fails: Slow down further and consider switching from Triple Stitch to Running Stitch for that fabric.
• Q: On a tea towel Redwork job, how do you diagnose and fix “birdnest at start” caused by upper thread tension and threading errors?
  A: Re-thread correctly and control the first few stitches—most start-up nests come from an incorrect thread path or poor start technique.
  • Re-thread the upper thread with the presser foot UP to ensure the thread seats in the tension system.
  • Check the bobbin area and thread path for snags, then restart.
  • Hold the thread tail firmly for the first 3 stitches.
  • Success check: The back of the towel shows a clean stitch formation immediately, not a wad of thread at the start point.
  • If it still fails: Stop immediately, remove the nest, and re-check upper threading and bobbin insertion before trying again.
• Q: What are the key safety rules when using magnetic embroidery frames for tea towels to avoid pinch injuries and medical-device risks?
  A: Treat magnetic embroidery frames as industrial-strength magnets—use sliding techniques and keep them away from implanted medical devices.
  • Keep fingers out of the magnet closing area to prevent pinch injuries.
  • Slide magnets apart; do not try to pull magnets directly off each other.
  • Keep magnets away from pacemakers and implanted medical devices.
  • Success check: The frame closes smoothly without finger contact in the pinch zone, and hooping feels controlled rather than “snapping.”
  • If it still fails: Stop and change hand positioning and removal technique before continuing hooping.
• Q: For repeated tea towel Redwork production, when should a workflow move from technique tweaks to magnetic hoops/frames, and when is it time to consider a SEWTECH multi-needle machine?
  A: Use a staged approach: optimize setup first, upgrade hooping when marks/time become the bottleneck, and upgrade machine capacity when single-needle throughput and thread changes limit production.
  • Level 1 (technique): Standardize needle (75/11), stabilizer choice, spray adhesive use, and always verify “inside-to-outside” sequencing plus full simulation.
  • Level 2 (tool): Switch to magnetic hoops/frames if hoop burn, hoop screw strain, thick towel hooping difficulty, or fabric shifting is causing rejects/rework.
  • Level 3 (capacity): Consider a SEWTECH multi-needle machine when frequent thread changes and long runtimes prevent consistent delivery on batches (e.g., dozens of towels).
  • Success check: Less re-hooping/rework, fewer visible hoop marks, and consistent placement and outline quality across the batch.
  • If it still fails: Add a hooping station-style placement routine to keep towel tension and position identical from piece to piece.
