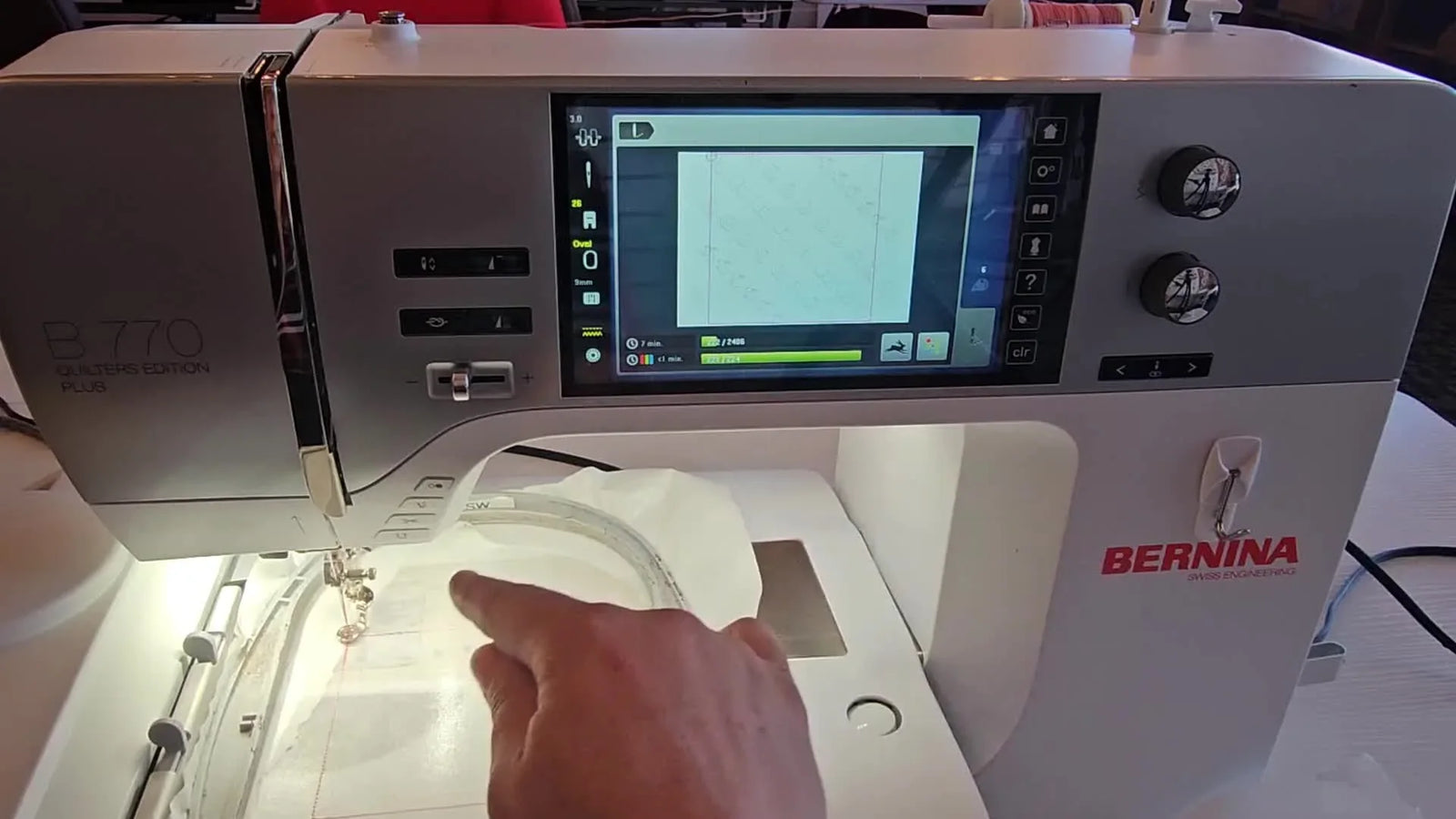

Turn Bernina 770 Plus Decorative Stitches into Embroidery Fills (Without Buying New Designs): A Quilted Neoprene Koozie Workflow That Actually Behaves

Mastering Texture: The Definitive Guide to Custom Embroidered Koozies on the Bernina 770 Plus

If you have ever stared at your Bernina screen thinking, "I know my machine has thousands of stitches—why am I still buying generic background fills?" you are standing on the precipice of a major breakthrough. This guide isn't just about making a koozie; it is a master class in hybrid workflow. We are going to prove that you can build decorative stitch rows in Sewing Mode, save them correctly, and import them into Embroidery Mode as layered elements to create a quilted, high-texture effect.

We will follow the specific workflow demonstrated on the Bernina 770 Plus (Quilters Edition) with the Embroidery Module attached. Because this project involves neoprene (a spongy, resistant rubber) and 12 wt thread (a thick, rope-like strand), we face specific physical challenges that standard embroidery tutorials ignore.

I will guide you through every click, every sound your machine makes, and every physical sensation you should feel to ensure you don't just finish a koozie, but master the logic of your machine.

1. Professional Prep: Calibrating Supplies for Success

This project is deceptively simple. The visual impact comes from a "triad" of tension: Material + Stabilizer + Thread. If one of these is weak, your stitches will sink into the neoprene foam, disappearing like footsteps in soft mud.

The "Hidden" Consumables & Essentials

Before we discuss the obvious items, let's talk about what ruins this specific project: Friction.

• Needle Selection (Critical): You are using 12 wt thread. A standard 75/11 embroidery needle has an eye too small for this cord. It will shred.
  • The Fix: Use a Topstitch 90/14 or 100/16 needle. The larger eye and deep groove reduce friction, allowing the thick thread to glide.
• Bobbin: Use a 60 wt bobbin thread (Standard). Do not put 12 wt in the bobbin unless you want a bird's nest. A black bobbin is recommended here to blend with the neoprene if the tension pulls slightly.

The Core Materials

• Neoprene Koozie Blanks: Neoprene is a "live" material. It compresses under pressure and rebounds when released. This makes traditional hooping a nightmare.
• OESD AquaMesh Plus: This is a Sticky Back Wash-Away Stabilizer. It is the non-negotiable anchor. We need the stickiness to hold the neoprene without crushing it in a hoop frame.
• Sulky Blendables 12 wt: This thick, variegated thread mimics hand-quilting.
• Bernina Oval Hoop: The standard canvas for this size project.


Understanding the "Why": The Texture Principle

Neoprene will never behave like crisp quilting cotton. It sponges. Your goal here is controlled texture. We want the stitches to sit proud (on top) of the surface. This is why we float the material rather than hoop it.

Prep Checklist: The "Pre-Flight" Inspection

• Needle Check: Is a fresh Topstitch 90/14 installed? Run your fingernail down the tip to check for burrs.
• Thread Path: Is the 12 wt thread seated deep in the tension discs? (Give it a "flossing" tug; you should feel firm resistance).
• Bobbin Area: Clean out any lint now. Thick top thread generates more fuzz; starting clean prevents sensors from misfiring.
• Hardware: Have your small curved scissors ready for scoring the backing paper.


2. Programming Phase: The Placement Box Logic

The placement box is your anchor. Without it, you are guessing where to place the foam, leading to crooked results. In the video, Karen loads a simple rectangular outline from a USB stick. This serves a dual purpose: stitches the boundary and defines the "parking spot" for your floating material.

Step-by-Step Programming:

1. Boot Up: Power on with the Embroidery Module connected.
2. Import: Load the .EXP or .ART rectangle file from the USB.
3. Visual Check: Confirm the rectangle is centered on the grid layout on your screen.


The "Feed Dog" Pop-up Anxiety

The Fear: As you switch between Sewing and Embroidery modes, the Bernina will likely beep and flash a warning: "Lower Feed Dogs" or "Attach Module." The Reality: In this specific workflow, you are entering Sewing Mode only to program, not to stitch. The Action: Ignore the physical warnings about feed dogs while you are building the stitch combination. You are effectively using the machine's brain, not its muscles, during this phase.

Many beginners research the floating embroidery hoop technique specifically to avoid the mechanical stress of hooping thick items. Here, we are combining that "float" concept with custom stitch generation.

3. Stitch Architecture: Building Decorative Combinations

This is the "Magic Trick." We are going to hijack the Sewing Mode's stitch engine and force it to work for us in Embroidery Mode.

The Setup: Fooling the Machine

1. Switch to Sewing Mode.
2. Crucial Setting: Go to the presser foot indicator and select Foot #1C (Reverse Pattern Foot).
   • Why? Even if you have the #26 embroidery foot attached physically, telling the software you have the 1C (9mm wide foot) attached forces the machine to generate the widest possible stitch. If you leave a standard foot selected, the machine will narrow your beautiful decorative hearts or leaves, ruining the effect.
3. Enter Combi Mode (Look for the + sign).

building the Chain

1. Select a decorative motif (e.g., hearts, satin leaves).
2. Tap the motif 7 to 8 times.
3. Visual Check: You need a logical strip length. The specific koozie project requires a strip about 6 inches long.




Storing Data Correctly

Here lies the trap that frustrates 90% of users. The Bernina buffer is volatile.

1. Save the combination to the Personal Memory Folder (Heart Icon).
2. The Rule of One: You can generally only import the active or last saved combination into embroidery.
   • Action: Build Strip A -> Save -> Import to Embroidery -> Return to Sewing -> Delete Strip A -> Build Strip B.
   • Observation: If you don't clear the screen, you might accidentally import a master file containing both strips stitched end-to-end.


4. Layering: Importing and manipulation in Embroidery Mode

Now we bring that logical data into the physical layout.

1. Toggle back to Embroidery Mode.
2. Press Add Layer (often a + layer icon).
3. Navigate to your Personal Heart Folder and select the strip.
4. Interface Physics: Use the Physical Multifunction Knobs to rotate and position.
   • Tactile Tip: Use the knobs, not the touchscreen, for rotation. The knobs give you degree-by-degree precision.




Operational Order: Rotate first, then Move. If you move the design to the corner and then rotate it, the axis of rotation might swing part of the design outside the hoop area, triggering a "red hoop" warning.

Design Strategy:

• Duplicate the strip to create parallel rows.
• Mirror image (Up/Down) to create symmetry.
• Ensure the stitch rows extend past the edges of the placement box (over-stitching) so the edge cuts are clean later.


Setup Checklist: The "Go/No-Go" Decision

• Placement Box: Is it Layer 1 (First to stitch)?
• Decorative Fills: Are they laid on top?
• Foot Selection: Have you physically switched to the #26 Embroidery Foot (or #44)?
• Needle: Verify that Topstitch 90/14 is tight.
• Clearance: Is the embroidery arm clear of obstacles?

5. Physical Engineering: The "Float" Method

Now we move from the screen to the hoop. This implies physical risk—both to you and the materials.

Activation of the Adhesive

1. Hoop the AquaMesh Plus tight. It should sound like a drum when tapped—specifically, a tight, crisp "thwack," not a dull thud. Paper side UP.
2. Scoring: Use the sharp points of your scissors to score an "X" or a rectangle inside the hoop.


Warning: Mechanical Safety
Scissors near a tensioned mesh stabilizer create a high risk of puncture. If you slip and pierce the mesh, the hoop tension is compromised, and you must start over. Keep your non-dominant hand outside the hoop perimeter while scoring.

1. Peel the paper away to reveal the sticky surface.

Why "Floating" is Superior for Neoprene

Neoprene contains air pockets. If you hoop it in a traditional screw-tightened frame, you crush those air pockets. When you un-hoop later, the foam re-expands, which distorts your rectangular shape into an hourglass. Floating on sticky stabilizer eliminates this "crush distortion."

Terms like hooping for embroidery machine often imply using the inner and outer rings, but for spongy materials, abandoning the inner ring for adhesive is the pro move.

6. Execution: The Stitch Sequence

Phase 1: The Placement Line

Hit "Start." The machine will stitch the simple rectangle on the stabilizer only.

• Sensory Check: Watch the tension. Since it's just stabilizer, the thread might pull slightly. This is fine; it's a guide.

Phase 2: The Docking

1. Lay your neoprene blank precisely inside the stitched box.
2. Adhesion Protocol: Do not just set it down. Press firmly from the center outward. You are manually bonding the foam to the adhesive.
3. Note: Neoprene has memory. If it was folded in the box, it wants to curl. Flex it flat before placing.

If you struggle with adhesion (perhaps the room is cold or humid), this workflow is very similar to using a sticky hoop for embroidery machine, where the chemistry of the glue does the work of the clamps.

Phase 3: The "Monocolor" Button

Before hitting start on the decoration:

• Activate the Single Color / Monocolor icon (usually a spool with a single color).
• Why? Your design is made of multiple "strips." Without this button, the machine will stop and cut the thread after every single row, waiting for a color change (even though it's all one thread).
• Monocolor forces the machine to sew continuously, saving you 50% of the run time.




Operation Checklist: While the Machine Runs

• Auditory Check: Listen for a rhythmic "thump-thump." If you hear a sharp "click" or "slap," stop immediately—the thread may be shredding or snagging on the spool cap.
• Visual Check: Is the neoprene lifting at the corners? If yes, pause (using the Stop button on the head), and press it back down.
• Speed Management: With 12 wt thread, reduce speed. Do not run at 1000 SPM (Stitches Per Minute). Dial it down to 600-700 SPM. Friction creates heat; heat melts glue; melted glue gums up needles.

7. Finishing: Construction and Assembly

Once both panels are stitched:

1. Removal: Gently tear the stabilizer away. AquaMesh Plus dissolves in water, so trim the excess close to the stitches first (about 1/8 to 1/4 inch away).
2. Rinse: Remove the sticky residue with warm water. Let dry.


The Assembly Seam

Switch your machine back to standard sewing settings.

• Seam Allowance: Use a scant 1/8 inch.
  • The Trap: If you use a standard 5/8" or 1/4" seam, you reduce the circumference of the koozie. It will be too tight for a standard soda can, stretching your beautiful embroidery until it distorts.
• Stitch Selection: Use Triple Straight Stitch (#6) or a texturized backstitch. A standard straight stitch will snap when you stretch the koozie over a can.
• Reinforcement: Backstitch decisively at the top lip and bottom edge. This is high-stress territory.

8. Analytical Troubleshooting Guide

When things go wrong, do not panic. Follow this diagnostic logic:

9. The Commercial Bridge: Scaling from Hobby to Production

The "Float on Sticky" method is fantastic for making 5 gifts for Christmas. However, if you receive an order for 50 koozies for a wedding or corporate event, this method reveals its cracks:

1. Time Cost: Peeling paper and scoring stabilizer 50 times is slow.
2. Hoop Burn: Even with floating, the outer ring clamps the stabilizer, and user fatigue leads to errors.
3. Physical Strain: Repeatedly tightening screws hurts the wrists.

When to Upgrade Your Toolset?

Use this decision tree to decide if you need to optimize your layout or your gear.

Decision Tree: Fabric vs. Tooling

• Are you making < 10 items?
  • Stick to the current method: Float on Sticky Stabilizer. It is cheap and effective.
• Are you battling "Hoop Burn" on delicate items (Velvet, Performance Wear)?
  • Consider upgrading to a magnetic embroidery hoop.
  • Why? Magnetic hoops hold fabric firmly without the friction-burn of an inner ring. They are faster to load and perfect for "floating" setups since the magnets clamp the perimeter instantly.
• Are you producing 50+ items regularly?
  • You are hitting the limits of a single-needle flat-bed machine.
  • Consider a SEWTECH High-Speed Multi-Needle Machine.
  • The Shift: Multi-needle machines use tubular arms (perfect for koozies and sleeves without unpicking seams) and maintain simpler thread tension at high speeds.

Warning: Magnetic Field Safety
While magnetic embroidery hoops drastically reduce production time, they use industrial-grade magnets.
* Pinch Hazard: They snap together with immense force. Keep fingers clear of the contact zone.
* Medical Devices: Maintain a safe distance if you or staff have pacemakers or insulin pumps.

Final Thoughts on Creative Expansion

Karen’s tutorial proves a vital point for every embroiderer: You own more assets than you think. By mastering the Sewing-to-Embroidery conversion workflow, you stop buying generic background files and start generating unique, custom textures.

Whether you are stitching one koozie on your bernina embroidery machines or planning a production run with magnetic frames, the physics remain the same: Stabilize the base, reduce friction for the thread, and let the machine do the heavy lifting.

FAQ

• Q: What needle and bobbin thread should Bernina 770 Plus users use for embroidering neoprene koozies with 12 wt top thread?
  A: Use a Topstitch 90/14 (or 100/16) needle with standard 60 wt bobbin thread; do not use 12 wt in the bobbin.
  • Install: Put in a fresh Topstitch 90/14 needle and tighten firmly.
  • Thread: Use 12 wt on top and 60 wt in the bobbin (black bobbin thread can help hide slight pull-through on dark neoprene).
  • Clean: Clear lint from the bobbin area before starting because thick top thread often sheds more fuzz.
  • Success check: Stitches sit on top of the neoprene without shredding, and the underside shows no “bird’s nest” loops.
  • If it still fails… Re-thread the top thread with the presser foot UP to fully seat the thread in the tension discs.
• Q: How tight should OESD AquaMesh Plus be hooped on a Bernina Oval Hoop for the “float” method on neoprene koozies?
  A: Hoop AquaMesh Plus drum-tight with the paper side up before scoring and peeling the paper.
  • Hoop: Tighten until tapping the stabilizer sounds like a crisp “thwack,” not a dull thud.
  • Score: Use scissors to score an “X” or rectangle inside the hoop, then peel to expose the adhesive.
  • Place: Press the neoprene from the center outward to bond it to the sticky surface.
  • Success check: Neoprene corners stay flat during stitching and do not lift as the embroidery arm moves.
  • If it still fails… Increase adhesion by adding a very light mist of temporary adhesive onto the sticky stabilizer, then press again.
• Q: Why does the Bernina 770 Plus show “Lower Feed Dogs” or “Attach Module” warnings when switching between Sewing Mode and Embroidery Mode during stitch-combination programming?
  A: This is common in this hybrid workflow—ignore the feed dog warning while using Sewing Mode only to program stitches, not to sew.
  • Switch: Enter Sewing Mode to build the decorative stitch combination, then return to Embroidery Mode to stitch.
  • Confirm: Keep the Embroidery Module connected when you plan to run embroidery.
  • Proceed: Focus on saving/importing the stitch data correctly rather than chasing the pop-up.
  • Success check: The stitch combination saves to Personal Memory and imports into Embroidery Mode as a layer.
  • If it still fails… Power-cycle the machine with the Embroidery Module connected, then retry the save/import sequence.
• Q: How do Bernina 770 Plus users prevent decorative stitch rows from importing incorrectly into Embroidery Mode from the Personal Memory folder?
  A: Build and import one strip at a time—the Bernina memory behavior often only imports the active/last saved combination reliably.
  • Save: Store Strip A to the Personal Memory (heart) folder.
  • Import: Go to Embroidery Mode and add it as a new layer.
  • Delete: Return to Sewing Mode and delete Strip A from the screen before building Strip B.
  • Success check: Each imported layer contains only one intended strip (not multiple strips stitched end-to-end).
  • If it still fails… Repeat the “save → import → clear screen” cycle and avoid leaving multiple combinations on the Sewing Mode screen.
• Q: How do Bernina 770 Plus users stop thread shredding when embroidering neoprene koozies with 12 wt thread?
  A: Reduce friction first—switch to a Topstitch 90/14 (or 100/16) needle and slow the machine to about 600–700 SPM.
  • Change: Replace any 75/11 needle; the eye is often too small for 12 wt and can shred the thread.
  • Listen: Stop immediately if a sharp “click” or “slap” starts—this can signal shredding or snagging.
  • Slow: Dial speed down; friction and heat can escalate quickly with thick thread.
  • Success check: The stitch run sounds rhythmic (“thump-thump”) and the top thread remains smooth without fuzzing or breaking.
  • If it still fails… Check the spool path for snag points (often the spool cap area) and re-thread the top path carefully.
• Q: How do Bernina 770 Plus users fix bottom “bird’s nest” loops when stitching the neoprene koozie design with 12 wt top thread?
  A: Re-thread the TOP thread with the presser foot UP; most bottom nesting is top-thread tension loss, not a bobbin problem.
  • Lift: Raise the presser foot before threading so the tension discs open.
  • Floss: Pull the thread firmly into the tension discs (“flossing” motion) so it seats correctly.
  • Restart: Stitch again on stabilizer first (placement line) to confirm stability before running the full texture rows.
  • Success check: The underside shows controlled bobbin lines without large loopy tangles collecting under the hoop.
  • If it still fails… Clean lint from the bobbin area again and confirm 60 wt bobbin thread is installed (not 12 wt).
• Q: What scissor-safety steps should be followed when scoring OESD AquaMesh Plus in a Bernina Oval Hoop for floating neoprene koozies?
  A: Treat scoring as a puncture-risk step—keep the non-dominant hand outside the hoop perimeter and score lightly and deliberately.
  • Position: Hold the hoop stable on a flat surface before scoring.
  • Score: Use only the sharp scissor tips to lightly cut the paper, not the mesh.
  • Stop: Restart with new stabilizer if the mesh is pierced, because hoop tension is compromised.
  • Success check: The paper peels cleanly while the mesh remains intact and drum-tight.
  • If it still fails… Switch to a smaller, controlled scoring motion (short cuts) rather than one long cut.
• Q: When should embroiderers move from sticky-stabilizer floating on a Bernina 770 Plus to magnetic embroidery hoops or a SEWTECH multi-needle machine for koozie production?
  A: Use a tiered response: optimize technique first, then upgrade to magnetic hoops for hoop-burn/speed issues, and consider a SEWTECH multi-needle machine for frequent 50+ runs.
  • Level 1 (Technique): Keep floating on sticky stabilizer for small runs (often under 10 items) and focus on firm center-out pressing and correct needle/thread setup.
  • Level 2 (Tooling): Switch to magnetic embroidery hoops if hoop burn, slow loading, or wrist strain from tightening becomes a recurring problem.
  • Level 3 (Capacity): Consider a SEWTECH high-speed multi-needle machine if producing 50+ items regularly and single-needle cycle time becomes the bottleneck.
  • Success check: The chosen setup reduces rehooping time and stabilizes registration without increasing thread breaks or material distortion.
  • If it still fails… Re-evaluate the biggest limiter (loading time vs. stitch speed vs. fabric distortion) and adjust the upgrade level accordingly.
