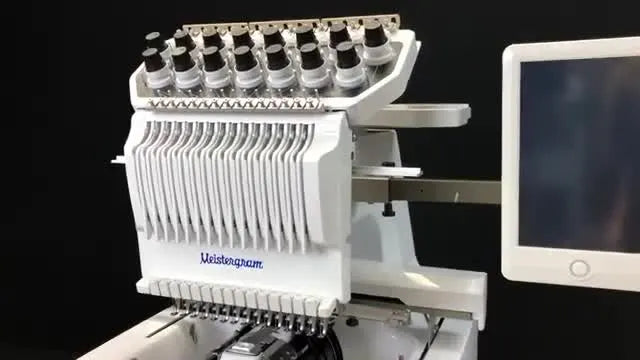

Unbox the Meistergram PR 1500 Without Panic: The Bottom-Cut Method, Full Accessory Check, and a Safe Stand Mount

Expert Guide: Unboxing & Setting Up the Meistergram PR 1500 for Production Success

The Hook: Unboxing a 50 kg / 70 kg Shipment Without Breaking the Machine (or Your Back)

A brand-new commercial head is exciting—it represents potential profit and creative freedom. However, that excitement often turns to anxiety the moment you see the shipping label. The box for the Meistergram PR 1500 typically reads G.W. 70 KGS (approx. 154 lbs) and N.W. 50 KGS (approx. 110 lbs).

That implies a heavy, awkward object with a high center of gravity. The most common mistake new owners make is treating this like a household appliance and trying to "deadlift" the machine straight up out of the carton.

Do not do this.

Attempting a top-down lift puts your lower back at risk and increases the chance of gripping a fragile component (like a tension knob or thread tree) instead of the chassis. The methodology we will use focuses on one simple physics principle: remove the box from the machine, not the machine from the box.

This mindset shift prevents bent stands, cracked foam, and the kind of back strain that puts you out of commission before you’ve stitched your first logo.

Warning: Physical Safety Hazard. This unboxing involves a machine exceeding 100 lbs and sharp cutting tools.
* Keep hands clear of the box cutter blade path.
Always cut away* from your body.
* Do not attempt the lift alone. A minimum of two able-bodied adults is required to safely seat the head unit onto the stand.

Safety First With the Meistergram PR 1500 Shipping Box: Set the Room Up Before You Touch Tape

Before you cut a single strip of tape, you need to prepare your environment. You are about to handle a heavy industrial unit, large foam blocks, and bags of tiny, critical hardware that love to roll under sofas. Treat your space like a workshop, not a living room.

Here is the "Pre-Flight" environment setup:

1. The "Spin Zone": clear a 6x6 foot floor area. You will need to rotate the box; ensure there are no rugs to trip on or shelves to snag the cardboard.
2. The Staging Table: Clear a waist-high table or bench nearby. This is for accessories. Do not put them on the floor where they can be stepped on.
3. Debris Management: Have a large trash bag ready for plastic wrap and foam bits. Foam builds up static and clings to everything—keep it contained to avoid slip hazards.
4. The Stand: Have your assembled stand positioned within 3 feet of the unboxing area. You do not want to carry a 110lb machine across the room.

If you plan to run this as a business, view this unboxing as your first "process test." An organized unboxing leads to an organized mind, which is essential for troubleshooting later.

**Prep Checklist (Complete before cutting):**

• Manpower: Two people present and ready to lift.
• Tools: Box cutter with a fresh/sharp blade (dull blades slip and cause injury).
• Infrastructure: Stand assembled, wheels locked, and placed near the drop zone.
• Staging: A clear table for parts + a magnetic tray or bowl for loose screws.
• Documentation: Phone camera ready. (Take photos of the box layers as you unpack. If a part is missing, these photos are your proof for warranty claims).


The “Bottom-Cut” Trick: Open the Carton From Underneath So the Box Lifts Off Cleanly

This is the industry-standard technique for heavy commercial heads, yet it remains a "secret" to many beginners.

The Protocol:

1. Turn the shipping box on its side. Do this gently.
2. Cut the bottom tape. Use your box cutter to slice the tape sealing the bottom flaps.
3. Open the flaps. Fold them back so the bottom foam is visible.
4. Expose the foam. You should see the styrofoam base supporting the machine.
5. Rotate upright. Carefully tip the box back to its standing position.
6. The Reveal. Lift the cardboard box straight up toward the ceiling. It should slide off, leaving the machine sitting securely in its foam base on the floor.

Why this works: The foam base is engineered to support the machine's static weight. By lifting the cardboard off, you eliminate the friction and awkward leverage required to pull the machine out.

Sensory Check: When cutting the bottom tape, keep your blade shallow. You want to feel the resistance of the tape and cardboard only. If you feel the blade "punch through" into empty space or hit something solid, stop immediately. You don't want to scratch the chassis or slice a hidden accessory bag.

Remove Packaging in the Right Order: Cardboard Off, Plastic Off, Accessories Out (No Guessing)

Once the cardboard sheath is removed, the machine is still encased in a protective foam "bunker." The video demonstrates removing the plastic dust cover first, then extracting accessories from the top foam layer.

The "Archaeology" Rule: Remove items layer by layer. Do not rip the foam apart to get to the machine faster. Accessories are often tucked into custom-cut cavities in the foam. If you yank the foam shell off prematurely, small boxes or bags can tumble out, bounce on the floor, and slide under furniture.

Resist the urge to rush. A "speed run" unboxing is how valuable hoop brackets get lost in the trash, only to be realized three days later when you try to mount your first cap frame.

What’s Included With the Meistergram PR 1500: Inventory the BECS-A15 Manual and Every Small Bag Now

The video shows a systematic inventory. You must do the same. This is your "Receiving Audit." If something is missing, you need to know now, not when a client is waiting for an order.

Group your items on your staging table logically:

1. Documentation (The Brains):

• Manual titled “BECS-A15”: This is the manual for your computer interface. Keep this safe; it is your bible for error codes.

2. Large Hardware (The Body):

• Flat table (for supporting heavy garments like jackets/blankets).
• Cap hooping station (the heavy metal gauge for capping).

3. Critical Smalls (The Nervous System):

• Power cord.
• Flat table brackets: Without these, the table is useless.
• Cap driver & Cap frames (x2): Note: Use the clips provided!
• Thread rack components: Brackets, tubes, and the "tree" mast.
• Toolbox: Contains your screwdrivers, scissors, and spare needles.
• Hoops: Usually a set of standard tubular hoops (e.g., "Embroidery Hoops BF 5 in 1").

Expert Note on Hoops: The included embroidery machine hoops are your baseline standard. They are excellent for learning. However, as you move into production, you will notice that standard screw-tightened hoops can leave "hoop burn" (shiny rings) on sensitive fabrics and take time to adjust. Many professionals eventually supplement these with magnetic options for faster, mark-free loading—but verify your machine works with the standard kit first.

The “Hidden” Prep Pros Don’t Skip: Sort Brackets, Clips, and Tubes Like a Production Shop

The video lists various brackets and tubes. Don't just pile them up. Use the "Mise-en-place" method (everything in its place) to prevent frustration during assembly.

Sorting Strategy:

1. Thread Group: Cone holders, foam pads, guide tubes, and the mast. Assemble these first later.
2. Table Group: The flat table and its specific support arms.
3. Cap Group: The driver, the frames, and the station.

Pro Tip - The "Hooping Station" Check: If you plan to perform both cap and flat embroidery, think about your workspace flow now. You will likely want a dedicated area for your hooping stations. Bolting the cap station to a workbench (if compatible) or a heavy board improves stability. When you force a stiff cap onto a wobbling station, you get crooked designs. Stability equals registration.

**Setup Checklist (After inventory, before lifting the head):**

• Manual (BECS-A15) located and stored in a dry, specific drawer.
• Flat table parts grouped together.
• Cap parts (Driver, 2 frames, Station, Clips) grouped together.
• Thread tree parts grouped together.
• Hardware screws placed in a tray (count them against the manual list if possible).
• Toolbox opened; verify you have the screwdrivers needed for the stand assembly.


Expose the Head Safely: Lift the Styrofoam Shell Off the Thread Tree Area (Don’t Twist It)

The video shows the removal of the top styrofoam shell. This exposes the delicate multi-needle head assembly.

The Technique: Lift straight up. Do not twist. The dimensions of the foam are tight specifically to protect the needles and tensioner knobs.

The "Static" Trap: Styrofoam generates static electricity and sheds dust.

• Visual Check: Look for white foam beads clinging to the needle bars or the rotary hook area.
• Action: Gently blow them away or pick them off. Do not let foam debris settle into the bobbin case area or the tension disks, as this can cause immediate thread breaks or tension issues on your first run.


Find the Toolbox Now, Not Later: Your First Maintenance Tools Are Part of the Unboxing

The transcript highlights removing the toolbox during the foam removal. Do not treat this as "just another accessory."

In the commercial embroidery world, you are the mechanic. During your first week, you will likely need to:

• Change a broken needle (it happens to everyone).
• Adjust bobbin tension (the "drop test").
• Tighten a hoop screw.

If your toolbox is buried under a pile of cardboard, you will be frustrated. Locate the oiler (if included) and the screwdrivers. Keep them accessible.

The Stand Mount That Prevents Wobble: Align the Meistergram PR 1500 Base Feet Into the Stand Cups

This is the "Main Event." The video demonstrates two people lifting via the base side handles and lowering the unit onto the stand.

The "Thump" Test: When you lower the machine, the rubber feet on the machine base must seat perfectly into the metal cups/recesses on the stand.

1. Lift: On the count of three, lift with your legs, keeping the machine level.
2. Hover: Position the machine directly over the stand.
3. Lower: Bring it down slowly.
4. Listen & Feel: You should feel a solid "thud" or "lock-in" sensation as the feet enter the cups.

Sensory Verification: Once seated, grab the machine base (not the plastic head) and give it a firm shake. The machine and stand should move as one solid unit.

• Bad: If you hear clicking or feel the machine rocking independently of the stand, a foot is not seated. Lift and reseat appropriate immediately.

Why this is non-negotiable: A 15 needle embroidery machine spins at 800-1200 RPM. This creates significant vibration. If the machine is not "planted," that vibration travels to the needle bar, causing registration errors (outlines not matching fill) and excessive noise.

The “Why” Behind the Video’s Method: Hooping Physics, Repeatability, and Your First Week of Production

The video concludes with the machine mounted. You have successfully unboxed the hardware. Now, you must address the software of your business: The Workflow.

The bottleneck in commercial embroidery is rarely the machine speed; it is the human speed of hooping.

The Pain Point: New users often struggle with standard tubular hoops. They are effective but require hand strength and perfect tensioning to avoid "hoop burn" (crushing the fabric grain) or slippage.

• Symptom: Your wrist hurts after 20 shirts.
• Symptom: You tighten the screw too much and damage a delicate polo.
• Symptom: You check the outcome and the design is crooked.

This is the "Tool Upgrade" decision point.

The Solution Path:

1. Start with the included hoops: Master the basics of tension. It should feel tight like a drum skin—taut, but not stretched to distortion.
2. Identify Friction: If you find yourself spending 3+ minutes hooping a single shirt, or struggling with thick items like Carhartt jackets, investigate Magnetic Hoops.
   • Terms like magnetic embroidery hoops refer to frames that use powerful magnets rather than screws to hold fabric.
   • Benefit: They self-adjust to fabric thickness (no screw tweaking) and drastically reduce hoop burn.
   • Commercial Move: A magnetic hooping station allows you to hoop a garment in under 30 seconds with consistent placement every time.

Warning: Magnetic Field Hazard. Magnetic hoops used in commercial embroidery utilize industrial-grade neodymium magnets.
* Pinch Hazard: These magnets snap together with extreme force. Keep fingers clear of the mating surfaces.
* Medical Safety: Keep magnets away from pacemakers, insulin pumps, and other medical devices.
* Electronics: Keep away from credit cards, phones, and hard drives.

Decision Tree: Choose Your Initial Focus

Don't try to learn everything on day one. Pick a lane based on your immediate jobs.

Comment Corner (No Comments Logged): The Questions I Usually Hear on Day One

While the source video had no comments, here are the three most common questions I field from new owners at this stage:

Q: "I found a random screw in the bottom of the box. Is my machine broken?" A: Not necessarily. Often, the factory includes a "spare parts bag" that might have opened, or a screw from the shipping crate itself fell loose. Check your thread rack and stand assembly. If those are solid, keep the screw in your toolbox labeled "mystery screw" and monitor the machine.

Q: "How much oil do I put in before the first run?" A: Stop. Read the manual. Most new machines come pre-oiled from the factory. Over-oiling is a disaster that ruins garments. Only add oil if the manual explicitly states "Dry Shipping - Oil Before Use."

Q: "My machine smells like hot electronics when I turn it on." A: A faint "new electronics" smell is normal. A sharp, acrid burning smell is not. Ensure you removed all plastic film, silica gel packets, and foam blocks from the ventilation areas.

The Upgrade Moment: Turn Unboxing Into a Productivity Plan (Without Buying Random Stuff)

Your machine is on the stand. The heavy lifting is done. You are now a production shop.

Moving forward, resist the urge to buy every gadget you see on Instagram. Make your upgrade decisions based on data ("How long is this taking me?").

• If you are fighting with alignment on every shirt, look into a Hooping Station.
• If you are leaving marks on delicate fabrics, look into Magnetic Hoops.
• If you eventually find that one head isn't enough to keep up with 500-piece orders, that is when you research multi-head solutions or additional single heads like the lineup from SEWTECH to scale your profit per hour.

Checking meistergram embroidery machine reviews from other users can also give you insight into which specific accessories help with the longevity of this specific model.

**Operation Checklist (Ready for Power-Up):**

• Base Clearance: Cardboard removed via bottom-cut; machine lifted safely.
• Security: Machine feet are visually confirmed to be seated inside the stand cups.
• Freedom: All tape, foam blocks, and zip ties (check the needle bar area!) are removed.
• Power: Cord is connected to a surge protector (never plug a computer machine directly into the wall).
• Tooling: Toolbox is accessible; you have scissors and tweezers ready for threading.

Welcome to the world of commercial embroidery. The machine is ready. Now, go practice your hooping.

FAQ

• Q: How do I safely unbox and lift a 50 kg / 70 kg Meistergram PR 1500 shipping carton without damaging the machine or my back?
  A: Use the “bottom-cut” method so the cardboard lifts off the Meistergram PR 1500, instead of trying to deadlift the head out.
  • Clear a 6x6 ft area, place the assembled stand within 3 ft, and have two adults ready to lift.
  • Turn the carton on its side, cut only the bottom tape with a shallow blade, open the flaps, then tip the box upright again.
  • Lift the cardboard straight up so the machine stays seated in the foam base on the floor.
  • Success check: The cardboard slides off cleanly and the machine remains stable in the foam base without needing a top-down pull.
  • If it still fails: Stop cutting and check for hidden straps/tape or accessory bags that may be catching before forcing anything.
• Q: What is the correct packaging removal order for the Meistergram PR 1500 so small parts and hoop brackets do not get lost?
  A: Remove Meistergram PR 1500 packaging layer-by-layer (cardboard off, plastic off, accessories out) instead of ripping foam apart.
  • Set a waist-high staging table and use a magnetic tray/bowl for screws and tiny hardware.
  • Remove the plastic dust cover first, then pull accessories from the top foam cavities before removing major foam shells.
  • Group items immediately into Documentation, Large Hardware, and Critical Smalls so nothing goes to the trash by mistake.
  • Success check: All accessory bags/boxes are accounted for on the table before any foam is broken down for disposal.
  • If it still fails: Review any photos taken during unboxing and re-check foam cutouts and the bottom of the carton before discarding packaging.
• Q: What should be inventoried first during Meistergram PR 1500 setup to avoid day-one delays with error codes and missing parts?
  A: Locate the Meistergram PR 1500 “BECS-A15” manual and inventory every small bag before moving on to assembly.
  • Find and store the “BECS-A15” manual in a dry, dedicated place (it is the reference for the interface and error codes).
  • Lay out power cord, flat table brackets, cap driver, cap frames (x2), clips, thread rack parts, hoops, and toolbox on the staging table.
  • Sort into Thread Group / Table Group / Cap Group so assembly is straightforward.
  • Success check: Every part group is complete and easy to identify before the head unit is lifted onto the stand.
  • If it still fails: Pause setup and compare what is on the table against the manual list before assuming anything is “optional.”
• Q: How do I mount the Meistergram PR 1500 onto the stand so the base feet seat correctly and the stand does not wobble at 800–1200 RPM?
  A: Lower the Meistergram PR 1500 so the rubber base feet fully seat into the stand cups/recesses—do not accept rocking or clicking.
  • Lift only from the base side handles with two people and keep the head level during the move.
  • Hover directly over the stand, then lower slowly until the feet drop into the cups.
  • Grab the machine base (not plastic parts) and shake firmly to confirm the stand and machine move as one unit.
  • Success check: A solid “thud/lock-in” feel when seated, and no independent rocking/clicking when shaken.
  • If it still fails: Lift and re-seat immediately—continuing operation while mis-seated can amplify vibration and cause registration issues.
• Q: How do I prevent Meistergram PR 1500 first-run thread breaks caused by styrofoam static and foam beads near the needle bar or rotary hook area?
  A: Remove the Meistergram PR 1500 foam shell straight up (no twisting) and clear styrofoam debris before the first stitch-out.
  • Lift the top styrofoam shell vertically to avoid scraping needles, tension knobs, or thread paths.
  • Inspect for white foam beads clinging near the needle bars and around the rotary hook/bobbin area.
  • Gently blow off or pick off debris so nothing falls into tension disks or the bobbin case area.
  • Success check: No visible foam beads on the head or near the hook area before threading and running a test.
  • If it still fails: Re-check hidden corners and under foam edges—static often relocates beads during handling.
• Q: How much oil should be added before the first run on a Meistergram PR 1500 to avoid over-oiling and ruining garments?
  A: Do not add oil to a Meistergram PR 1500 until the machine manual explicitly instructs “Oil Before Use,” because many new machines arrive pre-oiled.
  • Read the lubrication section in the Meistergram PR 1500 documentation before applying any oil.
  • If oil is required, apply only the amount and locations specified by the manual (a safe starting point is following the exact manual instruction, not guessing).
  • Keep oil away from garments and do a controlled test run before customer work.
  • Success check: No oil spots on test fabric and no excess oil visible around moving parts after initial run.
  • If it still fails: Stop production immediately and clean per manual guidance before stitching customer items.
• Q: When Meistergram PR 1500 hooping takes 3+ minutes per shirt or leaves hoop burn on polos, what is the step-by-step upgrade path from technique to magnetic hoops to production scaling?
  A: Start by optimizing Meistergram PR 1500 standard hoop technique, then move to magnetic hoops if hoop burn/time persists, and only then consider higher-capacity equipment if volume demands it.
  • Level 1 (Technique): Hoop fabric “tight like a drum skin—taut, not distorted,” and track time per garment to confirm the bottleneck.
  • Level 2 (Tool): If hoop burn on delicate fabrics or slow screw adjustment is constant, switch to magnetic hoops to reduce marks and speed loading (often under 30 seconds with consistent placement).
  • Level 3 (Capacity): If one head cannot keep up with large orders, evaluate adding more commercial capacity (for example, additional heads or multi-head solutions) based on real throughput data.
  • Success check: Measurable reduction in hooping time and visible reduction of hoop burn on the same fabric type.
  • If it still fails: Verify stabilizer choice and garment handling first—thickness and slippage can mimic “hoop problems,” and the machine manual should remain the final reference for setup limits.
• Q: What are the safety precautions for using magnetic embroidery hoops on a Meistergram PR 1500 to avoid pinch injuries and medical device hazards?
  A: Treat magnetic embroidery hoops used with a Meistergram PR 1500 as industrial pinch hazards and keep them away from medical implants and sensitive electronics.
  • Keep fingers clear of the mating surfaces—magnets can snap together with extreme force.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and other medical devices.
  • Keep magnetic hoops away from phones, credit cards, and hard drives during handling and storage.
  • Success check: The hoop closes under control without finger contact in the pinch zone and is handled only by safe grip points.
  • If it still fails: Stop using the magnetic hoop until a safer handling routine is established (slow alignment, clear hand placement, and a consistent staging area).
