Uncrating the HappyJapan HCU-1501 Without Breaking Anything (or Your Back): The Shop-Pro Setup Flow

Uncrating a new commercial head is exciting—and it’s also the moment when most “mystery scratches,” bent brackets, and back injuries happen.

This post follows the exact uncrating flow shown for the HappyJapan HCU-1501, then adds the shop-floor checkpoints I’ve learned from 20 years in the field: how to keep the crate from collapsing at the wrong time, how to avoid nicking paint, and how to lift a heavy head onto a wheeled stand without the machine skating on you.

The calm-before-the-chaos: uncrating a HappyJapan HCU-1501 without panic (or damage)

If you’re staring at a wooden crate and thinking, “One wrong move and I’ll ruin my new machine,” you’re not being dramatic—you’re being realistic. A commercial embroidery machine is heavy, top-heavy, and packed for shipping, not for convenience.

Here’s the mindset that keeps you safe and fast:

• Slow is smooth for the first 10 minutes. Once the crate is open and stable, you can speed up.
• Support anything structural before the last bolt comes out. Gravity is undefeated.
• Plan the lift before you free the feet. The machine should never be “loose” while you’re still deciding where the stand goes.

Warning: Utility knives against thick wrap and impact drivers on lag bolts are a dangerous combo when you’re tired. Keep your off-hand out of the cut line, wear grip gloves, and never—ever—cut toward the machine body or cables.

The tool choice that saves your wrists: impact driver + 10mm socket for crate lag bolts

The crate is assembled with lag bolts that are typically 10mm, and the video recommends using an impact driver with a 10mm socket.

From a technician’s perspective, I 100% agree. Here is the sensory “why”: An impact driver delivers meaningful rotational force without twisting your wrist. You want to hear that rhythmic tat-tat-tat sound—that means the driver is doing the work, not your forearm. A standard drill often stalls or snaps wrists when it hits a knot in the wood.

What you need:

• Impact driver (Battery charged).
• 10mm socket (Deep well preferred) for the crate lag bolts.
• 17mm socket (for the machine feet later).

My “don’t-get-bit” checkpoint:

• Feel the engagement: Keep the socket fully seated before you pull the trigger. If you feel it wobble, you will round off the bolt head.
• Listen for binding: If a bolt spins with a high-pitched whine but won’t back out, the wood is binding. Reverse a touch, push the panel slightly to relieve pressure, then drive forward again.

Prep Checklist (Do this *before* the first bolt)

• Clear the zone: 360-degree walking lane (remove extension cords/trip hazards).
• Tool Audit: 10mm socket, 17mm socket, and utility knife staged on a magnetic tray.
• Hidden Consumables: Have a trash bin for wood/wrap and a Ziploc bag for hardware you want to keep.
• Blade Check: Ensure your utility knife has a fresh blade. Dull blades require more force, which leads to slipping and scratching the paint.
• Staging: Decide exactly where the stand will sit before you free the machine.


The “roof-first” sequence: removing the crate top and the internal crossbeam safely

The physics of a crate dictate the order. You must remove the roof first to relieve pressure on the side panels.

1) Remove the crate roof

• Work around the perimeter and impact-drive the 10mm lag bolts out.
• Sensory Check: As you remove the last bolt, the roof should feel loose. If it’s stuck, check for a missed fastener before prying.
• Slide the plywood roof off and set it aside flat (not leaning where it can slide).

2) Remove the internal crossbeam (The Danger Zone)

Inside the crate, there’s a wooden 2x4 or 4x4 crossbeam ensuring the walls don't collapse. The video calls out the critical move: support the beam with one hand while removing the final bolt.

Checkpoint: When the last bolt exits, that beam becomes a heavy projectile looking for a target (usually your machine's tension knobs).

Expected outcome: You feel the weight transfer to your hand immediately. Lower it gently. Nothing touches the silver wrapped head.

Panel-by-panel teardown: removing the side walls without twisting the crate frame

The video recommends taking the crate off panel by panel. Do not try to remove two sides at once.

What to do

• Remove the perimeter bolts on one vertical panel.
• Pull technique: Lean the panel outward from the top, then lift up to clear the bottom cleats.
• Repeat until the machine is fully exposed.

Why panel-by-panel matters

Wooden crates "rack" (twist out of square) if you remove random fasteners. When a crate racks, the bolts bind up. You’ll hear the wood creaking. If you hear that, stop and stabilize the frame. Racking is how you get splinters, smashed fingers, and sudden panel drops.

Expected outcome: With the panels off, you can see the machine sitting on the pallet base, still covered in silver protective heat-shrink wrap.

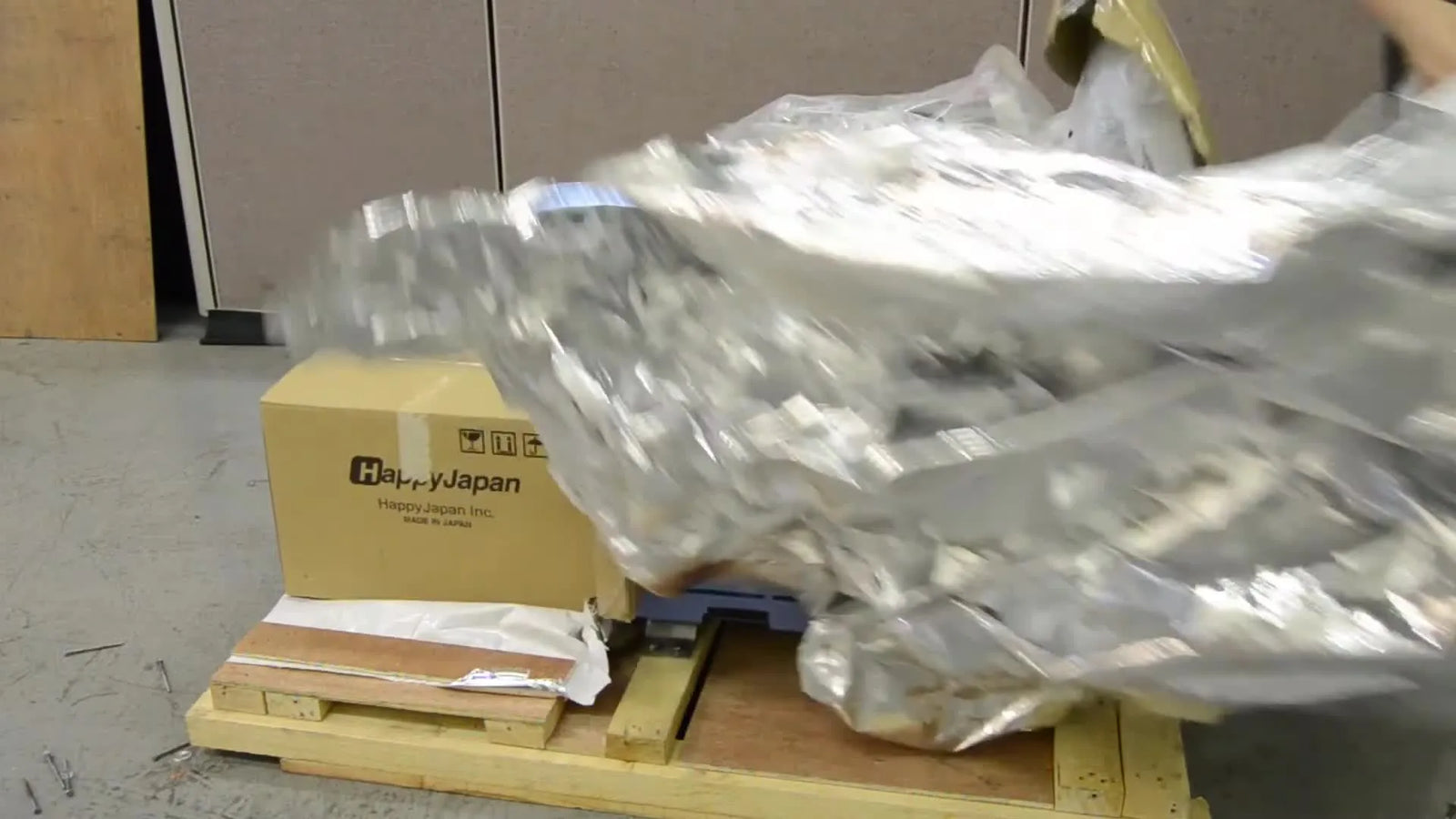

The moment you finally see the machine: removing heat-shrink wrap with a utility knife (no scratches)

Your machine arrives with heavy-duty heat shrink sealed around it. It looks tough, but the paint underneath is pristine and vulnerable.

The Safe Cut Protocol

1. Locate the Air Gap: Find a spot near the very bottom where the wrap is loose.
2. Pull Away: Pull the plastic away from the machine with one hand to create tension.
3. The Glide: Touch the blade to the tense plastic. You shouldn't need to slash; a sharp blade will "unzip" the plastic with barely any pressure.
4. Hood Peel: Peel the wrap upward like removing a hoodie.

My shop rule: If your blade tip is pointing at the machine, you are wrong. Check your grip. Paint damage during uncrating is the #1 reason for "new machine" buyer's remorse.

Inventory like a production shop: identifying the three HappyJapan accessory boxes (hoops + cap kit)

Once the wrap is off, cut the strapping bands. You will find three specific boxes. Don't pile them up; stage them.

1. General Equipment Box: Contains grease, oil, screwdrivers, and thread guides. (Keep this near the machine).
2. Hoop Box (Large Flat): Contains the standard 16 x 24 plastic hoops.
3. Cap Kit Box: Contains the driver, gauge, and frames.

What I recommend (The "Mise en place" method)

• Label instantly: Use a marker to write the machine serial number on the cap driver box. In a multi-machine shop, mixing these up later causes fitment headaches.
• Check the Cap Driver: Open the cap kit and visually inspect the rings. If you plan to do hats, ensure the cap hoop for embroidery machine system looks straight and the wire is tensioned correctly (it should feel like a tight guitar string, not loose).






The “free the feet” step: removing 17mm lag screws and L-brackets (shipping anchors) at all four corners

The machine is married to the pallet via 17mm lag screws and heavy steel L-brackets.

What to do (The switch)

1. Swap your impact driver bit to a 17mm socket.
2. Remove the lag screws securing the L-brackets to the wood.
3. Crucial Step: Remove the bolts attaching the L-bracket to the machine feet. Take the bracket completely off and put it in your trash/recycle bin.

Checkpoint: run your hand around all four feet. If you feel any steel bracket touching a foot, stop. If you lift with a bracket attached, you will gouge your stand or bend the foot leveling bolt.

Expected outcome: You can wiggle the machine slightly. It is now floating free on the pallet.

The four-person lift that keeps the base from skating: moving the HCU-1501 onto the wheeled stand

This is the moment of truth. The HCU-1501 is dense. The video diagrams three key safety points: Lock wheels, grip correctly, use four people.

Setup (The "Pre-Flight")

• Brakes On: Lock the caster brakes on the metal stand. Kick them to verified they are locked.
• Orientation: Ensure the stand's front (cutout for the pantograph) matches the machine's front.
• Team: Assign 4 people. One per corner. Designate one "Captain" to count "1-2-3-Lift."

The Lift & The "Skating" Phenomenon

• Lift using the rubberized handholds under the base.
• Walk it over and lower it slowly.
• The Sensation: Metal-on-metal feels like ice. Once the machine touches the stand, it will want to slide ("skate") instantly. Do not let go until it is centered over the bolt holes.

Warning: Pinch Point Hazard. When lowering the machine, keep fingers on the rubber grips only. Never curl fingers under the metal chassis edge. If the machine skates, it acts like a guillotine against the stand metal.

Setup Checklist (The "Safe to Walk Away" Check)

• Stand wheels were locked during lift.
• Machine is centered on the stand; bolt holes line up (look for light through the holes).
• All 4 leveling feet are touching the stand surface (no rocking).
• Secure the machine to the stand using the provided hex bolts (hand tight, then wrench tight).
• Power cord is inspected for nicks before plugging in.

The “why it went wrong” section: two common uncrating failures and how to prevent them

I see these two issues on about 20% of self-installs.

Problem 1: The "Guillotine" Crossbrace

• Symptom: You remove the last screw, and the internal wood brace drops, smashing the tension assembly or scratching the head.
• Likely Cause: Trusting friction to hold the wood.
• Prevention: Use your shoulder or a helper to hold upward pressure on the brace while undoing the last screw.

Problem 2: The "Ghost" Vibration

• Symptom: The machine runs loudly or vibrates excessively weeks later.
• Likely Cause: The machine wasn't bolted tightly to the stand after the lift, or one rubber foot isn't touching.
• Prevention: After the lift, tighten the stand bolts until you feel significant resistance. The machine and stand must act as one solid mass.

One comment I hear a lot: touchscreen presses the wrong button—what to do

New owners often panic when they press "Home" and the machine hits "Trace."

Before you call tech support, assume it's Standard Static or Calibration.

1. Peel the film: Ensure the protective plastic is off the screen.
2. Clean Power: Plug into a dedicated outlet or surge protector, not an extension cord.
3. Reboot: Power cycle the machine.
4. Labeling: If you have multiple units, label this machine. Staff should know if a specific happy embroidery machine has a sensitive screen so they don't mash buttons in frustration.

The upgrade path: Moving from "Unboxing" to "Profitable Production"

Uncrating is just the entry fee. The efficiency of your shop relies on what happens after the machine is set up.

The standard plastic hoops included in the box are functional, but they are the primary source of "Hoop Burn" (shiny ring marks) and wrist fatigue.

Decision Tree: Do I need to upgrade my tools?

Use this logic flow to decide if you need to invest in accessories immediately.

START: Assessment of Workflow

1. Are you stitching onto thick items (Carhartt jackets, heavy hoodies)?
   • Yes: Standard plastic hoops may pop open or fail to hold tension. Recommended Upgrade: Magnetic Hoops (Level 2).
   • No: Proceed to next.
2. Are you doing production runs (50+ items of the same logo)?
   • Yes: Every second counts. Screwing/unscrewing plastic hoops will slow you down ~45 seconds per shirt. Recommended Upgrade: hooping station for embroidery + Magnetic Hoops.
   • No: Stick with the included hoops and master your manual masking technique.
3. Do you have multiple machine brands?
   • Yes: If you have Tajima or Brother machines alongside your Happy, look for magnetic embroidery hoops that offer interchangeable brackets so you can swap hoops between machines.
   • Specifics: For this specific machine, search for magnetic hoops for happy embroidery machine to ensure the arm width is correct (Happy arms are wider than some home machines).

Warning: Magnetic Field Hazard. Powerful magnetic hoops (like MaggieFrame or SewTech) have immense clamping force.
* Pinch Hazard: They can crush fingers instantly if not handled by the edges.
* Medical Safety: Keep at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Do not lay your phone or credit cards directly on the magnets.

Why the upgrade matters

In my experience, "bad embroidery" is usually just "bad hooping." When you switch to high-quality happy japan hoops or compatible magnetic frames, the fabric is held by vertical magnetic force rather than friction. This eliminates the "tug-of-war" that causes puckering.

Operation Checklist (Your First Run)

• Stability: Machine is bolted to stand, stand brakes locked.
• Oil: Verify the machine has been oiled (check the rotary hook—it's often dry from shipping).
• Needle Check: Ensure the pre-installed needle is straight and sharp (shipping vibrations can dull them).
• Hooping: If using magnetic hoops, ensure the brackets click firmly into the pantograph arms.
• Test: Run a "Trace" box before the first stitch to ensure you don't hit the hoop.

You have successfully navigated the most dangerous part of machine ownership. Now, threading the needle is the only thing standing between you and your first profitable stitch.

FAQ

• Q: What is the safest uncrating order for a HappyJapan HCU-1501 commercial embroidery machine to prevent crate collapse and paint damage?
  A: Follow a roof-first, then crossbeam, then panel-by-panel sequence so the crate never racks or drops onto the head.
  • Remove: Impact-drive the crate roof lag bolts first and lift the roof off flat.
  • Support: Hold the internal crossbeam with a hand (or helper) while removing the final bolt, then lower the beam gently.
  • Tear down: Remove side walls one panel at a time by leaning the top outward, then lifting up off the bottom cleats.
  • Success check: The crate panels come off without loud creaking/racking, and nothing contacts the silver-wrapped machine head.
  • If it still fails: Stop prying and look for a missed fastener or binding pressure, then relieve pressure by slightly shifting the panel before continuing.
• Q: What tools and sockets are needed to uncrate and free the feet on a HappyJapan HCU-1501 embroidery machine without rounding bolts?
  A: Use an impact driver with a 10mm socket for crate lag bolts, then switch to a 17mm socket for the shipping anchors at the feet.
  • Stage: Set out an impact driver (charged), 10mm deep socket (preferred), 17mm socket, and a fresh utility knife blade.
  • Seat: Push the socket fully onto the bolt head before pulling the trigger to prevent wobble and rounding.
  • Manage binding: If a bolt whines but won’t back out, reverse slightly, relieve panel pressure by nudging the wood, then drive again.
  • Success check: Bolts back out with steady “impact” rhythm, and bolt heads remain crisp—not shiny/rounded.
  • If it still fails: Switch to hand tools for better feel and confirm the wood panel is not pinching the bolt shank.
• Q: How do I remove heat-shrink wrap from a new HappyJapan HCU-1501 embroidery machine with a utility knife without scratching the paint?
  A: Cut only tensioned plastic that is pulled away from the body, starting from a loose air-gap near the bottom—never cut toward the machine.
  • Find: Locate an air gap where the wrap is loose near the base.
  • Pull: Pull the plastic away from the machine to create tension before touching the blade to the plastic.
  • Glide: “Unzip” the wrap with minimal pressure, then peel upward like removing a hoodie.
  • Success check: The plastic opens cleanly with light blade pressure and the knife tip never points at painted surfaces or cables.
  • If it still fails: Replace the blade—dull blades force you to push harder, which is when slips and scratches happen.
• Q: How do I remove the 17mm lag screws and L-brackets (shipping anchors) on all four corners of a HappyJapan HCU-1501 before lifting onto the stand?
  A: Remove both the wood-side lag screws and the machine-foot bolts so every L-bracket is completely off before any lift.
  • Swap: Change to a 17mm socket and remove lag screws holding each L-bracket to the pallet.
  • Unbolt: Remove the bolts attaching each L-bracket to the machine feet and take the brackets fully away.
  • Verify: Run a hand around all four feet to confirm no steel bracket is still touching any foot.
  • Success check: The machine can wiggle slightly on the pallet and no metal bracket remains near the leveling feet.
  • If it still fails: Re-check each corner—missing one bracket is common and can gouge the stand or bend a leveling bolt during lifting.
• Q: How do I lift a HappyJapan HCU-1501 embroidery machine onto a wheeled stand without the base “skating” and pinching fingers?
  A: Use a four-person lift with locked caster brakes, keep hands on the rubberized grips only, and don’t release until the base is centered over the holes.
  • Lock: Engage stand caster brakes and physically kick-test that the wheels are locked.
  • Assign: Use four people (one per corner) and one captain to count “1-2-3-Lift.”
  • Control: Lower slowly and keep fingers on rubber handholds—never curl fingers under the metal chassis edge.
  • Success check: The machine settles centered, bolt holes line up (you can see light through), and the stand has no rocking with all feet contacting.
  • If it still fails: Lift again and re-center—metal-on-metal can slide like ice, so treat contact as a “skate zone” until bolts are installed.
• Q: Why does a HappyJapan HCU-1501 commercial embroidery machine vibrate loudly weeks after installation, and how do I stop the “ghost vibration”?
  A: Re-check stand mounting and foot contact—most “ghost vibration” is from loose stand bolts or one rubber foot not fully touching.
  • Tighten: Torque the machine-to-stand bolts until you feel significant resistance so the stand and head act as one solid mass.
  • Inspect: Confirm all four leveling feet are contacting the stand surface with no rocking.
  • Confirm: Verify the stand was correctly oriented (front cutout aligned to the machine’s front) and hardware is fully seated.
  • Success check: Vibration and noise drop noticeably, and the machine feels like one rigid unit when you push lightly on the head.
  • If it still fails: Power down and re-check for any leftover shipping hardware or brackets; if everything is solid, consult the machine manual or service for next checks.
• Q: Why does the HappyJapan HCU-1501 touchscreen press the wrong button (for example, Home triggers Trace), and what should I do first?
  A: Treat it as static or calibration behavior first—remove the protective film, use clean power, and reboot before assuming a hardware fault.
  • Peel: Remove any protective plastic film from the touchscreen.
  • Power: Plug into a dedicated outlet or surge protector (avoid extension cords for setup).
  • Reboot: Power-cycle the machine and test button response again with deliberate taps.
  • Success check: Button presses match the on-screen selection consistently after reboot and stable power.
  • If it still fails: Mark the unit for staff awareness and contact support with the symptom details after confirming the film is off and power is clean.
• Q: When should a HappyJapan HCU-1501 owner upgrade from standard plastic hoops to magnetic embroidery hoops for thick garments or production runs?
  A: Upgrade when standard hoops slip, cause hoop burn, or slow production—start with technique, then magnetic hoops, then consider capacity upgrades if volume demands it.
  • Diagnose: If thick items (heavy hoodies/jackets) pop open or won’t hold tension, that is a hoop-hold limitation.
  • Optimize: Refine manual hooping first if runs are small and fabric behaves consistently.
  • Upgrade tools: Move to magnetic hoops (and a hooping station for repeated runs) when speed and consistent clamping matter.
  • Success check: The fabric holds firmly with less tug-of-war, hoop burn decreases, and hooping time per item drops in repeat work.
  • If it still fails: If throughput is the bottleneck even with faster hooping, plan a production-capacity upgrade path based on actual run size and staffing.
