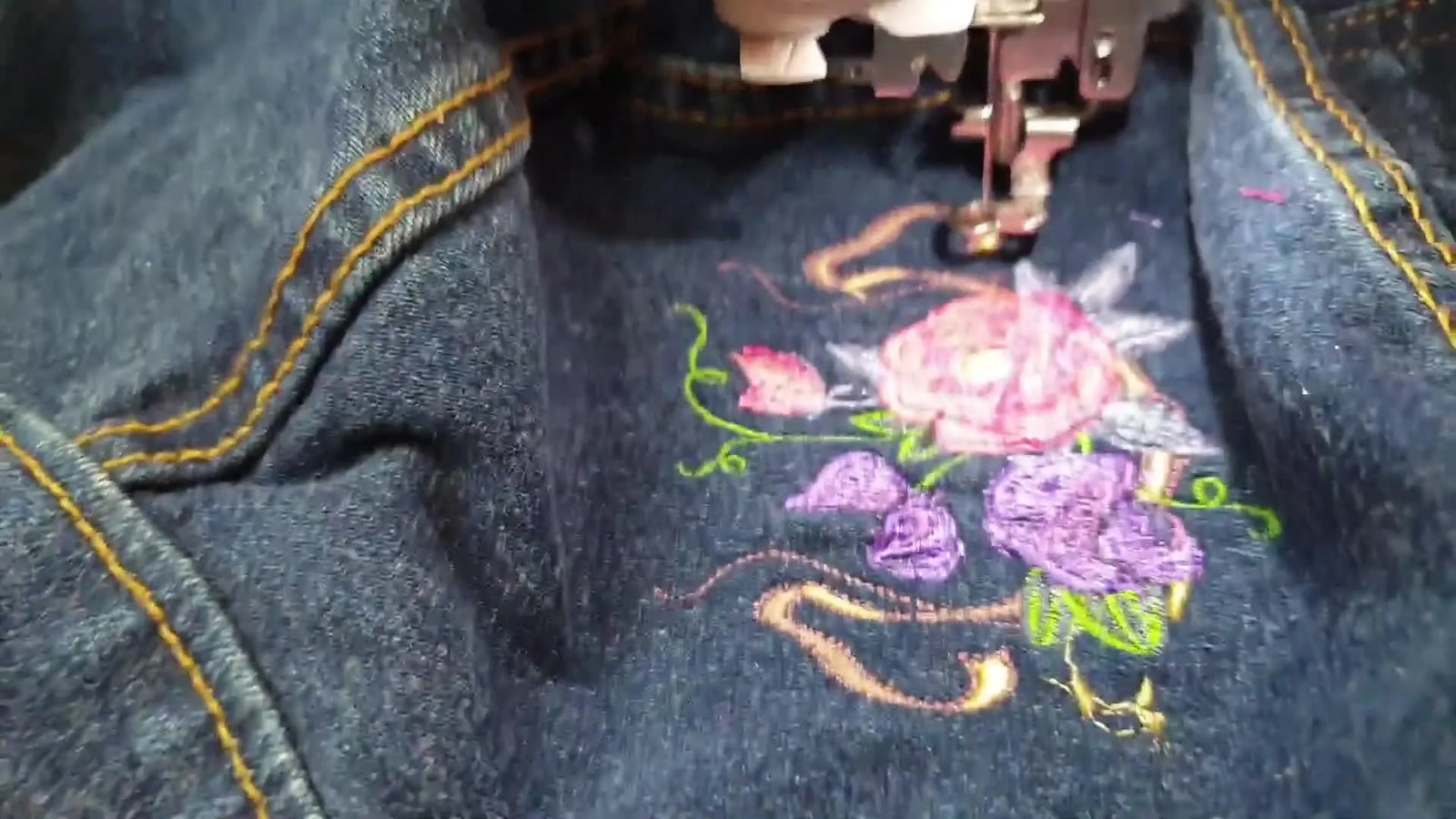

Upcycling a Heavy Denim Jacket on the Brother SE600: Floating the 4x4 Hoop Without Tears (and How to Mirror the Second Shoulder)

The Art (and Science) of Embroidering Denim: A Masterclass in Floating, Stabilizing, and Recovery

A heavy denim jacket is one of the most satisfying upcycling canvases—and one of the fastest ways to learn what your hooping method can (and can’t) tolerate. The fabric is unforgiving, the seams are bulky, and the emotional stakes are often high because the garment is usually sentimental.

In the reference video, the creator takes a beloved 20-year-old denim jacket and stitches a floral design on the shoulder using a Brother SE600, a standard 4x4 hoop, stabilizer, and multiple thread colors. The key technique used is floating: hooping only the stabilizer, then laying the jacket on top instead of forcing thick denim into the hoop frames.

That method works—but only if you respect the physics of the machine. The jacket’s weight can drag, the stabilizer can rip (as seen in the video), and the design can shift if you walk away.

This guide acts as your safety net. I will break down exactly how to replicate this technique safely, how to recover when the stabilizer tears mid-design, and how to calibrate your machine to handle the heavy lifting.

The “Don’t Panic” Primer: Why a Brother SE600 Denim Jacket Stitch-Out Can Go Sideways (and Still Finish Beautifully)

Denim feels tough, so novices assume it’s “easy” to stitch. The truth is quite the opposite: the fabric is tough, but the setup is vulnerable. This is especially true when you are floating a 2lb jacket over a light 4x4 hoop mechanism.

Here is the physics of what happens in the video:

1. The Lever Effect: A heavy garment hanging off the edge of your table acts like a lever. Gravity pulls the jacket down, which pulls the hoop away from the needle.
2. The Weak Link: Since you are floating (not clamping the fabric), the only thing holding the jacket to the machine is the stabilizer and your temporary adhesive or pins.
3. The Failure Point: If the drag from the jacket exceeds the tear strength of the stabilizer, the stabilizer rips, and your design shifts.

The good news? Even after a catastrophic stabilizer rip, you can stop, re-hoop, back up stitches on the SE600, and continue seamlessly.

The “Hidden” Prep Pros Do First: Stabilizer Strength, Needle Choice, and a Clean Work Zone for a 4x4 Hoop

Before you even touch the touchscreen, you must engineer a setup where the jacket cannot sabotage the stitch quality.

The creator in the video hoops only the stabilizer first, then floats the jacket on top. This puts 100% of the structural integrity on the stabilizer. A viewer comment asked the critical question: “My tear away paper keeps tearing. Do I need it with the jeans material?”

The answer is yes. Denim does not eliminate the need for stabilizer; denim hides distortion until it is too late. The stabilizer is the foundation that prevents "tunneling" (where the fabric puckers around the design).

The "Hidden" Consumables

To succeed with denim, you need more than just thread. Ensure you have:

• Jeans/Denim Needles (90/14): A standard 75/11 needle may deflect or break on thick denim seams. A 90/14 has a sharp point and a reinforced shaft.
• Temporary Spray Adhesive (e.g., 505 Spray): When floating, you need friction. A light mist effectively glues the jacket to the stabilizer, preventing the shifting seen in the video.
• Heavy Cutaway Stabilizer: While the video uses tearaway ("paper"), for a heavy jacket, a Polymesh Cutaway is safer. It won't rip under the weight of the jacket.

If you are setting up a hoop for brother embroidery machine project on heavy denim, treat stabilizer selection like a load-bearing decision, not an afterthought.

Warning: Mechanical Safety Hazard. Keep scissors, fingers, and loose sleeves away from the needle area while the machine is running. In the video, the operator supports the denim with fingers near the hoop—do this gently, but maintain a "Red Zone" safety perimeter of at least 2 inches from the moving needle bar.

Prep Checklist (Do this before you load the design)

• Needle Check: Install a fresh 90/14 Denim Needle. Run your fingernail down the tip; if it catches, it's burred—replace it.
• Clearance Check: Ensure the jacket shoulder area is flat. Thick seams (like the yoke) can hit the presser foot and cause a collision.
• Bobbin Status: Ensure your bobbin is at least 50% full. Running out of bobbin thread on a thick denim jacket is a headache to fix.
• Table Support: Clear books or tools off the table to the left of the machine. You need that space to rest the jacket's weight.
• Adhesion: If floating, apply your spray adhesive or double-sided basting tape to the hooped stabilizer. It should feel tacky to the touch.


Floating the Brother SE600 Hoop Without Hoop Burn: Hooping Only Stabilizer, Then Laying the Jacket on Top

The video’s core method is the classic Floating approach. This is the antidote to "Hoop Burn" (the shiny, crushed ring left on fabric by tight plastic loops).

The Execution

1. Hoop the stabilizer: Place your stabilizer (preferably cutaway or heavy tearaway) into the standard hoop. Tighten the screw until the stabilizer sounds like a drumskin when tapped—thump, thump.
2. Apply adhesive: Lightly spray the stabilizer (in a box, away from the machine) or use basting pins.
3. Float the jacket: Place the jacket on top of the hooped stabilizer, smoothing it down starting from the center out.
4. Confirm the zone: Feel the inner ring of the hoop through the denim. Ensure your design area is centered.

This is exactly what many people mean by floating embroidery hoop—the garment isn’t clamped in the outer ring; it rests on top of the foundation.

Why this fails for beginners: The jacket is heavy. If the sleeves hang off the table, they pull the jacket. The stabilizer stays clamped, but the jacket slides across the adhesive.

The Fix: You must support the bulk. Roll up the excess jacket and clip it, or simply hold the weight with your hands (safely) so the stitch field remains "neutral."

The First Shoulder Stitch-Out on a Brother SE600: Clean Jump-Stitch Trimming and Smart Supervision

Once the design is running, the video shows two habits that separate “it stitched” from “it looks professional.”

1. Trim Jump Stitches Immediately

The creator uses small snips to cut the connecting threads between design elements right after they sew.

• The benefit: This prevents the foot from catching on a long loop and dragging the fabric.
• The visual: On dark denim, a stray light-colored thread caught under the next layer is permanently visible. Keep it clean.

2. Physical Weight Management

At around the stitching phase, the operator gently presses the denim near the hoop. This is not just "being careful"—it is Manual Tension Management.

• Sensory Check: Place your palms flat on the jacket, well away from the needle. You should feel the fabric vibrating but not pulling. If you feel a "tugging" sensation, the jacket is caught on something—stop immediately.


If you are learning hooping for embroidery machine work on bulky garments, the biggest upgrade you can make is simply staying with the machine. Never leave a denim jacket unattended on a domestic single-needle machine.

Setup Checklist (Right before you press Start)

• Position Verify: Use the "Trace" or "Check Size" button on your screen. Watch the foot travel the perimeter to ensure it doesn't hit a button or a thick seam.
• Weight Support: Are the sleeves resting on the table? If not, prop them up on books or a chair.
• Speed Limit: Lower your machine speed. If your machine goes up to 710 SPM (Stitches Per Minute), lower it to 400-500 SPM. Speed creates vibration; vibration creates shifting.
• Preview: Double-check orientation. Is the flower stem pointing down?


Thread Changes on the Brother SE600: Use the Color Preview to Avoid “Wrong Thread, Wrong Moment” Stress

The creator changes thread colors (gold, purple, green, pink) and calls out two practical points that save sanity.

First, check the bobbin. The SE600 has a transparent cover. Look for the white thread. If the visible spool looks thin (less than 1/4 inch of thread depth), change it before starting a dense color block. Running out mid-fill on denim often results in a "bird's nest" (tangled thread knot) underneath.

Second, use the Screen Preview. The screen tells you what the next block is.

• Strategy: If you see the next step is a satin outline (the final border), you know the design is almost done. This is the moment to be hyper-vigilant about fabric shifting, as outlines will reveal even 1mm of misalignment.


The Stabilizer Rip Disaster on a Floating Denim Jacket: What Caused It, and How to Recover Without Starting Over

This is the pivotal moment in the video: The Stabilizer Tears.

In the video, the creator explains the cause clearly: the jacket was heavy, they left the machine to run by itself, and gravity won. The jacket dragged, putting too much torque on the paper stabilizer, which shredded.

What’s happening mechanically?

When you float a jacket, the hoop is gripping only stabilizer. If the jacket drags, the needle is essentially acting like a saw, cutting through the paper stabilizer sideways. Once the paper rips, your registration (alignment) is gone.

The Recovery Protocol (Do exactly this order)

1. STOP: Pause the machine immediately. Do not try to "push" it back into place while sewing.
2. Assess: Remove the hoop. Carefully cut away the shredded stabilizer from the back of the jacket.
3. Re-Hoop: Hoop a fresh piece of stabilizer. Make it drum-tight.
4. Re-Float: Use adhesive to place the jacket back onto the new stabilizer.
   • Critical Step: You must align the needle exactly over the last completed stitch. Use the handwheel (on the right side of machine) to lower the needle manually to verify alignment before you lower the foot.
5. Backtrack: Use the SE600 stitch navigation (+/- buttons). The creator presses “-10” repeatedly to rewind about 50-100 stitches. This ensures the new thread overlaps the old, locking it in.
6. Resume: Start the machine at the slowest speed.


If you’ve ever searched for a brother se600 hoop fix after a mid-design failure, remember this: accurate recovery is better than a ruined jacket.

Warning: Magnetic Field Safety. If you choose to upgrade to magnetic frames to solve this clamping issue, treat them with extreme caution. They use industrial-strength magnets.
* Pinch Hazard: They can snap effective fingers instantly.
* Electronics: Keep them 6+ inches away from computerized machine screens, phones, and credit cards.
* Medical: Do not use if you have a pacemaker.

Decision Tree: Stabilizer Choice for Heavy Denim

Use this logic to avoid tears before they happen.

• Question 1: Are you clamping the denim inside the hoop rings?
  • YES: Standard Tear-away is acceptable because the hoop holds the fabric.
  • NO (Floating): Proceed to Question 2.
• Question 2: Does the design have dense fill stitches (high stitch count)?
  • YES: Use Fusible Cutaway (Polymesh). The "Cutaway" mesh will support the weight without ripping.
  • NO (Light outlines only): You can use Adhesive Tear-away (Sticky backing), but you must support the jacket weight.
• Question 3: Is this a production run (5+ jackets)?
  • YES: Upgrade to a Magnetic Hoop. It eliminates the need for floating and secures the denim directly.

The “Small Mistake” That Becomes a Design Choice: Fixing Orientation Before You Stitch (Rotate First)

Early in the video, the creator realizes they stitched the flowers without rotating them, meaning they sat at a weird angle. They incorporated it, but for the second shoulder, they fixed it.

The Lesson: "Measure twice, cut once" applies to digital files too. If you are working inside the limits of a brother 4x4 embroidery hoop design field, orientation mistakes are painful because you have zero margin for error.

The Visual Check: Before you stitch, take the plastic grid template that came with your hoop. Draw an arrow on it with a dry-erase marker indicating "Top." Place it on your jacket. Does it look right? Now match your screen to that arrow.

Mirror + Rotate on the Brother SE600 Touchscreen: Make the Second Shoulder Symmetrical (Without Re-Digitizing)

The video ends with a clear walkthrough of the SE600 interface for the second shoulder:

1. Mirroring: The creator uses the triangle icon (looks like two triangles facing each other) to flip the design horizontally. This ensures the flowers on the Left Shoulder mirror the Right Shoulder, facing the sleeve.
2. Rotation: They rotate the design 90 degrees so the "top" of the flower heads towards the neck (or sleeve, depending on preference).
3. Resize: They confirm the size is identical to the first one.


This feature saves you from needing computer software. You can perform basic composition edits directly on the screen.

The Upgrade Path That Stops Denim From Winning: When to Switch to Magnetic Hoops (and When a Multi-Needle Machine Pays You Back)

Floating is a clever workaround for casual upcycling, but it is a compromise. If you plan to do more jackets—or you’re trying to turn upcycling into a side hustle—your bottleneck is hooping time and "babysitting" time.

Here is the professional hierarchy of solutions based on your volume:

Level 1: The Hobbyist Fix (Current Setup)

• Scene: Doing 1 jacket a month.
• Solution: Use Floating + Spray Adhesive + Table Support. It costs nothing extra but requires 100% attention.

Level 2: The Tool Upgrade (Magnetic Hoops)

• Scene: You are fighting "Hoop Burn" on delicate fabrics or struggling to close the plastic hoop on thick denim seams. Your wrists hurt from tightening screws.
• Solution: Magnetic Embroidery Hoops.
  • Why: These use magnets to clamp the fabric automatically. You don't need to force an inner ring into an outer ring. You can clamp a thick denim jacket seam in 5 seconds without "floating," meaning less risk of shifting.
  • Search Intent: If you’re looking for a magnetic hoop for brother, ensure it is compatible with your specific machine arm width.

Level 3: The Production Upgrade (Multi-Needle)

• Scene: You have orders for 10 team jackets. Using a single-needle machine requires you to change threads 50 times (5 colors x 10 jackets).
• Solution: SEWTECH Multi-Needle Machines.
  • Why: You set up 10 colors at once. The machine trims its own jump stitches. The tubular arm allows you to slide the jacket on (like a sleeve) without the rest of the garment dragging on the table. This eliminates the "gravity drag" problem entirely.


The Clean-Finish Habit That Makes Upcycling Look Expensive: Trim, Inspect, and Match

After finishing, the creator performs the final cleanup. This is the difference between "Homemade" and "Handmade."

Final Quality Control Steps

1. The "Haircut": Use curved embroidery scissors to trim all jump stitches flush with the fabric.
2. Tear Away: If using tearaway, support the stitches with one hand while tearing the paper with the other. Do not yank the paper, or you might distort the stitches.
3. Heat Erase: If you used friction pens for marking alignment, use an iron (or hair dryer) to remove the marks.
4. Mirror Check: When doing the second shoulder, measure from the collar seam to the center of the design. Ensure it matches the first shoulder to within 1/8th of an inch.

If you are building a workflow around a repositionable embroidery hoop concept—where you need fast placement and minimal marking—consistency is your best friend.

Operation Checklist (End-of-Run QC)

• Trim Check: Are all jump stitches removed?
• Back Check: Is the bobbin thread looking like a "bird's nest"? (If so, check tension next time).
• Stabilizer Removal: Is all excess stabilizer removed cleanly?
• Symmetry: Do the Left and Right shoulders match in height and angle?

Denim upcycling is a high-reward skill. By respecting the weight of the fabric and upgrading your stabilization (or your tools), you can turn a thrift store find into a boutique masterpiece.

FAQ

• Q: How do I float a heavy denim jacket on a Brother SE600 4x4 hoop without the stabilizer tearing?
  A: Use a stronger stabilizer + adhesive, and eliminate garment drag before you press Start—this is common and fixable.
  • Switch to a heavy cutaway stabilizer (polymesh cutaway is a safer choice for floating than light tear-away “paper”).
  • Apply temporary spray adhesive (or basting tape/pins) to the hooped stabilizer so the jacket cannot creep.
  • Support the jacket weight on the table (roll/clip excess fabric; do not let sleeves hang off the edge).
  • Slow the Brother SE600 down to about 400–500 SPM to reduce vibration and shifting.
  • Success check: the jacket feels “neutral” (vibrating but not tugging) and the stabilizer stays intact with no sideways ripping.
  • If it still fails: stop and re-evaluate drag points—something is catching or hanging, increasing torque on the stabilizer.
• Q: What stabilizer should be used for floating denim on a Brother SE600 when tear-away keeps ripping mid-design?
  A: When floating denim (hooping only stabilizer), move from tear-away to a cutaway support so the stabilizer becomes truly load-bearing.
  • Choose polymesh cutaway (or fusible cutaway) when the design is dense or the garment is heavy.
  • Use adhesive tear-away only for lighter stitch-outs, and only if the jacket weight is fully supported.
  • Hoop the stabilizer drum-tight before floating the jacket on top.
  • Success check: the stabilizer does not shred around the needle path and the design stays registered without shifting.
  • If it still fails: reduce speed and improve table support—stabilizer strength cannot compensate for uncontrolled garment drag.
• Q: How do I re-hoop and continue an embroidery design on a Brother SE600 after the stabilizer rips during floating?
  A: Stop immediately, re-hoop fresh stabilizer, re-align to the last stitch, then back up stitches before resuming—starting over is usually unnecessary.
  • Press Pause/Stop and remove the hoop; cut away shredded stabilizer from the jacket back.
  • Hoop a new piece of stabilizer drum-tight, then re-float the jacket using adhesive.
  • Align the needle exactly over the last completed stitch and verify alignment by manually lowering the needle with the handwheel before stitching.
  • Backtrack using the Brother SE600 stitch navigation (use “-10” repeatedly to rewind roughly 50–100 stitches) so new stitches overlap and lock in.
  • Success check: the restart overlap is clean and the outline/fill lines up with no visible “step” or offset.
  • If it still fails: back up a little more and restart at the slowest speed—outline steps are the most sensitive to 1 mm misalignment.
• Q: What needle and pre-checks help prevent needle deflection, collisions, or poor stitch quality when embroidering thick denim on a Brother SE600?
  A: Start with a fresh 90/14 denim needle and do clearance + bobbin checks before loading the design—denim seams can cause collisions.
  • Install a new 90/14 jeans/denim needle; replace it if the tip feels burred when you run a fingernail across it.
  • Flatten the shoulder area and confirm thick seams (like the yoke) will not hit the presser foot during stitching.
  • Verify the bobbin is at least 50% full before a dense section to avoid mid-fill thread-out problems.
  • Use the SE600 “Trace/Check Size” function to ensure the stitch field won’t strike a button, seam ridge, or bulky fold.
  • Success check: the trace runs smoothly without contact, and stitching sounds consistent (no repeated thunks from seam strikes).
  • If it still fails: reposition the design away from bulky seam intersections or reduce bulk by choosing a flatter zone on the jacket.
• Q: How can I prevent wrong color changes and bobbin run-outs during multi-color embroidery on a Brother SE600 denim jacket?
  A: Use the Brother SE600 screen preview to anticipate the next block, and change the bobbin early—denim makes mid-block failures harder to hide.
  • Check bobbin level through the transparent cover; replace it before starting a dense color block if it looks low.
  • Confirm the next step on the color preview so the correct thread is loaded before you commit to an outline or final border.
  • Trim jump stitches as you go so long loops cannot catch and drag the fabric on the next pass.
  • Success check: no unexpected stops, no light thread tails trapped under dark stitches, and outlines land cleanly on the edges.
  • If it still fails: slow down and supervise closely—denim floating requires babysitting, especially near the final outline.
• Q: What is the safest way to manage fabric weight while a Brother SE600 is stitching a floated denim jacket (to prevent shifting and injuries)?
  A: Support the jacket’s weight without putting fingers near the needle—keep a strict “red zone” around the moving needle bar.
  • Keep scissors, sleeves, and hands at least 2 inches away from the needle area while the machine is running.
  • Support the garment bulk on the table (or prop sleeves up) so gravity is not pulling the hoop field sideways.
  • If you must steady the fabric, place palms flat well away from the hoop opening and stop immediately if you feel tugging.
  • Success check: the fabric vibrates but does not pull, and the stitch path stays centered without creeping.
  • If it still fails: pause and re-stage the garment—weight management problems usually come from something hanging off the table edge.
• Q: What magnetic hoop safety rules should be followed when upgrading from floating to magnetic embroidery hoops for denim projects?
  A: Treat magnetic hoops as industrial tools: prevent pinch injuries and keep magnets away from sensitive electronics and medical devices.
  • Keep fingers clear when closing the frame; magnets can snap shut fast and pinch hard.
  • Store and handle magnetic hoops at least 6 inches away from computerized screens, phones, credit cards, and similar items.
  • Do not use magnetic hoops if the operator has a pacemaker.
  • Success check: the hoop closes in a controlled way with no sudden snapping near fingers, and the work area stays clear of electronics.
  • If it still fails: switch back to floating until safe handling is consistent—speed is not worth an injury.
• Q: For denim jacket embroidery, when should a user move from floating on a Brother SE600 to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Use a tiered upgrade based on the real bottleneck: shifting risk and babysitting time (floating), hooping pain and hoop burn (magnetic), or thread-change labor and volume (multi-needle).
  • Stay with floating if production is occasional and you can supervise the entire run with adhesive + table support.
  • Move to magnetic hoops if closing a plastic hoop on thick denim is difficult, hoop burn is a problem, or shifting happens because the fabric cannot be clamped reliably.
  • Move to a SEWTECH multi-needle machine when multiple jackets and many color changes make single-needle thread swapping and constant supervision the limiting factor.
  • Success check: hooping time drops, registration becomes repeatable, and the machine can stitch without constant intervention.
  • If it still fails: revisit stabilizer choice and garment support—upgrades help, but poor staging can still cause drag and misalignment.
