Upgrade a BERNINA 770 QE to PLUS Without Panic: Unbox the Kit, Generate the Activation Key, and Confirm Triple Stitch

If you’re staring at a brand-new BERNINA 770 QE PLUS Upgrade Kit and thinking, “This feels bigger than a normal firmware update,” you’re reading the right post.

I’ve spent over two decades in the embroidery industry, transitioning from single-needle home machines to managing multi-head production floors. I have watched experienced stitchers get tripped up by one tiny detail in this specific process—an address field, a long Machine ID, or that tricky alphabetical touchscreen keyboard—and suddenly the upgrade feels risky. It isn’t, as long as you treat it like a controlled surgical procedure: verify readiness, capture the right codes, generate the key once, and confirm the machine actually unlocked the features.

You aren't just installing software; you are unlocking a new tier of capability for your machine. This guide is your safety net, designed to remove the "fear factor" and get you back to stitching with new powers like Pinpoint Placement.

The BERNINA 770 QE PLUS Upgrade Kit: what you’re really installing (and why it’s not “just software”)

The video demonstrates upgrading a BERNINA 770 QE using the official PLUS Upgrade Kit. While the packaging looks simple, what you are doing is bridging the gap between hardware and advanced digital control. The kit unlocks specific firmware-gated functions—the host calls out game-changers like Pinpoint Placement and Triple Stitch—and also provides the physical accessories required to execute those new techniques.

This matters because your success depends on two things working together seamlessly:

1. Your machine’s base firmware must already be current enough to show the upgrade components in the menus. Think of this like building a foundation before adding the second floor.
2. The kit’s activation process is a one-time key generation tied to your specific machine. There is no "undo" button on the key generation, so accuracy is paramount.

From a production standpoint, this upgrade is about efficiency. If you are building an embroidery workflow where you frequently re-hoop quilt blocks or align logos on pre-made garments, features like Pinpoint Placement become a massive productivity lever. It allows you to digitally compensate for slightly crooked hooping—though, as we will discuss later, good hooping habits (and perhaps upgrading to magnetic frames) prevent the issue in the first place.

Unboxing the PLUS Upgrade Kit: confirm Foot #72S, couching inserts, and the Product Key card before you touch the menus

In the unboxing portion, Lucy opens the white BERNINA box. To the untrained eye, it’s just parts. To a pro, it’s a toolkit for texture. Inside, you will find a printed manual, the crucial Product Key card, couching inserts, and the Adjustable Ruler Foot #72S.

The detail that seasoned operators appreciate immediately is the foot itself. It’s the “S” version of Foot #72. Why does this matter? The "S" stands for "Slit." The standard #72 ruler foot is a closed loop, meaning if you want to change feet, you have to cut your thread and re-thread the needle. The #72S has a strategic opening (slit) in the side. This allows you to slip the thread out without cutting it when you are swapping between ruler work and standard embroidery. It is a small design choice that saves you 30 seconds every time you switch setups—and over a year, those minutes add up.

Before you do anything else, physically verify these items are present on your worktable:

• Printed instructions/manual: Do not throw this away; it contains the URL you need.
• Product Key card: This is unique to your kit. If you lose this, you have lost the upgrade.
• Foot #72S: Check for the slit to ensure you have the updated version.
• Couching inserts: Located in the blister pack.

Why I’m picky here: Once you start the activation flow on the computer, you do not want to stop midstream because you are hunting for the card under a pile of fabric scraps.

Prep Checklist (do this before powering into the upgrade screens)

• Locate the Product Key card: Place it directly next to your laptop keyboard.
• Clear your workspace: Remove any thread snips or fabric that could cover your notes.
• Prepare a "Hidden Consumable": Have a fine-point pen and a notepad ready. Do not trust your memory for 20-character codes.
• Schedule the time: Plan for a calm 20-minute window. Do not do this while a customer is waiting or dinner is cooking.
• Verify Internet: Ensure your laptop has a stable connection for the activation portal.

The “Hidden” prerequisite on the BERNINA 770 QE firmware screen: the Upgrade button is your green light

Lucy’s first operational checkpoint is not the website—it’s the machine screen. Many users rush to the computer first, generate a key, and then realize their machine has nowhere to input it.

She presses Home, then navigates to Settings (gears icon), selects Machine, and touches Information (the “i” icon). This brings up the version list.

Her practical rule is simple and critical: You must already have the latest base firmware installed to see the upgrade-related buttons. If your machine is running older software, the "Upgrade" option simply won't exist.

Before proceeding, look at your screen.

• Do you see the Upgrade icon? (It usually looks like a box with an arrow or a plus sign, depending on previous versions).
• Is the "Activate" button visible inside that menu?

If you don’t see what she sees, stop. Do not force the process. In real-world service work, “missing menu items” almost always means the base firmware isn’t where it needs to be yet. You need to perform a standard firmware update (via USB stick) before you can apply the PLUS upgrade.

Warning: Don’t attempt any disassembly, forced button presses, or “random tapping” on the touchscreen while you’re troubleshooting menus. When the machine is on, needles, presser feet, and the embroidery module arm can move unexpectedly if you hit the wrong command. Keep hands clear of the needle area and follow your machine manual for safe states.

Find the BERNINA 770 QE Machine ID: capture it cleanly, because one character off means the key won’t match

The video shows Lucy navigating to the ID tab in the machine settings to locate the long alphanumeric Machine ID. This is the fingerprint of your specific robotic system.

This is one of those moments where experience beats enthusiasm. Treat the Machine ID like a bank routing number. If you get it wrong, the activation key generated by the server will belong to a machine that doesn't exist, and it will not work on yours.

My best practice for capturing this ID:

1. Write it down manually first.
2. Read it backward to check for errors (this breaks the brain's tendency to "autocorrect" what it expects to see).
3. Watch for "Imposter Characters":
   • The letter O vs. the number 0 (Zero usually has a slash or is narrower).
   • The letter I vs. the number 1.
   • The letter S vs. the number 5.

If you are the type who does production embroidery, this is the same discipline you use when labeling thread charts or organizing backing rolls: accuracy now prevents wasted time later.

Generate the Activation Key on the BERNINA website: avoid the address-field trap and keep the Product Key card in view

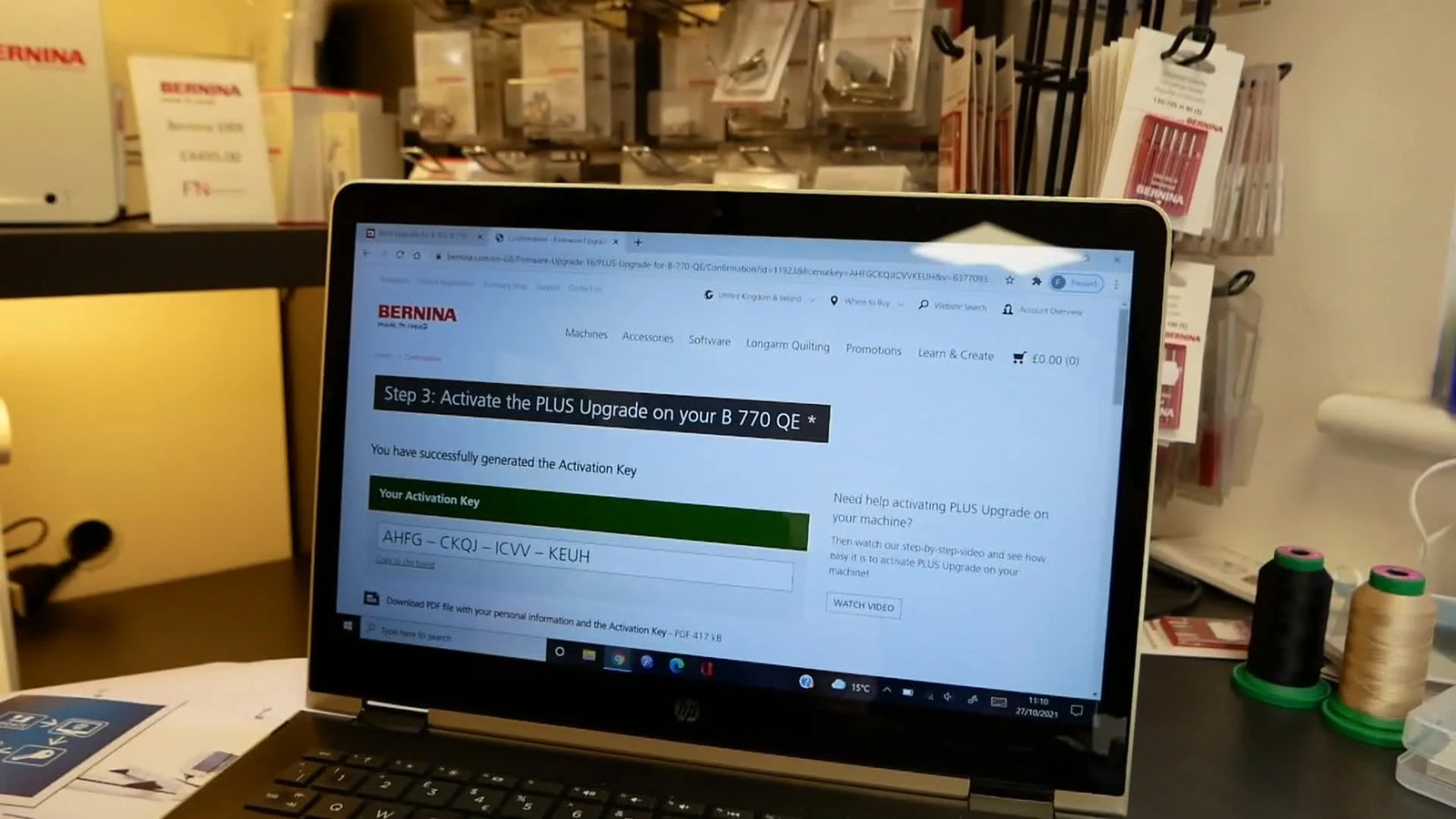

Lucy switches to a laptop, opens the activation URL provided in the manual, and fills in the web form. This requires your personal details, the gathered Machine ID, and the Product Key from the card in the box.

She demonstrates a real-world hiccup that frustrates hundreds of users: a form validation error related to address formatting.

In the video, the form rejects her address. She corrects the issue by strictly separating the street number (e.g., "123") and street name (e.g., "Main St") into the form’s dedicated, separate fields. Many web forms are "smart" enough to parse this; this specific legacy form is strict.

Two veteran notes that will save you stress:

1. Obey the fields: If the form asks for "House Number" separately, do not type it in the "Street Name" box. Validation rules are rigid logic gates.
2. Slow down: The host explicitly notes this is a one-time process. You generally cannot re-generate a key for a different serial number once used.

Keep the Product Key card visible while typing. It’s remarkably easy to transpose characters when you glance away from the screen to the card and back. Use your finger to track the characters on the card as you type.

If you’re building a more efficient embroidery workflow long-term, this is also a good moment to document your upgrade details in a shop log (date, machine, kit used). In a multi-machine studio, knowing exactly which machine has which capabilities prevents confusion during production runs.

Activate the PLUS Upgrade on the BERNINA 770 QE touchscreen: the non-QWERTY keyboard is where most people slip

Back at the machine, Lucy presses the Upgrade button, selects Activate, and prepares to type the Activation Key (generated from the website) into the machine using the touchscreen.

Her key warning is gold, and I cannot stress this enough: The keyboard is alphabetical (ABCD...), not QWERTY.

Your hands are trained for QWERTY (like a computer or smartphone). When you see an ABCD keyboard, your muscle memory will betray you. You will instinctively reach for where a letter should be, and you will hit the wrong key.

• Sensory Check: Force yourself to "hunt and peck." Look at the letter, move your finger, press, and verify it appeared on the screen before moving to the next.

Here’s the checkpoint she shows on-screen: When the final character is entered correctly, the checkmark button turns green. This is your visual "Go" signal. If the check box remains grey, you have a typo.

After pressing the green check, the screen updates to show the upgrade is Enabled with a checkmark.

Setup Checklist (touchscreen activation done the safe, calm way)

• Navigation: Confirm you are in Upgrade → Activate (not in a network or setup menu).
• Format: Enter the Activation Key in the same grouped blocks shown on your laptop screen.
• Typing Method: Type slowly. Use a stylus if your fingers obscure the keys. Remember: ABCD Keyboard.
• Visual Confirmation: Look for the green checkmark to light up.
• Success Signal: Confirm the screen reads Enabled after processing.

Verify the upgrade worked: spot the Triple Stitch icon so you know the machine actually unlocked features

Trust, but verify. Lucy verifies success not by assuming, but by checking for the presence of the new tools. She exits settings, opens the stitch menu, selects a decorative stitch, and checks the stitch modification panel.

She points out the newly added Triple Stitch icon (three vertical lines). If this icon is present, the software handshake was successful. The machine now "knows" it is a PLUS model.

Operation Checklist (post-upgrade proof, not wishful thinking)

• Exit the Settings menu completely.
• Go to the Sewing/Embroidery mode.
• Select a standard decorative stitch.
• Open the "i" (Information) or stitch modification panel.
• Visual Check: Confirm the Triple Stitch icon is visible.
• Physical Check: Attach the #72S foot to ensure it fits and calibrates correctly.
• Log It: If running a business, label the machine as "PLUS Upgraded" so other operators know the features are available.

When the firmware update “deleted my straight stitch plate”: what that comment is really telling you

One commenter on the video reports that after updating firmware to V39.08.08, their machine “deleted” the straight stitch plate setting. This creates instant panic: "Did I break my machine?"

No. That kind of report usually points to a safety default reset. When firmware is updated, the machine often resets its "security settings" (which needle plate, which needle, and which foot are attached) to the safest possible configuration—usually the widest zigzag plate and a standard foot.

Practical response (without guessing beyond the video):

1. Don't panic. The physical sensor is likely fine.
2. Re-teach the machine: Go back into the Security Program (the icon that often looks like a needle plate or needle).
3. Select the Plate: Manually re-select the Straight Stitch Plate (0mm).
4. Listen: You might hear a small mechanical adjustment or just see the UI update.

If the option truly disappeared from the menu, then you contact dealer support. But 99% of the time, this is just the machine clearing its short-term memory during the reboot.

The “Why” behind smoother upgrades: treat activation like a production process, not a hobby moment

After 20 years around embroidery and sewing machines, I can tell you the upgrade itself is rarely the problem—workflow matches are.

Here’s what’s happening under the surface of this process:

• Identity Locking: Activation keys are identity-locked. The Machine ID + Product Key combination is a cryptographic handshake. It prevents piracy, but it demands precision.
• Human Error: Error clusters around transcription. Long codes + unfamiliar keyboards + time pressure is the classic recipe for failure.
• Verification: Seeing "Enabled" and then confirming a new icon (Triple Stitch) is the correct two-step proof.

If you run a studio, this is the same mindset you use for repeatable hooping: you don’t want “I think it’s straight” — you want a measurable checkpoint.

The upgrade path that actually pays off: pairing PLUS features with faster hooping and cleaner alignment

Once your 770 QE is upgraded, the real win is what you do next: reducing rework.

The PLUS upgrade gives you Pinpoint Placement, a feature that allows you to rotate and scale designs to fit a hoop that wasn't loaded perfectly straight. It's a lifesaver. However, relying on software to fix physical mistakes is slow. The better path? Fix the physical hooping process so you don't need to use Pinpoint Placement as often.

That’s where specific embroidery tool upgrades become the practical next step:

• Solve the Hoop Burn: If you frequently fight "hoop burn" (those shiny rings left on dark fabric) or struggle to hoop thick towels, a magnetic embroidery hoop is a massive upgrade. Unlike traditional thumb-screw hoops that rely on friction, magnetic hoops use vertical clamping force. This holds fabric securely without crushing the fibers violently.
• Size Matters: If you are trying to match a specific frame to your project size, knowing the bernina magnetic hoop sizes available for your machine helps you avoid buying a hoop that’s “almost right” but wastes stabilizer and creates drag.
• Snap vs. Magnet: If you’re currently using a rigid snap-style frame and want a different feel, some embroiderers compare options like a bernina snap hoop before committing to a magnetic system. However, for speed and wrist health, magnets are generally the professional choice.

A quick decision tree: choose stabilization + hooping approach based on fabric behavior

Use this as a practical starting frame of reference (always confirm with your machine and stabilizer manufacturer guidance):

Warning: Magnetic frames (like those from SEWTECH) use powerful industrial magnets. Pinch Hazard: Keep fingers clear of the mating surfaces; they snap together instantly. Medical Safety: Keep magnets away from pacemakers and implanted medical devices. Keep out of reach of children and away from magnetic media (credit cards, hard drives).

Production-minded efficiency: when a hooping station (or magnetic station) stops being “extra” and starts being ROI

In a hobby context, saving 30 seconds doesn’t feel like much. In a shop context, or even for an eager enthusiast, 30 seconds per shirt on a run of 20 shirts is 10 minutes of lost life.

If you are hooping the same garment style repeatedly (like left-chest logos on polos), a magnetic hooping station allows you to pre-measure and load garments identically every time. It reduces the variability between operators (or just between your "morning self" and your "tired afternoon self").

When you look at the market, systems like the hoops made hooping station or the industry-standard hoopmaster hooping station are popular because simpler alignment equals fewer mistakes.

Leveling Up Your Machinery: For studios scaling beyond one machine, this is also where multi-needle productivity starts to make sense. If you are routinely running long stitch-outs with 6+ colors, the Bernina 770 QE (while amazing) requires you to change threads manually. Adding a high-value multi-needle machine (like a cost-effective platform from SEWTECH) shifts you from "babysitting the machine" to "batch production." You press start, and the machine handles the color changes while you hoop the next item.

A final calm check: what success looks like on screen—and what to do if it doesn’t

When everything goes right, you’ll see:

1. Activation Key generated cleanly on the laptop.
2. Upgrade Activated on the machine screen.
3. Status showing Enabled.
4. Triple Stitch icon appearing in the stitch modification panel.

If something goes wrong, don’t spiral. Re-check the basics in this order (Low Cost to High Cost):

1. Firmware Readiness: Go back to settings. Did you definitely install the latest base firmware update first?
2. Transcription Check: Is the Machine ID copied correctly? (Check for O vs 0).
3. Typing Check: Did you type the key on the machine assuming a QWERTY layout? (It's ABCD).
4. Web Form: Did you separate the house number from the street name?

If you’re still stuck after checking these, pause. Contact your dealer or support. Do not simply keep generating keys or guessing codes.

You have invested in a serious machine. Now that you have unlocked its software potential with the PLUS kit, consider unlocking your own potential with the right stabilizers, magnetic hoops, and workflow habits. Happy stitching.

FAQ

• Q: What should be physically verified in the BERNINA 770 QE PLUS Upgrade Kit box before starting the activation process?
  A: Verify the Product Key card and Foot #72S are present before touching any menus, because the activation is one-time and interruption causes mistakes.
  • Check: Lay out the printed manual, Product Key card, couching inserts, and Adjustable Ruler Foot #72S on the table.
  • Confirm: Foot #72S is the “S / slit” version (side opening) rather than the closed-loop #72.
  • Prepare: Keep a fine-point pen and notepad next to the laptop for long codes.
  • Success check: You can read the Product Key clearly and visually confirm the slit on Foot #72S.
  • If it still fails… Stop and contact the seller/dealer before attempting activation if any key card/accessory is missing.
• Q: Why does the BERNINA 770 QE not show the PLUS Upgrade “Upgrade/Activate” button in Settings → Machine → Information?
  A: This is commonly caused by the base firmware not being updated to a version that exposes the upgrade menu, so the PLUS activation cannot be entered yet.
  • Do: Go to Home → Settings (gear) → Machine → Information (“i”) and confirm whether the Upgrade icon exists.
  • Do: Perform the standard firmware update (typically via USB) first if the Upgrade/Activate options are missing.
  • Avoid: Do not “random tap” menus while troubleshooting; keep hands clear because machine parts can move.
  • Success check: The Upgrade menu appears and includes an Activate option.
  • If it still fails… Pause and follow the machine manual or contact dealer/support, because missing menu items usually indicate readiness is not met.
• Q: How should the BERNINA 770 QE Machine ID be captured to prevent a PLUS Upgrade activation key mismatch?
  A: Treat the BERNINA 770 QE Machine ID like a bank number—one wrong character makes the generated key invalid for the machine.
  • Write: Copy the Machine ID manually first, then read it backward to catch “autocorrect” mistakes.
  • Compare: Double-check common imposters (O vs 0, I vs 1, S vs 5) before submitting on the website.
  • Keep: Use a notepad instead of relying on memory for long alphanumeric strings.
  • Success check: The Machine ID you wrote matches the screen character-for-character when re-checked slowly.
  • If it still fails… Re-enter the Machine ID on the website and regenerate only if the process allows; otherwise stop and contact support rather than guessing.
• Q: How can the BERNINA PLUS Upgrade activation website address fields cause validation errors, and how can that be fixed?
  A: If the BERNINA activation portal rejects the address, enter the house number and street name exactly into their separate fields because the form rules can be strict.
  • Enter: Put “123” only in the House Number field and “Main St” only in the Street Name field (do not combine them).
  • Slow down: Keep the Product Key card in view and track characters with a finger to avoid transposing.
  • Remember: The process is generally one-time, so accuracy matters more than speed.
  • Success check: The web form submits without the address error and produces an Activation Key.
  • If it still fails… Re-check field formatting (especially number vs name) and try again; avoid inventing abbreviations that the form may not accept.
• Q: Why do many users mistype the Activation Key on the BERNINA 770 QE touchscreen during PLUS Upgrade activation?
  A: The BERNINA 770 QE touchscreen uses an alphabetical (ABCD…) keyboard, not QWERTY, so muscle memory causes wrong letters.
  • Type: “Hunt and peck”—look at each character, press it, and confirm it appears before moving on.
  • Match: Enter the Activation Key in the same grouped blocks shown on the laptop.
  • Use: A stylus if fingers block the view of the on-screen keys.
  • Success check: The on-screen checkmark turns green only when the full key is correctly entered.
  • If it still fails… Backspace and re-enter slowly, then re-check for lookalike characters copied from the Activation Key.
• Q: How can BERNINA 770 QE owners verify the PLUS Upgrade actually unlocked features after activation?
  A: Do not rely on “Enabled” alone—verify by checking for the new Triple Stitch icon in the stitch modification panel.
  • Exit: Leave Settings completely and return to Sewing/Embroidery mode.
  • Select: Choose a decorative stitch and open the Information/modification panel.
  • Look: Confirm the Triple Stitch icon (three vertical lines) appears.
  • Success check: Triple Stitch icon is visible, confirming the machine recognizes the PLUS features.
  • If it still fails… Re-check that activation shows Enabled and that the key entry was correct; if menus/features still don’t appear, contact dealer/support.
• Q: After updating to BERNINA firmware V39.08.08, why does the BERNINA 770 QE seem to “delete” the Straight Stitch Plate setting?
  A: This is commonly a safety default reset after firmware updates, and the Straight Stitch Plate usually just needs to be re-selected in the security settings.
  • Don’t panic: Assume a reset first rather than a broken sensor.
  • Re-teach: Go into the Security Program (needle plate/needle-related safety menu) and manually select the Straight Stitch Plate (0 mm).
  • Confirm: Watch for the UI to update (and you may hear a small adjustment).
  • Success check: The Straight Stitch Plate option is selected again and the machine accepts the setting normally.
  • If it still fails… If the option truly disappeared from the menu, contact dealer support rather than forcing changes.
• Q: What is a practical “pain point → diagnosis → prescription” path after a BERNINA 770 QE PLUS Upgrade if hooping is still slow or leaving hoop burn?
  A: Use software features like Pinpoint Placement as a backup, but improve the physical hooping process first to reduce rework and alignment corrections.
  • Diagnose: If fabric is being crushed (shiny rings/hoop burn) or thick towels won’t hoop securely, the issue is often hooping pressure and handling time.
  • Optimize (Level 1): Slow down hooping, stabilize appropriately for the fabric behavior, and aim for repeatable alignment.
  • Upgrade tools (Level 2): Consider switching to magnetic hoops when frequent screw-tightening, thickness, or hoop burn is the recurring bottleneck.
  • Upgrade capacity (Level 3): If production volume and multi-color jobs are constant, a multi-needle machine can reduce manual thread-change babysitting.
  • Success check: Fewer re-hoops and less reliance on Pinpoint Placement for correcting crooked hooping.
  • If it still fails… Track where time is lost (hooping vs alignment vs thread changes) and address the biggest bottleneck first instead of changing multiple variables at once.
