When Your Brother Embroidery Machine Says a Tiny PES Design Is “Way Too Big”: The 4 Fixes That Actually Stick

Here is the revitalized guide, calibrated for zero cognitive friction, maximum safety, and professional-grade workflow optimization.

Brother owners know this particular kind of panic: you digitize or buy a design, everything looks normal on the computer, and then the machine either won’t see the PES at all or it claims your tiny motif is “way too big.”

As your Chief Embroidery Education Officer today, I want to reframe this moment. This is not a mechanical failure. Your machine isn’t broken. This is a translation error. It is a misalignment between the "language" your software speaks and the "dialect" your specific Brother machine understands.

This usually boils down to three invisible factors: file headers (PES version), machine profiles, and the silent killer—coordinate origins.

This post rebuilds Luciana’s workflow into a repeatable, standard operating procedure (SOP). We will turn this frustration into a checklist so reliable you could teach it to an apprentice on their first day.

The Calm-Down Check: What This Brother PES “Not Recognized / Too Big” Error Usually Means

If your brother embroidery machine suddenly refuses a file or shows an absurd size, stop. Do not force the hoop. Do not restart the machine three times. Assume compatibility and coordinates first.

Luciana’s video targets two common symptoms that plague both novices and pros:

• Symptom A (The Ghost File): The USB drive is in, but the machine shows an empty folder or does not list the PES file at all.
• Symptom B (The Giant Ghost): A design that is physically small (e.g., 29mm wide) is rejected by the machine as "Too Big for Hoop," even though you have a 4x4 or 5x7 hoop attached.

In the case study, the design was tiny—29.55 mm wide and 15.62 mm high. Yet, the machine saw it as a massive object illegible to the hoop boundaries.

The "Why" (Expert Insight): Industrial and domestic machines don’t just read the stitches; they read a Bounding Box. If your design is small, but it is located 200mm away from the software’s center (0,0), the machine calculates the "size" as Distance form Center + Design Width. It thinks the empty space is part of the job.

The “Hidden Prep” Pros Do First: Measure Once, Save Hours of Re-exporting

Before you touch a single export setting, we need to perform a "Pre-Flight Check." 90% of failures happen because the operator skips the physical set-up phase.

Prep Checklist (Do this BEFORE opening the software)

• Check the USB stick: Ensure it is formatted to FAT32 and is under 8GB (older Brother machines struggle with large, modern drives).
• Physical Hoop Check: Ensure you are using the correct hoop size for the machine's limit, not just the design size.
• Design Finalization: Confirm you are editing the final stitch file, not a vector draft.
• Measure Tools: Have a physical millimeter ruler on your desk (you will need this for the next step).
• Target Machine ID: Know exactly which model profile you need. Luciana targets the Brother Innov-is series.

Warning: The "Force It" Risk. Never try to bypass a "Too Big" warning by tricking the machine or centering the needle manually without fixing the file. If the machine thinks the design is outside the field, the pantograph (the arm moving the hoop) may slam into the hard limits, causing motor grinding or a snapped needle. Safety first.

The 70 mm / 43 mm Calibration Move: Fixing Screen Scale So Your Software Stops Lying

Luciana’s first fix is deceptively simple but critical for visual safety: calibrate the screen inside the embroidery software.

Why does this matter? If your software displays a 10cm line, but your physical ruler measures it as 12cm on the screen, your visual judgment is compromised. You cannot trust your eyes until you calibrate the digital environment to the physical world.

What Luciana does (The Sensory Calibration)

1. Go to Software Settings (usually under Options or Preferences).
2. Choose Calibrate Screen.
3. A dialog box with a bounding box or line will appear.
4. The tactile step: Take your physical plastic ruler and hold it directly against your computer monitor.
5. Measure the box on the screen exactly.
6. Enter those measured values into the fields.
   • Luciana inputs Width = 70 mm
   • and Height = 43 mm
7. Click OK.

Pro Tip: Even if you calibrated yesterday, if you changed your monitor resolution or updated the software version, do it again. It takes 10 seconds and eliminates "visual drift."

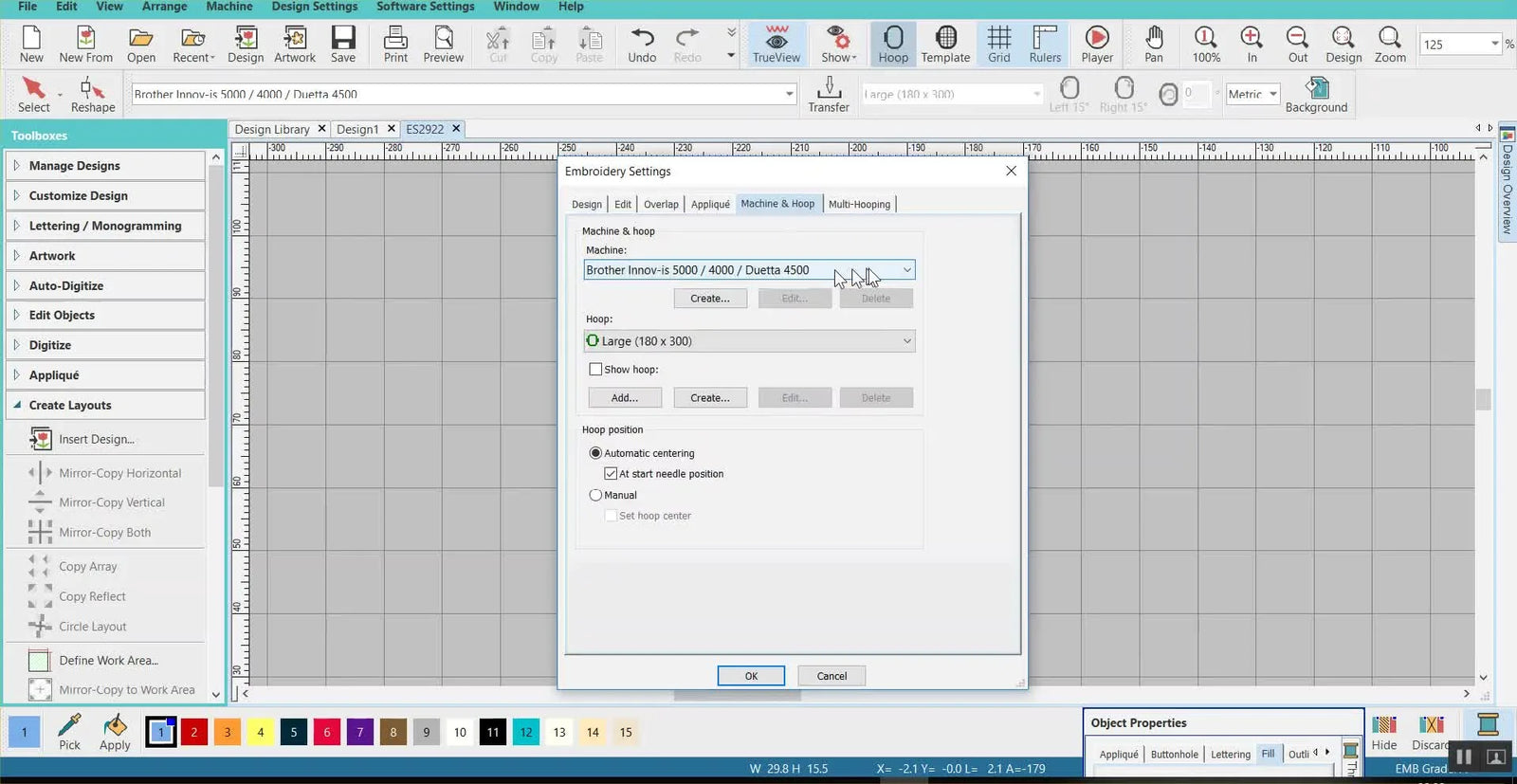

The Right-Click Hoop Trick: Forcing “Brother Innov-is” So the File Matches Real Machine Limits

Many beginners leave the hoop setting on "Default" or "100x100 Generic." This is dangerous because a "Generic" hoop often has a 0mm safety margin, while a Brother Innov-is profile usually builds in a roughly 2mm margin for the presser foot clearance.

Luciana shows that you must explicitly select the machine model to force the software to apply the correct "Safety Zone."

The Protocol

1. Locate the Hoop Icon in your software interface.
2. Right-click it (don't just click—right-click accesses the library).
3. Scroll through the machine list. Do not stop at "Brother Generic."
4. Select specific series: Brother Innov-is.
5. Click OK.

Why this fixes the error: The software now adds hidden metadata to the file header that tells the machine, "I know your limits, and I have respected your margins." This simple handshake often resolves the "Not Recognized" error immediately.

The PES v6 Rule: Exporting a Brother PES File That Older Readers Actually Understand

Technology moves fast, but embroidery machines are durable assets. A machine built in 2015 cannot read the complex data structures of a PES v10 file designed in 2024.

Luciana’s third fix is the industry gold standard for compatibility: Downgrade to Upgrade.

The Export Protocol

1. Go to File > Export Design.
2. In the save dialog, look for an Options or Settings button.
3. Check the "Save as type" dropdown. It likely defaults to PES version 10 or 11.
4. Change this to PES version 6.
5. Save the file.

Expert Note: You can go as low as version 4, but PES v6 is the "Sweet Spot." It supports modern trim commands and thread colors but strips out the complex data that crashes older processors. If you are doing professional hooping for embroidery machine tasks for clients, always deliver in v6 unless asked otherwise. It guarantees the file opens on 99% of Brother machines.

The Coordinate Trap That Makes Brother Think Empty Space Is Part of the Design

This is the "Aha!" moment. This is the distinct difference between a Graphic Designer and a Digitizer.

Luciana identifies a design sitting at X = -220.

The Physics of the Error: Imagine your machine's needle is at the center of the hoop (0,0). If your design is saved at -220mm (22cm to the left), the machine believes it must move the hoop 22cm left before it starts stitching. If your hoop only has 10cm of travel space, the machine calculates: Required Space > Available Space = ERROR.

How to spot the "Coordinate Trap"

• Visual Check: Look at your software grid. Is the design centered on the heavy crosshair lines? Or is it floating off in the white space?
• Data Check: Look at the X/Y coordinate fields at the bottom of the screen. If you see numbers like -150.00 or +220.00, you are in the trap.


The 0,0 Reset: Centering the Design So Brother Reads the True Size

Luciana’s fix is the only way to solve the "Too Big" error for small designs. You must re-zero the file.

The Fix

1. Select the entire design (Ctrl+A).
2. In the alignment tools, click Center to Design or manually type:
   • X = 0.00
   • Y = 0.00
3. Visual Confirmation: The design should snap directly to the center crosshair of the grid.
4. Export again (remembering the PES v6 rule).

The Result: The bounding box now equals the actual design size. The ghost space is gone. The machine will now read the file as 29mm wide, not 249mm wide.

Setup Habits That Prevent Repeat Errors (Especially When You Switch Software Versions)

Amateurs troubleshoot; professionals have routines. You need a "Setup Habit" that runs automatically in your brain every time you open a file.

Setup Checklist (The "Save Your Sanity" Routine)

• Screen Calibrated? (Re-check with ruler if software updated).
• Machine Profile Set? (Brother Innov-is selected, not Generic).
• Origin Centered? (Design is at X:0, Y:0).
• Sizing Correct? (Object size matches intended output, e.g., ~30mm).
• Export Version? (PES v6 selected).

The Physical Reality Check: Software perfection means nothing if the physical hooping is a struggle. If you find yourself constantly re-hooping because the fabric slipped, or if you can't get the specialized "Innov-is" parameters to line up with a generic hoop, the friction might be hardware-related.

Standard hoops rely on friction and screw tension. This causes "hooping fatigue" and fabric burns. When precision is key, upgrading to a magnetic embroidery hoop allows you to float fabric without ring burns, ensuring that the physical reality matches your perfect digital file.

A Quick Decision Tree: Is This a PES Version Problem, a Profile Problem, or a Coordinate Problem?

Print this out and tape it near your machine.

The "Why Will It Not Stitch" Decision Tree

START → Does the machine see the file on the USB?

• NO → It is a Format Issue.
  • Action: Check USB is FAT32 (under 8GB). Re-export design as PES v6.
• YES → Does the machine say "Design Too Big"?
  • NO → Proceed to stitch.
  • YES → It is a Coordinate Issue.
    • Check: Is the design physically larger than the hoop?
      • YES → Resize design or use larger hoop.
      • NO → Check Origin. Function: Move design to X:0 / Y:0. Re-export.


Troubleshooting Table: Symptom → Likely Cause → Fix You Can Trust

The Why Behind These Fixes (So You Don’t Keep Getting Burned)

I want you to understand the "ghost in the machine."

Machines are dumb calculators. They don't see "a cute flower." They see a stream of coordinates relative to a center point.

• Coordinate Math: (Distance from 0,0) + (Design Width) = (Total Travel Required).
• Version Parsing: Older processors choke on the "spaghetti code" found in newer file headers (v10).

Two practical “shop-floor” insights from 20 years of experience:

1. Software updates are dangerous. They often reset your defaults back to "PES v10" and wipe your calibration. Always check settings after an update.
2. Hooping is the variable. You can have a perfect file, but if you hoop slightly off-center on a standard hoop, you ruin the run.


The Upgrade Path: When This Becomes a Production Problem (and How to Buy Back Your Time)

If you are a hobbyist, troubleshooting is part of the fun. If you are a business, troubleshooting is lost revenue.

You need to know when to stop fighting the software/hardware and upgrade your toolkit. Here is the diagnostic path:

Scenario 1: The "Hoop Burn" Struggle

• Trigger: You are stitching on delicate performace wear or velvet, and the standard Brother hoop leaves a crushed "ring" mark aka 'hoop burn' that won't steam out.
• Judgment Standard: If you ruin 1 in 20 shirts due to hoop marks.
• The Upgrade: A magnetic hoop for brother.
  • Why: It uses vertical magnetic force rather than friction. It holds tighter without crushing the fibers. It solves the physical side of the "alignment" problem instantly.

Warning: High-Power Magnet Safety. Magnetic hoops (especially industrial grade) pinch hard. Keep fingers clear of the snapping zone. Crucially, keep them away from pacemakers, delicate electronics, and credit cards.

Scenario 2: The "Placement Paralysis"

• Trigger: You spend 5 minutes measuring each shirt to get the logo in the exact same spot.
• Judgment Standard: If hooping takes longer than the actual 5-minute stitch time.
• The Upgrade: A hooping station for machine embroidery.
  • Why: It creates a repeatable template. You slide the shirt on, drop the magnetic hoop, and go.

Scenario 3: The Single-Needle Bottleneck

• Trigger: You are standing over your Brother Innov-is changing thread colors manually every 2 minutes.
• Judgment Standard: If you cannot leave the machine to do other work (billing, shipping) because it needs constant babysitting.
• The Upgrade: A Multi-Needle Machine (like the SEWTECH value line).
  • Why: 10-15 needles mean you press "Start" and walk away for 20 minutes. It changes the economics of your business from "Labor Intensive" to "Automated."


Operation Checklist: The “Export, Transfer, Stitch” Routine That Keeps Brother Files Predictable

Run this immediately before you insert the USB drive.

Operation Checklist details

• Design Origins: Is the design locked to X0/Y0?
• Hoop Selection: Is the Brother Innov-is profile active?
• Format Safety: Is the file saved as PES v6?
• Filename Hygiene: Is the filename short (under 8 chars) with no special symbols (e.g., flower1.pes, NOT flower_final_v2_@.pes)?
• Consumables: Do you have a fresh needle (75/11 is standard) and the correct backing (Cutaway for knits, Tearaway for wovens)?

If you frequent the 4x4 field, a brother 4x4 embroidery hoop upgrade (specifically a magnetic version) can make these small, repetitive jobs significantly faster to load and unload.

The Bottom Line: Four Fixes, One Reliable Workflow

Luciana’s workflow is effective because it removes variables.

1. Calibrate: Make the screen match the ruler (70mm/43mm).
2. Define: Force the machine profile to Brother Innov-is.
3. Align: Reset everything to 0,0.
4. Translate: Export only as PES v6.

Master this digital hygiene, and you will find your machine stops throwing errors and starts throwing stitches.

FAQ

• Q: Why does a Brother Innov-is embroidery machine not recognize a PES file on a USB drive even though the file is saved correctly?
  A: Most of the time this is a USB format + PES version compatibility issue—use FAT32 and export as PES v6.
  • Format the USB stick to FAT32 and (for older Brother models) use a smaller-capacity stick.
  • Re-export the design and set the file type to PES version 6 in the export options.
  • Rename the file with a short, simple name (no special characters).
  • Success check: The Brother Innov-is screen shows the PES file in the folder list (not an empty directory).
  • If it still fails: Try a different USB stick and re-check that the export did not default back to a newer PES version after a software update.
• Q: Why does a Brother Innov-is embroidery machine say a small 29 mm design is “Too Big for Hoop” in a 4x4 or 5x7 hoop?
  A: This is commonly a coordinate-origin problem—center the entire design to X:0 / Y:0 and re-export.
  • Select the entire design (Ctrl+A).
  • Move/align the design to the exact center so the X and Y position reads 0.00 / 0.00.
  • Export again (preferably as PES v6).
  • Success check: After centering, the on-screen position snaps to the center crosshair and the machine no longer throws the “Too Big” warning.
  • If it still fails: Confirm the design is truly within the hoop size and that the correct Brother Innov-is hoop/machine profile is selected in software.
• Q: How do I set the correct Brother Innov-is hoop/machine profile in embroidery software so hoop limits and safety margins are accurate?
  A: Do not leave the hoop on “Generic”—explicitly select the Brother Innov-is profile via the hoop library.
  • Find the hoop icon in the software and right-click it to open the hoop/machine list.
  • Choose the Brother Innov-is series/profile (not “Brother Generic” or a generic 100x100 hoop).
  • Confirm the correct hoop size is selected for the actual hoop being used.
  • Success check: The hoop boundary and safety zone look realistic (not overly tight or strangely oversized) and the file exports without hoop-limit errors.
  • If it still fails: Re-check the design origin (X:0, Y:0) because a correct profile cannot fix a design saved far from center.
• Q: How do I calibrate the embroidery software screen using the 70 mm / 43 mm method so on-screen size matches a real ruler?
  A: Run the software’s screen calibration and enter the measured on-screen values (example: 70 mm width and 43 mm height) using a physical ruler against the monitor.
  • Open the software Settings/Options and choose “Calibrate Screen.”
  • Hold a millimeter ruler directly on the monitor and measure the calibration box/line on-screen.
  • Enter the measured values (Luciana’s example inputs were Width = 70 mm and Height = 43 mm) and confirm.
  • Success check: A known length on-screen matches the ruler closely, so visual sizing decisions are trustworthy.
  • If it still fails: Re-calibrate after any monitor resolution change or software update, because updates often reset display scaling.
• Q: Which PES version should be used to export files for older Brother Innov-is embroidery machines to avoid “Not Recognized” errors?
  A: Use PES version 6 as a safe compatibility default for most Brother Innov-is machines.
  • Export the design and open the export Options/Settings in the save dialog.
  • Change the PES version from newer defaults (often v10/v11) down to PES v6.
  • Save and transfer the file to a FAT32 USB drive.
  • Success check: The Brother Innov-is can see the file and load it without a compatibility warning.
  • If it still fails: Verify the machine profile is set to Brother Innov-is and confirm the design is centered at X:0 / Y:0 before exporting.
• Q: Is it safe to bypass a Brother Innov-is “Design Too Big” warning by forcing the hoop or manually centering the needle?
  A: No—do not “force it”; fix the file first to prevent hoop travel hitting hard limits and risking needle breakage or motor grinding.
  • Stop and diagnose: Treat the warning as a coordinate/profile/export issue, not a hooping technique issue.
  • Center the design to X:0 / Y:0 and re-export as PES v6.
  • Confirm the Brother Innov-is machine profile/hoop is selected in software before exporting.
  • Success check: The machine accepts the design without the “Too Big” warning and the hoop moves smoothly without hitting limits.
  • If it still fails: Re-check hoop size selection and do not run the design until the machine preview and limits look correct.
• Q: When repeated Brother Innov-is file errors or hooping problems keep wasting time, when should the workflow upgrade to a magnetic hoop or a multi-needle machine?
  A: Use a tiered approach: fix settings first, then upgrade hooping hardware for consistency, and consider a multi-needle machine when thread changes become the bottleneck.
  • Level 1 (technique): Calibrate the screen, set Brother Innov-is profile, center to X:0/Y:0, export PES v6, and use short filenames.
  • Level 2 (tool): If hooping causes fabric shifting or hoop burn, switch to a magnetic hoop to reduce re-hooping and fabric marking.
  • Level 3 (capacity): If constant manual thread changes prevent leaving the machine unattended, a multi-needle machine reduces babysitting time.
  • Success check: The same design loads reliably, stitches without hoop-limit errors, and hooping time no longer exceeds stitch time.
  • If it still fails: Re-run the decision tree—first confirm whether the failure is “file not visible” (format/version) or “too big” (coordinates) before changing hardware.
