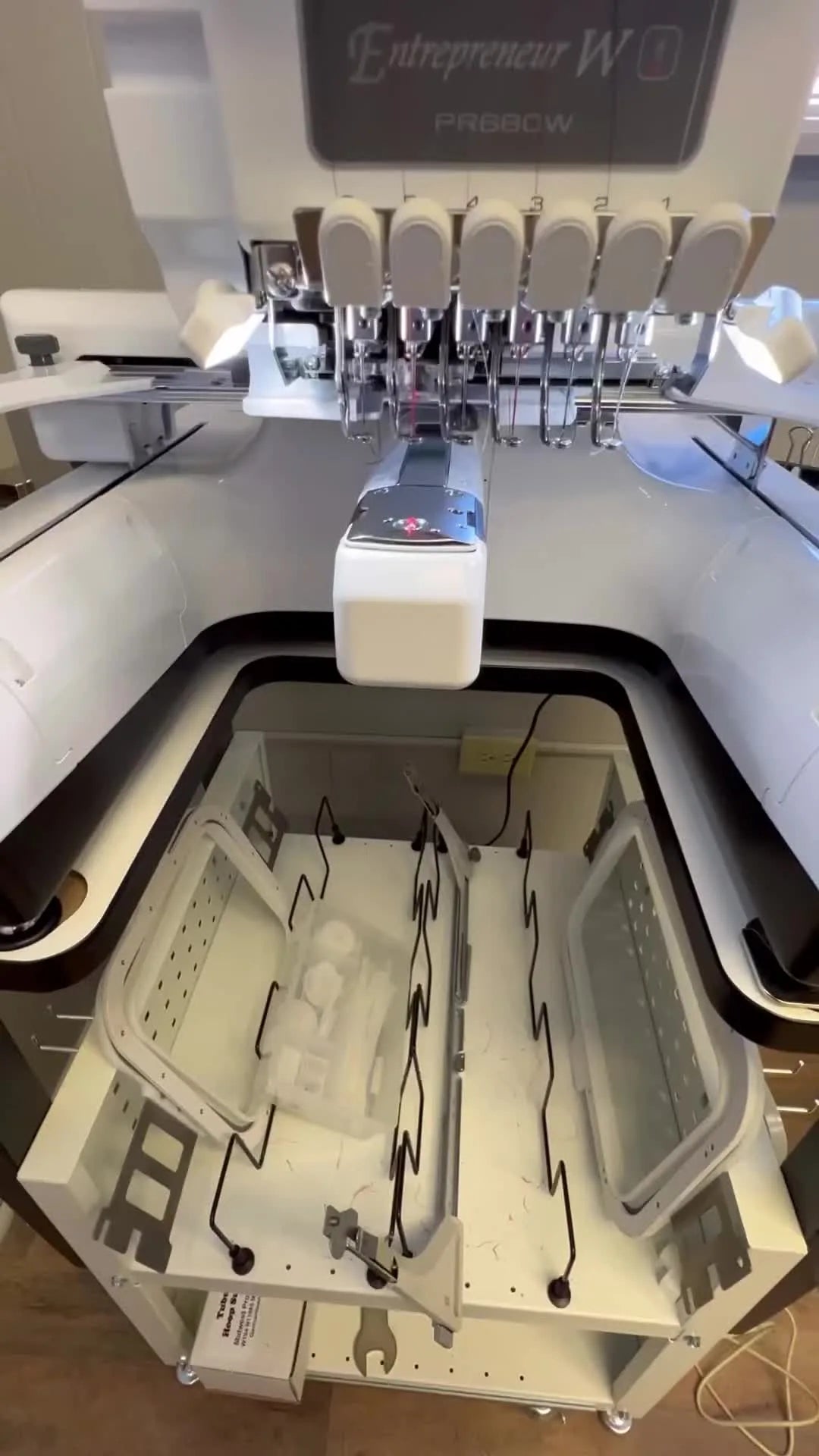

White Bobbin Thread Showing on a Brother PR680W? The 1/4-Turn Bobbin Case Fix (Without Guessing or Wasting Thread)

The "White Speckle" Nightmare: A Master Class in Fixing Bobbin Tension on the Brother PR680W

You know the feeling. You have just loaded a premium hoodie onto your machine. The design is bold, the client is waiting, and you hit "Start." The machine hums to life, laying down what should be a lush, solid satin column. But when you lean in for a closer look, your stomach drops.

Instead of a smooth block of color, you see it: tiny white speckles poking through the top threads.

On a high-performance multi-needle machine like the Brother PR680W, this is the visual equivalent of a check engine light. It screams that the delicate tug-of-war between your top thread and your bobbin thread has collapsed. To the uninitiated, this looks like a ruined garment. To the veteran, it is a simple data point requesting a mechanical adjustment.

This guide will move you from panic to precision. We aren't just going to "twist a screw"; we are going to walk through the physics of the stitch, the hidden variables of stabilization, and the exact protocol for calibrating your machine without creating new problems.

The Anatomy of a Tension Failure: Why White Thread Rises

Before we touch a single tool, you must understand the "why." A perfect embroidery stitch is a knot formed inside the fabric sandwich. In a balanced system, the top thread pulls up, and the bobbin thread pulls down with equal but opposite force (relative to the thickness of your material).

The video source clearly demonstrates the classic symptom: a purple monogram interrupted by white dots.

This phenomenon occurs when Bobbin Tension < Top Tension. The top thread is winning the tug-of-war, dragging the knot—and the white bobbin thread attached to it—up through the fabric surface to be visible to the naked eye.

The Panic Stop

If you see this happening:

1. Stop the machine immediately. Do not hope it will "fix itself" in the next color block.
2. Do not cut the garment yet. A few bad stitches can often be picked out and overlaid if the alignment hasn't shifted.
3. Do not immediately loosen the top tension. This is a rookie mistake. While loosening the top might hide the white thread, it often leads to "looping" and a soft, sloppy stitch definition. The correct fix, 90% of the time in this specific scenario, is at the bobbin case.




Warning: Before performing any maintenance or reaching near the needle bar/hook assembly, keep hands clear of moving parts. While the PR680W has safety sensors, a servo motor moving at 1000 SPM (Stitches Per Minute) is unforgiving. If you are removing the bobbin case, ensure the machine is stopped.

Phase 1: The "Ghost Hunter" Pre-Flight Check

In my 20 years of troubleshooting, I have seen hundreds of operators adjust their tension screw when the screw wasn't the problem. Before you alter a mechanical setting on your brother embroidery machine, you must rule out the "ghosts"—transient issues that mimic tension failure.

Performa this "60-Second Sanity Check." If you skip this, you risk over-tightening your bobbin case to compensate for a piece of lint.

Prep Checklist: Is it Really Tension?

• The Path of Least Resistance: Re-thread the top thread. A thread that has jumped out of the tension disks will create zero drag, pulling the bobbin thread up immediately.
• The Lint Trap: Remove the bobbin case and blow it out. A single piece of compressed lint under the tension spring acts like a wedge, popping the spring open and killing your tension.
• The Needle Factor: Run your fingernail down the needle. If you feel a burr, replace it. A burred needle snags thread, creating erratic tension spikes.
• The Bobbin Seat: Ensure the bobbin is spinning in the correct direction (usually counter-clockwise or "p"-shaped when dropped in, check your manual). Even a perfectly tensioned case fails if the bobbin is backward.
• The Hidden Consumable: Are you using the correct weight bobbin thread? Brother PR machines generally prefer 60wt or 90wt bobbin thread. If you accidentally grabbed a spool of 40wt sewing thread, it is too thick for the standard factory settings and will sit on top of the fabric.

Success Metric: If you have verified all above points and the white speckles persist, you are now authorized to adjust the hardware.

Phase 2: The Surgical Adjustment (Identifying the Screw)

The video explicitly identifies the solution: increasing the drag on the bobbin thread. To do this, we must identify the correct screw on the metal bobbin case (the Towa case).

The Two-Screw Danger

Your bobbin case has two screws. Touching the wrong one produces a headache.

1. The Anchor Screw (Do Not Touch): This is usually smaller, sometimes painted with a dab of green or red Locktite. It holds the spring to the chassis.
2. The Adjustment Screw ( The Target): This is the larger of the two screws. It controls how tightly the metal leaf spring presses against the bobbin thread.
















The Sensory Standard: The "Floss" Test

Before you turn the screw, pull the bobbin thread through the slit.

• Current State: If you are seeing white thread on top, the pull likely feels "mushy" or loose—like pulling thread off a spool with zero resistance.
• Target State: You want it to feel like gliding dental floss between tight teeth. There should be smooth, consistent drag. It should not jerk (too tight) and it should not free-fall (too loose).

Phase 3: The 1/4-Turn Protocol

The creator in the video follows the Golden Rule of embroidery mechanics: Incremental Verification.

Do not crank the screw a full turn. You will crush the thread, causing it to snap or shred inside the hook assembly.

The Process

1. Use a perfectly sized flathead screwdriver (usually included in your machine kit).
2. Insert it into the Larger Screw.
3. Turn Clockwise (Righty-Tighty) exactly 1/4 of a circle. Imagine a clock face; go from 12:00 to 3:00.
4. Stop. Do not do more.








Setup Checklist: The Validation Laboratory

Do not test your adjustment on the client's $60 Carhartt jacket. Build a "Verification Lab."

• The Surrogate: Use a scrap piece of fabric that matches the weight of your final garment (e.g., sweatshirt fleece or distinct woven cotton).
• The Foundation: Hoop it with the exact same stabilizer you plan to use. (See the Decision Tree below).
• The Test Subject: Load a block letter "I" or "H", or a small "ABC" file as shown in the video. Satin columns are the best "truth-tellers" for tension.
• The Documentation: Keep a notepad. Write "Turned 1/4 Clockwise."

Phase 4: Reading the Data (What "Better" Looks Like)

The video demonstrates a progressive fix. This is normal.

• Test 1 (Baseline): White thread clearly visible.
• Test 2 (After first 1/4 turn): Setup improved. Fewer white dots, but the edges of the satin column still look "rough" or pixelated with white.
• Action: If white is still visible, apply one more 1/4 turn clockwise.
• Test 3 (After 1/2 turn total): Solid color. The thread looks plump and sits high on the fabric. No white is visible.








Operation Checklist: The 30-Second Audit

• Listen: As the machine runs the test, listen for a rhythmic thump-thump. A sharp snap sound suggests the tension is now too tight.
• Look: Stop the machine after the first letter. Don't wait for the whole name.
• Touch: Run your finger over the satin stitch. It should feel smooth, not jagged.
• Verify Bottom: Flip the hoop. On a perfect satin column, you should see the "1/3 Rule": 1/3 top thread color, 1/3 white bobbin thread in the center, 1/3 top thread color. If the bottom is all white, you might be too loose on top, but if the top is clean, you are in the safe zone.

The Vital Role of Stabilization: A Decision Tree

Often, users blame the brother pr 680w tension when the culprit is actually the fabric shifting. If the fabric "flags" (bounces up and down) with the needle, the loop formation fails, and tension goes haywire.

Your tension test is invalid if your stabilization is wrong. Use this logic gate to ensure your foundation is solid.

Decision Tree: Stabilizer Selection Strategy

1. Is the fabric stretchy (Knits, Hoodies, Polos, Beanies)?
   • YES: You MUST use Cut-Away stabilizer (2.5oz or 3.0oz).
     • Why: Knits stretch. If you use Tear-Away, the stitches will perforate the paper, the fabric moves, and the bobbin thread pulls to the top.
   • NO: Go to Step 2.
2. Is the design extremely dense (Full chest seal, heavy tatami fill)?
   • YES: Use Cut-Away (even on woven fabrics) + a layer of Tear-Away for stiffness.
     • Why: High stitch counts create physical force that distorts the fabric weave.
   • NO: Go to Step 3.
3. Is the fabric stable (Canvas, Denim, Twill Caps)?
   • YES: Tear-Away is acceptable.

Expert Tip - The "Hidden" Consumable: Always keep a can of temporary spray adhesive (like 505) or double-sided tape. Floating a piece of stabilizer under the hoop isn't enough for tension testing; the fabric must be bonded to the stabilizer to give you a true reading.

Troubleshooting Map: The "If/Then" Safety Net

If the 1/4 turn trick didn't work, or created a new problem, consult this matrix. This hierarchy moves from low-intervention to high-intervention.

The "Hooping Burn" Pivot: When to Upgrade Your Workflow

You have mastered the tension. Your stitches are crisp. But now you face the next bottleneck of the brother pr680w hoops workflow: Volume.

Fixing tension requires manual finesse. Fixing production speed requires better tools.

If you are fighting with thick hoodies to get that perfect tension, you have likely encountered "Hoop Burn"—the ring marks left by standard plastic frames clamped too tightly. Or perhaps you are struggling to get the inner ring inside a thick Carhartt jacket.

Scenario: You start rejecting jobs because hooping takes longer than the actual embroidery, or your wrists ache from forcing the lower ring into place.

The Solution Ladder:

1. Level 1 (Skill): Use spray adhesive and "float" the item (hoop only the stabilizer, stick the garment on top). Risk: Registration errors.
2. Level 2 (Tool): Upgrade to magnetic embroidery hoops for brother. These omit the inner/outer ring friction. They use powerful magnets to clamp the fabric instantly without forcing the fibers, eliminating hoop burn and hooping strain.
3. Level 3 (Specialist): For caps, moving from the standard driver to a dedicated brother pr680w hat hoop system or advanced framing systems allows for sewing closer to the bill without flagging (which causes tension issues).

Terms like mighty hoops for brother pr680w are often discussed in forums for a reason—they decouple the "clamping force" from the "operator's hand strength," ensuring consistent tension across every single garment in a 50-piece run.

Warning - Magnetic Safety: Professional magnetic hoops contain Neodymium magnets. They snap together with crushing force.
* Pinch Hazard: Keep fingers clear of the edge when clamping.
* Medical Safety: Operators with pacemakers should maintain a safe distance (consult manufacturer guidelines).
* Electronics: Do not place phones or credit cards directly on the magnets.

Final Summary

Fixing the white bobbin thread on your Brother PR680W is a rite of passage. It marks the transition from "Machine Owner" to "Machine Operator."

Remember the steps:

1. Clean & Verify: Rule out lint and needle issues.
2. Test: Use a scrap with the same stabilizer.
3. Adjust: Locate the large screw on the bobbin case. Turn clockwise in 1/4 increments.
4. Listen & Feel: Look for the 1/3 balance on the back.

Once your machine is dialed in, the only limit is how fast you can feed it. And when that speed becomes your bottleneck, look to your hooping system to unlock the next level of profitability.

FAQ

• Q: How do I stop white bobbin thread speckles on the top stitches of a Brother PR680W satin column?
  A: Increase bobbin-case tension in small 1/4-turn clockwise steps after confirming the issue is not caused by threading, lint, or needle damage.
  • Stop stitching immediately and do not cut the garment yet.
  • Re-thread the upper thread completely and confirm the thread is seated in the tension path.
  • Remove the bobbin case, clean/blow out lint (especially under the tension spring), then perform one 1/4-turn clockwise on the bobbin-case adjustment screw.
  • Success check: The satin column becomes solid with no white dots, and the underside shows the “1/3 rule” (top color / bobbin white / top color).
  • If it still fails: Apply one more 1/4-turn clockwise and re-test on a scrap with the same stabilizer.
• Q: Which screw should I turn on the Brother PR680W bobbin case to fix bobbin tension, and which screw should I not touch?
  A: Turn only the larger bobbin-case adjustment screw; do not touch the smaller anchor screw that holds the spring.
  • Identify the two screws: the smaller “anchor” screw secures the spring, the larger screw adjusts tension.
  • Use the correctly sized flathead screwdriver to avoid stripping the head.
  • Turn the larger screw clockwise only 1/4 turn at a time.
  • Success check: The bobbin thread pull feels smooth and consistent (not free-fall, not jerky).
  • If it still fails: Stop and re-check that the correct screw was used; then clean under the tension spring for hidden lint.
• Q: How do I do the “floss test” on a Brother PR680W bobbin case to confirm bobbin tension before adjusting?
  A: Pull the bobbin thread through the slit and aim for a smooth “dental floss” drag—consistent resistance without slipping or jerking.
  • Pull the thread steadily through the tension slit using the same bobbin thread you stitch with.
  • Compare the feel: too loose feels “mushy” with almost no drag; too tight feels grabby and jerks.
  • Make only a 1/4-turn adjustment, then repeat the pull test before stitching again.
  • Success check: The pull feels like floss between tight teeth—steady, smooth drag.
  • If it still fails: Run a stitch test on scrap; feel-tests alone can be misleading if stabilization is incorrect.
• Q: What stabilizer should I use on a Brother PR680W to prevent fabric flagging that mimics tension problems on hoodies and other knits?
  A: Use cut-away stabilizer for stretchy fabrics because flagging and shifting can pull bobbin thread to the top and make tension look “wrong.”
  • Choose cut-away (2.5oz or 3.0oz) for knits/hoodies/polos/beanies.
  • Bond fabric to stabilizer with temporary spray adhesive or double-sided tape for reliable tension testing.
  • Test on a scrap with the exact stabilizer stack you will use on the real garment.
  • Success check: Fabric stays flat (minimal bounce) and satin columns stitch clean without random white speckling.
  • If it still fails: Confirm bobbin is inserted in the correct direction and re-check the upper thread path for a missed tension point.
• Q: How can I safely test Brother PR680W tension adjustments without risking a client’s hoodie or jacket?
  A: Build a small “verification lab” using matching scrap fabric, the same stabilizer, and a simple satin-letter test design before running the real job.
  • Hoop scrap fabric that matches garment weight and use the same stabilizer method planned for production.
  • Stitch a small satin “I/H” or “ABC” test and stop after the first letter to inspect.
  • Document every change (example: “1/4 turn clockwise”) so you can return to a known setting.
  • Success check: The top looks solid and the stitch feel is smooth; the underside shows the “1/3 rule.”
  • If it still fails: Reverse the last adjustment 1/4 turn counter-clockwise if thread starts snapping or shredding.
• Q: What should I check first on a Brother PR680W when a bird’s nest forms under the throat plate during embroidery?
  A: Re-thread the upper thread completely because bird’s nests commonly happen when the top thread loses proper tension (often from missing the take-up lever).
  • Stop the machine and remove the tangled thread carefully to avoid pulling on the hook area.
  • Re-thread from spool to needle, ensuring the thread passes correctly through the take-up lever and tension path.
  • Verify the top thread did not jump out of the tension discs.
  • Success check: The next test stitch forms normally without looping under the fabric.
  • If it still fails: Inspect for lint in the bobbin area and confirm needle condition (replace if burred).
• Q: What safety steps should I follow before removing the Brother PR680W bobbin case to adjust bobbin tension?
  A: Keep hands clear of moving parts and only service the bobbin area with the machine fully stopped to avoid injury near the needle bar/hook assembly.
  • Stop the machine and wait for all motion to fully stop before reaching into the hook area.
  • Remove the bobbin case carefully and keep small screws controlled so they are not dropped into the machine.
  • Avoid rushing adjustments; make one 1/4-turn change at a time.
  • Success check: The machine runs the test stitch smoothly without unusual snapping sounds.
  • If it still fails: Stop immediately and re-check threading, lint, and needle before making further mechanical adjustments.
• Q: When hoop burn and slow hooping on thick hoodies becomes a bottleneck after Brother PR680W tension is corrected, what is a practical upgrade path?
  A: Move from technique fixes to tool upgrades: first optimize floating, then consider magnetic hoops to reduce hoop burn and speed up consistent clamping.
  • Level 1 (Technique): Float the garment using spray adhesive (hoop stabilizer only), understanding registration risk can increase.
  • Level 2 (Tool): Use magnetic hoops to clamp thick items quickly with less fiber distortion and less operator strain.
  • Success check: Hooping time drops and hoop marks reduce while stitch quality stays consistent across repeats.
  • If it still fails: Review stabilization and flagging control first, because shifting fabric can still mimic tension problems even with better hoops.
