Wilcom EmbroideryStudio Digitizing, Minus the Guesswork: From Sketch to a Clean PS/PES Stitch File (and a Butterfly That Actually Pops)

You are not alone if digitizing feels like a black box at first. You draw a shape, click a tool, and then hold your breath, hoping the machine doesn't punish you later with thread breaks, fabric puckering, or a muddy design that sinks into the garment.

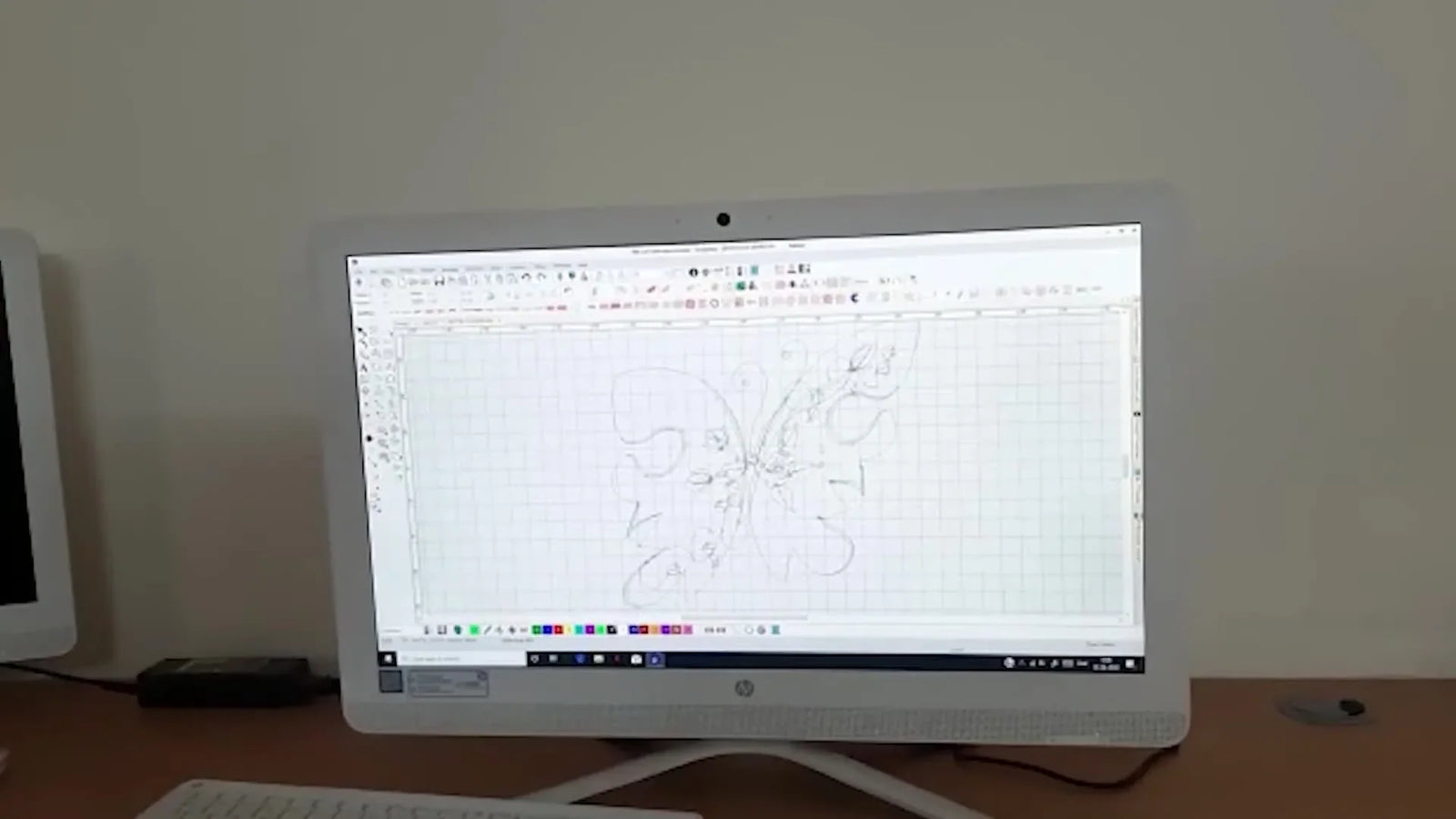

This Wilcom EmbroideryStudio demo from Queens School of Design is short, but it touches the absolute backbone of the craft: assigning stitches to shapes, simulating the physics of the sew-out, building texture (spiral stitch), and validating contrast.

As someone who has spent two decades listening to the rhythm of embroidery machines, I can tell you this: the software is responsible for the design, but you are responsible for the physics. Below is a breakdown of how to turn these digital steps into a safe, repeatable physical reality.

The “Calm Down” Primer: Wilcom EmbroideryStudio Digitizing Is Predictable When You Watch the Stitch Path

Digitizing isn’t magic—it is a set of engineering instructions you give to a robot. The video demonstrates taking a sketched motif (a paisley/pheasant style) and converting it into stitch-filled objects.

Here is the mindset shift that will lower your blood pressure: Your design is only as good as its pathing and density. A pretty screen preview is not proof of quality; it is merely a suggestion.

The Beginner’s Speed Limit: When you eventually run these designs, do not start at max speed (1000+ SPM). For your first test of a new Wilcom file, stick to the "Sweet Spot" of 600–700 SPM. This gives you reaction time to hit the stop button if you hear the sound change from a rhythmic thump-thump to a harsh clank.

The “Hidden” Prep Pros Do First: Clean Artwork, Clear Shapes, and a Plan for Contrast on Dark Fabric

Before you touch a single stitch type, you must prepare the "ingredients." The video starts with a pattern broken into selectable units. This is crucial because Wilcom works best when every object is distinct—overlapping sketches confuse the software's logic.

If you are building designs for production, you must decide your background color now. The tutorial later flips the background to black and discovers the blue thread is invisible—a classic error.

Pre-Flight Protocol: In a professional shop, we don't just check the file; we check the physical consumables that no one talks about.

• Needles: Are you using a fresh 75/11 needle? Run your fingernail down the tip—if you feel a catch/burr, throw it away. It will shred your thread.
• Bobbin: Is the tension correct? When you pull the bobbin thread, you should feel slight resistance, similar to pulling a spiderweb, not a tight shoelace.
• Oil: Has the hook been oiled recently?

Prep Checklist (Do this before assigning stitches)

• Artwork: Confirm artwork is separated into standalone, selectable vector units.
• Background: Set the Wilcom background color to match your target fabric (e.g., black or navy).
• Consumables: Ensure you have enough thread on the cone to finish the run (don't start a 20,000 stitch design with a nearly empty spool).
• Goal: Define the texture goal: "Hand-stitched look" (low density) vs. "3D patch" (high density).
• Safety: Save a "Master_V1" file before you start merging or reshaping objects.

Warning: Digitizing decisions create physical density. High density creates heat. If you stack too many stitches in one spot, the needle can heat up, melt polyester thread, or even break. Always keep total stitch density under control (standard fill density is usually ~0.40mm).

Assigning Stitch Types in Wilcom Stitch Library: Make Each Vector Unit Look Like Hand Embroidery (Without Overcomplicating It)

In the video, the student selects a unit and applies a stitch type similar to hand embroidery. The lesson here is Intentionality.

Many intermediates get trapped trying to make every object "special" with fancy fills. In the physical world, consistency wins.

• Tatami/Fill Stitches: Good for large areas. They stabilize the fabric.
• Satin Stitches: Good for borders and text. Sensory Check: Satin stitches reflect light beautifully, looking shiny and rich, but if they are too wide (over 7mm), they will snag and loop.
• Run Stitches: Good for detail lines.

"Digitize for the Needle": When choosing a stitch, ask: "Will this pull the fabric?"

• Satin stitches pull fabric inward (narrowing the object).
• Tatami fills push fabric outward.

Your software compensation settings account for this, but only if you select the right base type first.

Color Tweaks in Object Properties: Fast Iteration Beats ‘Perfect’ on the First Try

The tutorial shows the palette shifting and the design filling with textures. This is the correct workflow: Structure first, Color second.

However, computer monitors emit light; thread reflects light.

• Monitor: Colors look flat and bright.
• Reality: Thread has grain. The direction of the stitching changes how the color looks.

The "Squint Test": When iterating colors in Wilcom, squint your eyes at the screen. If two colors blend together when you squint, they will definitely blend together on the machine. You need more contrast than you think.

If you are stitching on black (as simulated later), you generally need to go one shade lighter or brighter than your screen tells you.

The Slow Redraw (Stitch Player) Reality Check: Catch Bad Stitch Order Before It Becomes Thread Breaks

This is the most critical safety step in the video: Slow Redraw (Stitch Player).

Think of this as a flight simulator. You are looking for specific "G-Force" moments that will break your machine flow.

• The "Traveler": Watch for long jump stitches that travel across open fabric. These will need to be trimmed.
• The "Trap": Does the design stitch a border before the fill inside is done? That will cause a gap (registration error).
• The "Knot": does the machine hammer in one spot repeatedly?

If you are using hooping stations for production, efficiency is key. You cannot afford to stop the machine to trim 50 jump stitches manually. A clean Slow Redraw ensures that when you hoop a shirt, it runs from start to finish without intervention.

Exporting to PS/PES Format: Don’t Let a Great Design Die at the Save Dialog

After simulation, the design is exported to a machine format (like .PES or .DST).

The Golden Rule of File Management:

• .EMB (Wilcom): This is your source code. It has all the object data. Never lose this.
• .PES/.DST (Machine): This is just XY coordinates. It is dumb data.

If you need to resize a design by more than 10%, go back to the .EMB file. Do not resize the .PES file on your machine screen, or the density will not recalculate, leading to bulletproof fills or gaps.

The Spiral Stitch Trick for a 3D Look: Building Butterfly Wing Texture Without Foam

The student applies a Spiral Stitch to create a 3D effect on a butterfly wing. This is technically impressive but physically risky.

The Physics of Spiral Stitches: A spiral stitch puts a lot of thread into a concentrated circular area.

• Risk: It creates a "volcano" effect where the center becomes very hard.
• Stabilizer: You cannot use flimsy tear-away stabilizer here. You need a solid Cut-Away stabilizer (2.5oz or 3.0oz) to support this density.

If you are selling these patches, this texture is high-value. But be warned: if your fabric isn't held tight, the spiral will distort the fabric, creating ripples. This is a prime scenario where many professionals switch to magnetic embroidery hoops to get a drum-tight grip without the "hoop burn" that comes from cranking down a standard plastic hoop.

The Colorway Pivot on a Black Background: Why Wilcom Background Settings Save Real Money

The video shows the blue thread disappearing on the black background, forcing a switch to pink.

The "10-Foot Rule": Your embroidery needs to be readable from 10 feet away.

• Low Contrast: Blue on Black = Mud.
• High Contrast: Pink on Black = Pop.

If you are digitizing logos for corporate uniforms (which are often Navy or Black), use the Wilcom background tool every single time. It is cheaper to change pixels than to cut out 500 stitches from a ruined polo shirt.

Setup That Prevents the ‘Looks Great on Screen’ Trap: Fabric + Stabilizer + Hooping Must Match the Digitizing Style

The software is done. Now the physical battle begins. A spiral stitch file demands a specific physical setup.

Use this decision tree to determine your loadout:

Decision Tree: Consumable & Tool Selection

1. What is the Fabric?
   • Stretchy (T-shirt/Polo/Knit): Must use Cut-Away Stabilizer. No exceptions.
   • Stable (Denim/Canvas/Twill): Can use Tear-Away, but Cut-Away is safer for density.
2. Is the Design Dense (Spiral/3D)?
   • Yes: You need a sharp needle (75/11 Sharp) to penetrate dense layers, and firm hooping.
   • No (Light sketch): Standard ballpoint (for knits) or universal needle is fine.
3. Is Hooping a Struggle?
   • Symptom: Hoop burn marks (shiny rings), sore wrists, or fabric slipping.
   • Solution: This is the threshold for tool upgrades. magnetic hoops are designed to clamp thick or delicate items firmly without the friction burn of traditional rings.

Warning: Magnet Safety. If you upgrade to a magnetic hoop system, be aware they are extremely powerful. Keep them away from pacemakers, credit cards, and fingers (pinch hazard). Handle with respect.

Operation Habits That Keep Spiral Stitch Designs From Breaking Thread (Even When the File Is ‘Correct’)

You hit start. Now you listen.

The Audio Check:

• Good Sound: A steady, rhythmic hum or "purr."
• Bad Sound: A slapping noise (fabric flagging) or a grinding sound (needle deflection).

The "Flagging" Problem: With dense spiral stitches, the fabric tries to lift up with the needle. This causes birdnesting.

• Fix 1: Ensure the hoop is tight (drum skin tight).
• Fix 2: If you can't get it tight enough with plastic hoops, use a magnetic embroidery hoop. The magnetic force distributes pressure evenly, preventing the fabric from bouncing.

If you are running a production order, standardizing this step with a machine embroidery hooping station ensures the design lands in the exact same spot on every shirt, reducing user error.

Operation Checklist (The "End-of-Run" Audit)

• Registration: Did the outcome borders line up with the fill? (If not, stabilization was too weak).
• Puckering: Is the fabric around the butterfly wing rippled? (If yes, hoop wasn't tight enough).
• Texture: Run your thumb over the spiral. Is it firm? Loose loops mean tension was too low.
• Backing: Trim the cut-away stabilizer, leaving about 1/4 inch around the design. Do not cut the fabric!


Troubleshooting Wilcom Digitizing Outcomes: Symptom → Likely Cause → Fix You Can Actually Try

When things go wrong, do not panic. Use this diagnostic table using the "Low Cost First" principle (check physical first, software last).

The “Upgrade” Path That Makes Digitizing Pay: From One-Off Tests to Repeatable Production

The video shows beautiful portfolio pieces. That is art. Production is business.

If you are doing this for profit, your bottleneck will eventually shift from "making the file" to "running the file."

• Challenge: Changing thread colors 15 times for one design.
• Solution: This is the trigger for a SEWTECH multi-needle embroidery machine. Being able to set 12-15 colors at once allows you to walk away while the machine works.
• Challenge: Hooping 50 shirts takes 3 hours and hurts your wrists.
• Solution: A hoopmaster station style setup combined with magnetic frames transforms the physical labor into a quick, repeatable flow.


Photo-to-Embroidery Examples: A Reminder That Wilcom Skills Stack Over Time

The tutorial mentions scanning images. Remember, advanced techniques like Photo Flash or Sfumato stitch are just layers on top of the basics you learned here: Pathing, Density, and Compensation.

Master the spiral stitch and the basic fill first. Once your fingers know what good tension feels like, the advanced software features become much easier to control.

Comment-to-Action: The Best Feedback Is Often Silent—So Build Your Own Proof Loop

The best feedback isn't a YouTube comment; it's a finished garment that lays flat.

Build your own proof loop:

1. Simulate (Slow Redraw).
2. Test (Scrap fabric with actual backing).
3. Audit (chk tension/puckering).
4. Refine (Adjust Wilcom file).


Prep + Setup Checklists You Can Reuse for Every Wilcom File You Export

Here is your "Cheat Sheet" to keep next to your monitor and machine.

Setup Checklist (Software Phase)

• Objects: No overlapping vector mess; clean shapes only.
• Simulation: Watch the Slow Redraw. Did it jump around efficiently?
• Contrast: Did you toggle the background color to check visibility?
• Export: Saved as .EMB (Master) AND .PES/.DST (Machine)?

Prep Checklist (Physical Phase)

• Needle: Brand new 75/11 or appropriate size?
• Bobbin: Full and tension-checked?
• Hoop: Fabric is drum-tight? (Consider magnetic embroidery hoops if fabric is slipping).
• Stabilizer: Cut-Away for knits, Tear-Away for towels only.
• Position: Center point marked or aligned via a hooping station for machine embroidery?


Final Reality Check: Your Best Digitizing Skill Is Knowing What to Test

The video’s workflow is the perfect skeleton: Select Stitch -> Iterate Color -> Simulate -> Export.

But the flesh on that skeleton is your knowledge of physics.

• Density creates heat.
• Stitches pull fabric.
• Hoops leave marks.

If you respect these physical rules, Wilcom becomes a powerful ally. If you ignore them, it’s just a frustration generator.

If you are ready to scale from "hobby frustration" to "production flow," look at your bottlenecks. If hooping hurts, look at magnetic frames. If thread changes are slowing you down, look at SEWTECH multi-needle machines. But first, master the file.

FAQ

• Q: What Wilcom EmbroideryStudio test speed should be used when running a new .PES or .DST file on a multi-needle embroidery machine?
  A: Use a safe starting point of 600–700 SPM for the first sew-out so problems show up early without destroying the garment.
  • Slow the machine down before pressing start, especially on dense fills or spiral stitch areas.
  • Listen for the sound change from a steady rhythm to harsh clanking or grinding and stop immediately.
  • Success check: The machine sound stays steady and the design runs without repeated thread breaks in the first minutes.
  • If it still fails… Re-check needle condition, bobbin tension feel, and stitch density in the source file before increasing speed.
• Q: What consumables should be checked before digitizing and stitching a Wilcom EmbroideryStudio design to prevent thread shredding and breakage?
  A: Start with needle, bobbin feel, and hook oiling—these physical checks fix many “software-looking” problems.
  • Replace the needle (a fresh 75/11 is a common baseline); discard any needle that catches your fingernail (burr).
  • Pull the bobbin thread and aim for slight resistance (not “tight shoelace” tension).
  • Oil the hook if it is due (follow the machine manual for oil points and intervals).
  • Success check: Thread stops fraying, and stitches look consistent without fuzz buildup around the needle.
  • If it still fails… Reduce density in the Wilcom design and avoid stacking heavy stitches in one spot.
• Q: How do Wilcom EmbroideryStudio users prevent fabric puckering and registration gaps between outline and fill when stitching dense designs like spiral stitch?
  A: Stabilize and hoop for the density level—dense stitch patterns need firm support and drum-tight holding.
  • Use Cut-Away stabilizer for knits (no exceptions); for dense/spiral areas, choose a solid Cut-Away (commonly 2.5oz or 3.0oz).
  • Hoop the fabric drum-tight to reduce shifting; re-hoop if the fabric can be pushed down and “bounces.”
  • Match needle choice to density (a sharp needle is often used for dense penetration; confirm with machine guidance).
  • Success check: Outline and fill stay aligned, and the fabric around the design lays flat without ripples.
  • If it still fails… Increase pull compensation in Wilcom and re-evaluate stitch order using Slow Redraw before re-running.
• Q: How does Wilcom EmbroideryStudio Slow Redraw (Stitch Player) help prevent jump-stitch trimming, thread breaks, and bad stitch order before exporting to .PES or .DST?
  A: Always run Slow Redraw to catch travel stitches, border-before-fill traps, and repeated hammering that causes breaks.
  • Watch for long “traveler” jumps across open fabric and plan trims/adjustments before production.
  • Confirm the design does not stitch borders before the interior fill is complete (common cause of visible gaps).
  • Look for “knot” zones where the needle hits one spot repeatedly (heat and break risk).
  • Success check: The stitch path flows logically with minimal long jumps and no excessive repeats in one point.
  • If it still fails… Edit the object sequence in the source file (.EMB) rather than trying to “fix it on the machine.”
• Q: Why does an embroidery design look fine in Wilcom EmbroideryStudio but disappear on black or navy fabric, and how should thread color be chosen?
  A: Set the Wilcom background to match the target fabric and increase contrast—screen previews often lie on dark garments.
  • Toggle the background color to black/navy before committing to a colorway.
  • Use the “squint test”: if two colors blend on screen when squinting, they will blend even more in thread.
  • Go one shade lighter or brighter than the monitor suggests when stitching on black.
  • Success check: The design is readable from about 10 feet away (contrast is obvious).
  • If it still fails… Swap thread colors at the machine for a quick proof, then update the Wilcom colorway for production consistency.
• Q: What is the safest way to resize embroidery designs exported from Wilcom EmbroideryStudio as .PES or .DST without causing overly dense fills or gaps?
  A: Resize in the Wilcom .EMB source file, not on the machine screen—especially for changes over about 10%.
  • Keep and archive the .EMB as the “master” with object data and recalculating density.
  • Export a fresh .PES/.DST after resizing in .EMB so stitch density and compensation stay correct.
  • Avoid large on-machine scaling because the file is just XY coordinates and will not intelligently re-density.
  • Success check: After resizing, fills are not “bulletproof,” borders still cover edges, and the fabric does not pucker.
  • If it still fails… Re-check density settings and underlay choices in Wilcom before re-exporting.
• Q: How can embroidery hoop burn (shiny rings) and fabric slipping be reduced, and when should magnetic embroidery hoops be considered?
  A: Reduce over-clamping and improve holding—steam can help marks, and magnetic hoops are a common upgrade when hooping causes burn or slipping.
  • Steam the fabric after stitching to help remove shiny ring marks when safe for the garment.
  • Re-hoop with firm but not excessive pressure; avoid cranking plastic hoops so tight that the fabric glosses.
  • Consider magnetic hoops when hoop burn, sore wrists, or repeated fabric shifting continues despite good technique.
  • Success check: The fabric stays drum-tight during stitching without visible hoop rings or movement.
  • If it still fails… Upgrade the hooping workflow with a hooping station to reduce placement and tension variability.
• Q: What magnetic embroidery hoop safety rules should be followed to prevent pinch injuries and device/card damage in an embroidery shop?
  A: Treat magnetic hoops as high-force tools—keep fingers clear and keep magnets away from sensitive devices.
  • Keep magnets away from pacemakers and similar medical devices.
  • Keep magnets away from credit cards and magnetic storage items.
  • Control the closing action and keep fingertips out of the pinch zone when seating the frame.
  • Success check: The hoop closes smoothly without sudden snapping, and operators can load garments without finger pain.
  • If it still fails… Switch to a slower, two-hand loading habit and train a consistent handling routine before scaling production.
