Wilcom Hatch Ripple Stitch: Turn a Plain Circle into “Shaded” 3D Texture (Without Overthinking It)

When you first discover Wilcom Hatch’s Ripple Stitch, it feels like cheating—in the best way. You start with a flat, lifeless filled object, click one icon, and suddenly you possess a wave pattern that reads like organic shading and 3D depth, all without the hassle of puff foam.

However, as a seasoned digitizer or an ambitious home embroiderer, you know that what looks good on a 4K monitor often turns into a bulletproof vest or a bird’s nest on actual cotton. If you are asking critical questions, you are on the right path:

• Why does it look fluid on a circle but jagged on a square?
• How do I control the "energy" flow so it doesn't distort the fabric grain?
• How do I digitize and hoop this so I don't get gaps or puckering during production?

This guide is an "Industry Whitepaper" level reconstruction of Sue’s Wilcom Hatch demo. We are moving beyond buttons and menus; we are discussing the physics of thread, the reality of fabric, and the specific parameters you need to run to ensure a sellable result.

Don’t Panic: Ripple Stitch in Wilcom Hatch Is a Fill Effect, Not a “Magic Button”

Ripple Stitch is a specific algorithm applied to a filled object. To understand it, think of Contour Stitch as a track runner staying in their lane (best for consistent widths), while Ripple Stitch is like dropping a pebble in a pond—the waves radiate out from a specific impact point, changing density as they travel.

The Cognitive Trap: Beginners often think, "It worked on the 4-inch patch, so it will work on the 1-inch logo." The Physical Reality: Ripple Stitch relies on the interplay of stitch length and curve radius. If the object is too small (under 20mm or 0.8 inches), the software cannot calculate a smooth curve, resulting in a "jagged" or "broken" look. As Sue notes, the brutal truth is simple: if it refuses to generate, scale up.

Visual Shift: Stop seeing it as a "fill." See it as a distortion map. Because the stitch direction changes constantly (unlike a uniform Tatami fill), it exerts pull on the fabric from 360 degrees. This demands a higher standard of stabilization and hooping precision.

The “Hidden” Prep Before You Digitize: Set Yourself Up for a Clean Ripple (and a Clean Stitch-Out)

Sue jumps right into Hatch, but in a professional workflow, 90% of failures happen before you click the mouse. We call this "Pre-Flight."

Prep Checklist: The "Zero-Friction" Setup

• Target Fabric Analysis: Are you stitching on stable canvas or stretchy performance knit? (Ripple stitch on knits requires a Cutaway stabilizer; Tearaway will result in gaps).
• Hidden Consumables: Do you have temporary spray adhesive (like 505) or a water-soluble pen? You will need these for precise placement if you float your material.
• Machine Limits: Check your narrowest hoop size. Ripple designs need "breathing room" around the edges to prevent hoop strikes.
• Workflow Hygiene: Confirm you are in "Filled Object" mode.
• Search Intent: If you are collaborating, ensure your team uses Hatch. If you search for Wilcom Hatch Ripple Stitch, you realize this is a proprietary calculation—you cannot export this as an operational object to cheaper software and expect it to stay editable.


Build the Base Shape in Hatch: Digitize a Circle (and Use Enter for a True Circle)

Geometry matters. Sue’s first move is deceptively simple, but here is the technical nuance:

1. Open the Digitize toolbox on the left.
2. Choose the Circle tool.
3. The Anchor: Click and hold to pull the radius.
4. The Commit: Press Enter.

Why "Enter" Matters: In embroidery physics, a perfect circle distributes pull compensation evenly. If you manually loose-hand an oval that looks like a circle, the Ripple Stitch calculation will be mathematically "lopsided." The stitches on the narrower side will pile up, creating a hard lump of thread, while the wider side looks sparse. Always force geometry when you can.

Use Hatch Circle Layout Like a Pro: Preview with Your Mouse, Then Commit (and Merge)

Sue uses the Layout tool to create a complex flower. Here is the operational safety check regarding "Merging."

1. Select your circle.
2. Open Layout > Circle Layout.
3. Visually align (don't commit yet).
4. The Critical Decision: When prompted “Do you want to merge the overlapped objects?” choose Yes.

The "Why" (Physics of Embroidery):

• Merged (Yes): The software creates one complex polygon. The machine sees one continuous path.
• Not Merged (No): You have overlapping layers of thread.
  • Risk: The needle penetrates the bottom layer, then the top layer. This builds stitch density rapidly.
  • Symptom: Broken needles, thread shredding, and a stiff "bulletproof" patch on the chest.
  • Rule: For Ripple Stitch, always merge to keep the surface flat and the density manageable.

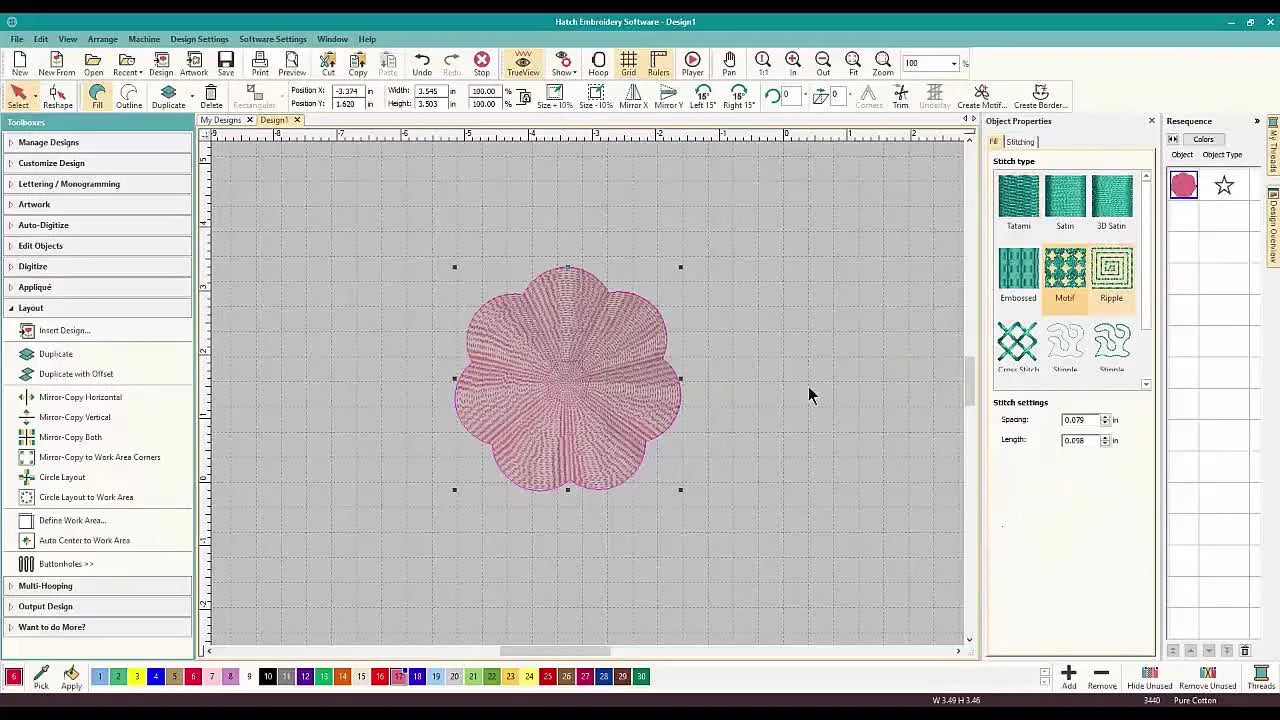

The Moment of Truth: Apply Ripple Stitch in Object Properties (Fill Tab)

With the merged object selected:

1. Go to Object Properties.
2. Select the Fill tab.
3. Click the Ripple Stitch icon.

Visual Sensory Check: Look at your screen. Does the pattern look like a topographical map?

• Yes: You have a clean ripple.
• No (Muddy/Solid): Your object is too small. Stop now. Resize until you see distinct "waves."

If you’re actively exploring Hatch Embroidery Software Effects to separate yourself from average digitizers, this is the core principle: The effect must be readable from 2 feet away. If it looks like a solid mess on screen, it will look like a mistake on thread.

The “Center Point Trick”: Reshape the Ripple Origin to Control Flow and Drama

This differentiation separates a "Patch Maker" from a "Designer." By using the Reshape tool, you can move the epicenter of the ripple.

The Physics of the Center Point: Imagine throwing a stone into a pool.

• Center Drop: Waves are concentric and calm.
• Edge Drop: Waves compress on one side (high density) and expand on the other (low density).

Expert Warning: When you move the center point to the edge, the stitch density on that edge increases significantly.

• Action: If you move the center to the far left, ensure your fabric is well-stabilized on the left side. The needle will strike that area repeatedly in a small space, which can chew a hole in delicate fabrics like t-shirts.


Make a 5-Petal Flower Fast: Oval + Circle Layout (5 Repeats) + Ripple Stitch

Sue builds a variation using an oval and a 5-repeat layout. This demonstrates high "Perceived Value" with low "Stitch Count."

Efficiency Metric: Because Ripple Stitch leaves open space between lines (it’s not a solid satin), it covers large areas with fewer stitches.

• Standard Satin Fill: ~15,000 stitches for a large badge.
• Ripple Fill: ~6,000 stitches for the same area.
• Benefit: Faster production time, less machine wear, and softer drape on the garment.


Don’t Skip Stitch Player: Watch the Stitch Path from the Center Out

Sue runs the Stitch Player. Never skip this. You are looking for "Travel Path Logic."

What to look for (Visual/Auditory Anchors):

• Center-Out: The Ripple Stitch typically generates from the center outward.
  • Why this is good: It pushes the fabric away from the center, smoothing it out like rolling dough.
  • Why this is bad: If your hoop is loose, the fabric will push too far, causing a "wave" of loose fabric at the outer edge (the "Plowing Effect").
• Auditory Check: When running the real machine, listen for a rhythmic thump-thump-thump. If you hear a grinding noise or a sharp snap, the machine is fighting a density knot—likely caused by a bad merge or a sudden jump in the ripple path.


Stitch Settings (Spacing & Length): Small Tweaks, Big Visual Differences

Sue mentions Spacing and Length. Let's assign Empirical Safety Ranges to these values for beginners.

1. Stitch Spacing (Density):

• Definition: The gap between the waves.
• Default: Often 1.0mm - 1.5mm.
• Expert Range: Keep it between 1.2mm and 2.0mm.
  • Too Tight (<1.0mm): You lose the ripple effect; it just looks like a messy fill.
  • Too Loose (>2.5mm): Loops may snag on jewelry or washing machine agitators.

2. Stitch Length:

• Definition: How long the thread runs before penetrating the fabric.
• Expert Range: 3.5mm to 4.5mm.
  • Physics: Longer stitches reflect more light (shinier) but cut corners on tight curves. Shorter stitches hug curves better but look matte/dull.

Rule of Thumb: If stitching on a cap or textured polo, increase spacing to prevent the pile from hiding the ripple.

A Fabric-to-Stabilizer Decision Tree for Ripple Stitch

Ripple Stitch creates multi-directional pull. Using the wrong stabilizer isn't just an annoyance; it's the primary cause of distorted shapes (ovals that should be circles).

Decision Tree: Match Your Foundation
1. Is the fabric stretchy? (T-shirt, Hoodie, Performance Polo)
* YES: Use Cutaway Stabilizer (2.5oz or 3.0oz).
Why:* The fabric structure will collapse under the ripple tension without a permanent backing.
* NO: Proceed to Step 2.
2. Is the fabric unstable but thin? (Rayon, Silk, Thin Cotton)
* YES: Use Fusible No-Show Mesh (PolyMesh).
Why:* Keeps the drape soft but stops the shifting.
* NO: (Denim, Canvas, Twill caps) -> Use Tearaway.
3. Is the surface textured? (Towel, Pique Polo)
* ALWAYS: Add a Water Soluble Topping (Solvy).
Why:* Prevents the ripple threads from sinking into the fabric pile.

Setup That Prevents Rework: Hooping Tension, Registration, and Why Magnetic Frames Matter

We have analyzed the software; now we address the hardware. The number one enemy of Ripple Stitch is Hoop Burn and Hoop Movement.

The Pain Point: To get a Ripple Stitch to lie flat, you typically tighten the hoop significantly. On delicate garments, this standard plastic hoop leaves a crushed "ring" (hoop burn) that ironing cannot remove. Furthermore, the physical effort of tightening screws repetition after repetition causes wrist fatigue (Carpal Tunnel risk) for production workers.

The Trigger for Upgrade: If you find yourself rejecting garments because of hoop marks, or if you can't hoop thick items (like Carhartt jackets) securely, your tool is the bottleneck, not your skill.

The Solution Hierarchy:

1. Level 1 (Skill): Use "floating" techniques with spray adhesive (messy, but works).
2. Level 2 (Tool): Upgrade to magnetic embroidery hoops.
   • Why: They clamp fabric automatically without the "screw-tightening" friction that causes burns. They hold thick and thin fabrics with equal vertical pressure.
   • Sensory Check: When investigating how to use magnetic embroidery hoop videos, notice the "snap." That sound represents securing the fabric without stretching the grain—crucial for Ripple patterns.
3. Level 3 (Scaling): For multi-needle machines, magnetic embroidery frames allow for continuous hooping. While one frame is running correctly, the operator hoops the next, doubling throughput.


Operation Checklist: The “Stitch-Out Reality Check” Before You Sell the File

You are ready to press start. Pause. Execute this checklist to save your garment.

Operation Checklist (The "Save Your Bacon" List)

• Bobbin Check: Is your bobbin at least 50% full? A bobbin run-out in the middle of a Ripple Stitch allows the top thread to unravel or loop, ruining the geometric flow.
• Machine Speed (SPM): Do not run at 1000 SPM.
  • Recommendation: Set speed to 600-750 SPM. Ripple stitches involve long X/Y movements. High speed causes vibration, which leads to "shaky" lines.
• Needle Integrity: Run your fingernail down the needle tip. If you feel a "catch," change it. A burred needle creates havoc on ripple fills.
• Visual Tension Check: Pull the top thread. It should feel like pulling dental floss through teeth—firm resistance, but smooth. If it's loose, your ripples will loop.

Warning: Physical Safety
When using magnetic hoops or frames, keep fingers clear of the mating surfaces. The magnets are industrial-strength and can pinch severely. Pacemaker Safety: Keep hoops at least 6 inches away from implanted medical devices.

Troubleshooting Ripple Stitch in Wilcom Hatch: Symptoms, Causes, Fixes

Here is your structured troubleshooting guide, ordered from "Low Cost" (quick fixes) to "High Cost" (re-digitizing).

Note on Software: If you are searching for similar effects and typing Wilcom Hatch Ripple Stitch into forum bars, be aware: standard "Auto-Digitizing" in cheaper software rarely achieves this specific texture. It usually requires the manual control found in mid-to-high-tier suites.

The Upgrade Result: When Ripple Stitch Becomes a Sellable Effect (and When It Becomes a Time Sink)

Ripple Stitch is a high-value asset. It adds "retail quality" to your designs. However, if your setup time is 15 minutes per shirt because you are partial to fighting with screws and backing, you have a hobby, not a business.

The Scaling Logic:

• Trigger: You have an order for 20+ left-chest logos utilizing Ripple backgrounds.
• Bottleneck: Your single-needle machine requires a thread change every 2 minutes, or your wrists hurt from manual hooping.
• The Path:
  • Consider a hooping station for embroidery machine. This ensures every logo is in the exact same spot on every shirt, critical for geometric ripple designs where checking "off-center" is easy for the eye.
  • If you are moving to production, investigate SEWTECH multi-needle solutions or compatible high-durability frames. Reliability in hardware allows you to trust the software's output.

Warning: Machine Operation
Never attempt to "help" the fabric move with your hands while the machine is running a Ripple Stitch. The long X/Y movements are unpredictable and fast. Keep hands well clear of the needle bar to avoid injury.

One Last Creative Push: Use Reshape Like a Designer, Not a Technician

Sue’s advice to "play around" is valid, but let's frame it as "Iterative Prototyping."

1. Draft: Create the ripple centered (Safe Mode).
2. Drift: Move the center point 10% off-center. Test run.
3. Drama: Move the center point to the edge. Stitch carefully.

By mastering the feel of the fabric tension and the sound of the machine running these patterns, you move beyond just "using software" to "crafting textiles." That is where the premium pricing lives.

FAQ

• Q: Why does Wilcom Hatch Ripple Stitch look jagged or refuse to generate on a small 1-inch logo?
  A: The Wilcom Hatch Ripple Stitch algorithm often cannot calculate smooth waves on objects under about 20 mm (0.8 in), so scaling up is the fastest fix.
  • Scale: Enlarge the Ripple Stitch object by about 20% in Hatch and regenerate the effect.
  • Redesign: Give the object more “breathing room” so the waves are readable instead of compressed.
  • Preview: Re-check the Fill preview before stitching.
  • Success check: The screen preview shows distinct “topographic” wave lines, not a muddy solid fill.
  • If it still fails… Rebuild the base shape with cleaner geometry (for example, a true circle) and reapply Ripple Stitch.
• Q: What stabilizer should be used for Wilcom Hatch Ripple Stitch on stretchy T-shirts, hoodies, or performance knits?
  A: Use Cutaway stabilizer for stretchy fabrics because Ripple Stitch pulls in multiple directions and tearaway commonly leads to gaps and distortion.
  • Choose: Use Cutaway (2.5 oz or 3.0 oz) as the base backing for knits.
  • Add: Use temporary spray adhesive if floating material to prevent shifting.
  • Add (textured knits): Use a water-soluble topping when the surface has pile.
  • Success check: The stitched circle stays round (not oval) and the waves stay evenly spaced without opening up.
  • If it still fails… Reduce stress by increasing Ripple Stitch spacing (density) slightly and re-test.
• Q: How do Wilcom Hatch Ripple Stitch spacing and stitch length settings affect puckering and snagging, and what are safe starting ranges?
  A: Keep Ripple Stitch spacing and length inside the proven ranges first; overly tight spacing causes puckering and muddy fills, while overly loose spacing can snag.
  • Set spacing: Start around 1.2 mm to 2.0 mm spacing (avoid going under 1.0 mm for most beginner setups).
  • Set length: Start around 3.5 mm to 4.5 mm stitch length.
  • Adjust for texture: Increase spacing on caps or textured polos so the ripple doesn’t get buried.
  • Success check: The ripple is readable from about 2 feet away and the fabric stays flat without wrinkling at the edges.
  • If it still fails… Re-check stabilization and hoop tension before tightening density again.
• Q: In Wilcom Hatch Circle Layout, should “merge the overlapped objects” be set to Yes for Ripple Stitch flowers, and what happens if it is left unmerged?
  A: Choose “Yes” to merge overlapped objects for Ripple Stitch; unmerged overlaps stack thread layers and commonly create density knots, needle breaks, and stiff patches.
  • Merge: Select “Yes” so Hatch creates one continuous complex shape instead of layered objects.
  • Inspect: Run Stitch Player to spot sudden over-stitching in overlap zones.
  • Slow down: Avoid high speeds if the design still has concentrated areas.
  • Success check: The stitch simulation shows a clean, continuous path without thick “hot spots” where overlaps were.
  • If it still fails… Rebuild the layout and merge again, then increase spacing slightly to lower density.
• Q: How can embroidery hooping tension be judged for Wilcom Hatch Ripple Stitch to prevent gaps between waves and fabric shifting?
  A: Hoop tension must be firm and consistent for Ripple Stitch because multi-directional pull will expose any hoop movement as gaps.
  • Tap-test: Tighten hooping until the fabric “sounds like a drum” when tapped.
  • Stabilize: Match stabilizer to fabric (Cutaway for knits; add topping for textured surfaces).
  • Control movement: Use adhesive when floating to prevent creeping during center-out stitching.
  • Success check: No visible gaps open between waves during stitch-out, especially near the outer edges.
  • If it still fails… Switch from screw-tightened hoops to a magnetic hoop to improve grip consistency without over-stretching.
• Q: What pre-flight checks prevent Wilcom Hatch Ripple Stitch failures like looping, unraveling, or shaky lines during stitch-out?
  A: Do the basic consumable and speed checks first; Ripple Stitch’s long X/Y moves punish low bobbins, damaged needles, and excessive speed.
  • Check bobbin: Start with at least 50% bobbin remaining to avoid mid-design run-out.
  • Set speed: Run about 600–750 SPM instead of 1000 SPM to reduce vibration and waviness.
  • Change needle: Replace any needle that “catches” when you run a fingernail over the tip.
  • Success check: The machine runs with a steady rhythm (no grinding or sharp snap) and the ripple lines look smooth, not shaky.
  • If it still fails… Re-check merge status and density settings, then test on a scrap with the same fabric/stabilizer stack.
• Q: What safety precautions are required when using magnetic embroidery hoops or magnetic embroidery frames during Ripple Stitch production?
  A: Keep fingers clear and keep magnetic hoops away from implanted medical devices; the magnets can pinch hard and unexpectedly.
  • Keep hands clear: Separate and mate the magnetic parts deliberately—never “catch” them with fingertips in the gap.
  • Control the workspace: Place hoops on a stable table so they cannot snap together unpredictably.
  • Follow pacemaker safety: Keep magnetic hoops at least 6 inches away from implanted medical devices.
  • Success check: The hoop closes with a controlled “snap” without any finger contact near the mating surfaces.
  • If it still fails… Slow the handling process down and reposition the fabric before closing; do not force the magnets together.
