Your First Machine Embroidery Setup (Without the Regrets): Hoop Size, Stabilizers, Thread, and the Tools That Actually Matter

If you are staring at your embroidery machine, a stack of stabilizer rolls, and a rainbow of thread packs thinking, “I just want my first design to stitch without eating my shirt,” you are not alone.

In my 20 years on the shop floor, I have seen thousands of beginners. Here is the truth: Beginners don’t fail because they lack artistic talent. They fail because embroidery is an engineering problem disguised as a craft. You fail because of physics—buying the wrong hoop size, pairing a heavy design with weak stabilizer, or fighting the natural distortion of fabric.

This post completely reconstructs the video’s starter advice into a Master Class Workflow. We will move beyond "tips" into a structured system: what to buy, exactly where to set your parameters, and the safety checks that professional operators use to prevent disasters before they press "Start."

The Calm-Down Truth: Your First Embroidery Machine Doesn’t Need to Be Fast—It Needs the Right Hoop Size

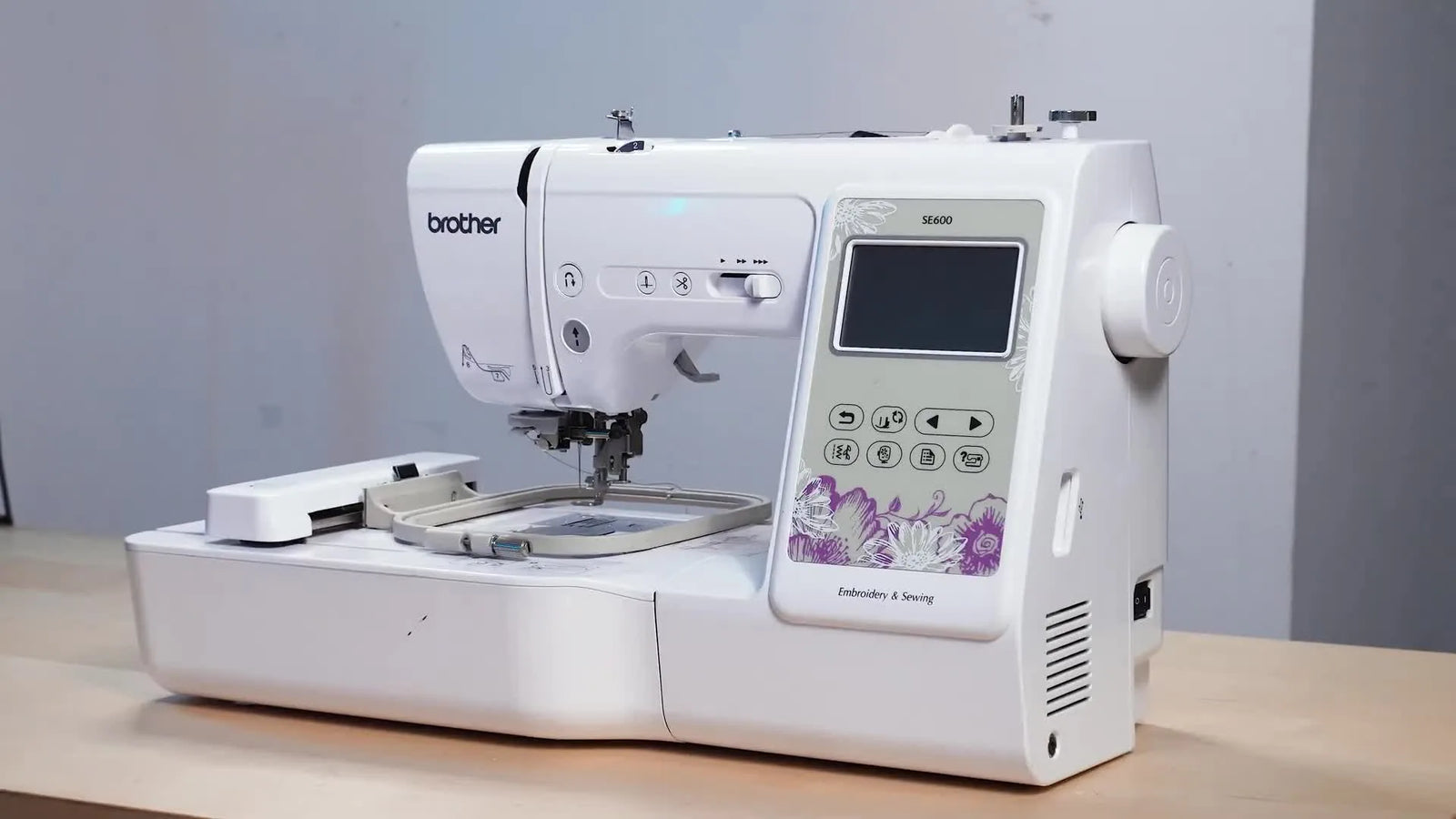

The video introduces the Brother SE600, a capable entry-level machine that teaches the fundamentals: tension mechanics, hooping discipline, and thread management. This is the correct mindset—your first machine is your professor, not your factory.

However, there is a hard lesson that most new embroiderers learn only after wasting months of effort: Hoop placement area matters infinitely more than stitches-per-minute (SPM).

When you are scrolling through listings searching for the best embroidery machine for beginners, do not let that keyword trick you into prioritizing "easy" over "capable." A strictly 4x4-inch field is a funnel. It stitches beautiful left-chest logos, but the moment you want to put a design on the back of a jacket or a large coherent graphic on a sweatshirt, you hit a wall.

4x4 vs 5x7: the difference you feel on Day 3

The host demonstrates the physical difference between a 4x4 hoop (entry-level) and a 5x7 hoop (mid-tier upgrade). Visually, it looks like a small step. In practice, it is the difference between a one-click success and a three-hour nightmare of splitting designs.

The Hidden Cost of "Splitting": To fit a large design into a small 4x4 hoop, you have to software-split the file into Part A and Part B. You stitch Part A, un-hoop the fabric, re-hoop it meticulously to align with Part B, and pray to the embroidery gods that they line up.

• The Reality: They rarely do. You end up with a visible gap or a "scar" running through your design.

Key Takeaway: If your budget allows, skip the 4x4 limitation. Machines like the Brother PE800 or SE1900 (or equivalent commercial multi-needles if you are ambitious) offer the 5x7 field. This allows you to stitch full designs in a single run, which is the single biggest factor in professional-looking output.

Warning: The "Re-Hooping" Trap
Attempting to re-hoop a garment mid-design to extend a pattern is the #1 cause of needle deflection for beginners. If the fabric shifts and the needle hits the plastic hoop frame, the needle will shatter.
* Risk: Shards of hot metal flying at your face or dropping into the machine’s bobbin case hooks.
* Safety Rule: Never attempt to "nudge" the hoop while the machine is running. If you must split designs, practice on scrap fabric first.

Comment reality check: used machines can be a smart start

A commenter notes they found a Brother PE770 locally for $140. This is a viable strategy. Embroidery machines are durable.

• Shop-Owner Advice: Buying used is smart only if you can see it run. Ask the seller to stitch a "H" test (a standard tension test block). If the column stitches are straight and the machine doesn't sound like a coffee grinder processing rocks, it’s a bargain.

The “Hidden” Prep Pros Do: Stabilizer, Needle, and Fabric Choices Before You Hoop Anything

Most beginners believe the workflow is: Hoop → Load → Stitch. This is wrong. The workflow is: Diagnose Fabric → Select Physics Package → Hoop.

Stabilizers are not just "paper." They are the structural foundation that prevents your T-shirt from turning into a puckered, distorted mess.

Prep Checklist (Do this BEFORE touching the hoop)

• Fabric Diagnosis: Is it a Knit (stretches like a T-shirt) or a Woven (stable like denim/canvas)?
• Stabilizer Match: Selected based on the "Decision Tree" below (not just what you have on hand).
• Needle Inspection: Run your fingernail down the needle tip. If you feel a "catch" or burr, throw it away. A burred needle destroys fabric.
• Hidden Consumable: Do you have Temporary Spray Adhesive (like 505) or a glue stick? You will need this to bond the stabilizer to the fabric to prevent "shifting" bubbles.
• Bobbin Check: Is the bobbin area clear of lint? (One dust bunny can ruin tension).

Stabilizers That Actually Solve Beginner Problems: Cutaway, No-Show Mesh, Tearaway, and Washaway Topper

If there is one section you must monetize, it is this. Stabilizer mistakes cause 90% of the "why does my embroidery look like a crater?" posts online.

1) Cutaway stabilizer (2.5 - 3.0 oz) for Stretches

The Law of Knits: If the fabric stretches (T-shirts, hoodies, polos), you must use Cutaway.

• The Physics: Knits are fluid; they move. Embroidery brings thousands of needle penetrations that cut fabric fibers. Tearaway stabilizer is removed after stitching, leaving the compromised fabric to hold the design alone. It will fail, sag, and tunnel. Cutaway stays forever, locking the stitches in a permanent sandwich.

2) No-Show Mesh (Poly-Mesh) for "The Halo Effect"

This is the "secret weapon" mentioned in the video.

• The Problem: On a white T-shirt, a thick 3oz Cutaway leaves a visible square outline (the "badge effect") through the shirt.
• The Solution: No-Show Mesh. It is a sheer, waffle-textured nylon that is incredibly strong but translucent. It creates a soft hand-feel against the skin and vanishes visually.


If you are looking up tutorials on hooping for embroidery machine specifically for lightweight summer wear, No-Show Mesh is the variable that changes your results from "home-made" to "store-bought."

3) Tearaway stabilizer for Stable Wovens

Tearaway is seductive because it is clean. You rip it off, and the back looks neat.

• Usage: Only use this on fabrics that do not stretch. Canvas totes, denim jackets, heavy twill caps.
• Sound Check: It should sound like crisp cardstock when you handle it.


4) Washaway Topper (Water Soluble) for Texture

Stitches sit in the fabric, not on it. If you embroider a towel or fleece without a topper, the loops of the towel will poke through your design, making it look moth-eaten.

• The Fix: Place a layer of Washaway Topper (looks like Saran wrap) on top of the fabric. The stitches form over the plastic, creating a smooth platform. Dissolve it later with water.


Pro Tip: Always use top-tension stabilizers (toppers) on velvet, corduroy, and coarse knits.

Stabilizer Decision Tree (The Logic for Success)

Use this logic flow for every single project. Do not guess.

• START: Is the fabric stretchy (Knit)?
  • YES $\rightarrow$ Use Cutaway.
    • Is it white/thin? $\rightarrow$ Use No-Show Mesh.
    • Is it a heavy hoodie? $\rightarrow$ Use Standard 2.5oz Cutaway.
  • NO (It is Woven/Stable) $\rightarrow$ Use Tearaway.
• NEXT: Does the surface have "fluff," pile, or loops (Towel/Velvet)?
  • YES $\rightarrow$ Add Water Soluble Topper on top.
  • NO $\rightarrow$ No topper needed.

Thread Choices That Reduce Breaks: 40 wt Polyester vs Rayon (Viscose)

The video’s advice here is empirically sound for modern machines.

• The Standard: 40 wt (Weight) is the global standard. 99% of digitizing files are designed for this thickness.
• The Material: Polyester vs. Rayon.
  • Rayon has a beautiful, silky natural sheen but is structurally weak. High-speed machines (600+ SPM) often snap Rayon if the tension isn't perfect.
  • Polyester is synthetic, strong, and colorfast (bleach resistant).




Sensory Tension Test: Pull a strand of thread between your hands. Rayon snaps with a soft pop. Polyester cuts into your fingers and requires force to break with a sharp snap. For beginners fighting frustration, Polyester is the lenient choice.

When you study hooping for embroidery machine guides, you will see experts blaming tension for breaks. Often, it is just old, brittle Rayon thread. Switch to Poly to lower the difficulty setting.

The Time-Saver That Feels Like Cheating: Pre-Wound Bobbins

Winding your own bobbins is a romantic notion that dies quickly. It introduces variable tension (if you wind it too loose, your design gets loopies).

The Upgrade: Pre-wound Bobbins. They are machine-wound at perfect, consistent factory tension. They hold 30% more thread than self-wound bobbins.

The Bobbin Class Safety Check

The comments section of the video highlights a critical danger zone: Bobbin Size.

• Class 15 (SA156): The standard for most modern Brother home machines (SE600, PE800). It is taller.
• L-Style: Shorter, used in commercial multi-needles and some older home machines.

Critical Action: If you put an L-Style bobbin in a Class 15 machine, it will "rattle" and jump, causing massive thread nests. If you force a Class 15 into an L-style case, it won't rotate. Check your manual. Do not guess based on Amazon pictures.

Needles: 75/11 Covers Most Beginner Jobs—But Match the Needle Type to the Machine

The needle is the most abused part of the machine. The video recommends 75/11, which is the "Goldilocks" size—perfect for cotton, tees, and standard wovens.

Expert Protocol:

1. Home Machines (SE600/PE800): Require Flat-Shank needles (HAx1 / 130/705H). The top of the needle has a flat side to ensure correct orientation.
2. Commercial Machines (Multi-needle): Require Round-Shank needles (DBxK5).

When to switch size?

• Use 75/11: Standard T-shirts, quilting cotton, poly blends.
• Use 90/14: Denim, Canvas, Leather, Heavy Fleece. (The thicker shaft prevents deflection).
• Use Ballpoint (BP): For knits. The tip slides between fibers rather than cutting them.

Curved Scissors + Tweezers: The “Embroidery Surgery” Tools

You need a "Surgery Kit." Domestic machines do not always trim jump stitches cleanly.

• Double-Curved Scissors: The curve allows the blades to sit parallel to the hoop, letting you snip threads flush against the fabric without accidentally puncturing the shirt.
• Precision Tweezers: Essential for "fishing" the bobbin thread up through the plate or grabbing a tiny thread tail before it gets sewn into the design.


Operation Checklist (The "Pre-Flight" 60 Seconds)

• Hoop Tension: Tap the fabric in the hoop. It should sound like a dull drum (taut) but not be stretched so tight the grain looks warped.
• Clearance: Is large fabric (like the rest of the hoodie) bunched up behind the needle bar? Ensure the path is clear so the machine arm doesn't drag the heavy fabric.
• Needle Security: Did you tighten the needle screw with a screwdriver (not just fingers)? Vibration loosens finger-tight screws.
• Presser Foot: Is the embroidery foot down? (Beginners often thread with the foot down but stitch with the foot up—this causes instant jamming).
• Speed Limiter: For your first run, set the speed slider to Medium (approx 400-500 SPM). Speed kills quality until stability is proven.

Getting Designs Without Wasting Money: Digitize, Hire, or Use a Simple App

The video outlines three paths. Here is the blunt reality of each:

1. Auto-Digitizing (Apps): Fun for hobbies, but often creates "bulletproof" designs (too dense) that break needles.
2. Hiring a Digitizer: The professional route. You send vector art; they send a DST/PES file.
3. Learning to Digitize: The ultimate freedom, but a steep learning curve.


Expert Note: A JPEG is not a stitch file. You cannot just "save as" embroidery. Stitches require physical commands (Underlay, Density, Compensation). If you buy a file online, look for reviews that show an actual stitch-out photo, not just a digital render.

The Fix (Step-by-Step): Your First Clean Stitch-Out Workflow

This workflow is designed to minimize variables.

1) The "Training Wheels" Project

Do not start with your favorite expensive hoodie. Start with Felt or Medium-weight Cotton.

• Why: They are stable, hide needle holes if you mess up, and don't stretch.

2) The Float Method (Alternative Hooping)

If hooping the shirt is too hard (crooked, stretched), try "Floating."

• Action: Hoop only the stabilizer tightly. Spray it with temporary adhesive. Lay the garment gently on top and smooth it down.
• Benefit: Zero "hoop burn" marks on the fabric and zero stretching distortion.

3) Monitor the Acoustics

Listen to your machine.

• Good Sound: Rhythmic chug-chug-chug.
• Bad Sound: Slap-slap (loose tension), Grind (needle hit), or Silence (thread break).
• Rule: Never walk away from the machine during a color change or the first 500 stitches.

The “Why” That Prevents Repeat Failures: Hooping Physics & The Upgrade Path

Eventually, you will hit the limits of the standard plastic hoop. This is where the industry separates hobbyists from producers.

The Problem: Hoop Burn and Hand Fatigue

Standard plastic hoops require you to force an inner ring into an outer ring, crushing the fabric in between.

• Result: "Hoop Burn"—a shiny, crushed ring on delicate fabrics (velvet, dark cotton) that often doesn't wash out.
• Fatigue: Hooping 50 shirts a day with a screw-tighten hoop will destroy your wrists.

The Solution: Magnetic Hoops

When you are ready to upgrade your efficiency, professionals switch to Magnetic Hoops.

• How they work: Top and bottom frames snap together using industrial magnets. No screwing, no forcing.
• Trigger: If you are searching for a brother 5x7 magnetic hoop, you are likely trying to solve the issue of clamping thick items (like towels) or delicate items where plastic hoops fail.
• Benefit: They hold fabric firmly without "crushing" geometric distortions into the weave. For PE800 users, finding a compatible magnetic hoop for brother pe800 can reduce hooping time by 40%.

Warning: Magnetic Force Safety
Commercial-grade magnetic hoops are incredibly powerful.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the mating surface.
* Medical Devices: If you have a pacemaker or insulin pump, maintain a safe distance (check manufacturer specs), as the magnetic field is significant.

Commercial Scalability

If you plan to sell your work, your "starter kit" must evolve into a "production kit." Use Pre-wound bobbins to save time. Use Magnetic Hoops to save your body and reduce product waste. Use quality stabilizer to ensure the patch doesn't curl after one wash.

Troubleshooting the Beginner Nightmares (Symptoms → Likely Cause → Fix)

Hats, Jeans Pockets, and “Can This Machine Do That?”

The comments section often asks ambitious questions. Here is the engineering reality.

Can I do Hats?

• Single-Needle Home Machine: Yes, but only "unstructured" (floppy) dad-hats. You must flatten them on the hoop.
• Structured Caps (New Era Style): No. The stiff buckram front cannot be flattened. To do these, you need a specialized tubular machine (Multiple Needle) with a true rotational Cap Driver.
• The Search: If you are looking for a cap hoop for brother embroidery machine (flatbed style), know that it essentially clamps the hat bill flat. It works, but it is a struggle compared to professional equipment.

Can I do Jeans Pockets?

• The Constraint: It is not the needle power; it is the access. You cannot hoop a back pocket without sewing it shut—unless you rip the pocket off, embroider it, and sew it back on.
• Production Tip: This is why professionals use small "Free Arm" machines that can slide inside the leg, though pockets remain very tight spaces even for pros.

The Upgrade Path (Results): Spend Money Where It Buys You Time

Your journey starts with a machine, but your success comes from your ecosystem of tools.

If you are frustrated by the 4x4 limit, you will eventually upgrade. When comparing the brother se600 hoop limits against the expansion options of brother se1900 hoops, you are buying creative freedom.

Setup Checklist (The "Buy Right, Buy Once" List)

• Machine: Minimum 5x7 field strongly recommended.
• Hooping: A standard hoop for learning, followed by a Magnetic Hoop upgrade when volume increases.
• Stabilizer Core 4: Cutaway (2.5oz), No-Show Mesh, Tearaway, Water Soluble Topper.
• Adhesion: Temporary Spray Adhesive (e.g., Odif 505).
• Thread: 40wt Quality Polyester + Class 15 Pre-wound Bobbins.
• Needles: Organ or Schmetz 75/11 (Sharp & Ballpoint) + 90/14.
• The Surgery Kit: Double-curved scissors + Precision Tweezers.

Embroidery is a game of variables. Control the variables—Stabilizer, Hoop, Thread, Needle—and the machine will do the rest. Welcome to the craft.

FAQ

• Q: For Brother SE600 or Brother PE800 embroidery machines, how can embroidery machine threading mistakes cause birdnesting under the fabric, and what is the fastest fix?
  A: Rethread the Brother SE600 or Brother PE800 completely—birdnesting usually happens when the top thread misses the tension path.
  • Lift the presser foot UP before threading so the thread can seat in the tension disks.
  • Rethread from the spool to the needle exactly in order, then reinsert the bobbin correctly.
  • Clean visible lint in the bobbin area before restarting.
  • Success check: Stitching sound becomes steady “chug-chug,” and the underside shows clean bobbin lines instead of a thread wad.
  • If it still fails: Stop and confirm the bobbin type matches the machine manual (Class 15 vs L-style), because the wrong bobbin can rattle and instantly nest.
• Q: For Brother SE600 and Brother PE800, how can Class 15 bobbin vs L-style bobbin confusion cause thread nests and tension problems?
  A: Use the bobbin size specified in the Brother SE600 or Brother PE800 manual—mixing Class 15 and L-style can cause rattling, jumping, or no rotation.
  • Check the manual for the correct bobbin class before buying pre-wound bobbins.
  • Replace any mismatched bobbin immediately (do not “make it work”).
  • Re-seat the bobbin and rethread the top thread after the swap.
  • Success check: The bobbin runs smoothly with no rattling sound, and the machine does not form a sudden knot under the fabric.
  • If it still fails: Clear lint from the bobbin case area and run a small test design on scrap to confirm tension stability.
• Q: On a Brother PE800 or Brother SE1900, what is the safest way to avoid needle breakage when splitting a large design across multiple hoopings?
  A: Avoid re-hooping mid-design whenever possible—re-hooping is a top cause of needle deflection and broken needles on home embroidery machines like the Brother PE800 and Brother SE1900.
  • Choose a hoop field that can stitch the design in one run when budget allows (5x7 reduces forced splits).
  • If splitting is unavoidable, practice the split alignment on scrap fabric first, not on a garment.
  • Never “nudge” or pull the hoop while the machine is running.
  • Success check: The needle never contacts the hoop frame, and the machine sound stays rhythmic (no “grind” or sudden snap).
  • If it still fails: Stop immediately and inspect the needle for damage/burrs; replace the needle before restarting.
• Q: For home embroidery machines that use HAx1 / 130/705H flat-shank needles, how can a burred needle cause thread shredding and fabric damage, and what should be done first?
  A: Replace the needle immediately—on flat-shank systems (HAx1 / 130/705H), a tiny burr can shred thread and tear fabric fast.
  • Run a fingernail lightly down the needle tip; if it “catches,” discard the needle.
  • Start with a 75/11 needle for most beginner fabrics; move up to 90/14 for denim/canvas/heavy fleece if deflection happens.
  • Use ballpoint needles for knits to reduce cutting fibers.
  • Success check: Thread stops fraying at the needle, and stitches form cleanly without fuzzy edges.
  • If it still fails: Recheck top threading with presser foot UP and confirm the fabric is stabilized correctly for its stretch level.
• Q: When hooping for a Brother PE800 or Brother SE600, what is the correct hoop tightness standard to prevent puckering and shifting?
  A: Hoop the fabric taut like a dull drum, not stretched—over-stretching causes distortion, and under-tension allows shifting.
  • Tap the hooped fabric and aim for a dull drum sound (taut and even).
  • Bond stabilizer to fabric using temporary spray adhesive or a glue stick to prevent “bubble” shifting.
  • Keep excess garment fabric clear so the machine arm does not drag it during stitching.
  • Success check: After stitching, the design area lies flat with minimal ripples and no obvious fabric grain warp.
  • If it still fails: Upgrade stabilizer strength (dense designs on knits usually need cutaway rather than tearaway).
• Q: For stitching on towels, fleece, velvet, or corduroy using a Brother PE800 or Brother SE1900, when is a water-soluble topper required and how do you verify it worked?
  A: Add a water-soluble topper on top whenever the surface has pile/loops—this prevents stitches from sinking in and looking “moth-eaten.”
  • Place the topper over the fabric before stitching and hoop or secure as needed so it stays flat.
  • Stitch the design, then dissolve/remove the topper with water after completion.
  • Success check: Satin stitches sit on top cleanly and the fabric loops do not poke through the lettering/fills.
  • If it still fails: Increase stabilization underneath (especially on stretchy fabrics) because topper fixes surface texture, not base support.
• Q: For Brother PE800 users considering a magnetic embroidery hoop upgrade, what problems do magnetic hoops solve and what are the key safety precautions?
  A: Use magnetic hoops when hoop burn, wrist fatigue, or inconsistent clamping is the bottleneck—magnetic frames clamp firmly without crushing fabric like screw hoops, but pinch hazards are real.
  • Upgrade path: First optimize technique (hoop tension, stabilizer match), then consider magnetic hoops when volume or delicate fabrics make plastic hoops a recurring problem.
  • Keep fingers completely clear when bringing the magnetic top and bottom together; magnets snap shut instantly.
  • Maintain a safe distance from medical devices like pacemakers or insulin pumps and follow manufacturer guidance.
  • Success check: Hooping becomes faster and repeatable, and delicate fabrics show fewer shiny “hoop burn” rings after stitching.
  • If it still fails: Reassess stabilizer choice and adhesion (spray/glue) because magnetic clamping cannot compensate for under-stabilized fabric.
